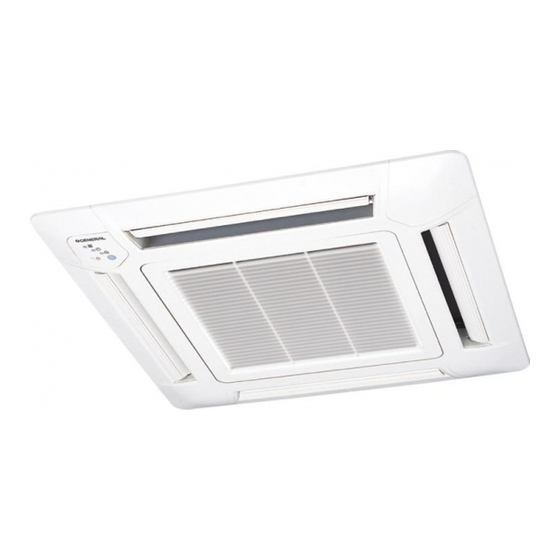

SPLIT TYPE
AIR CONDITIONER
CASSETTE
type (50Hz)
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 9
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 12
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Models
Indoor unit
AUG12FBAB
AUG12UBAB
AUG14FBAB
AUG14UBAB
C O N T E N T S
Outdoor unit
AOG12FSAJ
AOG12USAJL
AOG14FSDJ
AOG14USDJL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for General AUG12FBAB
Summary of Contents for General AUG12FBAB
-
Page 1: Table Of Contents

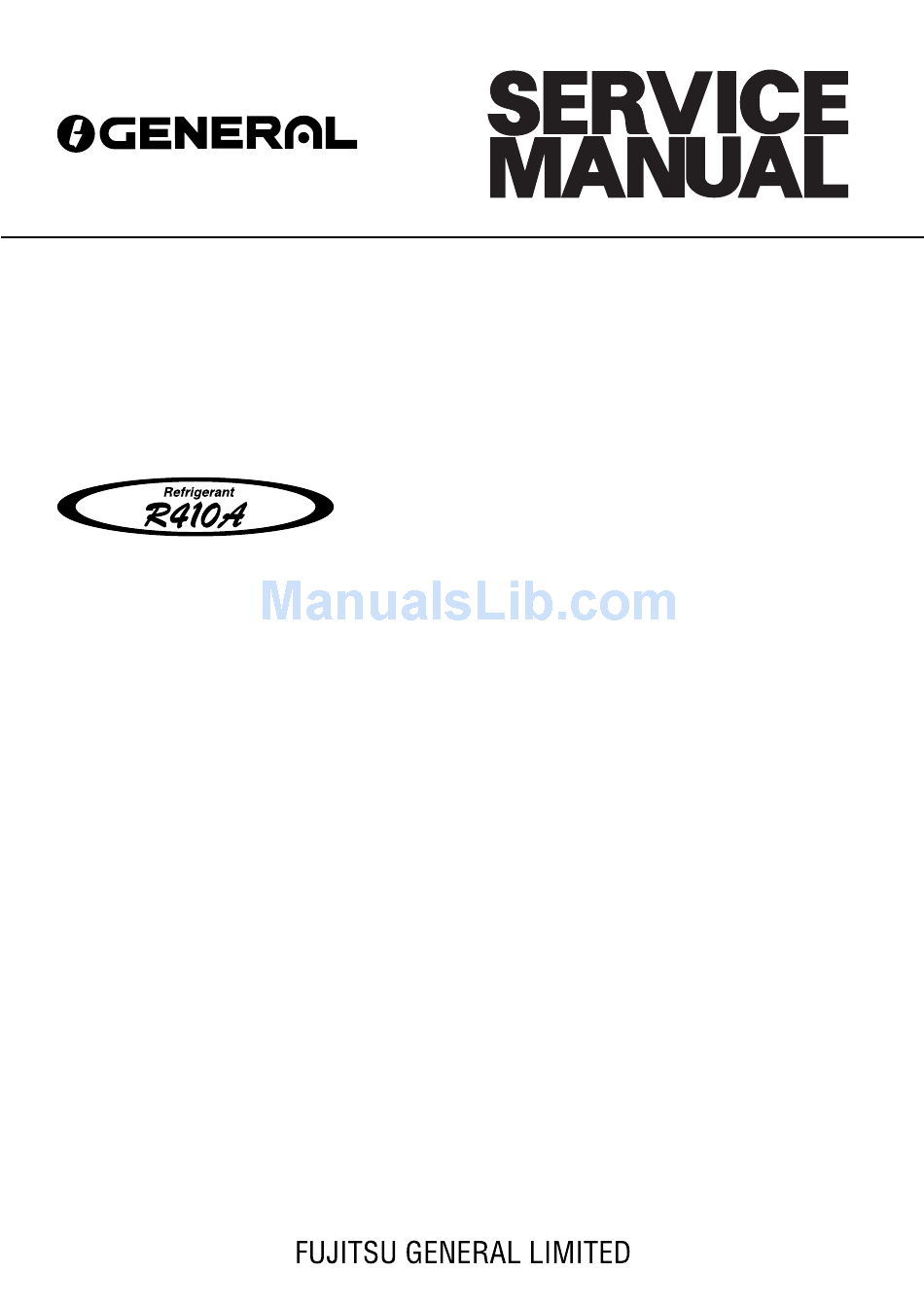

SPLIT TYPE Models Indoor unit Outdoor unit AIR CONDITIONER AUG12FBAB AOG12FSAJ AUG12UBAB AOG12USAJL CASSETTE type (50Hz) AUG14FBAB AOG14FSDJ AUG14UBAB AOG14USDJL C O N T E N T S SPECIFICATIONS ........1 OUTLINE AND DIMENSIONS . -
Page 2: Specifications
S P E C I F I C A T I O N S TYPE COOL COOL & HEAT INDOOR UNIT AUG12FBAB AUG12UBAB OUTDOOR UNIT AOG12FSAJ AOG12USAJL COOLING CAPACITY (kW) 3.60 3.55 HEATING CAPACITY (kW) ––––– 4.00 ELECTRICAL DATA POWER SOURCE... -
Page 3: Noise Level
AUG12FBAB AUG12UBAB MODELS AOG12FSAJ AOG12USAJL COOLING 28.5 30.0 DISCHARGE kg/cm PRESSURE HEATING ––––– 28.0 COOLING SUCTION kg/cm PRESSURE ––––– HEATING COOLING DISCHARGE TEMP. ––––– HEATING REFRIG. PIPE LENGTH COOLING DISCHARGE AIR TEMP. HEATING ––––– INDOOR COOLING 27.0 / 19.0 DB/WB... - Page 4 TYPE COOL COOL & HEAT INDOOR UNIT AUG14FBAB AUG14UBAB OUTDOOR UNIT AOG14FSDJ AOG14USDJL COOLING CAPACITY (kW) 4.10 3.95 HEATING CAPACITY 4.60 (kW) ––––– ELECTRICAL DATA POWER SOURCE FREQUENCY (Hz) COOLING RUNNING CURRENT HEATING ––––– COOLING 1.39 1.40 INPUT WATTS (kW) 1.42 HEATING –––––...
- Page 5 AUG14FBAB AUG14UBAB MODELS AOG14FSDJ AOG14USDJL COOLING 31.0 31.0 DISCHARGE kg/cm PRESSURE HEATING ––––– 31.0 COOLING SUCTION kg/cm PRESSURE ––––– HEATING COOLING DISCHARGE TEMP. ––––– HEATING REFRIG. PIPE LENGTH COOLING DISCHARGE AIR TEMP. HEATING ––––– INDOOR COOLING 27.0 / 19.0 ENTERING DB/WB HEATING 20.0 / ––...
-
Page 6: Outline And Dimensions
O U T L I N E A N D D I M E N S I O N S INDOOR UNIT (unit : mm) ( 650) (Grille measurement) (Hanging bolt position) Drain pipe (I.D. 32) (Ceiling opening measurement) 2004.05.12... - Page 7 OUTDOOR UNIT (unit : mm) 2004.04.27...
-
Page 8: Circuit Diagram
C I R C U I T D I A G R A M Models : AUG12FBAB, AUG14FBAB Models : AOG12FSAJ, AOG14FSDJ 2004.05.10... - Page 9 Models : AUG12UBAB, AUG14UBAB Models : AOG12USAJL, AOG14USDJL 2004.05.10...
-
Page 10: Refrigerant System Diagram
R E F R I G E R A N T S Y S T E M D I A G R A M Models : AUG12FBAB / AOG12FSAJ INDOOR UNIT OUTDOOR UNIT Refrigerant pipe Distributor 6.35mm(1/4") Capillary tube Strainer... - Page 11 Models : AUG14FBAB / AOG14FSDJ INDOOR UNIT OUTDOOR UNIT Refrigerant pipe Distributor 6.35mm(1/4") Capillary tube Strainer Evaporator Condenser Refrigerant pipe 12.7mm(1/2") Charging valve Compressor Models : AUG14UBAB / AOG14USDJL INDOOR UNIT OUTDOOR UNIT Refrigerant pipe Strainer Distributor 6.35mm(1/4") Capillary tube Compressor Evaporator Condenser...
-
Page 12: Error Contents
E R R O R C O N T E N T S CHECK ITEMS Operation can be checked by lighting and flashing of the grille display section OPERATION and TIMER lamps. Perform judgment in accordance with the following. 1. INDOOR UNIT (1) Is operation of each button on the remote control unit MANUAL SWING... -
Page 13: Indoor Printed Circuit Board Circuit Diagram
C I R C U I T B O A R D C I R C U I T D I A G R A M Models : AUG12FBAB AUG14FBAB CONTROLLER PCB ASSEMBLY ( MAIN PCB ) EZ-003SWSE-C R15 - R17 ROOM TEMPERATURE THERMISTOR 10K <1/10W>... - Page 14 CONTROLLER PCB ASSEMBLY ( MAIN PCB ) Models : AUG12UBAB AUG12UBAB : EZ-00327HSE-C AUG14UBAB AUG14UBAB : EZ-00306HSE-C R15 - R17 ROOM TEMPERATURE THERMISTOR B2B-XASK-1-A 10K <1/10W> x 3 CN8-1 BLACK R5 62K R18 1.0K <1/10W> <2W> 1 P15 CN8-2 4700P BLACK NOT USED I C 1...
-
Page 15: Disassembly Illustration
D I S A S S E M B L Y I L L U S T R A T I O N INDOOR UNIT 117-3 652-1 184-1 476-3 476-2 476-1 2004.06.04... - Page 16 INDOOR UNIT 824-3 989-2 989-1 2004.06.04...
- Page 17 Model : UTG-UDGD-W 876-2 711-2 711-1 2004.06.04...
- Page 18 OUTDOOR UNIT 2004.06.04...
- Page 19 Models : AOG12FSAJ AOG12USAJL AOG14FSDJ AOG14USDJL 2004.06.04...
- Page 20 Models : AOG12FSAJ AOG14FSDJ 2004.04.28...
- Page 21 Models : AOG12USAJL 2004.04.28...
- Page 22 Models : AOG14USAJL 2004.04.28...
- Page 23 Models : AOG12FSAJ AOG12USAJL AOG14FSDJ AOG14USDJL COOL & HEAT MODEL ONLY 218-3 824-4 823-2 982-2 982-1 982-1 982-2 2004.06.04...
-
Page 24: Parts List
W hen you order parts, please make a photocopy of this page IN DOOR U N IT and fill the number of the parts in the "Order" column. Part No. Ref. Ord. Description Q'ty AUG12FBAB AUG12UBAB AUG14FBAB AUG14UBAB Capacitor (Fan Motor) 9704305046 9704305046 9704305046... - Page 25 GRILLE ASSY (UTG-UDGD-W) Ref. Ord. Ref. Ord. Description Description Part No. Part No. Q'ty Q'ty Filter 9359632009 J oint S haft 9359625001 Motor Cover 9359623014 Cam Gear 9359628002 Clamp S KB-150 313035356905 Panel 9359619017 Motor Gear 9359629009 Louver 9359624011 Indicator PCB Assy 9702224011 Intake Grille 9370126006...
- Page 26 OUTDOOR UNIT Ref. Part No. Ord. Description Q' ty AOG12FSAJ AOG12USAJL AOG14FSDJ AOG14USDJL Guard (Fan) 9304109006 9304109006 9304109006 9304109006 Emblem-Rear (GENERAL) 313698088313 313698088313 313698088313 313698088313 Cabinet Painted 9302936017 9302936017 9302936017 9302936017 Cover (Switch) Assy 9357970004 9357970004 9357970004 9357970004 Panel (Cabinet Rear) Painted...
-
Page 27: Standard Accessories
S T A N D A R D A C C E S S O R I E S INDOOR UNIT ACCESSORIES Name and Shape Application Part No. Coupler heat insulation For indoor side 9350716029 pipe joint 9352766015 Special nut A For installing (large flange) indoor unit... - Page 28 0404G2580...
