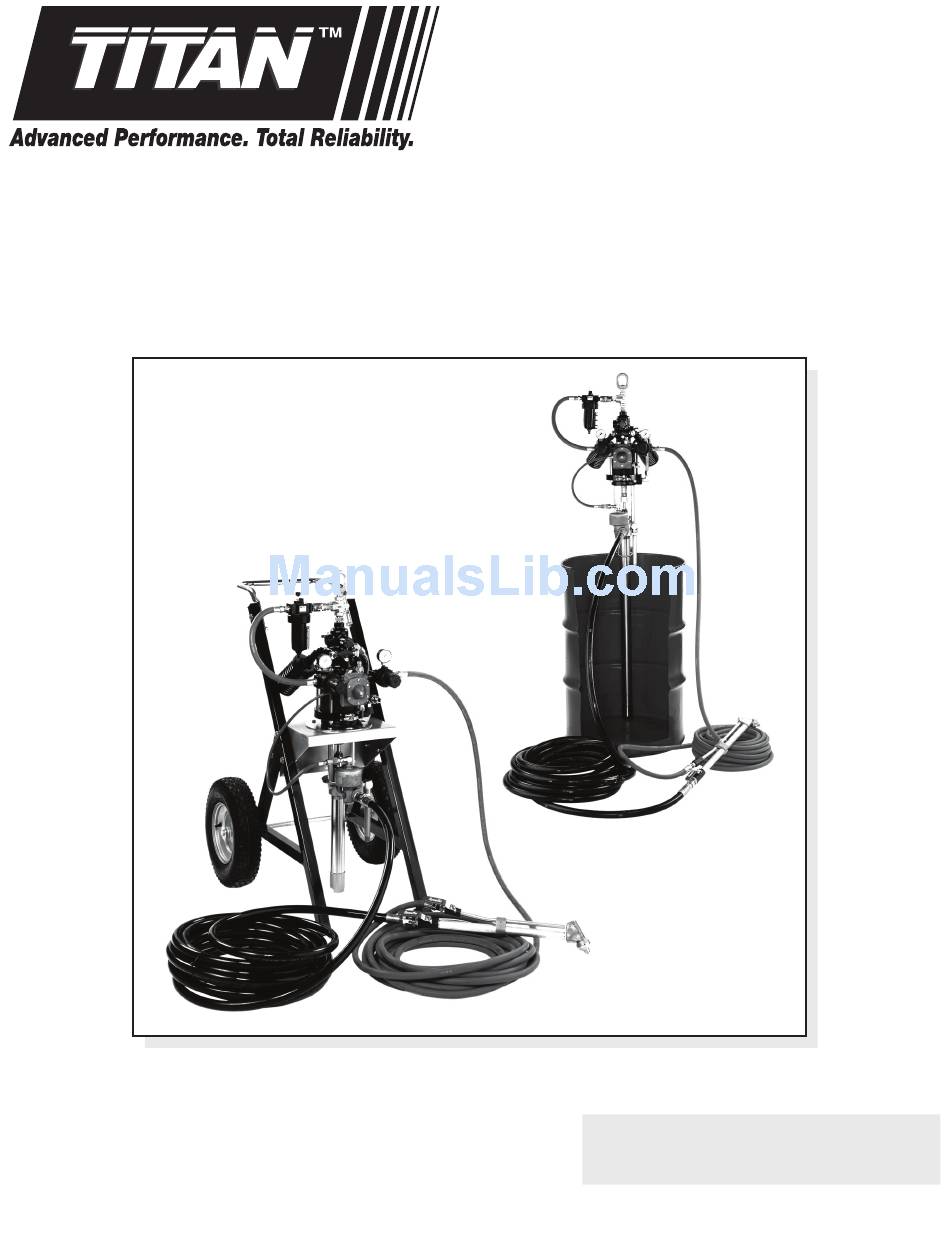

  • Page 1 Heavy Material Sprayer Model Numbers: NOTE: This manual contains important Cart Mount 515-592 warnings and instructions. Please read and retain for reference. Drum Mount 515-597 Printed in the U.S.A. © Titan Tool Inc. All Rights Reserved. Form No. 0528921B 0912 •...
  • Page 2 • Fire extinguisher must be present and in good working • This system is capable of producing 100 PSI / 0.69 order. MPa. Only use replacement parts or accessories that are specified by the manufacturer and that are rated a © Titan Tool Inc. All rights reserved.

  • Page 3: Table Of Contents

    Cart Mount ....... 5 gallon (19 liters) Grounding the Pump Drum Mount ..... 55 gallon (208 liters) Be sure the PowrTex 15:1 system is grounded. All Titan units Ratio ......... 15:1 are equipped with a grounding lug. A Grounding Clamp, Part No.

  • Page 4: Powrtex 15:1 Assemblies

    Pole Gun assembly Item Part # Description Quantity 701-802 Heavy material pole gun w/ 3/8” nozzle..1 450-034 Fluid hose assembly, 3/4” x 50’ ....1 550-112 Air hose assembly, 1/2” x 50’ ....1 © Titan Tool Inc. All rights reserved.

  • Page 5: Fluid Pump Assemblies

    Service kit, major, drum mount (includes items 4, 10, 17, 23 and minor service kit 173-051). 173-503 Service kit, major, cart mount (includes items 4, 10, 17, 23 and minor service kit 173-051). © Titan Tool Inc. All rights reserved.

  • Page 6: Air Motor Assembly

    18, 29 and 32) 525-051 Motor service kit, minor (includes items 4-6, 15, 18, 21, 24-25, 31, 34, and 36) 525-501 Motor service kit, major (includes items 14, 19-20, 22, 29, and 32) © Titan Tool Inc. All rights reserved.

  • Page 7: Service Instructions

    The 525 Air Motor should be served with moisture-free air if down on air valve hand-tight, and then loosened possible, and for this, a water trap such as Titan model 141- approximately 1/4 turn or .009” gap. Place wrench on 157 is recommended.

  • Page 8: Stediflo™ Air Control Assembly

    Operation at very high cycle rates (i.e. greater than 60) will require a higher AirCare™ injection rate. IMPORTaNT: use only Titan aircare™ part # 311-101 lubricant. use of any detergent-type lubricants will cause a serious problem with the pump and void the warranty.

  • Page 9: Cleanout Procedure

    Elbow, 90º ..........1 138-037 Swivel adapter ..........1 819-005 Pipe ............1 automatic Lubricator Item Part # Description Quantity 814-007 3/4” hex nipple ..........2 940-561 Shut-off valve..........1 830-564 Elbow, 90º ..........1 151-155 Lubricator assembly .........1 © Titan Tool Inc. All rights reserved.

  • Page 10: Stediflo™ Air Valve Service Kit

    PTFE ball seal .........1 950-220 Spring ............1 951-017 Gasket ............1 541-016 Pin ............1 950-222 Pilot shaft nut ..........1 950-223 Screw, 1/4” x 1/4” ........6 950-239 Diphragm ..........2 950-907 Central housing ........1 950-917 Diaphragm cover ........1 © Titan Tool Inc. All rights reserved.

  • Page 11: Material Valve Parts List

    Packing nut ..........1 951-011 O-ring ............1 858-620 Pan head screw, 1/4”........1 951-013 O-ring ............1 951-014 O-ring ............1 951-016 Seat, PTFE ..........1 951-002 Washer .............1 951-907 Valve body ..........1 951-917 Valve body cap .........1 © Titan Tool Inc. All rights reserved.

  • Page 12: Pole Guns, Mastic, Air Atomizing, 701 Series

    Tube, air, 1/4” x 1/4” 103-517 Tube, fluid, 3/4” x 17” 701-916 Clamp, threaded 701-914 Clamp, drilled 701-905 Flat head screw 929-061 Bushing 940-553 Air valve, 1/4” 814-003 Adaptor 940-558 Material valve, 3/4” 138-037 Swivel adaptor © Titan Tool Inc. All rights reserved.

  • Page 13: Operation

    701-624 1/4”- 6.3mm Flat As above but capable of higher speed of 15-25 426-710 40-80 3 - 5.5 701-622 701-628 3/8”- 9.5mm Round application 15-25 426-710 40-80 3 - 5.5 701-619 701-628 3/8”- 9.5mm Flat © Titan Tool Inc. All rights reserved.

  • Page 14: Misc. Parts Listings

    590-100 Retaining ring ...........2 Part # Length Fluid Nozzle 701-302 2 ft (61 cm) 3/16” (4.76 mm) 701-402 2 ft (61 cm) 1/4” (6.35 mm) 701-802 2 ft (61 cm) 3/8” (9.52 mm) © Titan Tool Inc. All rights reserved.

  • Page 15: Troubleshooting

    O-rings are worn or damaged. Install minor service kit and follow instructions in General Maintenance and Service section of manual. If dust or dirt is found inside motor, check air supply for contamination. © Titan Tool Inc. All rights reserved.

  • Page 16: Warranty

    Warranty Titan Tool, Inc., (“Titan”) warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty published by Titan, Titan’s obligation under this warranty is limited to replacing or repairing without charge those parts which, to Titan’s reasonable satisfaction, are shown to be defective within twelve (12) months after...
