Titan IMPACT X 120 18V Operation Manual

Titan IMPACT X 120 18V Operation Manual

High efficiency airless hea spraying unit

Advertisement

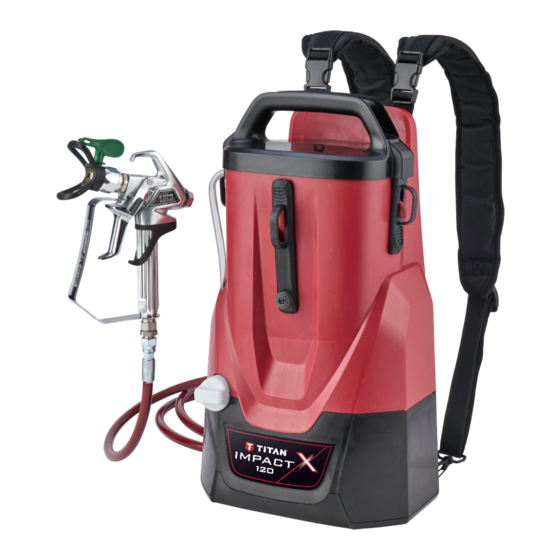

IMPACT X
120 18V
HIGH EFFICIENCY AIRLESS (HEA)
SPRAYING UNIT
GROUPE DE PROJECTION À HAUTE
EFFICACITÉ PRESSION (HEA)
EQUIPO DE ALTA EFICIENCIA
PRESIÓN PARA PULVERIZAR (HEA)
Model: 2441253A
READ THIS MANUAL FOR
COMPLETE INSTRUCTIONS
LIRE CE MANUEL POUR OBTENIR
DES DIRECTIVES COMPLÈTES
LEA ESTE MANUAL PARA OBTENER
LAS INSTRUCCIONES COMPLETAS
- EN -
- F -
- ES -
OPERATION MANUAL
OPERATION MANUAL
MODE D'EMPLOI
INSTRUCCIONES DE USO
0224
2
24
46
• Form No. 2457594B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPACT X 120 18V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Titan IMPACT X 120 18V

  • Page 1 OPERATION MANUAL IMPACT X - EN - OPERATION MANUAL ™ - F - MODE D’EMPLOI 120 18V - ES - INSTRUCCIONES DE USO HIGH EFFICIENCY AIRLESS (HEA) SPRAYING UNIT GROUPE DE PROJECTION À HAUTE EFFICACITÉ PRESSION (HEA) EQUIPO DE ALTA EFICIENCIA PRESIÓN PARA PULVERIZAR (HEA) Model: 2441253A READ THIS MANUAL FOR...
  • Page 2: Table Of Contents

    IMPORTANT SAFETY INFORMATION IMPACT X 120 EXPLANATION OF SYMBOLS TABLE OF CONTENTS Read all safety information before operating the equipment. Save IMPORTANT SAFETY INFORMATION ___________________ 2-6 these instructions. Grounding instructions ________________________________ 2 To reduce the risks of fire or explosion, electrical shock and the Explanation of Symbols ________________________________ 2 injury to persons, read and understand all instructions included in Safety Hazards _____________________________________ 3-6...
  • Page 3: Safety Hazards

    Inspect hose before each use. Replace any of the spray system, including the pump, hose assembly, spray damaged hoses or parts. Only use Titan original-high-pressure gun and objects in and around the spray area shall be properly hoses in order to ensure functionality, safety and durability.
  • Page 4 IMPORTANT SAFETY INFORMATION IMPACT X 120 CHARGER SAFETY RULES well ventilated. The pump contains arcing parts that emit sparks and can ignite vapors. • 1. SAVE THESE INSTRUCTIONS – This manual contains Plastic can cause static sparks. Never hang plastic to enclose important safety and operating instructions for battery spray area.
  • Page 5 Check battery pack terminals and charger connectors for dirt. may result. Clean with cotton swab and alcohol if necessary. d. If you still do not get proper charging, call Titan Customer Service Do not expose a battery pack or appliance to fire or at 1-800-526-5362.
  • Page 6 IMPORTANT SAFETY INFORMATION IMPACT X 120 ELECTRONIC CELL PROTECTION (ECP) CHARGING BATTERY PACK The lithium ion battery is protected against deep discharging by the The battery charger charges the battery. The charger will bring a fully “Electronic Cell Protection (ECP)”. When the battery is empty, the depleted battery to a full charge in approximately 45 minutes.
  • Page 7: General Information

    When the battery pack is fully charged, unplug the charger (unless you’re charging another battery pack) and slip the battery pack back into the tool. SPECIFICATIONS Impact X 120 18V Maximum Pressure 1600 PSI (11.1 MPa) Flow Rate 0.24 GPM (0.91 LPM) Tank Capacity 1.25 gallon (4.7 l)
  • Page 8: Parts And Components

    PARTS AND COMPONENTS IMPACT X 120 PRIME SPRAY ITEM DESCRIPTION Tank lid / carry When properly secured, the handle on top of the lid can be used to carry the unit. To remove the lid, pull the tabs (a) on handle the sides of the lid down and away from the tank.
  • Page 9: Assembly

    ASSEMBLY IMPACT X 120 ASSEMBLY Do not install the battery until assembly is complete. Remove the plastic cap from the material outlet and the plastic plug from the end of the spray hose prior to assembly. TOOLS NEEDED • Two 6” adjustable wrenches ATTACH THE STRAPS Insert the clips into the strap holders as shown until they snap into place.
  • Page 10: Before You Begin

    BEFORE YOU BEGIN IMPACT X 120 This section contains instructions that will be repeated throughout this manual. Read and understand this section before using the equipment. SPRAY GUN TRIGGER LOCK LOCKED Engage the trigger lock whenever instructed. To lock the trigger, push in the trigger lock from left to right, when looking at the rear of the gun.
  • Page 11: Load Material

    LOAD MATERIAL IMPACT X 120 These steps will prime the system and get it ready to spray. YOU WILL NEED PUSH • The material you plan to spray • Waste bucket Recommendation: It is good practice to perform the steps on this page using water to familiarize yourself with the function of the unit as well as to ensure the unit is set up properly.
  • Page 12: Spraying

    SPRAYING IMPACT X 120 Follow these steps to deliver spray material from the tank to the spray gun. YOU WILL NEED • Waste bucket, • Scrap material / cardboard • Adjustable wrench • Drop cloths to protect floors and furnishings from overspray Make sure the tip and spray guard are removed.
  • Page 13: Practice Spraying

    PRACTICE SPRAYING IMPACT X 120 YOU WILL NEED • A surface to practice spraying (wood, cardboard or scrap drywall) While spraying, the spray guard / tip assembly can be rotated to better suit your spraying motion. Lock the spray gun trigger prior to rotating the spray guard / tip assembly.
  • Page 14: Spraying Troubleshooting

    SPRAYING TROUBLESHOOTING - UNCLOGGING THE SPRAY TIP / SPRAY GUN FILTER IMPACT X 120 If the spray pattern becomes distorted or stops spraying completely while the gun is triggered, the spray tip or spray gun filter could be clogged. Follow the steps below. UNCLOGGING THE SPRAY TIP YOU WILL NEED: •...
  • Page 15: Clean The Inlet Filter

    SPRAYING TROUBLESHOOTING - CLEAN THE INLET FILTER IMPACT X 120 If the spray pattern becomes distorted or stops spraying completely while the gun is triggered, the inlet filter could be clogged. Follow the steps below. YOU WILL NEED • Warm, soapy water for latex material •...
  • Page 16: Short Term Storage

    SHORT TERM STORAGE IMPACT X 120 This procedure should be used when taking a short term break or when ending your project for the day. If your break is longer than 16 hours follow Cleanup instructions, pages 17-18. YOU WILL NEED •...
  • Page 17: Cleanup

    CLEANUP IMPACT X 120 CLEANING NOTES - READ BEFORE CLEANING FOLLOW THESE STEPS WHENEVER CLEANING WITH MINERAL SPIRITS: • When using latex material, clean sprayer and components with • warm, soapy water. For oil based material use mineral spirits. If spraying or cleaning with oil-based materials, the spray gun Never use mineral spirits with latex materials.
  • Page 18 CLEANUP - CONTINUED IMPACT X 120 Perform Pressure Relief Procedure (page 10). Remove the inlet filter. Clean by hand using a soft-bristled brush. Snap back into place when clean. Remove the tip guard and spray tip from the cleaning solution. Clean by hand using a soft bristled brush.
  • Page 19: Long Term Storage

    LONG TERM STORAGE IMPACT X 120 Follow these steps to prepare your sprayer for long-term storage. YOU WILL NEED • Light household oil (such as 10W30 motor oil or vegetable oil for example) / Piston Lube • Rags • Two adjustable wrenches Lock the spray gun.
  • Page 20: Maintenance

    MAINTENANCE - CLEANING THE INLET VALVE IMPACT X 120 Cleaning or servicing the inlet valve may be required if the unit has priming problems. Priming problems may be prevented by properly cleaning the sprayer and following the long-term storage steps. YOU WILL NEED •...
  • Page 21: Cleaning The Outlet Valve

    MAINTENANCE - CLEANING THE OUTLET VALVE IMPACT X 120 Cleaning or servicing the outlet valve may be necessary if spray performance remains poor after following the steps in the Troubleshooting section. Call Technical Service (1-800-526-5362) to order a new outlet valve assembly. YOU WILL NEED •...
  • Page 22: Troubleshooting

    TROUBLESHOOTING IMPACT X 120 PROBLEM CAUSE SOLUTION A. The sprayer does not turn on. 1. The battery is not properly installed / charged. 1. Reinstall the battery or charge to full. 2. The sprayer is turned OFF (0). 2. Switch the sprayer ON (l). 3.
  • Page 23: Warranty

    If any product is defective in material and workmanship during the applicable warranty period, return it with proof of purchase, transportation prepaid to Titan Tool, 6151 Queens Ave., Otsego, MN 55330. Titan will either repair or replace the product (at Titan’s option) and return it to you, postage prepaid.
  • Page 24: Parts List

    PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS MAIN ASSEMBLY • ENSEMBLE PRINCIPAL • MONTAJE PRINCIPAL Impact X 120 Description Description Descripción 2463167 Strap kit Trousse de sangle Juego de correa 2463215 Front strap Sangle avant Correa delantera 2463171 Outlet valve assembly Ensemble de la soupape de sortie...
  • Page 25 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS SPRAY GUN ASSEMBLY • PISTOLET DE PULVÉRISATION • PISTOLA DE ROCIADORA RX-80 Description Description Descripción ------- Gun head Tête du pistolet Cabezal de la pistola 538425 Goupille Pasador 538305 Retractor pin (2) Goupille de rétraction (2) Pasador retráctil (2) 538224...
  • Page 26: Accessories

    ACCESSORIES • ACCESSOIRES • ACCESORIOS ACCESSORIES • ACCESSOIRES • ACCESORIOS English • Description Français • Description Español • Descripción Spray Guns • Pistolets de pulvérisation • Pistolas de rociadora 538005 4 Finger RX-80™ with Tip 4-doigts RX-80™ avec l’embout 4-dedos RX-80™ con la punta 538006 2 Finger RX-80™...
  • Page 27 DATE CODE LOCATION • EMPLACEMENT DU CODE DE DATE • UBICACIÓN DEL CÓDIGO DE FECHA IMPACT X 120 DATE CODE LOCATION • EMPLACEMENT DU CODE DE DATE • UBICACIÓN DEL CÓDIGO DE FECHA Register your product online at: Enregistrement du produit en ligne sur le site : Regístrelo del producto en línea en: www.titantool.com...
  • Page 28 QUESTIONS? Call Titan Technical Service at: 1-800-526-5362 Register your product online at: www.titantool.com BESOIN D’AIDE? Appelez le Support de Produit Titan 1-800-526-5362 Enregistrement du produit en ligne sur le site : www.titantool.com ¿NECESITA AYUDA? Llame Titan Soporte de Producto al: 1-800-526-5362 Regístrelo del producto en línea en:...
