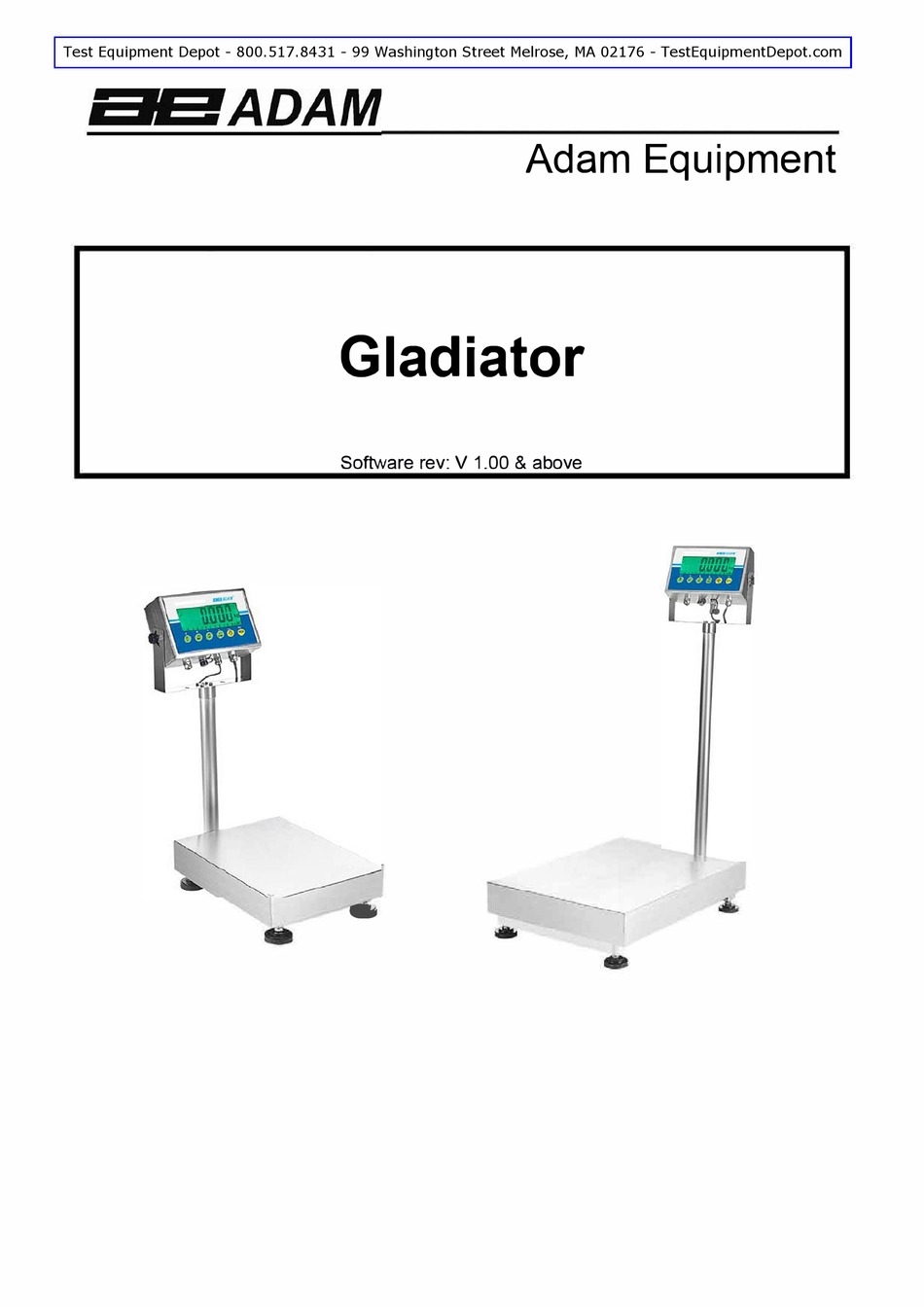

  • Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Adam Equipment Gladiator Software rev: V 1.00 & above •...
  • Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place:...

  • Page 3: Table Of Contents

      CONTENTS P.N. 1.10.0.0.13103, Rev A1, February 2019 INTRODUCTION ........................... 1     SPECIFICATIONS ..........................2     INSTALLATION ............................. 4     LOCATING THE SCALE ........................4     LIST OF ACCESSORIES ........................4     KEY DESCRIPTIONS ..........................5  ...

  • Page 6: Displays

      Approved USA Gladiator models 30aM 60aM 150aM 150aM 300aM 300aM 660aM Maximum 30lb 60lb 150lb 150lb 300lb 300lb 660lb capacity Readability 0.005lb 0.010lb 0.020lb 0.020lb 0.050lb 0.050lb 0.100lb Resolution 0.005lb 0.010lb 0.020lb 0.020lb 0.050lb 0.050lb 0.100lb Repeatability 0.010lb 0.020lb 0.040lb 0.040lb 0.10lb...

  • Page 10: Taring

    Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com TARING  Zero the scale by pressing the [0/Esc] key if necessary. The “ZERO” indicator will be ON. 0  Place a container onto a connected weighing scale platform, a value for its weight will be displayed.

  • Page 11: Weighing A Sample

      WEIGHING A SAMPLE To determine the weight of a sample, first tare the empty container if it is to be used and then place the sample in the container. The display will show the net weight of the sample and the units of weight currently in use.

  • Page 12: Check-Weighing

       The display will now show a flashing unit which can be increased or decreased using the ⭡ or ⭣ directional keys. Once you have set the desired sample size, press the [Tare/↵] key.  From here you will return to the main piece counting display which will show the number of pieces assigned to the weight on the scale.

  • Page 13: Relay Outputs And Checkweighing

      For checkweighing in parts counting mode, use the directional buttons ⭡ or ⭣, scroll through to the parts counting mode, “Count” will be shown on the display. Press [Tare/↵] to confirm and follow the same process as outlined above. 6.7.1 Relay outputs and checkweighing The relay outputs are open collector drivers to control an external relay.

  • Page 14: Accumulated Total

      The Check-weighing function can be set up during Weighing or Parts Counting by entering values as Low or/and High Limits keyed in by the user. The limits are displayed in kg (or Lb) or pcs respectively. Checkweighing during Parts Counting To disable the Check-Weighing function enter zero into both limits by pressing the [Func/Set] key when the current limits values are displayed during the setting procedure, then pressing [Tare/↵] to store the zero values.

  • Page 15: Percent Weighing

      PERCENT WEIGHING The scale can be set to perform percent weighing. The scale will use a mass on the platform as the 100% reference weight.  Press the [Func/Set] key to select the weighing mode. Using the directional buttons ⭡ or ⭣, scroll through to the parts counting ...

  • Page 16: Animal (Dynamic) Weighing

      6.10 ANIMAL (D ) WEIGHING YNAMIC The scale can be set to animal (dynamic) weighing for weighing any items that are unstable or may move. The scale will use a special filter to minimise the effects of any movement while the moving animal or unstable samples are on the scale.

  • Page 17: Animal 2 (Dynamic 2) Weighing

       To weigh a second subject press the [0/Esc] key and the display will show “LOAD” and the function will be ready for a new measurement, if necessary to zero the display, press the [0/Esc] key again, and then place the next animal on the scale.

  • Page 18: Hold/ Peak Function

      be locked for 2 seconds. The display will show the “Hold” symbol while the display is locked.  After the 2 seconds delay, the display will now show “UNLOAD”, Remove one of the Animal or items, and press [Tare/↵] key to calculate the weight of the removed animal or item.
  • Page 20 Parameter Description Options Default setting Time Set Time. Enter the time manually. 00:00:00 Date Set date format and settings. Enter the date format and mm:dd:yy Format date then the numeric value changed when the display manually. shows mmddyy, ddmmyy or yymmdd pressing [Pcs/ ] key, then enter the...

  • Page 21: Rs-232 Parameters

      RS-232 PARAMETERS This group of parameters can be set by the user for setting the RS-232 active or not, baud rate, printing mode, accumulation mode, RS-232 language, and user or scale ID numbers.  Pressing the [Func/Set] key and holding for 2 seconds during normal operation allows the user to access the parameters.

  • Page 22: Print Settings

      7.2.1 Print settings Parameter Description Options Default Values or setting [baud rate] Baud Rate 1200 9600 2400 4800 9600 19200 38400 57600 115200 [Language] Select Language EnGLis (English) EnGLis FrEnCH (French) GErmAn (German) SPAn (Spanish) Portug (Portuguese) Itail (Italian) [Accumulation] Enable or disable the Accumulation [Printing...

  • Page 23: Pc Settings

      Scale will perform the following, depending on the Accumulation and Print Settings: ACCUMULATION AC on AC Off SETTINGS PRINT SETTINGS Accumulate print Print automatically, AUto automatically Do not accumulate Accumulate and Print only Print when [Print/M+/Esc] key is when [Print/M+/Esc] key pressed, pressed.
  • Page 26   DATA FORMAT - COMPLETE WEIGHT <cr><lf> <cr><lf> Date 12/09/2006 <cr><lf> Time 14:56:27 <cr><lf> <cr><lf> If ID is zero, it is left blank Scale ID 123456 <cr><lf> User ID 234567 <cr><lf> <cr><lf> Net Wt. (or Gross Wt.) Net Wt 1.234 Kg <cr><lf>...
  • Page 27   DATA FORMAT – PEAK HOLD <cr><lf> <cr><lf> Date 12/09/2006 <cr><lf> Time 14:56:27 <cr><lf> <cr><lf> Scale ID 123456 <cr><lf> User ID 234567 <cr><lf> <cr><lf> Peak Holt Wt. 1.500 Kg <cr><lf> <cr><lf> <cr><lf> <cr><lf> <cr><lf> DATA FORMAT – ANIMAL <cr><lf> <cr><lf> Date 12/09/2006 <cr><lf>...
  • Page 28   DATA FORMAT – SIMPLE <cr><lf> <cr><lf> Net Wt. 1.500 Kg <cr><lf> <cr><lf> Hold Wt. 1000kg Peak holt wt. 1000kg Animal wt. 1000kg Ref. wt. 1000kg Percent 150.00% <cr><lf> Unit wt. 1.0234g Pieces 1000 <cr><lf> <cr><lf> <cr><lf> DATA FORMAT- CONTINUOUS OUTPUT- NORMAL WEIGHING: ST or US for STable or UnStable, ST,GROSS 1.234 Kg <cr><lf>...
  • Page 29   NOTE: 1. The accumulated total will not be sent to the RS-232 when the continuous print is turned on. 2. The continuous print will only be for the current weight and the display data. 3. In other languages the format is the same but the text will be in the language selected.

  • Page 30: Input Commands Format

    Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com INPUT COMMANDS FORMAT The scale can be controlled with the following commands. Press the [Enter] key on the PC after each command. T<cr><lf> Tares the scale to display the net weight. This is the same as pressing [Tare/↵].

  • Page 34: Warranty Statement

    This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or workmanship during the initial period of use of the product in which the battery is installed.
  • Page 35 WEEE 2012/19/EU This device may not be disposed of in domestic waste. This also applies to countries outside the  EU, per their specific requirements. Disposal of batteries (if fitted) must conform to local laws  and restrictions.  Cet appareil ne peut être éliminé avec les déchets ménagers. L’élimination de la batterie doit  être effectuée conformément aux lois et restrictions locales.  Dieses Gerät nicht mit dem Hausmüll entsorgt.  Dispositivo no puede ser desechado junto con los residuos domésticos  Dispositivo non può essere smaltito nei rifiuti domestici.  FCC / IC CLASS A DIGITAL DEVICE EMC VERIFICATION STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class A digital  device, pursuant to Part 15 of the FCC rules and Canadian ICES‐003/NMB‐003 regulation. These  limits  are  designed  to  provide  reasonable  protection  against  harmful  interference  when  the  equipment is operated in a commercial environment.  This equipment generates, uses and can  radiate radio frequency energy and, if not installed and used in accordance with the instruction  manual,  may  cause  harmful  interference  to  radio  communications.    Operation  of this  equipment in ...
