DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User Manual
IPTV Settings Wizard
To configure the router to use an IPTV set-top box, click the IPTV settings wizard link in the IP-
TV section.

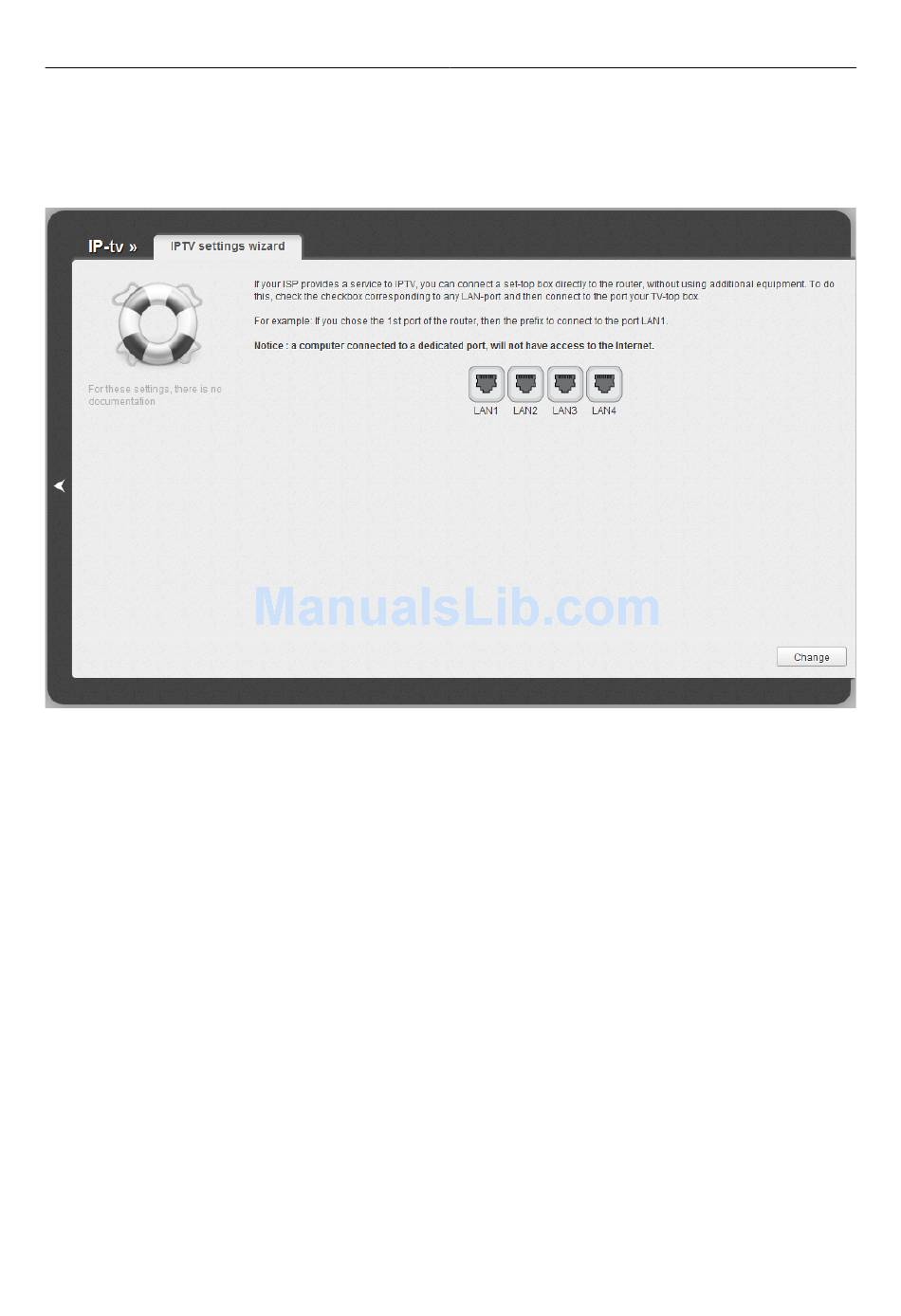

Figure 71. The page for selecting a LAN port to connect an IPTV set-top box.
On the opened page, select the LAN port of the router to which you will connect your IPTV set-top
box and click the Change button. After that you will get to the quick settings page.
If in the future you need to disconnect your IPTV set-top box from the specified LAN port and
connect to it a computer, on the current page deselect the LAN port and click the Change button.
If for accessing the Internet and IPTV services your ISP uses virtual local area networks with
identifiers (VLAN ID), to configure access to the IPTV service, proceed to the Advanced / VLAN
page, create a group of ports with the required value of the VLAN ID parameter, Transparent
type, and the port to which the set-top box will be connected (see the VLAN section, page 148, for a
detailed description of the elements from the page).
Page 88 of 202
Configuring via Web-based Interface
