3 Installation Instructions

3 Installation Instructions

3.1 Installing the NetUSB-400i USB Server Hardware

Note: Do not connect your USB device(s) to the USB Server until you have finished installing the
USB Server software and hardware!!!

3.1.1 Connect the NetUSB-400i USB Server to your Network

First connect an Ethernet cable to the USB Server's LAN port (figure 1):

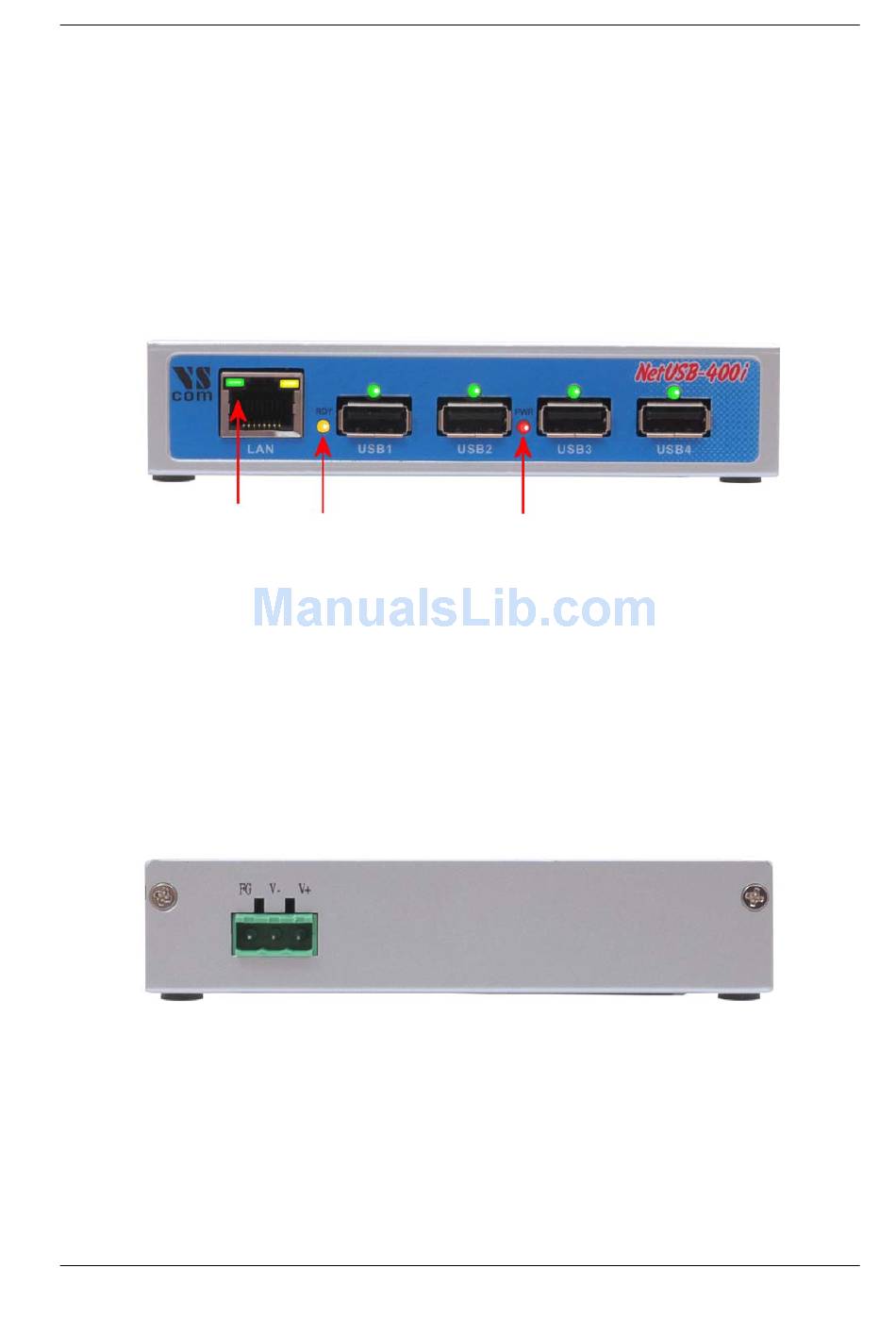

Figure 1: Ethernet Port, Ready LED, Power LED
Once the Ethernet cable is connected, connect the other end of the cable to your network. This
can be a free Ethernet port on your DSL Router, Ethernet Hub/Switch, or an 802.11n Router/base
station.
If you do not have a network, you can connect the NetUSB-400i USB Server directly to the Ethernet
port on your computer, using a so-called Cross-Over cable.

3.1.2 Connect the USB Server's Power Supply / Read the LEDs

Connect the included power supply to the NetUSB-400i USB Server's power connector (figure 2).
Figure 2: Power Connector
Once the USB Server is powered, you will notice the NetUSB-400i USB Server's red PWR LED
turns ON and the yellow RDY LED light blinks for a few seconds and then stays solid.
Note: Please read the section 6.1 in this manual for understanding Status Light behavior.
The NetUSB-400i USB Server hardware installation is now complete. Please proceed to the Win-
dows USBIP Admin Utility software installation instructions.
October 2009 NetUSB-400i User Manual 8
