5 NetUSB-400i USBIP Web Server

5.3 Status Page

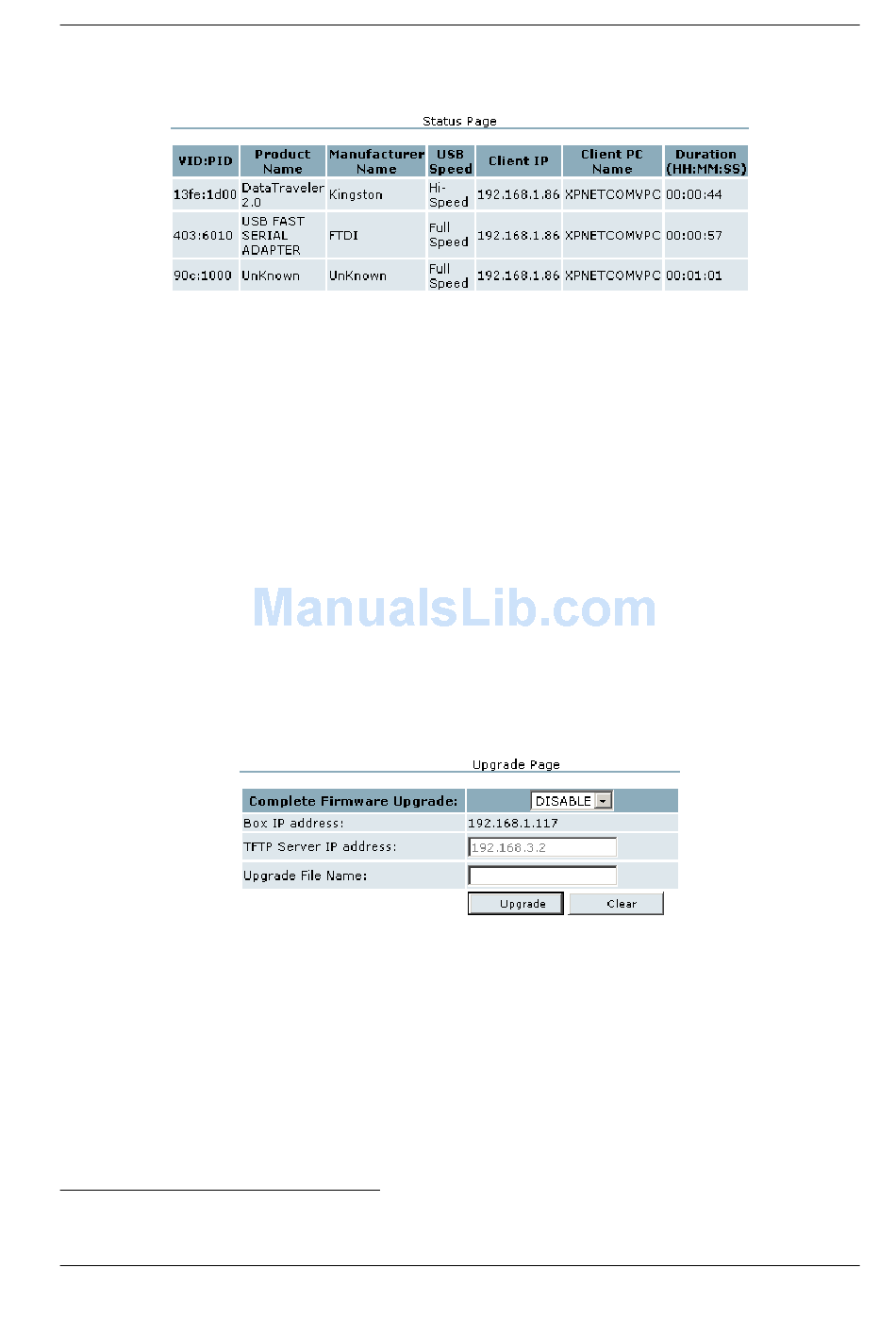

Figure 44: Device Status Table
The Status Page displays the current status of the USB devices attached. This page is updated
automatically every 10 seconds and it shows the devices connected to NetUSB-400i USB server.
The Device Status table shows the Vendor-ID, Product-ID, Product and Manufacturer Name, USB
device class, Peer-IP and -Name and finally the duration of the device connection to a Peer. There
is no information whether a device is connected via an USB Hub or directly, simply the system
does not care about that.
The Peer-IP is the IP Address of the computer on which the device is currently accessed.

5.4 Upgrade page

The Upgrade Page allows you to upgrade the firmware. The upgrade file is transferred by the
TFTP methode, this way the NetUSB-400i requests the data from an available server. You have
3
to configure this TFTP server before attempting to upgrade the firmware of NetUSB-400i. A free
TFTP server for Windows is available from Philippe JOUNIN.
Figure 45: Upgrade Page
Enable Complete Firmware Upgrade, key-in the TFTP Server IP Address in the edit field and also
enter the Upgrade File Name. Then click on Upgrade to upgrade the firmware. Click on OK, when
a window prompts for confirmation. A page will be displayed with error message, when the process
of Firmware upgrade starts.
Important Note: The Upgrade might take a minimum of 5 to 8 minutes to upgrade the total image
on the NetUSB-400i USB Server. Do not power-off the box or remove the network cable during the
3
On Windows it may be easier to use the USBIP Admin Utility for upgrade
October 2009 NetUSB-400i User Manual 32
