TDP-643R PLUS BAR CODE PRINTER
SERVICE MANUAL

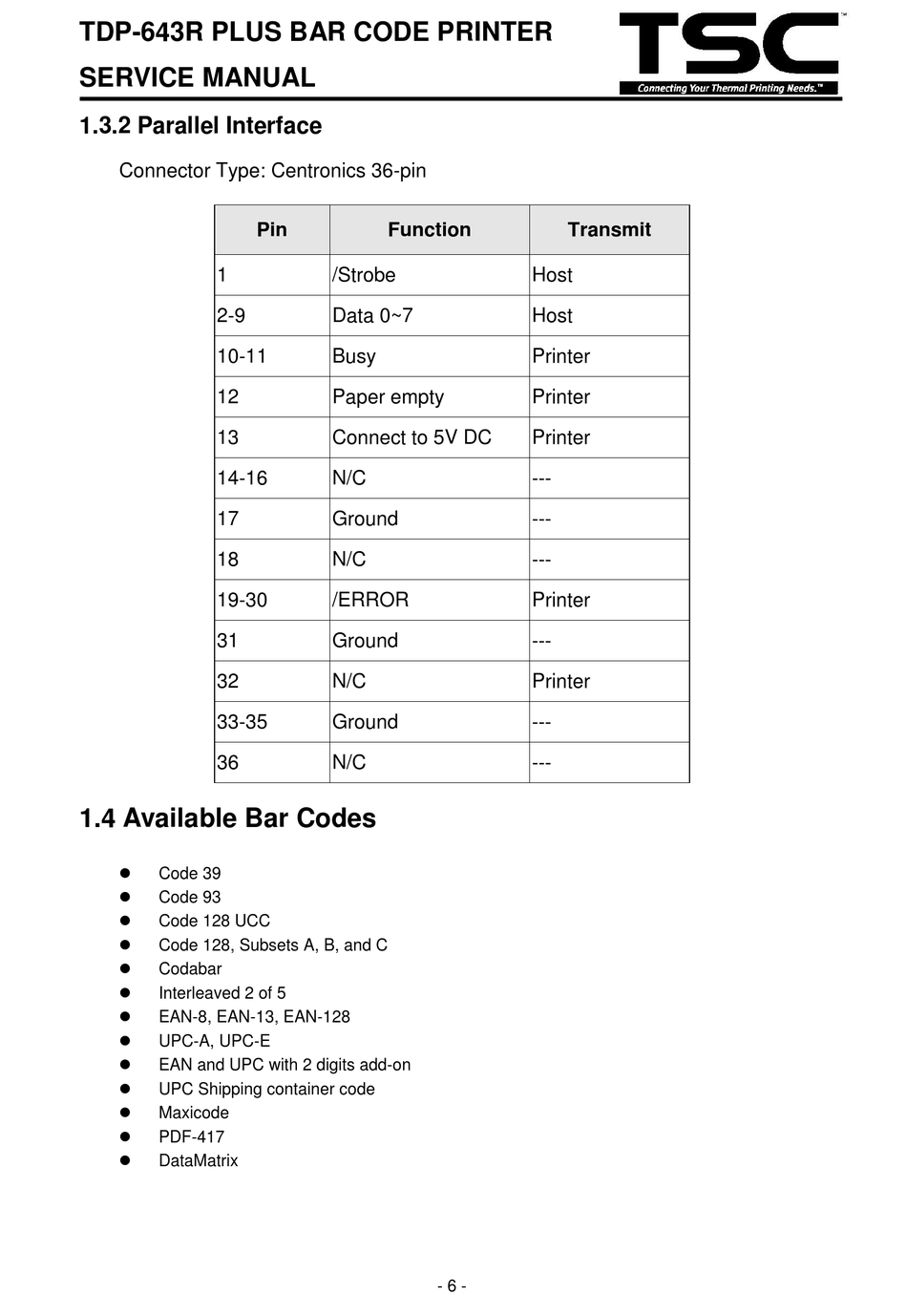

1.3.2 Parallel Interface

Connector Type: Centronics 36-pin
1
2-9
10-11
12
13
14-16
17
18
19-30
31
32
33-35
36

1.4 Available Bar Codes


Code 39

Code 93

Code 128 UCC

Code 128, Subsets A, B, and C

Codabar

Interleaved 2 of 5

EAN-8, EAN-13, EAN-128

UPC-A, UPC-E

EAN and UPC with 2 digits add-on

UPC Shipping container code

Maxicode

PDF-417

DataMatrix
Pin Function
/Strobe
Data 0~7
Busy
Paper empty
Connect to 5V DC
N/C
Ground
N/C
/ERROR
Ground
N/C
Ground
N/C
Transmit
Host
Host
Printer
Printer
Printer
---
---
---
Printer
---
Printer
---
---
- 6 -
