TDP-643R PLUS BAR CODE PRINTER
SERVICE MANUAL

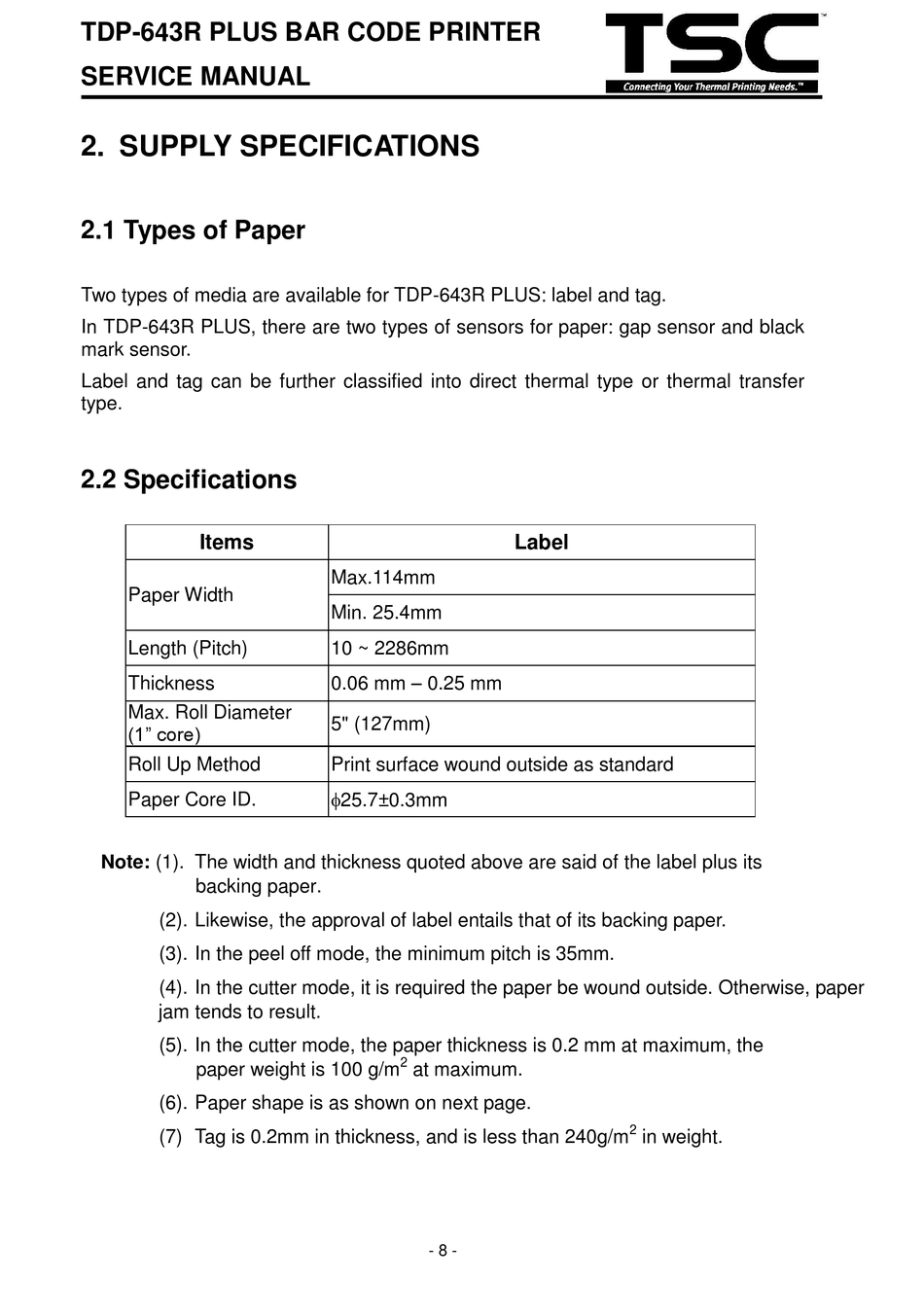

2. SUPPLY SPECIFICATIONS

2.1 Types of Paper

Two types of media are available for TDP-643R PLUS: label and tag.
In TDP-643R PLUS, there are two types of sensors for paper: gap sensor and black
mark sensor.
Label and tag can be further classified into direct thermal type or thermal transfer
type.

2.2 Specifications

Items
Paper Width
Length (Pitch)
Thickness
Max. Roll Diameter
(1" core)
Roll Up Method
Paper Core ID.
Note: (1). The width and thickness quoted above are said of the label plus its
backing paper.
(2). Likewise, the approval of label entails that of its backing paper.
(3). In the peel off mode, the minimum pitch is 35mm.
(4). In the cutter mode, it is required the paper be wound outside. Otherwise, paper
jam tends to result.
(5). In the cutter mode, the paper thickness is 0.2 mm at maximum, the
paper weight is 100 g/m
(6). Paper shape is as shown on next page.
(7) Tag is 0.2mm in thickness, and is less than 240g/m
Max.114mm
Min. 25.4mm
10 ~ 2286mm
0.06 mm – 0.25 mm
5" (127mm)
Print surface wound outside as standard
25.7±0.3mm
2
at maximum.
- 8 -
Label
2
in weight.
