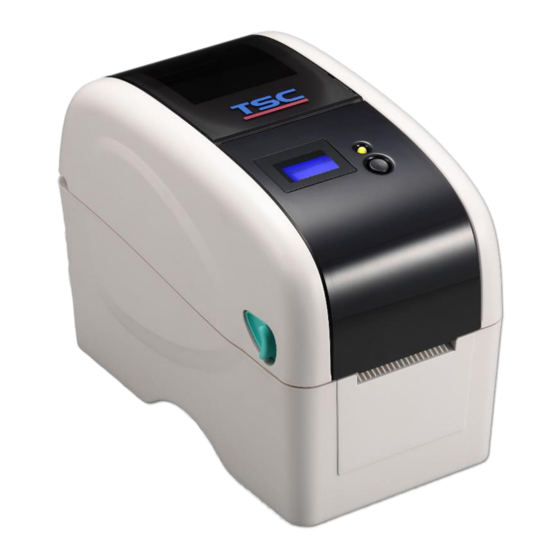

Desktop barcode printers
Hide thumbs Also See for PRINTRONIX TTP-225 Series:

Advertisement

Quick Links

;'RFTGTT5RT12
TTP-225 Series
Thermal Transfer
Direct Thermal
Desktop Barcode Printers
Series Lists:
User Manual
TTP-225 / TTP-323

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRINTRONIX TTP-225 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TSC PRINTRONIX TTP-225 Series

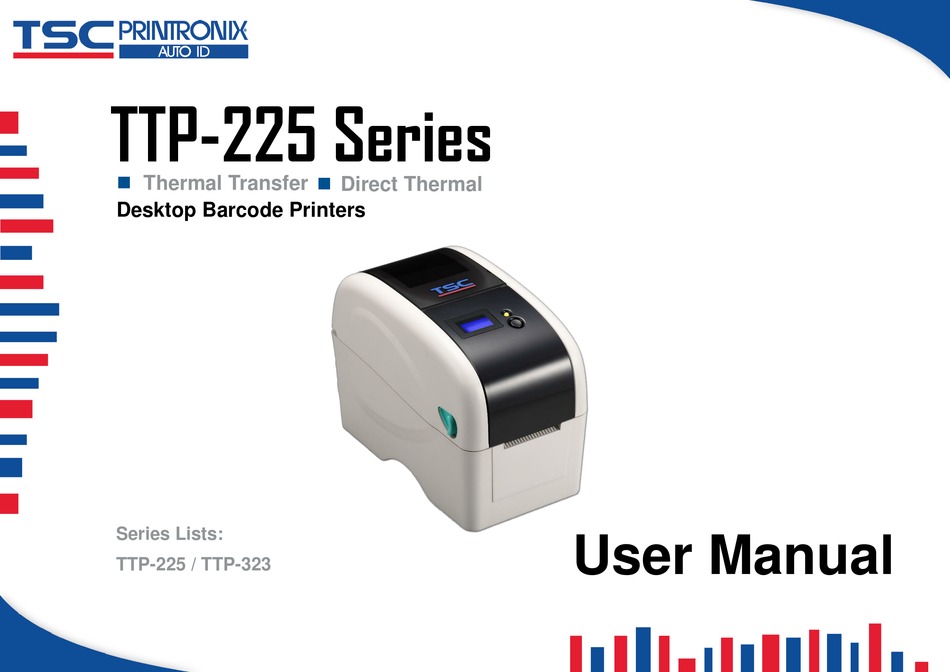

  • Page 1 ;’RFTGTT5RT12 TTP-225 Series   Thermal Transfer Direct Thermal Desktop Barcode Printers Series Lists: User Manual TTP-225 / TTP-323...
  • Page 2 All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the...
  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ........................................1 2. Operation Overview ......................................2 2.1 Unpacking and Inspection ....................................2 2.2 Printer Overview ......................................3 2.2.1 Front View ......................................3 2.2.2 Interior View ......................................4 2.2.3 Rear View ......................................5 3. Setup ..........................................6 3.1 Setting up the Printer ....................................6 3.2 Loading the Ribbon ......................................7 3.3 Loading the Media .......................................8 3.4 Loading the Media in Peel-off Mode (Option) ...............................9...
  • Page 4 4.2 Regular Button Function .................................... 14 4.3 Power-on Utilities ....................................... 15 5. TSC Console ........................................16 5.1 Start TSC Console ..................................... 16 5.2 Setup Ethernet Interface .................................... 18 5.3 Printer Function ......................................20 5.4 Setting Post-Print Action .................................... 21 6. TroubleShooting ......................................22 7.
  • Page 5: Introduction

    This document provides an easy reference for operating the TTP-225 series printer. TSC printers include the Windows labeling software for creating your label template. For system integration, the TSPL/TSPL2 printer programming manual or SDKs can be...
  • Page 6: Operation Overview

    2. Operation Overview 2.1 Unpacking and Inspection This printer has been specially packaged to withstand damage during shipping. Please carefully inspect the packaging and printer upon receiving the bar code printer. Please retain the packaging materials in case you need to reship the printer. Unpacking the printer, the following items are included in the carton.
  • Page 7: Printer Overview

    2.2 Printer Overview 2.2.1 Front View LCD display (Factory option) LED indicator Feed button Paper exit chute Media view window Top cover open lever...
  • Page 8: Interior View

    2.2.2 Interior View Ribbon access cover Ribbon rewind hub Ribbon rewind gear Print head Ribbon supply hub Gap sensor (receiver) Media holders Media guide Black mark sensor Platen roller Media guide adjuster knob Gap sensor (transmitter) Top cover support Top cover...
  • Page 9: Rear View

    2.2.3 Rear View Power switch Power jack socket USB interface USB host (Factory option) RS-232C interface / Ethernet interface (Option) SD card socket Note: The interface picture here is for reference only. Please refer to the product specification for the interfaces availability.
  • Page 10: Setup

    3. Setup 3.1 Setting up the Printer Place the printer on flat surface. Make sure the printer is power off. Connect the printer to the computer with the provided USB cable. Plug in the power cord.  Note: Please switch OFF the printer before plugging in the power cord to printer power jack.
  • Page 11: Loading The Ribbon

    3.2 Loading the Ribbon Open the printer’s top cover, insert the robbon Open the ribbon access cover. side pmtp the supply hub then align to the left. Insert the paper core right side onto the rewind hub. Align the Pull the leading ribbon to pass notches on the left side the print head.
  • Page 12: Loading The Media

    3.3 Loading the Media Open the printer top Separate the media holders to cover by pulling the the label roll width. tabs. Place the roll between Move the media guides to fit the holders then place the label width by turning the the paper.(printing side media guide adjuster knob.
  • Page 13: Loading The Media In Peel-Off Mode (Option)

    3.4 Loading the Media in Peel-off Mode (Option) Install the media then Lead the media through the open the top cover and backing paper opening slot peel-off panel after beneath the peel-off roller. calibrating the sensor. Close the top cover gently, and press the FEED button to test.
  • Page 14: Loading The Media In Cutter Mode (Option)

    3.5 Loading the Media in Cutter Mode (Option) Load the media and lead the media through the cutter paper opening. Close the top cover gently.
  • Page 15: Loading Thick Media (Thickness Is 0.19 Mm)

    3.6 Loading Thick Media (Thickness is 0.19 mm) Open the printer top cove and remove the lower front cover. Disengage the platen holder tabs from the lower inner cover by pulling out the right side and left side tabs. Alter the both side tabs into the 90 degree position for thick label.
  • Page 16: Install Microsd Memory Card

    3.7 Install MicroSD Memory Card Open the SD memory card cover. Insert the MicroSD card into the socket.
  • Page 17: Using The Pc Usb Keyboard With Printer Usb Host Interface (Factory Option)

    3.8 Using the PC USB Keyboard with Printer USB Host Interface (Factory option) Turn off the printer power. Plug in the PC USB keyboard into printer USB host interface. Turn on the printer power. After pressing the F1 key of the keyboard, the printer LCD will display as following. File List >...
  • Page 18: Led And Button Functions

    4. LED and Button Functions This printer has one button and one three-color LED indicator. By indicating the LED with different color and pressing the button, printer can feed labels, pause the printing job, select and calibrate the media sensor, print printer self-test report, reset printer to defaults (initialization).
  • Page 19: Power-On Utilities

    4.3 Power-on Utilities Power-on Utilities provides the basic functions and can be activated by below procedures: Turn off the power > Hold the Feed button > Open the power > Release the Feed button depending on the the color of the LED. Sequences of the settings: LED Colors Green...
  • Page 20: Tsc Console

    5. TSC Console TSC Console is a management tool combining the Printer Management, Diagnostic Tool, CommTool and Printer Webpage settings, which enables you to adjust printer’s settings/status; change printers’ settings; download graphics, deploy fonts, graphics, label templates or upgrade the firmware to the group of printers, and send additional commands to printers at the same time ※...
  • Page 21 Select the current interface of the printer. The printer will be added to TSC Console’s interface. Select the printer and set the settings. For more information, please refer to TSC Console User Manual.
  • Page 22: Setup Ethernet Interface

    5.2 Setup Ethernet Interface Use USB or COM to establish the interface on TSC Console. Double click to enter the Printer Configuration Page > Click Ethernet tab > Check the IP Address.
  • Page 23  Choose Network > Key in the IP Address > Click Discover to establish the Ehternet interface.  The notification will pop up > Click OK to close the window > The Ethernert interface will be shown on TSC Console.
  • Page 24: Printer Function

    5.3 Printer Function Printer Function could be found in Printer Configuration. “Printer Function” will be shown on the left side of the window. Functions Description Calibrate Sensor Detect media types and the size of the label RTC Setup Synchronize printer with Real Time Clock on PC Factory Default Initialize the printer to default settings Reset Printer...
  • Page 25: Setting Post-Print Action

    When the printer is equipped with other opton kits, ex: cutter, peeler, rewinder, please select the mode after finishing the calibration. Follow below procedure to set the post action for the printing: Refer Chp 5.1 to Connect the printer with TSC Console > Double click the printer >...
  • Page 26: Troubleshooting

    6. TroubleShooting The following guide lists the most common problems that may be encountered when operating this bar code printer. If the printer still does not function after all suggested solutions have been invoked, please contact the Customer Service Department of your purchased reseller or distributor for assistance.
  • Page 27 Print Problem Problem Possible Cause Recovery Procedure Check if interface cable is well connected to the Re-connect cable to interface. interface connector. The serial port cable pin configuration is not pin to Please replace the cable with pin to pin pin connected.
  • Page 28 LCD display (Option for TDP-225/324 model) This section lists the LCD display messages that you may encounter when operating the printer. Also, it provides solutions. Messages Possible Cause Recovery Procedure Head Open * The printer top cover is open. * Please close the top cover. No Paper * Supply a new label roll.
  • Page 29: Maintenance

    7. Maintenance This session presents the clean tools and methods to maintain the printer.  For Cleaning Depending on the media used, the printer may accumulate residues (media dust, adhesives, etc.) as a by-product of normal printing. To maintain the best printing quality, you should remove these residues by cleaning the printer periodically. Regularly clean the print head and supply sensors once change a new media to keep the printer at the optimized performance and extend printer life.
  • Page 30 Cleaning Tools  Cotton swab  Lint-free cloth  Brush with soft non-metallic bristles  Vacuum cleaner  75% Ethanol (for disinfecting)  99% Isopropyl alcohol (for printhead and platen roller cleaning)  Genuine printhead cleaning pen  Mild detergent (without chlorine) Cleaning Process: Printer Part Method...
  • Page 31: Angency Compliance And Approvals

    8. Angency Compliance and Approvals EN 55032, Class B EN 55024 EN 60950-1; EN 61000-3-2; EN 61000-3-3 FCC part 15B, Class B ICES-003, Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 32 UL 60950-1(2nd Edition) CSA C22.2 No. 60950-1-07(2nd Edition) EN 60950-1 GB 4943.1 GB 9254, Class B GB 17625.1 Energy Star for Imaging Equipment Version 2.0 TP TC 004/2011 TP TC 020/2011 IS 13252(Part 1)/ IEC 60950-1 KN 22 KN 24 Note: There may have certification differences in the series models, please refer to product label for accuracy.
  • Page 33 6. Ensure the stability when installing the device, Tipping or dropping could cause damage. 7. Make sure to follow the correct power rating and power type indicated on marking label provided by manufacture. 8. Please refer to user manual for maximum operation ambient temperature. WARNING: Hazardous moving parts, keep fingers and other body parts away.
  • Page 34: Revise History

    9. Revise History Date Content Editor...
