Earphone/Microphone with switch
Using earphone/microphone with switch
You can connect an optional Flat-plug Earphone/Microphone with Switch by
plugging an optional Earphone Plug Adapter for External connector terminal 01 to
the external connection jack. You can make voice call or receive voice or
videophone call by pressing the switch.
Connecting earphone/microphone with switch
With Flat-plug Earphone/Microphone with Switch connected in Silent mode, the
sound is emitted from the earphone regardless of the settings of Alert preference.
If the earphone is disconnected before completion, a melody stops. i-αppli, 1Seg
watching, Music, Movie/i-motion, etc., is performed and played silently. For
Music&Video Channel, a confirmation screen for playback appears.

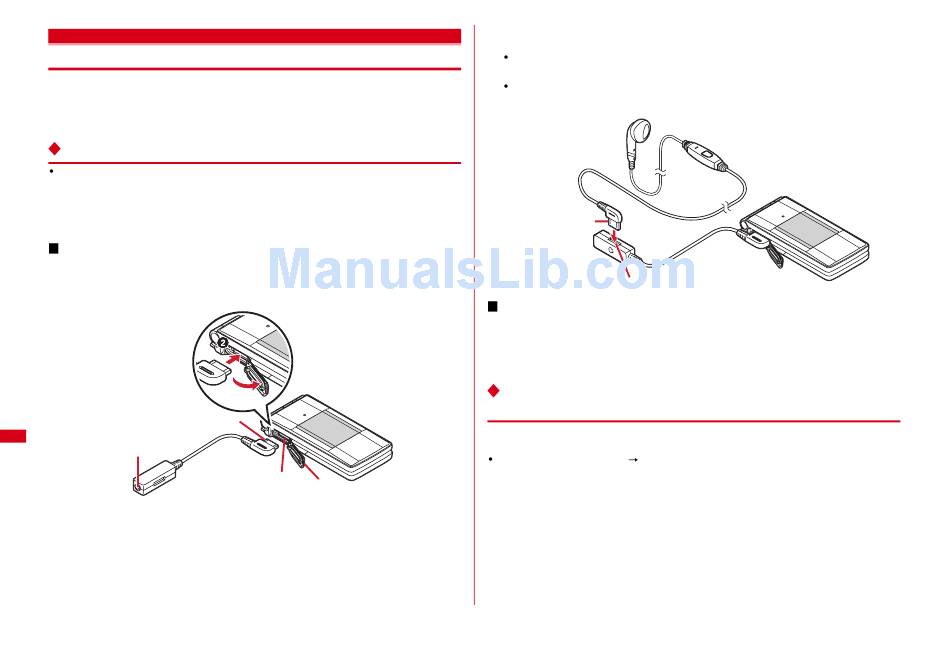

Connecting
a Open the jack cap (a) of FOMA terminal's external connection jack, and insert
the plug for the terminal of Earphone Plug Adapter for External connector
terminal (b)
Plug for the terminal
Round type
earphone jack
External connection jack
304
Convenient Functions
a
Jack cap
b Insert the connection plug of Flat-plug Earphone/Microphone with Switch into
the flat-type earphone jack.
You can connect an earphone plug with diameter of 3.5 mm to the round-type
earphone jack.
If you connect an earphone without microphone to the earphone jack, you
cannot send your voice.
Connection plug
Flat type earphone jack
Removing
a Pull out the connection plug of Flat-plug Earphone/Microphone with Switch from
Earphone Plug Adapter for External connector terminal
b Pull out the plug for the terminal of Earphone Plug Adapter for External
connector terminal from FOMA terminal
Setting switch operation of earphone/microphone
<Headset key control>
You can set so that the switch of Flat-plug Earphone/Microphone with Switch can
be used for making a voice call or operating Music player.
Operation of Music player P215
m [Settings & NW services] 543eSet required
1
itemseC
Control function : Select the using method of switch.
Phonebook No. : When Control function is set to "Headset quick-dial", search
the party to call from FOMA terminal phonebook and set.
