Interface Cable
Connecting the Interface
Cable

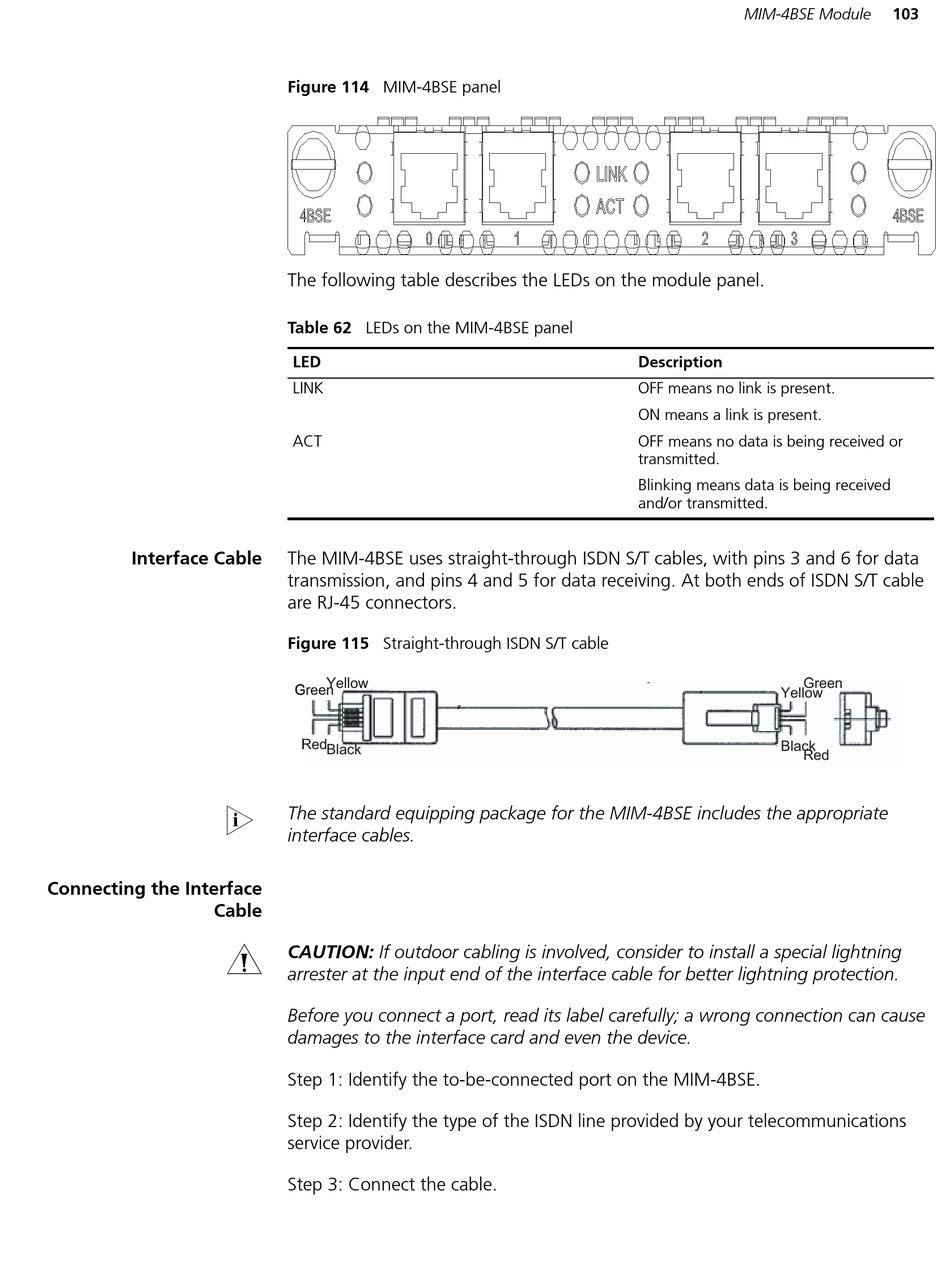

Figure 114 MIM-4BSE panel
The following table describes the LEDs on the module panel.
Table 62 LEDs on the MIM-4BSE panel
LED
LINK
ACT
The MIM-4BSE uses straight-through ISDN S/T cables, with pins 3 and 6 for data
transmission, and pins 4 and 5 for data receiving. At both ends of ISDN S/T cable
are RJ-45 connectors.
Figure 115 Straight-through ISDN S/T cable
Green Yellow Green Yellow Green Yellow Green Yellow
Red Black Red Black Red Black Red Black
n
The standard equipping package for the MIM-4BSE includes the appropriate
interface cables.
c
CAUTION: If outdoor cabling is involved, consider to install a special lightning
arrester at the input end of the interface cable for better lightning protection.
Before you connect a port, read its label carefully; a wrong connection can cause
damages to the interface card and even the device.
Step 1: Identify the to-be-connected port on the MIM-4BSE.
Step 2: Identify the type of the ISDN line provided by your telecommunications
service provider.
Step 3: Connect the cable.
MIM-4BSE Module
Description
OFF means no link is present.
ON means a link is present.
OFF means no data is being received or
transmitted.
Blinking means data is being received
and/or transmitted.
Green Green Green Green
Yellow Yellow Yellow Yellow
Black Black Black Black
Red Red Red Red
