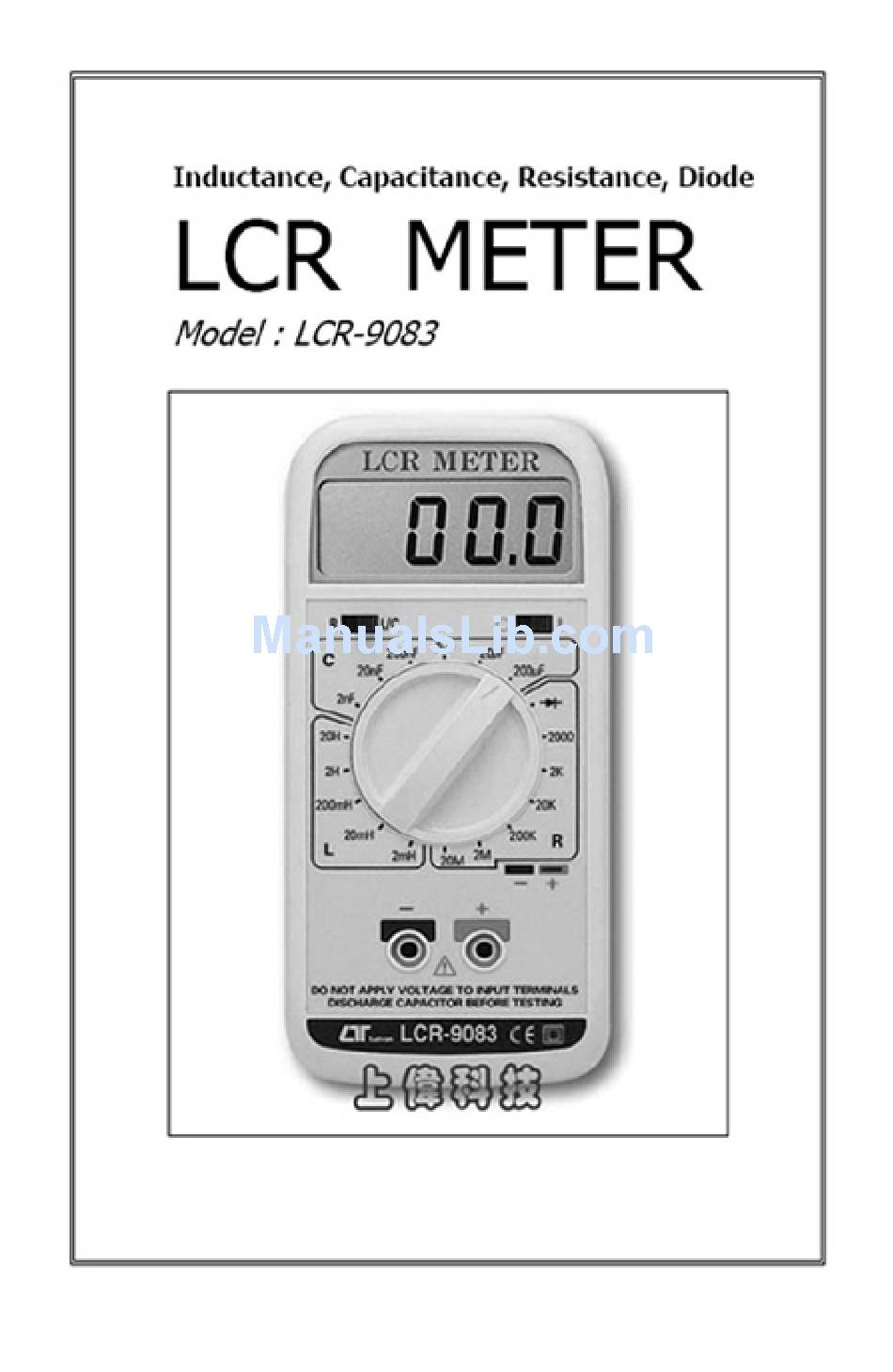

Summary of Contents for Lutron Electronics LCR-9083

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES .............. 1 2. SPECIFICATIONS ............ 1 2-1 General Specifications ........1 2-2 Electrical specifications ........2 A. Inductance............2 B. Capacitance range ........... 2 C. Resistance range ..........3 D. Diode ..............3 3. FRONT PANEL DESCRIPTION ........4 3-1 Display ............
  • Page 3: Features

    1. FEATURES * Digital display & battery operated, Inductance, Capacitance Resistance and Diode measurement. * LSI-circuit provides high reliability and durability. * LCD display for clear readout even in bright ambient light conditions. * Input overload protection . * Rotary switch function selector . * Low battery indicator.
  • Page 4: Electrical Specifications

    2-2 Electrical specifications ( 23 5 C ) A. Inductance Range Accuracy In-range Reso- Inductor Display lution Resistance Limitation * 2 mH 0.02 mH-2 mH 1 uH 3 %+3 d) < 2 ohm 20 mH 2 mH - 20 mH 10 uH <...
  • Page 5: Resistance Range

    C. Resistance Range Accuracy Resolution Open Circuit Voltage 200 ohm 0.1 ohm 1 ohm Approx. 20 k 10 ohm DC 3 V ( 2 % + 3 d ) 200 k 100 ohm 2000 k 20 M 10 k Approx. DC 1.5 V Remark : a.
  • Page 7: Inductance (L) Measuring Procedures

    4. INDUCTANCE (L) MEASURING PROCEDURES 1) Slide the " Power On/Off switch " (3-2, Fig. 1) to the " 1 " position. " 1 " = On " 0 " = Off 2) Slide the " L/C,R switch " ( 3-4, Fig. 1 ) to the " L/C " position.
  • Page 8: Capacitance (C) Measuring Procedures

    Consideration for internal circuit's stray inductance of 2 mH range, if intend to make the precision measurement, should short the input terminal first, record the display Then final true measurement value will be the " reading value " deduct above " internal circuit stray inductance " For example : If the stray inductance is -15 uH, then the real real value is the reading value plus 15 uH ( deduct -15 uH ).
  • Page 9 5) Read the display. The value indicated corresponds to the range selected. If the DISPLAY shows "1", it indicates an Out-of-Range measurement. In order to improve the resolution, Select the next higher range. NOTE: If the capacitance value is unmarked start 1) * with the Lower range ( 2 nF ) and keep increasing until a suitable reading is...
  • Page 10: Resitance (R) Measuring Procedures

    A capacitor with low voltage leakage will read over range, or a much higher value than normal. An open circuit capacitor will read zero on all ranges (possibly a few pF on 2nF range, due to stray capacitance of the instrument). 5) Measurement of very low capacitance should be performed using extremely short leads in order to avoid introducing any stray capacitance.
  • Page 11: Diode Measuring Procedure

    7. DIODE MEASUREMENT PROCEDURES PROCEDURE 1) Slide the " Power On/Off switch " (3-2, Fig. 1) to the " 1 " position. " 1 " = On " 0 " = Off 2) Slide the " L/C,R switch " ( 3-4, Fig. 1 ) to the " R " position.
  • Page 12 5) A. When connected with polarity as shown in Fig. 2, a forward current flow is established and the approx. DIODE forward voltage (VF) values in volt will display on the display reading. If the diode under test is defective, ".000" or near ".000"...
  • Page 13: Maintenance

    LOW BATTERY INDICATOR appears before the instrument become inaccurate. 2) Open the screw of " Battery Cover " ( 3-7, Fig 1 ) by screwdriver, then move the battery. 3) Replace with 9V battery and reinstate the cover. 0407-LCR-9083...
