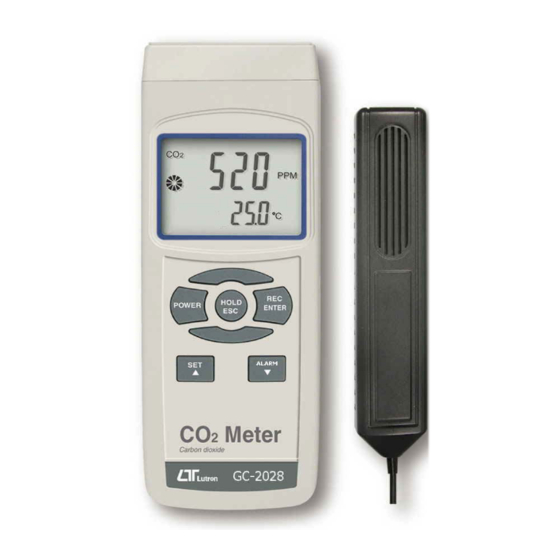

Carbon dioxide
CO METER
Model : GC-2028
OPERATION MANUAL
Your purchase of this
CO2 METER MONITOR
marks a step forward for
you into the field of
precision measurement.
Although
this
METER is a complex and
delicate instrument, its
durable
structure
allow many years of use
if
proper
operating
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
CO2
will
a r e
carefully
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC-2028 and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics GC-2028

Summary of Contents for Lutron Electronics GC-2028

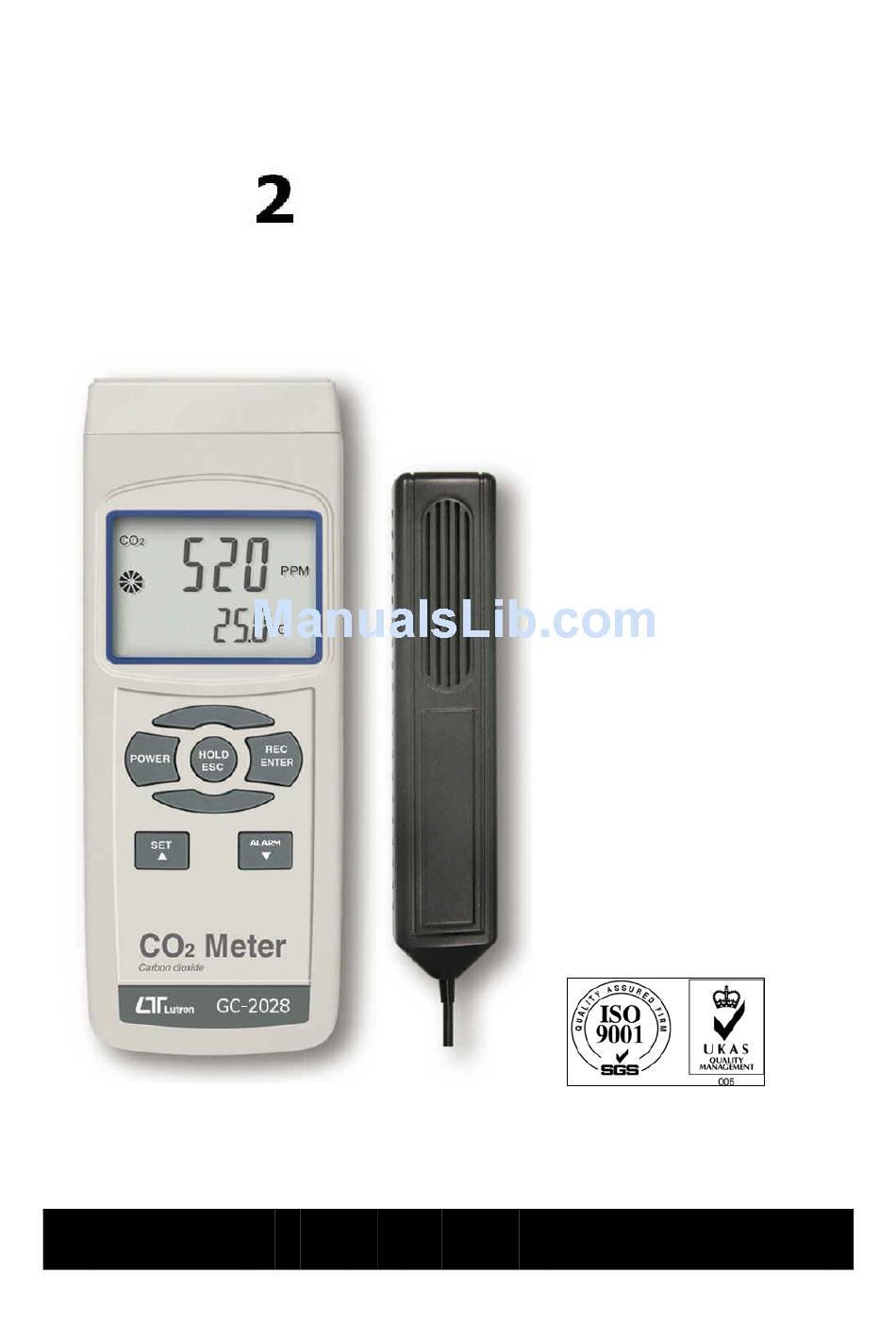

  • Page 1 Carbon dioxide CO METER Model : GC-2028 Your purchase of this CO2 METER MONITOR marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its durable structure will allow many years of use...
