Lutron Electronics LX-1128SD Operation Manual

Light meter sd card real time datalogger + type k/j thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

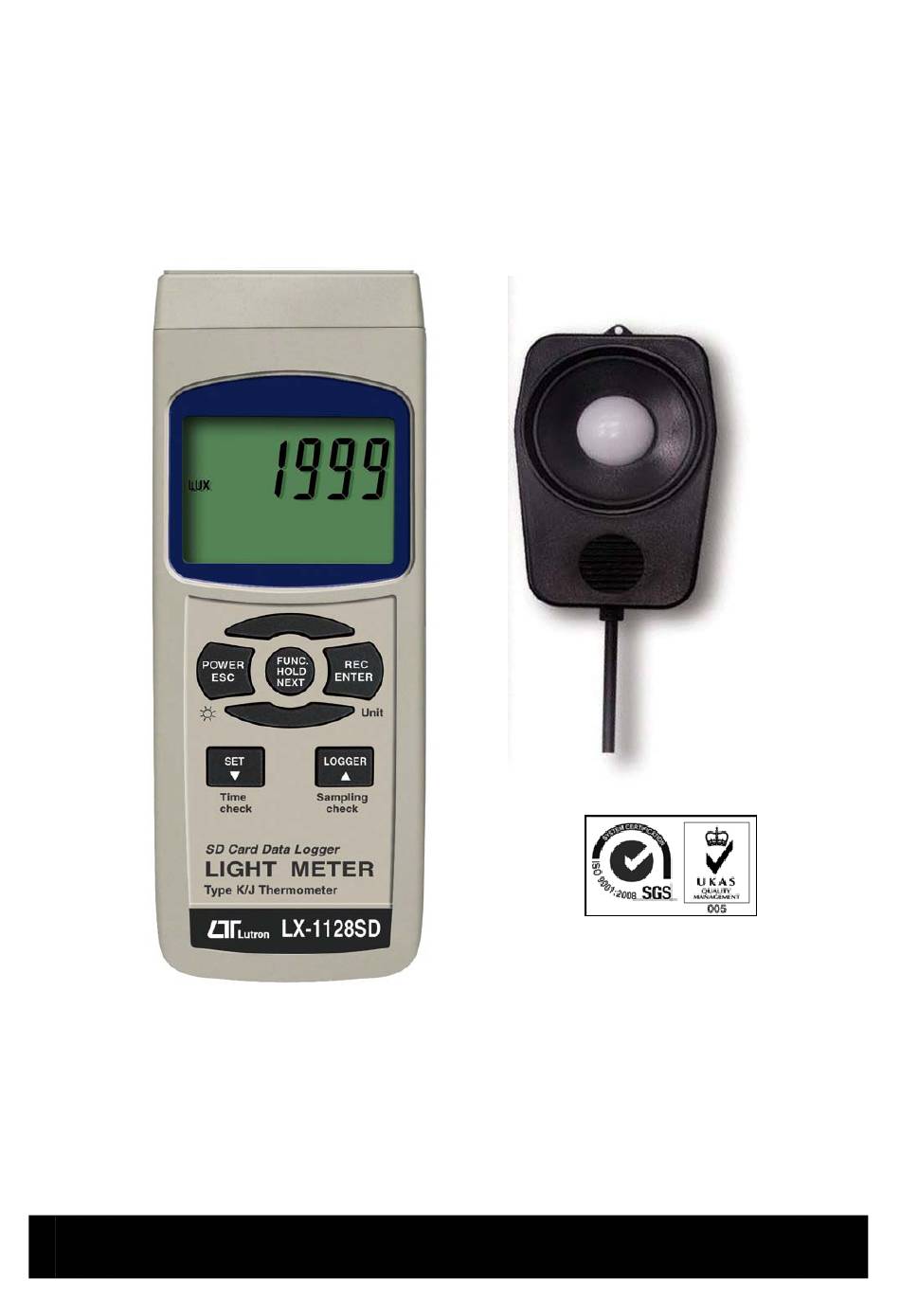

SD card real time datalogger
+ Type K/J thermometer
LIGHT METER
Model : LX-1128SD
Your
purchase
DATALOGGER marks a step forward for you into the field of
precision measurement. Although this METER is a complex and
delicate instrument, its durable structure developed. Please
read the following instructions carefully and always keep this
manual within easy reach.
OPERATION MANUAL
of
this
LIGHT
METER
with
SD
CARD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX-1128SD and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics LX-1128SD

Summary of Contents for Lutron Electronics LX-1128SD

  • Page 1 SD card real time datalogger + Type K/J thermometer LIGHT METER Model : LX-1128SD Your purchase this LIGHT METER with CARD DATALOGGER marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its durable structure developed.
  • Page 2 TABLE OF CONTENTS 1. FEATURES................1 2. SPECIFICATIONS..............2 3. FRONT PANEL DESCRIPTION..........6 3-1 Display................6 3-2 Power Button ( ESC, Backlight Button )......6 3-3 Hold Button ( Function, Next Button )........ 6 3-4 REC Button ( Enter Button )..........6 3-5 SET Button ( Button, Time check Button )......
  • Page 3 1. FEATURES * 3 ranges, 2,000/20,000/100,000 LUX. * LUX & Foot Candle unit selection with default. * Auto range for light measurement. * Spectrum of photo sensor meets C.I.E.. * Light measurement with zero adjustment by push button. * Separate probe, easy for operation of different measurement environment.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). Measurement/ Light : LUX, Feet candle ( Ft-cd ) Unit Type K/J thermometer : ℃...
  • Page 5 Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.

  • Page 6: Resolution Accuracy

    Optional SD Card ( 1 GB ) Accessories SD Card ( 2 GB ) Type K thermocouple probe. AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software,SW-U801-WIN. 2-2 Electrical Specifications (23± 5 ℃ Light meter Measuremen Range Max.

  • Page 7: Type K/J Thermometer

    Type K/J thermometer Sensor Resolution Range Accuracy Type Type K 0.1 ℃ -50.0 to 1300.0 ℃ ± ( 0.4 % + 0.5 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ 0.1 ℉ -58.0 to 2372.0 ℉ ± ( 0.4 % + 1 ℉...

  • Page 8: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Power Button ( ESC, Backlight Button ) 3-3 Hold Button ( Function, Next Button ) 3-4 REC Button ( Enter Button ) 3-5 SET Button ( Button, Time check Button ) ▼...

  • Page 9: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Function selection/Measurement 1) Turn on the meter by pressing the " Power Button " ( 3-2, Fig. 1 ) momentarily. Pressing the " Power Button " ( 3-2, Fig. 1 ) continuously and > 2 seconds again will turn off the meter.
  • Page 10 c. Use the fingers to hold the " Sensor Handle " ( 3-18 ), face the " Light Sensor " ( 3-19, Fig. 1 ) against to the measurement light source directly. The display will show the light measurement value. Remark : * If intend to change the Light unit ( LUX, Ft-cd ), press the Unit Button "...
  • Page 11 Remark : The meter is defaulted to " Type K thermometer ". If intend to select the " Type J thermometer with default , please refer chapter 7-5 ( page 18 ). 4-2 Data Hold During the measurement, press the " Hold Button " ( 3-3, Fig.

  • Page 12: Data Logger

    4-4 LCD Backlight ON/OFF After power ON, the " LCD Backlight " will light automatically. During the measurement, press the " Backlight Button " ( 3-2, Fig. 1 ) once will turn OFF the " LCD Backlight ". Press the " Backlight Button " once again will turn ON the "...
  • Page 13 5-2 Auto Datalogger ( Set sampling time 1 second ) ≧ a. Start the datalogger Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-6, Fig.
  • Page 14 5-3 Manual Datalogger ( Set sampling time = 0 second ) a. Set sampling time is to 0 second Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-6, Fig.
  • Page 15 5-5 Check sampling time information During the normal measurement ( not execute the Datalogger ), If press " Sampling Button " ( 3-6, Fig. 1 ) once , the lower LCD display will present the Sampling time information in second unit. 5-6 SD Card Data structure 1) When the first time, the SD card is used into the meter, the SD card will generate a folder :...
  • Page 16 6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-9, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...

  • Page 17: Advanced Setting

    EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-5, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the "...

  • Page 18: Set Clock Time ( Year/Month/Date, Hour/Minute/ Second )

    Remark : During execute the " Advanced Setting " function, if press " Esc Button " ( 3-2, Fig. 1 ) once will exit the " Advanced Setting " function, the LCD will return to normal screen. 7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ) When the lower display show "...
  • Page 19 7-2 Decimal point of SD card setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "...
  • Page 20 7-4 Set beeper sound ON/OFF When the lower display show " bEEP " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 21 7-6 Select the Temp. unit to ℃ ℉ When the lower display show " t-CF " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper Display text to " C " or "...

  • Page 22: Power Supply From Dc Adapter

    2) If select the upper to " yES ", press the " Enter Button " ( 3-4, Fig. 1 ) once again, the Display will show text " yES Enter " to confirm again, if make sure to do the SD memory card format, then press "...

  • Page 23: System Reset

    10. SYSTEM RESET If the meter happen the troubles such as : CPU system is hold ( for example, the key button can not be operated... ). Then make the system RESET will fix the problem. The system RESET procedures will be either following method : During the power on, use a pin to press the "...
  • Page 24 Meter (9W 'D" Connector) Center Pin......Pin 4 (3.5 mm jack plug) Ground/shield.......Pin 2 2.2 K resistor Pin 5 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word D1 &...

  • Page 25: Optional Type K Temp. Probe

    RS232 FORMAT : 9600, N, 8, 1 Baud rate 9600 Parity No parity Data bit no. 8 Data bits Stop bit 1 Stop bit 12. Optional Type K Temp. probe (Type K) TP-01 * Max. short-tern operating Temperature: 300 (572 ℃...
  • Page 26 13. PATENT The meter ( SD card structure ) already get patent or patent pending in following countries : Germany Nr. 20 2008 016 337.4 JAPAN 3151214 TAIWAN M 358970 M 359043 CHINA ZL 2008 2 0189918.5 ZL 2008 2 0189917.0 Patent pending 0905-LX1128SD...
