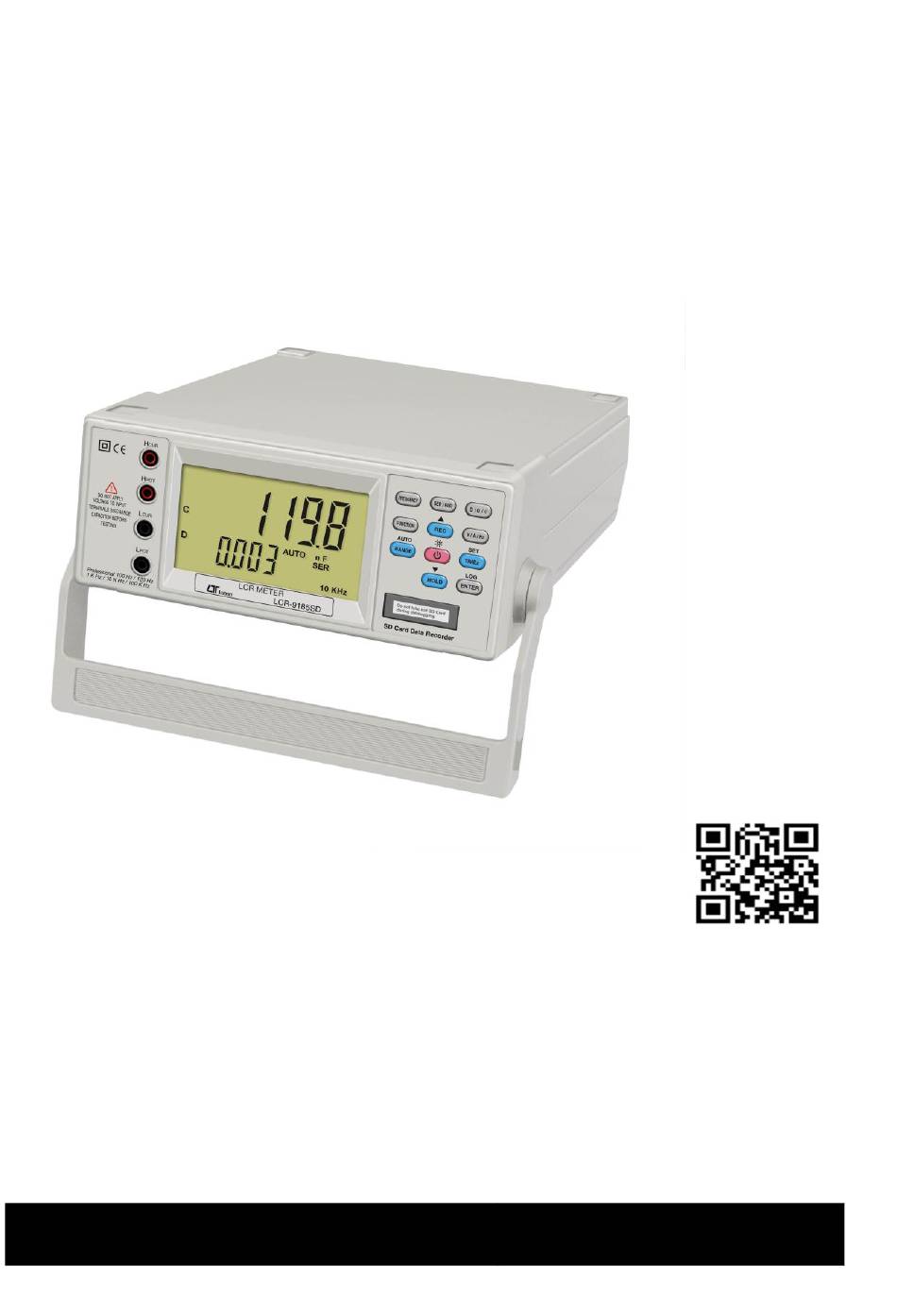

Bench type, SD card real time data logger
LCR METER
Model : LCR-9185SD
Your purchase of this LCR METER with SD CARD DATA LOGGER
marks a step forward for you into the field of precision measurement.
Although this meter a complex and delicate instrument, its durable structure will
allow many years of use if proper operating techniques are developed.Please read
the following instructions carefully and always keep this manual within easy reach.
OPERATION MANUAL
