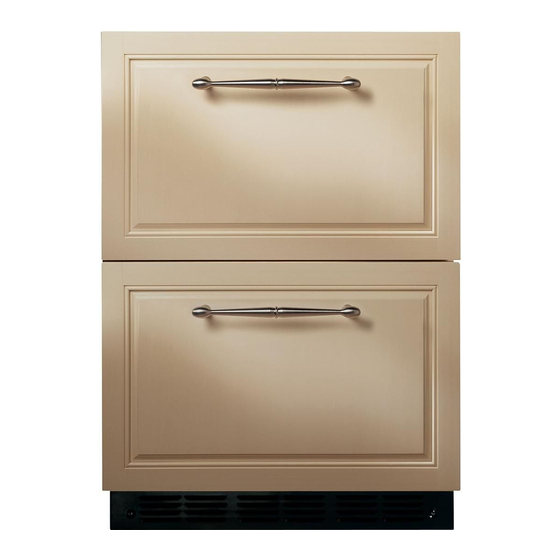

- Page 1 INSTALLATION INSTRUCTIONS Double-Drawer Built-In Refrigerator MONOGRAM.COM...
- Page 2 To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. For Monogram local service in your area, call 800.444.1845 or visit monogram.com. For Monogram service in Canada, call 888.880.3030 For Monogram Parts and Accessories, call 800.444.1845 or visit monogram.com.
- Page 3 Consignes de Sécurité AVERTISSEMENT Risque d’explosion. Conservez les matériaux et vapeurs inflammables de votre réfrigérateur. Le non-respect de cette instruction peut entraîner un risque d’incendie, d’explosion ou de décès. AVERTISSEMENT Pour réduire le risque d’étouffement pendant l’installation de ce produit, ne pas laisser les petites pièces à...
-
Page 4: Table Of Contents
Failure to do so can result in back or other Tools, Hardware Required ........4 injury. Refrigerator Location ..........4 Design Guide for ZIDI240 and ZIDS240 Installation Space ............5 AVERTISSEMENT Flush and Standard Installation ......... 6 RISQUE DU POIDS EXCESSIF Side by Side Installation .......... -
Page 5: Installation Space
Design Guide FOR MODELS ZIDI240 AND ZIDS240 THE INSTALLATION SPACE SINGLE PRODUCT INSTALLATION Std. Cabinet Opening Min. Cabinet Opening SIDE BY SIDE PRODUCT INSTALLATION NOTE: Custom Handles may vary. Monogram Handle Depths see D-Handle Depth Range. Double Drawer Double Drawer... -
Page 6: Flush And Standard Installation
Design Guide FOR MODELS ZIDI240 AND ZIDS240 THE INSTALLATION SPACE SIDE-BY-SIDE INSTALLATIONS For a complete refreshment center, Install a fresh IMPORTANT: Double-Drawer Refrigerators are food refrigerator beside a Double-Drawer refrigerator, designed to be built-in only. They cannot be used Beverage Center, or Wine Chiller/Wine Reserve. -
Page 7: Product Clearances
Design Guide PRODUCT CLEARANCES PRODUCT CLEARANCES ZIDS240 ZIDI240 When installed in a corner: When installed in a corner: Countertop Countertop Double-Drawer Double-Drawer 22" min. 23-1/8" min. Clearance for Door Clearance for Door Opening 2-1/2" min. Opening 2-1/2" min. Allow 2-1/2" min. clearance between Double-Drawer and Allow 2-1/2"... -
Page 8: Installation Instructions
• Remove corner blocks and foam drawer stops. (ZIDI240 model only) • Remove all packing material, tape and protective 3/4” Overlay Panel Dimensions plastic coverings. Model ZIDI240 requires field-installed overlay drawer panels. WARNING Small objects are a choke hazard for Overlay •... -
Page 9: Step 1, Remove Packaging
STEP 2 INSTALL CUSTOM 3/4” DRAWER PANELS AND DRAWER PANELS AND HANDLES HANDLES (CONT.) (CONT.) (ZIDI240 model only) (ZIDI240 model only) • Reinstall the side trims using the trim screws removed Install custom drawer panels and handles: earlier. • Open drawers. -
Page 10: Step 3 Level
Installation Instructions STEP 3 LEVEL STEP 5 SLIDE PRODUCT INTO THE CUTOUT Use an adjustable wrench to turn and raise or lower the leveling legs. NOTICE: Do not push against the drawer panels with • Measure floor to countertop height inside the opening. your knees. - Page 11 Notes 31-1000643...
- Page 12 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. NOTE: Product improvement is a continuing endeavor at Monogram. Therefore, materials, appearance and specifications are subject to change without notice. 31-1000643 02-22 GEA Monogram.com Printed in Serbia...
