Scantech Sirius S-7030 User Manual

Bar code laser scanner

Advertisement

U S E R ' S
M A N U A L
Scantech Sirius S-7030
Bar Code Laser Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirius S-7030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scantech Sirius S-7030

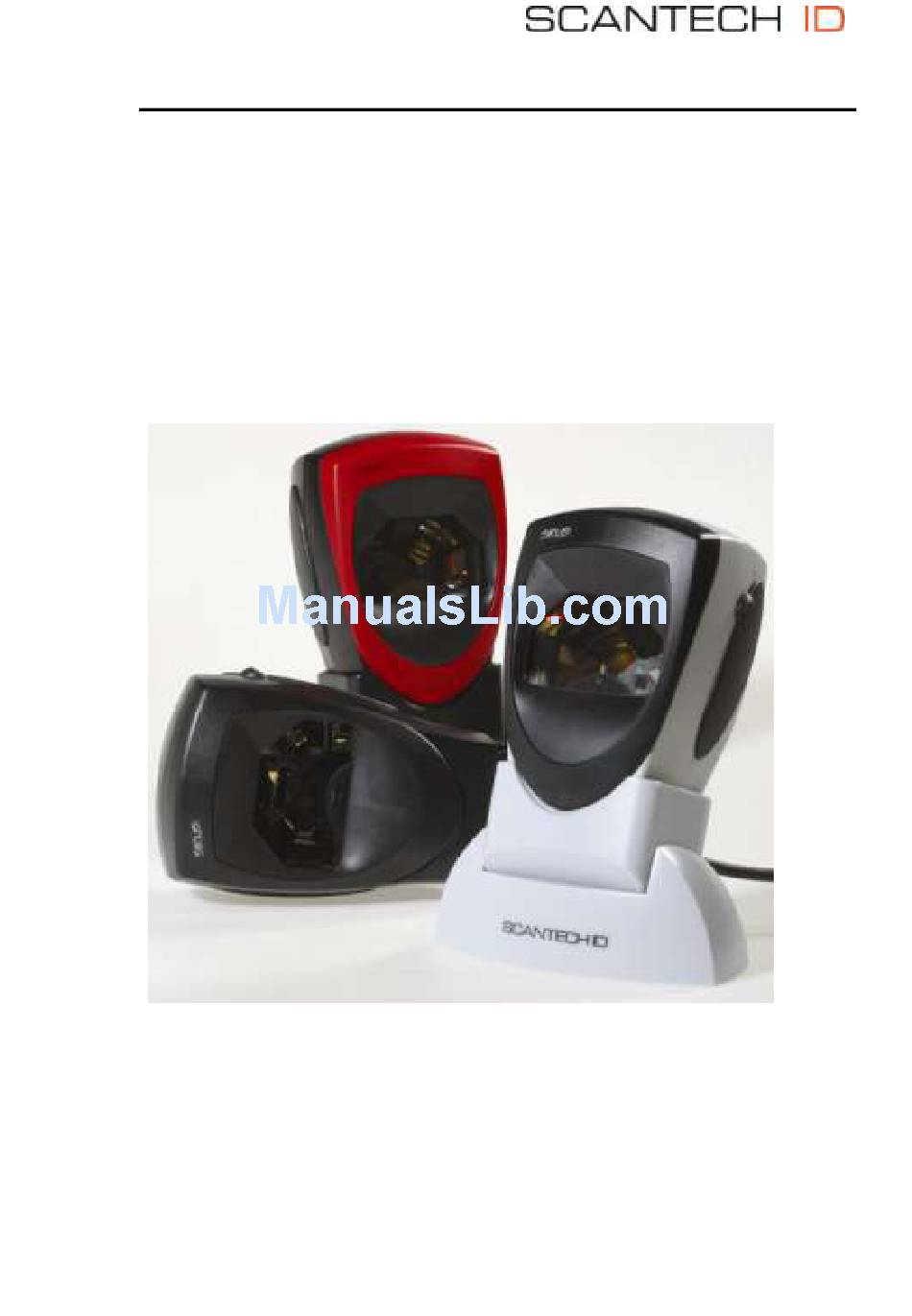

  • Page 1 U S E R ’ S M A N U A L Scantech Sirius S-7030 Bar Code Laser Scanner...
  • Page 3 User’s Manual Scantech Sirius S-7030...
  • Page 4 Scantech-ID BV reserves the right to change parts of the device at any time without preceding or direct announcement to the client.
  • Page 5: Table Of Contents

    2.6 Interface Selection .............. 18 Chapter 3 Using the Sirius S-7030............. 19 3.1 Orientation ................. 20 3.2 Scanning bar codes with the Sirius S-7030 ......22 3.3 Single line scanning ............23 3.4 Maintaining the scanner…………………………………… ..24 Appendices ....................25 A Connector types and pin definitions ........
  • Page 7: Preface

    The ergonomic design ensures effortless handling and the sympathetic good looks will automatically enhance any working environment. It is based on proven Scantech-ID technology which forms the basis of all our omni-directional scanners. Bar code labels are read by presenting the labels towards the scanner.
  • Page 9: Chapter 1 The Sirius S-7030

    Chapter 1 The Sirius S-7030...
  • Page 10: Unpacking The Sirius S-7030

    The Sirius S-7030 UNPACKING THE SIRIUS S-7030 Remove the scanner and its accessories from the box and packing material. Refer to the packing list to make sure you have received all the items ordered. Visually inspect the scanner and accessories for any evidence of physical damage.
  • Page 11 The Sirius S-7030 The specific parts of the Sirius S-7030 are: To “wake-up” the scanner after being in “Sleep Sleep mode / Single Line button Mode”. The time-out (default 30 minutes) is programmable using the labels from the Configuration Guide. During Sleep Mode, the LED is intermittently flashing red.
  • Page 12: Scanner Labelling

    The Sirius S-7030 SCANNER LABELLING The type-label is present on the bottom side of the Sirius S-7030 as indicated in the illustration below. Another label is visible through the scanner window. All labels are attached by the manufacturer and should not be removed.
  • Page 13: Laser Safety

    The Sirius S-7030 LASER SAFETY German: Der Strichcode-Scanner S-7030 entspricht den Sicherheitsvorschriften nach IEC 825-1 (1993) für ein Laserprodukt der Klasse I. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein Laserprodukt der Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in direktes Laserlicht.
  • Page 14 The Sirius S-7030 Spanish: El scanner S-7030 reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe evitar mirar muy fijo en luz lasérica directa.
  • Page 15: Chapter 2 Installation

    Chapter 2 Installation...
  • Page 16: Connecting The Scanner

    Installation CONNECTING THE SCANNER Before you connect any cable to the scanner, decide whether you will guide it backward as a tail or downward, through the foot and counter surface! Remove the end cover. Firmly press the end cover as indicated below and carefully slide the cover approx.
  • Page 17: Powering The Sirius Scanner

    (If you have an older type of cover: lock the two little clips by shifting them toward the front of the scanner until you hear it click. The Sirius S-7030 is standard equipped with the following interfaces: RS-232 Key Board Wedge (KBW) USB and USB plus power.
  • Page 18 Installation ATTENTION Though most cables do have a power injector in the cable, this does not automatically mean that you must use a power supply. For safety reasons an automatic switch will disconnect the power provided by the PC/POS system, as soon as a separate power adapter is connected to the power injector.
  • Page 19: Mounting The Scanner Plus Flexible Stand

    Installation MOUNTING THE SCANNER PLUS FLEXIBLE STAND To install the scanner on the flexible scanner stand, lead the cable either backward via the slit in the rear-side of the stand, or guide it vertically through the stand to be connected to the scanner. Furthermore the stand should be fastened to the counter top.
  • Page 20 Installation Optional: Lead the cables from the bottom upwards through the hole in the counter, through the bottom plate and through the scanner stand. Click the stand on the bottom plate. Connect the cable(s) to the scanner. Refer to chapter 2.1 for the correct method.
  • Page 21: Controlling The Scanner From The Pos System

    Installation CONTROLLING THE SCANNER FROM THE POS SYSTEM The Sirius S-7030 can be controlled from the POS system via the RS-232 interface or USB/COM Port Emulation. Control is achieved by transmitting the following single byte commands to the scanner. In the Scantech default setting...
  • Page 22 Installation A201901 Cable Key Board Wedge, mini-DIN: DP+EP * A201902 Cable RS-232 Wincor Beetle POS, Sub-D 9-pin Male DP (+EP) * A201903 Cable RS-232 PC-POS, Sub-D 9-pin Female DP (+EP) * A201904 Cable RS-232 Fujitsu-ICL TeamPOS, Sub-D 9-pin Female DP (+EP) * A201906 Cable RS-232 IBM 4614 Sure One, Sub-D 15-pin Male DP (+EP) *...
  • Page 23 Installation A201913 Cable USB standard, USB-connector 4-pin DP * Note: The Sirius-USB must be directly connected to the PC-USB port and not through an (un-powered) USB hub. A201908 Cable USB plus power Green 8-pin connector DP * A201508 Gender Changer / KBW-PC DIN adapter * DP means Direct Power (Power Of Terminal) EP means External Power through the optional PSU.
  • Page 24: Interface Selection

    Installation INTERFACE SELECTION The Sirius S-7030 is equipped with triple interface for integration in nearly every environment: RS-232, Key Board Wedge, USB or USB plus power. The interface is selected by the cable connected. On power up the scanner senses the type of interface used and switches to the appropriate protocol.
  • Page 25: Chapter 3 Using The Sirius S-7030

    Chapter 3 Using the Sirius S-7030...
  • Page 26: Orientation

    Using the Sirius S-7030 ORIENTATION See the picture below to get acquainted with the various parts of the scanner. Red LED: ‟Ready‟ Green LED: „Good Read‟ Button; „Wake-Up‟ or „Single-Line‟ Rubber Grips Data/Power Cable Stand, adjustable...
  • Page 27 Using the Sirius S-7030 Adjust the orientation of the scanner the scanner by rocking it carefully while mounted in the stand and by rotating the stand on its floor surface. Position it such that the beam pattern is projected optimally onto the products you present for scanning.
  • Page 28: Scanning Bar Codes With The Sirius S-7030

    Using the Sirius S-7030 SCANNING BAR CODES WITH THE SIRIUS S-7030 The Sirius S-7030 is an omni-directional presentation scanner featuring a 5 directional scan field with a 20 lines scan pattern with 1350 scans/sec. Bar code labels can easily be read by presenting them to the scanner.
  • Page 29: Single Line Scanning

    Using the Sirius S-7030 SINGLE LINE SCANNING The Sirius is provided with a “Single Line” option, which helps you selecting specific codes when multiple bar codes are very close together. A typical case is when you need to scan just one code from a pick list full of bar codes.
  • Page 30: Maintaining The Scanner

    Using the Sirius S-7030 MAINTAINING THE SCANNER The Sirius S-7030 scanner requires little maintenance. Only occasional cleaning of the scanner window is necessary to remove dirt or fingerprints. Cleaning can be performed during operation with a non-abrasive glass spray cleaner and a...
  • Page 31: Appendices

    Appendices A. Connector types and pin definitions B. Technical Specifications C. Troubleshooting...
  • Page 32: A Connector Types And Pin Definitions

    Appendices CONNECTOR TYPES AND PIN DEFINITIONS There are three interfaces in the Sirius: RS-232, Key Board Wedge and USB (plus power). The various pin definitions (depending on the used type of interface) are given below. The connector type is RJ-48, 10 pins. IMPORTANT Various interface cables are available, depending on the kind of PC/POS system you use.
  • Page 33 Appendices Pin definition EAS connector Description Direction ( - ) The EAS connection is used to connect the internal deactivation antenna to an external EAS control unit.
  • Page 34: Btechnical Specifications

    Appendices TECHNICAL SPECIFICATIONS Electrical 100 – 240 V ac 50/60 Hz (adapter) Power supply voltage (optional) 5.2 Vdc 260 mA or 8 – 16Vdc max 2VA DC input to scanner Interfaces RS-232, KBW and USB/USB plus power Optical Visible laser diode (630 - 670 nm) Light source Depth of field Approx.
  • Page 35 Appendices Environmental Operating temperature 0° C ~ 40° C Humidity 20% ~ 95% RH (non-condensing) Safety Laser safety IEC 825-1 (1993) Class I, U.S. CDRH: 21CFR1040 Class II a Electrical safety EN 60950 second edition, IEC 950 (1991) UL1950 third edition, c-UL (according CSA22.2.950-M95) Flammability rate 94V-0 EM Compatibility...
  • Page 36: Ctroubleshooting

    Appendices TROUBLESHOOTING This section contains information on solving problems you may encounter when using the scanner. If troubles occur, take a moment to read the information in this section. However, before referring to the diagnostic tips make sure that the scanner is installed as described in Chapter 2 and that all cables are properly connected.
  • Page 37 Appendices Problem Diagnostic Tips Both the green and red LED are The laser is not functioning. The laser burning. is defective. Contact your supplier. The LED is blinking green+red. The ambient temperature is too high. Make sure the scanner has enough air ventilation and is not placed in direct sunlight.
  • Page 38 Appendices Problem Diagnostic Tips USB communication is not working Restart the scanner by temporarily disconnecting the scanner at the POS/PC side. This may help the POS system to detect the scanner. The very first time the PC might install some general drivers, possibly from your computer or setup CD.
  • Page 40 Scantech-ID BV Amersfoortsestraat 124 3769 AN Soesterberg The Netherlands Phone: +31 (0)33 469 84 00 Fax: +31 (0)33 465 06 15 E-mail: info@scantech-id.com Internet: www.scantech-id.com...
