Summary of Contents for Scantech ORION O-3050

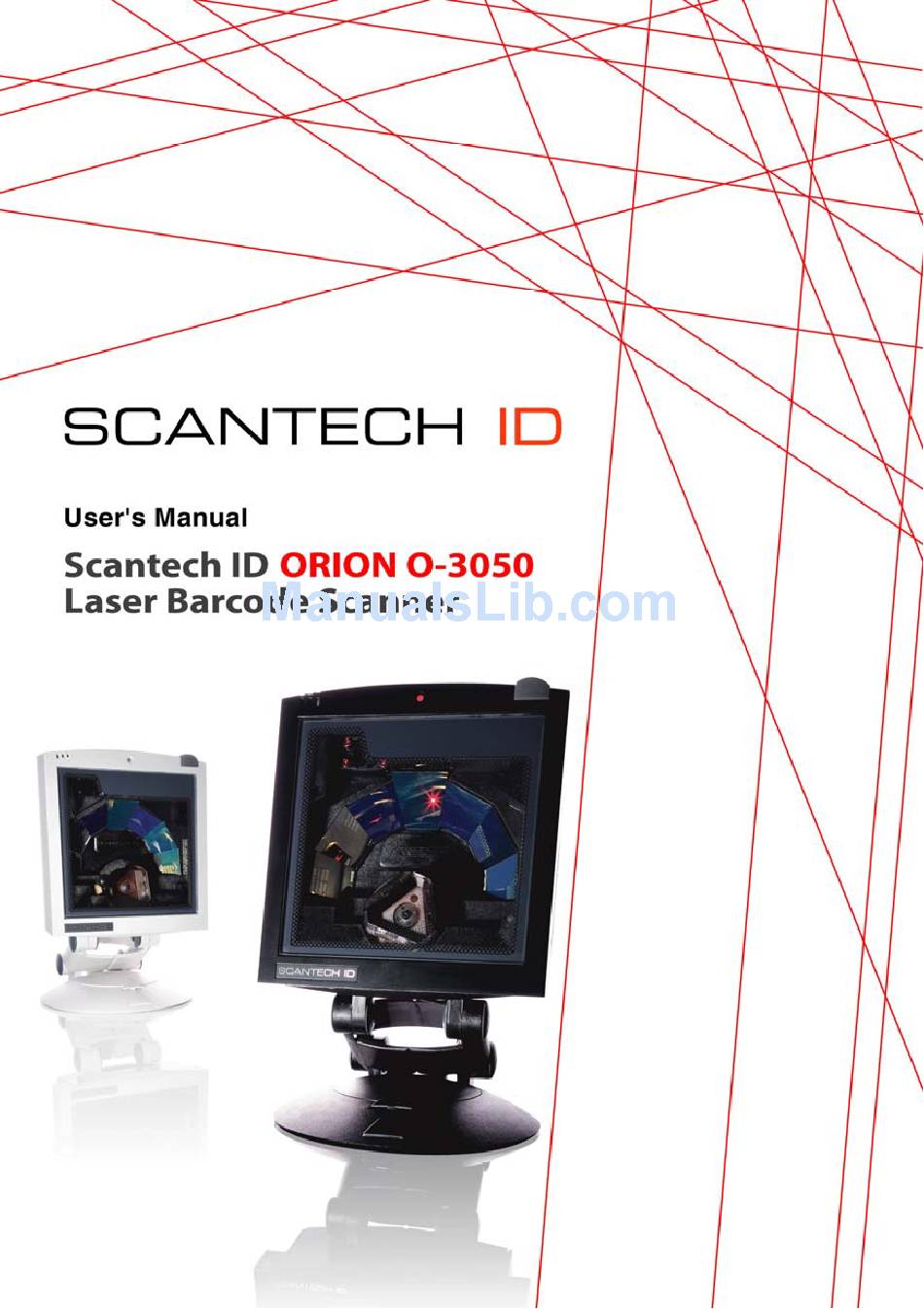

- Page 3 User’s Manual Scantech-ID ORION O-3050...
- Page 4 Copyright © 2010, Scantech-ID BV. This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of Scantech International BV.
-
Page 5: Table Of Contents
Chapter 1 The ORION O-3050 ..............1 1.1 Unpacking the ORION O-3050 ..........2 1.2 Declaration of conformity ............4 1.3 Scanning bar codes with the ORION O-3050 ......5 1.4 Scanner labelling ..............6 1.5 Maintaining the scanner............9 1.6 Controlling the scanner from the POS system ....... -
Page 7: Preface
Preface The ORION is a new presentation laser scanner which allows hands free bar code scanning, based on proven Scantech-ID technologies which form the basis of all our omni-directional scanners. Bar code labels are read by presenting the labels towards the scanner. Scanning labels with the ORION hardly requires any arm movement. -
Page 9: Chapter 1 The Orion O-3050
Chapter 1 The ORION O-3050... -
Page 10: Unpacking The Orion O-3050
The ORION O-3050 UNPACKING THE ORION O-3050 Remove the scanner and its accessories from the box and packing material. Refer to the packing list to make sure you have received all the items ordered. Visually inspect the scanner and accessories for any evidence of physical damage. - Page 11 The ORION O-3050 The specific parts of the ORION O-3050 are: When a sleep mode time-out is programmed, Sleep mode button the scanner can be re-activated by pressing this switch. The sleep mode feature is programmable with the menu labels from the Configuration guide.
-
Page 12: Declaration Of Conformity
The ORION O-3050 DECLARATION OF CONFORMITY Scantech-ID B.V. Scantech-ID BV Vanadiumweg 22 3812 PZ Amersfoort The Netherlands Tel. +31 (0)33 4698400 Fax +31 (0)33 4650615 Hereby declares under our sole responsibility that the product: Product: ORION Model number: O-3050 (and equivalent) -
Page 13: Scanning Bar Codes With The Orion O-3050
The ORION O-3050 SCANNING BAR CODES WITH THE ORION O-3050 The ORION O-3050 is an omni-directional presentation scanner featuring a 7 directional scan field with a 24 lines scan pattern. Bar code labels can easily be read by presenting them to the scanner. -
Page 14: Scanner Labelling
The ORION O-3050 SCANNER LABELLING Two labels are present on the housing of the ORION O-3050 as indicated in the figure below. Two labels are also visible through the scanner window. All labels are attached by the manufacturer and should not be removed. -
Page 15: Laser Safety
The ORION O-3050 Laser safety German: Der Strichcode-Scanner O-3050 entspricht den Sicherheitsvorschriften nach IEC 825-1 (1993) für ein Laserprodukt der Klasse I. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein Laserprodukt der Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in direktes Laserlicht. - Page 16 The ORION O-3050 Spanish: El scanner O-3050 reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe evitar mirar muy fijo en luz lasérica directa.
-
Page 17: Maintaining The Scanner
The ORION O-3050 MAINTAINING THE SCANNER The ORION O-3050 scanner requires little maintenance. Only occasional cleaning of the scanner window is necessary to remove dirt and fingerprints. Cleaning can be performed during operation with a non-abrasive glass spray cleaner and... -
Page 18: Controlling The Scanner From The Pos System
CONTROLLING THE SCANNER FROM THE POS SYSTEM The ORION O-3050 can be controlled from the POS system via the RS232C interface. Control is achieved by transmitting the following single byte commands to the scanner. In the Scantech default setting the following... - Page 19 The ORION O-3050...
-
Page 21: Chapter 2 Installing The Orion O-3050
Chapter 2 Installing the ORION O-3050... -
Page 22: Connecting The Scanner
Installing the ORION O-3050 Depending on the way you want to use the ORION O-3050, the scanner can be installed in two different ways: fixed on a counter surface or on a flexible stand. Instructions for installation on a counter surface are given in Section 2.1. - Page 23 Installing the ORION O-3050 Use the illustration below to see where to connect your cable(s) to the scanner. Before closing the back cover later on (see mounting instructions in chapter 2.3 and 2.4) guide the cables through the scanner as shown in the illustration below.
-
Page 24: Interface Selection
Installing the ORION O-3050 INTERFACE SELECTION ORION O-3050 allows you to connect your host system using four different interface cables: RS232, Keyboard Wedge, USB, and Powered USB. On powering up, the scanner senses the type of the interface used and switches to the appropriate protocol. -
Page 25: Installing The Scanner On A Counter Surface
Installing the ORION O-3050 INSTALLING THE SCANNER ON A COUNTER SURFACE To install the scanner without the flexible scanner stand, follow the instructions below. 1. Remove the two rubber feet from the back cover. Lead the communication cable and power supply cable through the slit. Fasten the back cover to the surface with two screws as illustrated in the figure. - Page 26 Installing the ORION O-3050 3. Plug the remote ends of all cables into the appropriate connections of your host POS-system. 4. If you are using an external power supply, power on the scanner by plugging the power supply into an AC power outlet. Switch on the host system.
-
Page 27: Installing The Scanner With The Counter Stand
Installing the ORION O-3050 INSTALLING THE SCANNER WITH THE COUNTER STAND To install the scanner with the light stand, follow the instructions below: 1. Fix the stand to the desired place using screws and the screw holes on the stand. - Page 28 Installing the ORION O-3050 2. Place the bottom plate on the counter and mark the places for the mounting holes on the counter top and mark the hole to lead the cables through. 3. Drill the mounting holes and the lead-through hole.
- Page 29 Installing the ORION O-3050 6. Click the stand on the bottom plate. 7. Connect the cables to the scanner. Refer (for the data cable in particular) to chapter 2.1 for the correct connections. 8. Place the scanner onto the flexible stand and rotate the scanner as indicated in the figure.
-
Page 30: Removing The Scanner From The Back Cover Plate
Installing the ORION O-3050 REMOVING THE SCANNER FROM THE BACK COVER PLATE To remove the scanner from the back cover plate, that is either attached on the counter or on the scanner stand: 1. Locate the small hole at the back cover of the scanner. -
Page 31: Appendices
Appendices A. Connector types and pin definitions B. Technical Specifications C. Troubleshooting... -
Page 32: Aconnector Types And Pin Definitions
Appendices CONNECTOR TYPES AND PIN DEFINITIONS The ORION supports triple interface in one standard unit: RS232, Keyboard Wedge (KBW) and USB/USB plus power. The various pin definitions for the applicable Data port are given on page 20 and 21. The connector to be used for the port is indicated below. - Page 33 Appendices Pin definition for all scanner versions: AUX Port for HH scanner Description Direction Description Direction +5 VDC output ( - ) input input (reserved) POWER output Description Direction (reserved) +12V input (reserved) (reserved) (reserved) The EAS connection is used to connect the internal deactivation antenna to an external EAS control unit.
- Page 34 Appendices...
-
Page 35: Btechnical Specifications
Appendices TECHNICAL SPECIFICATIONS Electrical Power supply voltage 100 – 240 V ac 50/60 Hz (adapter) DC input to scanner 12VDC, 165mA nominal, 95mA standby Interfaces RS-232 + USB + Powered-USB + Keyboard Wedge Optical Light source Visible laser diode (650 nm) Depth of field 330 mm Scan pattern... - Page 36 Appendices Physical Weight 500 g Weight with stand 675 g Dimensions H x W x D : 146 x 135 x 61 mm : 5.75 x 5.35 x 2.40 inch Dimensions with stand H x W x D : 215-237 x 135 x 135 mm : 8.47 –...
-
Page 37: Ctroubleshooting
Appendices TROUBLESHOOTING This section contains information on solving problems you may encounter when using the scanner. If troubles occur, take a moment to read the information in this section. However, before referring to the diagnostic tips make sure that the scanner is installed as described in Chapter 2 and that all cables are properly connected. - Page 38 Appendices Problem Diagnostic Tips The LED is orange. The laser is not functioning. The laser is defective. Contact your supplier. The LED is blinking orange. The ambient temperature is too high. Make sure the scanner has enough air ventilation and is not placed in direct sunlight.
- Page 39 Appendices Problem Diagnostic Tips USB is not working Unless you use USB plus power, you need a separate power connection to the scanner like the external power supply. Restart the scanner by temporarily disconnecting the power. This may help the POS system to detect the scanner.
