Scantech VEGA V-1020 Quick Start Manual

Vega area imager v-1020 / v-1020bt handheld barcode scanner
Hide thumbs Also See for VEGA V-1020:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Start Guide
VEGA Area Imager V-1020 / V-1020BT
Handheld Bar code Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA V-1020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scantech VEGA V-1020

Summary of Contents for Scantech VEGA V-1020

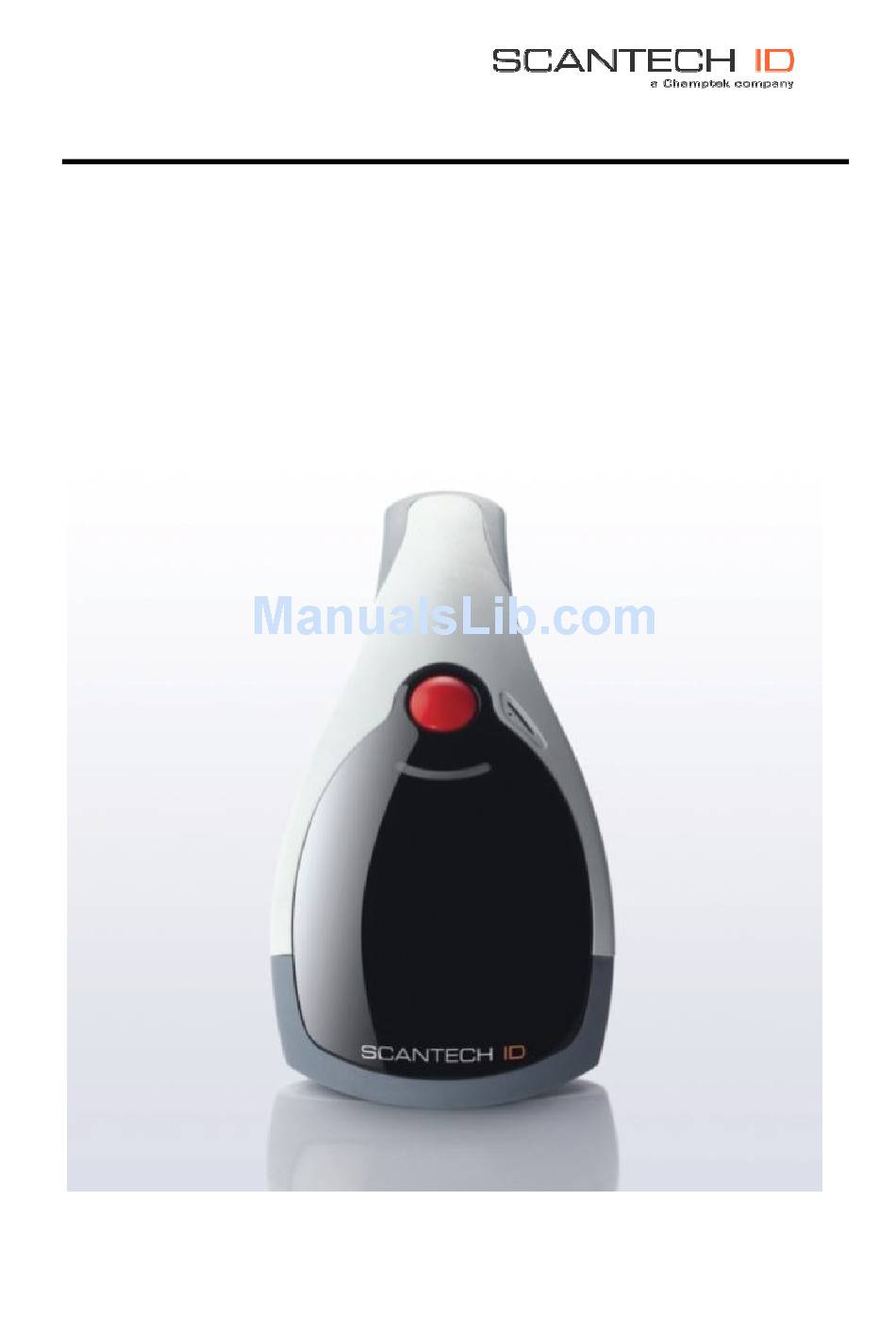

  • Page 1 Quick Start Guide VEGA Area Imager V-1020 / V-1020BT Handheld Bar code Scanner...
  • Page 2 Copyright © 2009, Scantech-ID BV. This manual is copyrighted, with all right reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, Photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of Scantech-ID.
  • Page 3 Quick Start Guide Scantech-ID VEGA...

  • Page 4: Table Of Contents

    2.3 Start up with Bluetooth........7 2.4 User’s Installation and Programming Manual...7 Chapter 3 Programming Sequence 3.1 Factory Default Settings........8 Chapter 4 Scanner Imager Mode 4.1 Imager Mode............9 Chapter 5 RS232 Parameters for V-1020 5.1 Baud rate............11 5.2 Data bit ............12...
  • Page 5 5.3 Stop bit ............12 Chapter 6 USB Parameter………………..………… 13 Chapter 7 Bluetooth Setup for V-1020BT 7.1 Set Cradle Interface Barcode......14 7.2 Bluetooth Default Setting.........15 7.3 Scanner Server/Client Mode......15 7.4 Sleep Mode.............16 7.5 Memory Mode..........17 Chapter 8 Postambles 8.1 Postamble............18 Chapter 9 Symbologies 9.1 Enable Symbologies........19 9.2 Disable Symbologies........24 Chapter 10 Test Symbologies........25...
  • Page 6 Chapter 11 Specification 11.1 Readable Symbologies........27 11.2 Physical Characteristics........27 11.3 Physical Characteristics Bluetooth Cradle..28 11.4 Operational............28 11.5 Electrical Characteristics(V-1020)....28 11.6 Electrical Characteristics (V-1020BT)..29 11.7 Bluetooth Characteristics......29 11.8 Environmental Characteristics......29...

  • Page 7: Chapter 1 Introduction

    Introduction Thank you for purchasing this brand-new designed imager hand held bar code scanner. VEGA is a cutting-edge gun-type Area Imaging barcode scanner which is designed specifically for retail market. To the brand new series of VEGA, we add on more user friendly functions with detachable cable that makes it more easily to be operated by the customers.

  • Page 8: Chapter 2 Quick Start

    USB) c. Power Supply (if applicable) d. Quick Start Guide e. Stand (V-1020) or Bluetooth Cradle (V-1020BT) f. Transparent Cover Plate Visually inspect the VEGA and accessories for any evidence of physical damage. If anything is missing or appears to be damaged, immediately contact your dealer.

  • Page 9: Start Up With Bluetooth

    power supply if applicable. Press the RED trigger button at the top side of the unit; aim the bar code, which covered by the LED red light zone. You will hear a beep and the green LED indicator will light on after scan successfully.

  • Page 10: Chapter 3 Programming Sequence

    Programming Sequence You can set-up your VEGA by scan necessary programming codes for parameters that meet applications. After these scan(s) the VEGA is automatically configured. The chapters 4 to 9 provide you with the programming codes necessary for a basic setup. For more advanced setup options see VEGA user’s manual.

  • Page 11: Chapter 4 Scanner Imager Mode

    Scanner Imager Mode The VEGA Area Imager mode allows you to position the hand held scanner beam in any direction, regardless of the orientation of the bar code, and perform a good read on 1D and 2D bar codes. The VEGA Linear imager mode allows you to increase your decoding speed while scanning 1D bar codes.
  • Page 12 Area mode for Codes With Reflective Surface...

  • Page 13: Chapter 5 Rs232 Parameters For V-1020

    RS232 Parameters for V- 1020 5.1 Baudrate Baudrate 38400 <Baudrate 57600> Baudrate 115200...

  • Page 14: Data Bit

    5.2 Data bits Data bits 7 <Data bits 8> 5.3 Stop bits <Stop bits 1> Stop bits 2...

  • Page 15: Chapter 6 Usb Parameter

    USB Parameter USB Mode Attention: The “Set factory default” setting would return to the original default setting instead of the customer default setting. If you are using a USB interface, when set to factory default settings, your device will be lost USB interface settings, please re- configure USB mode setting barcode.

  • Page 16: Chapter 7 Bluetooth Setup For V-1020Bt

    7. Bluetooth Setup for V-1020BT 7.1 Set Cradle Interface Barcode Set Cradle Interface Default Barcode （default RS232, 19200, N-8-1） Set Cradle KB Interface Barcode Set Cradle RS232 Interface Barcode Set Cradle USB HID Interface Barcode...

  • Page 17: Bluetooth Default Setting

    7.2 Bluetooth Default Setting Default Setting 7.3 Scanner Server/Client Mode Scanner Server Mode Barcode Scanner Client Mode Barcode...

  • Page 18: Sleep Mode

    7.4 Sleep Mode <Sleep Mode 1 min. ON> Sleep Mode 10min. ON Sleep Mode OFF...

  • Page 19: Memory Mode

    7.5 Memory Mode Memory Mode ON <Memory Mode OFF> Memory Read Memory Clear...

  • Page 20: Chapter 8 Postambles

    8. Postambles 8.1 Postamble Postamble None <CR+LF> <ETX>...

  • Page 21: Chapter 9 Symbologies

    9. Symbologies 9.1 Enable Symbologies Australian Post ON AZTEC ON BPO ON Canada Post ON CODABAR ON Codablock A ON...
  • Page 22 Codablock F ON CODE 11 ON <CODE 39 ON> CODE 93 ON CODE 128 ON <GS1-128 ON> <DATAMATRIX ON> Dutch Post ON...
  • Page 23 <EAN-8 ON> <EAN-13 ON> <EAN 128 ON> GS1 CC-A/B ON GS1 CC-C ON GS1 DataBar-Omni ON GS1 DataBar-Limited ON GS1 DataBar-Expanded ON...
  • Page 24 Infomail ON INTERLEAVED 2 of 5 ON Japan Post ON Matrix 2 of 5 ON MaxiCode ON MicroPDF417 ON MSI ON <PDF417 ON>...
  • Page 25 Planet ON PLESSEY ON Postnet ON QR Code ON Standard 2 of 5 ON Sweden Post ON Telepen ON TLC 39 ON...

  • Page 26: Disable Symbologies

    If you need programming codes for symbologies which are not available in this chapter, please contact Scantech-ID Technical Support department or use VEGA utility tool. 9.2 Disable Symbologies Scan this programming code to disable all...

  • Page 27: Chapter 10 Test Symbologies

    Test Symbologies Scan one or more of these bar codes to test bar code symbologies you enabled. Codabar Code 39 Code Code 128 DataMatrix EAN 8 1234 5670 EAN13 EAN 128 1 234567 890128...
  • Page 28 Interleaved 2 of 5 MSI code PDF417 GS1 DataBar Omni directional GS1 DataBar Omni Stacked GS1DataBar Expanded GS1DataBar Expanded GS1 DataBar Limited Stacked UPC A UPC E 12345 67890 123456...

  • Page 29: Readable Symbologies

    Industrial 2 of 5, Code 93/93i, MSI, Standard 2 of 5, Plessey, Postal Codes, Telepen. 2D / Stacked codes: Datamatrix, PDF417, MicroPDF417, Maxicode,QR, Aztec, EAN/UCC composite. 11.2 Physical Characteristics scanner Weight (V-1020) Approx 240.gr. (incl cable) Weight (V-1020BT) Approx 195 gr. Material ABS Plastic Connector...

  • Page 30: Physical Characteristics Bluetooth Cradle

    25° vertical Interface RS232, USB (HID or Virtual Com) or PS/2 KBW (V-1020BT series only) V-1020 Indicators (led) Green = good read V-1020BT Indicators (led) Green = good read Red = low battery Blue = Bluetooth function 11.5 Electrical Characteristics...

  • Page 31: Electrical Characteristics (V-1020Bt)

    11.6 Electrical Characteristics (V-1020BT) Battery Li-ion 3.7V / 1400mA Charge Time 4.5 hours Reads per charge 10,000 Cradle LED indicators Green = good read Blue = Bluetooth function Red / Green = Charging / Charge completed Operating Current 500 mA Input Voltage 5 VDC @ 2 A / Input AC-100-240V...
  • Page 32 Scantech-ID BV Nijverheidsweg Noord 60.34 3812 PM Amersfoort The Netherlands Phone: +31 (0)33 469 84 00 Fax: +31 (0)33 465 06 15 E-mail: info@scantech-id.com Internet: www.scantech-id.com...
