Summary of Contents for Scantech LIBRA L-7080i

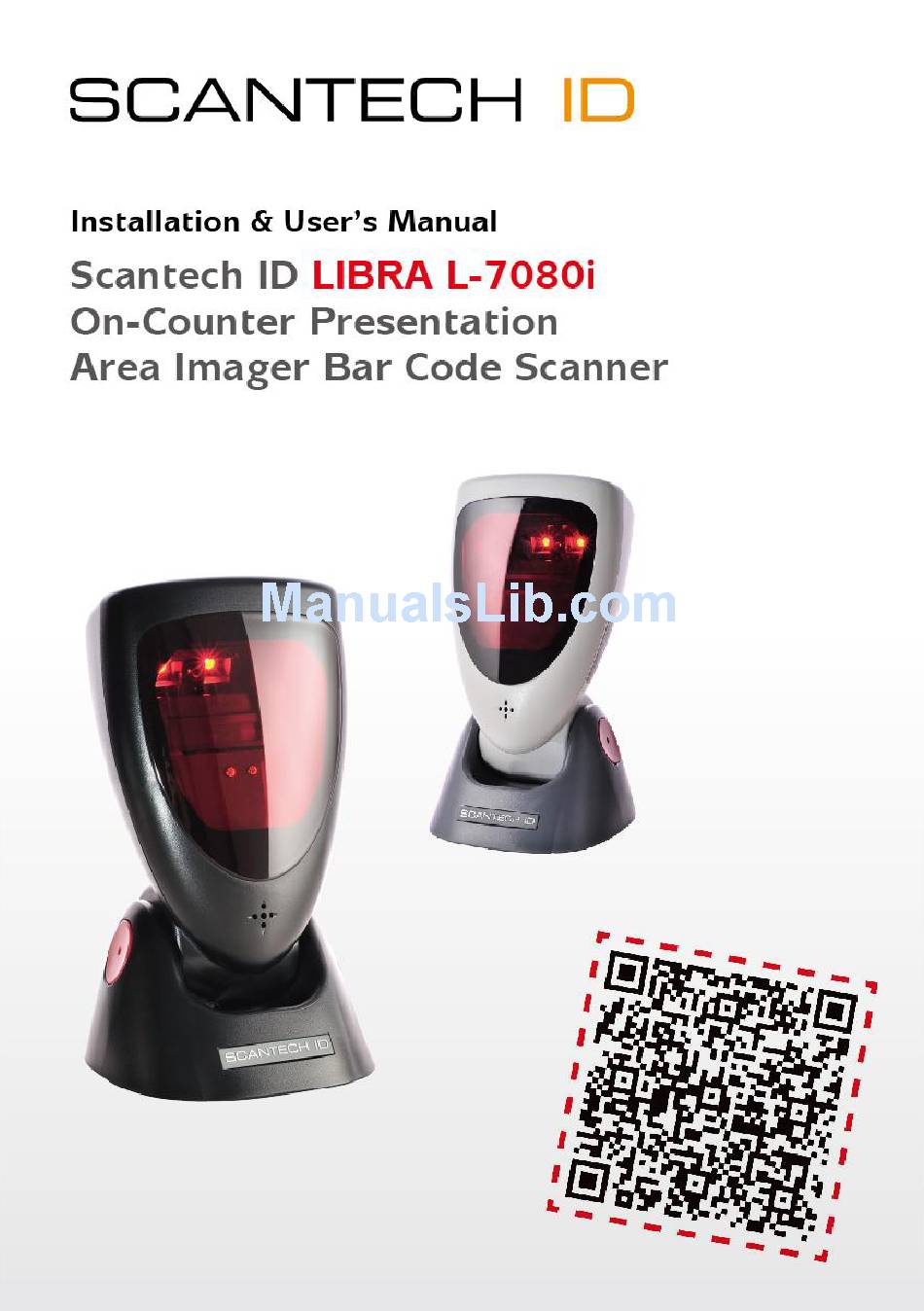

- Page 3 Installation & User’s Manual Scantech-ID LIBRA L-7080i On-Counter Presentation Area Imager Bar Code Scanner...
- Page 4 In particular, Scantech-ID shall not be liable for any hardware, software, or data that is stored or used with the product, including the cost of repairing, replacing or recovering the above. Scantech-ID reserves the right to change parts of the device at any time without preceding or direct announcement to the client.
-
Page 5: Table Of Contents
Installation ................. 8 UNPACKING ..................9 CONNECTING ................11 ADJUSTING ..................12 POWERING ..................13 Chapter 3 ................. 14 Using LIBRA L-7080i ..............14 SCANNING BARCODES ..............15 MAINTAINING ................. 17 Chapter 4 ................. 18 Applications ................18 Appendices ................20 CONNECTOR TYPES AND PIN DEFINITIONS ...... -
Page 7: Preface
Preface The LIBRA L-7080i is an omni-directional presentation area imager bar code scanner, it uses digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture deactivation. - Page 8 Boost service for today’s mobile world by reading mobile bar codes Whether you need to scan printed bar codes on paper labels or mobile bar codes on the screen of a mobile phone, with the L7080i, you’ll be ready. You get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets.
- Page 9 This manual contains four chapters and three appendices: The first chapter provides the product safety information. The second chapter describes LIBRA L-7080i's general features and installation. The third and forth chapters account for the use of LIBRA L-7080i. The connector types and pin definitions, technical specifications, and...
-
Page 10: Chapter 1
Chapter 1 Product Safety... -
Page 11: Product Safety
LIBRA L-7080i 1.1 PRODUCT SAFETY Herewith confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the con figuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. -
Page 12: Declaration Of Conformity
- EN 60950-1: 2001 EMC: - EN 55022 CLASS B: 2010 - EN 61000-3-3:2008 - EN 61000-3-2:2006+A1:2009+A2: 2009 - EN 55024: 2010 Please note that a Scantech-ID CE-marked power supply unit should be used to confirm the product specifications stated above. -
Page 13: Scanner Labeling
LIBRA L-7080i SCANNER LABELING All labels are attached by the manufacturer and should not be removed. The information about the serial and part numbers can be found on the product label. These official registration numbers are strictly related to the device. The supplier may... -
Page 14: Chapter 2
Chapter 2 Installation... -
Page 15: Unpacking
If anything is missing or appears to be damaged, immediately contact your dealer. You can mount LIBRA L-7080i without the fit plate, but the plate may be suitable for your special mounting requirements. Contact your dealer for more information. - Page 16 Exterior View...
-
Page 17: Connecting
LIBRA L-7080i 2.2 CONNECTING Interface Selection LIBRA L-7080i allows you to connect your host system using two different interface cables: RS232, USB . On powering up, the scanner determines the type of the interface used and switches to the appropriate protocol. -
Page 18: Adjusting
6. If necessary, mount the scanner on the wall using the wall hooks. 2.3 ADJUSTING LIBRA L-7080i’s angle can be adjusted. To do this, hold LIBRA by its back and adjust the angle as shown below. Front angle: 22° (max) / Back angle: 80° (max) -
Page 19: Powering
LIBRA L-7080i 2.4 POWERING LIBRA L-7080i is designed to use a single cable for both data transmission and power supply. This requires that your host system can provide sufficient power on its data port (RS232 or USB). Power injector Some applicable LIBRA L-7080i interface cables have a power injector to connect an external power supply in case the host system cannot supply sufficient power for the scanner. -
Page 20: Chapter 3
Chapter 3 Using LIBRA L-7080i... -
Page 21: Scanning Barcodes
LIBRA L-7080i 3.1 SCANNING BARCODES The Libra L-7080i Area Imager presentation scanner delivers the blazing speed on both 1D and 2D barcodes without sacrificing scanning quality or performance. With the L-7080i, not only can identify product pricing barcode label , furthermore,... - Page 22 LIBRA L-7080i 's scan volume is illustrated in the figure below. The scan depth varies depending on the size of the barcode. Resolution Depth of Field 0.127mm/5mil (code 39) 30~130mm/1.18~5.11 inch 0.33mm/13mil (EAN) 30~230mm/1.18~9 inch 0.5mm/20mil (code 39) 30~300mm/1.18~11.81 inch 0.23mm/9mil (PDF147)
-
Page 23: Maintaining
LIBRA L-7080i 3.2 MAINTAINING LIBRA 7080i requires little maintenance. Only occasional cleaning of the scanner window is necessary to remove dirt and fingerprints. Cleaning can be performed during operation with a non-abrasive glass spray cleaner and a soft lint-free cloth. -
Page 24: Chapter 4
Chapter 4 Applications... - Page 25 LIBRA L-7050 Take LIBRA L-7080i as a Core Module of your Application Solutions Barcodes have become a distinguishing mark of modern civilization. The familiar stripes are popping up almost everywhere in everyday life: Libraries, retail stores, supermarkets, post offices, bill payment for services, law firms, shipping companies, enterprises, distributors, manufacturers, hospitals, …...
-
Page 26: Appendices
Appendices Appendices Connection Types and Pin Definitions Technical Specifications Troubleshooting... -
Page 27: Connector Types And Pin Definitions
LIBRA L-7080i A. CONNECTOR TYPES AND PIN DEFINITIONS LIBRA L-7080i supports multiple interfaces RS232 and USB. The various pin definitions for each type of interface are given below. IMPORTANT Various interface cables are available depending on the kind of host system you are using. Contact your supplier for availability. -
Page 28: Technical Specifications
B. TECHNICAL SPECIFICATIONS Electrical ( Power Consumptions ) Rush Power DC +5 V, 500mA (typical) Operating Power DC +5 V, 270mA (typical) Standby Power DC +5 V, 250mA (typical) Scanner Characteristics Light source Visible red LED 625nm± 5 nm Depth of field 300mm@20mil/0.5mm, Code 39 View of field 40°... - Page 29 LIBRA L-7080i Physical Characteristics Depth 97.71 mm / 3.84 inch Width 85 mm / 3.35 inch (scanner), 94 mm / 3.70 inch (base) Height 161.51 mm / 6.36 inch Weight 325 g Color Black (Scanner+Base) or Gray (Scanner) + Dark Gray (Base)
-
Page 30: Troubleshooting
C. TROUBLESHOOTING This section contains information on solving problems you may encounter when using the scanner. If troubles occur, take a moment to read the information in this section. However, before referring to the diagnostic tips ensure that the scanner is installed as described in Chapter 2 and that all cables are properly connected. - Page 31 USB- IBM-POS protocol for tabletop scanners. These settings are restored after programming “back to default” using the Configuration Guide. Due to Scantech ID’s continuing product improvement programs, specifications and features are subject to change without notice.
