Scantech VEGA V-1020 User Manual

Vega area imager handheld bar code scanner
Hide thumbs Also See for VEGA V-1020:
Table of Contents

Advertisement

Quick Links

Download this manual

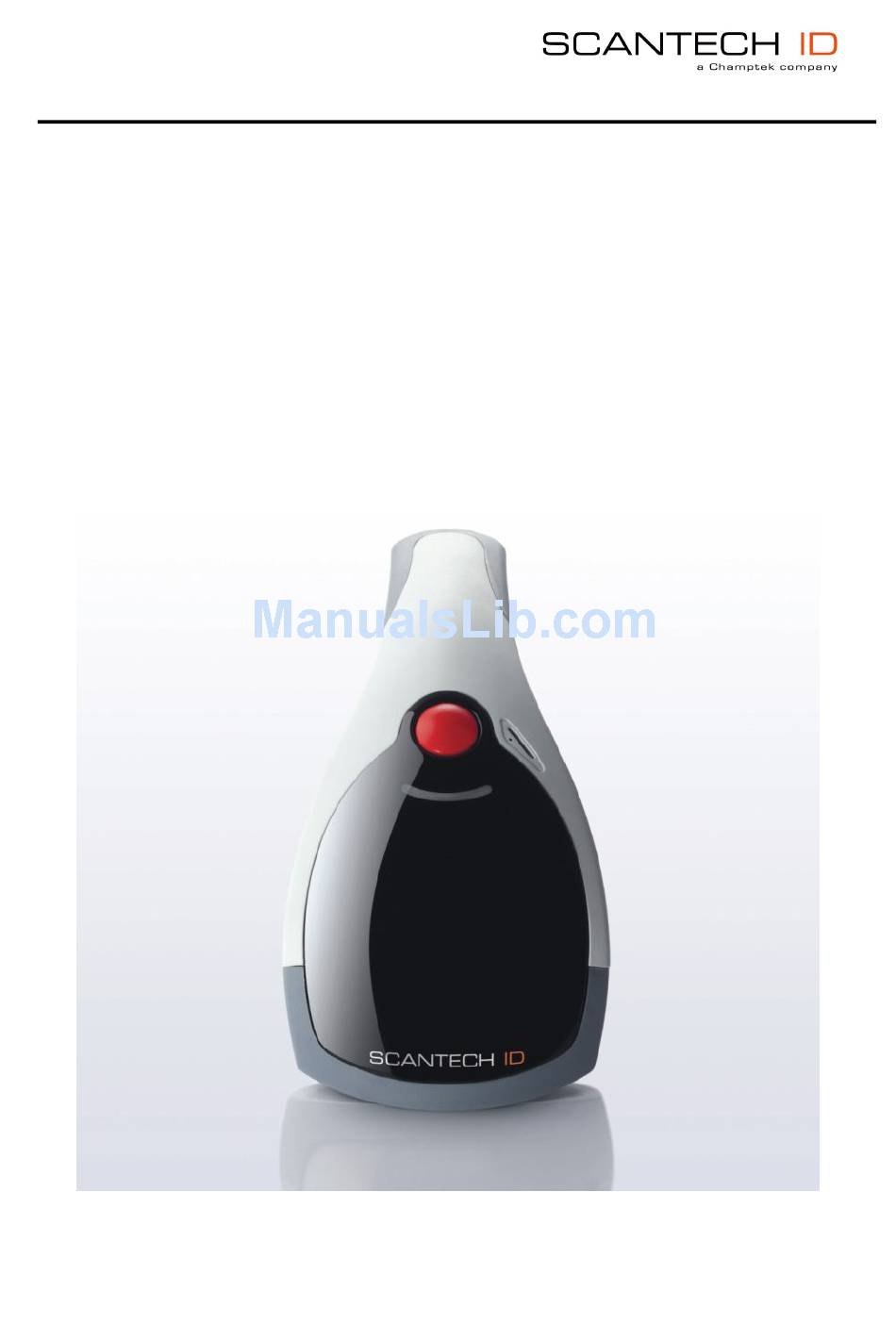

U s e r ' s
M a n u a l
VEGA Area Imager V-1020/V-1020BT
Handheld Bar code Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA V-1020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scantech VEGA V-1020

Summary of Contents for Scantech VEGA V-1020

  • Page 1 U s e r ’ s M a n u a l VEGA Area Imager V-1020/V-1020BT Handheld Bar code Scanner...
  • Page 2 EMEA SCANTECH-ID BV Nijverheidsweg Noord 60-34 3812 PM Amersfoort The Netherlands Tel:+31-33-4698400 Fax:+31-33-4650615 E-mail:info@scantech-id.com www.scantech-id.com HEAD QUARTER CHAMPTEK INCORPORATED 5/F, No.2 Alley 2, Shih-Wei Lane, Chung Cheng Rd., Hsin Tien City,Taipei 231, Taiwan Tel:+886-2-2219-2385 Fax:+886-2-2219-2387 E-mail:sales@champtek.com www.champtek.com China CHAMPTEK INCORPORATED #901, No.
  • Page 3 User’s Installation and Configuration Manual Scantech-ID VEGA...
  • Page 4 Copyright © 2009, Scantech-ID BV. This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of Scantech-ID Limited Warranty Under all circumstances this manual should be read attentively, before installing and/or using the product.

  • Page 5: Table Of Contents

    Scanner Labelling ................12 ..............Chapter 2 General Description 13 Use of the VEGA ................14 ..........Chapter 3 Installation of the VEGA V-1020 15 V-1020 Unpacking ................16 V-1020 Mounting ................17 V-1020 USB Driver ................18 ........... Chapter 4 Installation of the VEGA V-1020BT 19 V-1020BT Unpacking ..............20...
  • Page 6 .............. Chapter 6 Configuring the VEGA 31 Preface ................... 32 Factory Default Setting ..............34 ..............Chapter 7 Programming Codes 35 Return to Default................36 RS232 Mode Parameters ..............37 Bluetooth Scanner Setup ..............45 Bluetooth Cradle Setup ..............48 Decoding Selection .................
  • Page 7 Scantech-ID 7.24 Matrix 2 of 5 Settings ...............91 7.25 MaxiCode Settings ................92 7.26 MicroPDF417 Settings..............93 7.27 MSI code Settings ................94 7.28 PDF417 Settings ................95 7.29 Planet Settings ................98 7.30 Plessey code Settings ..............99 7.31 Postnet Settings ................100 7.32 QR Code Settings .................101 7.33 Standard 2 of 5 Settings ..............102 7.34...
  • Page 8 Appendices .................... 122 A Decimal Value Table ................123 B ASCII Table ..................124 C Readable Symbologies ..............125 D Technical Specifications ..............126 E Scan Map ..................127 F Overview Partnumbers ............... 129...

  • Page 9: Introduction

    Scantech-ID Introduction VEGA is a cutting-edge gun-type barcode scanner which is designed specifically for retail market. To the brand new series of VEGA, we add on more user-friendly functions with detachable cable that makes it more easily to be operated by the customers. Speaking of the performance, this scanner supports middle to long range operation.

  • Page 10: Chapter 1

    Chapter 1 Product Safety...

  • Page 11: Safety & Caution

    Scantech-ID SAFETY & CAUTION Please read the following safety statement carefully. Please preserve this user manual for reference sometime. Before cleaning the VEGA, the users must cut off all AC power. Do not use liquid or spray type of detersive to clean the VEGA. Please use dampish cotton cloth to clean the VEGA.

  • Page 12: Fcc Warning

    General Description FCC WARNING This equipment complies with the requirements in Part 15 of FCC. Any operation must comply with the conditions below: (a) The equipment will not cause any severe interference. (b) The equipment can avoid any interference from environment. Statement: This product is classified as A class product.

  • Page 13: Scanner Labelling

    Scantech-ID SCANNER LABELLING Model Name Serial Number Model Name: VEGA V-1020 Area Imager VEGA V-1020BT Area Imager Bluetooth Serial Number: Product Serial No. (VA……..) See Appendix F for more information in detail.

  • Page 14: Chapter 2 General Description

    General Description Chapter 2 General Description...

  • Page 15: Use Of The Vega

    Scantech-ID USE OF THE VEGA The VEGA is very ergonomic and modern designed and very user friendly. It can be connected to your POS or Host system trough a RS232 cable, KBW cable, USB cable or with Bluetooth wireless. To read a bar code, you simply press the red trigger button and aim the beam to the bar code.

  • Page 16: Chapter 3

    Chapter 3 Installation of the VEGA V-1020...

  • Page 17: V-1020 Unpacking

    Scantech-ID V-1020 UNPACKING Unpack the VEGA as follows: 1. Take the VEGA and its accessories out of the box. 2. Remove the packing material. 3. Check the packing list to make sure you have received all of the items ordered.

  • Page 18: V-1020 Mounting

    Installation of the VEGA V-1010 V-1020 MOUNTING Once you have unpacked all components, you can start installing the VEGA. Installing the VEGA is divided in different steps: 1. Connect the VEGA to the supplied communication cable (RJ45 side). 2. Connect the VEGA communication cable to the POS or Host system.

  • Page 19: V-1020 Usb Driver

    Scantech-ID V-1020 USB DRIVER In case you will use the VEGA with USB virtual com port emulation, it is necessary to install the correct USB driver on your POS or Host system, needed for correct operation between your system and the VEGA scanner.

  • Page 20: Chapter 4

    Chapter 4 Installation of the VEGA V-1020BT...

  • Page 21: V-1020Bt Unpacking

    Scantech-ID V-1020BT UNPACKING Unpack the VEGA as follows: 1. Take the VEGA and its accessories out of the box. 2. Remove the packing material. 3. Check the packing list to make sure you have received all of the items ordered. Standard Shipment Package a.

  • Page 22: V-1020Bt Setup Bluetooth Communication

    Configuring the VEGA Connect the supplied communication cable at the bottom side of the cradle. Connect the other side of the communication cable to the right connector of your POS or HOST system. Plug the external power supply into the power jack on the bottom of the cradle.
  • Page 23 Scantech-ID Pairing 4.3.1 Pairing refers to when a VEGA scanner has been linked or paired to a specific cradle by scanning that cradle’s Bluetooth MAC address code, this Bluetooth MAC address code is unique for each cradle. This address code is located on the bottom side of the cradle. The pairing of a VEGA scanner to a cradle is one to one.
  • Page 24 Configuring the VEGA ATTENTION The VEGA scanner must be charged for a minimum of 8 hours before the scanner can be placed in full operation for the first time. The cradle red led will indicate in red when the scanner is charged.

  • Page 25: Sleep Mode

    Scantech-ID The VEGA scanner must scan “Scanner Server Mode ON/Scanner Client Mode Off” barcode, to set the VEGA scanner in server mode. When control the Bluetooth device to search the scanner, enter pin code (default 00:00:00:00) to setup comport. When VEGA scanner is successful connected, scanner will initiate with short beep sounds.

  • Page 26: Chapter 5 Cover Display

    Configuring the VEGA Chapter 5 Cover Display...

  • Page 27: Setup Cover Display

    Scantech-ID SETUP COVER DISPLAY The VEGA scanner has the opportunity to change the decorative cover display on the top of the scanner into a display that can show our own commercial message. Message Format 5.1.1 Create your own commercial message with the following outline format, use thicker paper Change Cover Display 5.1.2...
  • Page 28 Configuring the VEGA Step 1: Press out the front rubber lid toward the arrow. ➀ Step 2: Pull out the front rubber lid off the ➁ main unit. Step 3: Press out top cover rim from the inner lock. ➂...
  • Page 29 Scantech-ID Step 4: Press out the other side of inner lock and remove the complete cover. ➃ Step 5 Assemble transparent top cover rim into inner lock. ➄ Step 6 Assemble another side transparent top cover rim into the inner lock. ➅...

  • Page 30: Chapter 6 .............................................................. Configuring The Vega

    Configuring the VEGA Step 7 Insert your commercial message card into the top cover toward the ➆ arrow. Step 8 Assemble the front rubber lid into ➇ the main unit toward the arrow.

  • Page 31: Chapter 6 Configuring The Vega

    Scantech-ID Chapter 6 Configuring the VEGA...

  • Page 32: Preface

    Configuring the VEGA PREFACE How to configure the VEGA: The Barcode Programming Feature gives the possibility to change the VEGA scanner settings with use programming codes or with the Utility Tool. Changing Scanner Settings with Programming 6.1.1 Codes You can set-up your VEGA by scan all necessary programming codes for parameters that meet applications.
  • Page 33 Scantech-ID In this case you can set-up your VEGA by using the advanced Utility Tool. This tool can be used with the following operation systems: Windows98, Windows2000, Windows XP en Windows Vista. This Utility Tool can be delivered on request. Please contact Scantech- ID Technical Support Department.

  • Page 34: Factory Default Setting

    Configuring the VEGA FACTORY DEFAULT SETTING The VEGA is set default with the following settings: RS-232 COMMUNICATION DEFAULT Baud rate 57600 Parity None Data bits Stop bits RTS/CTS Postamble <CR+LF> DECODER SELECTION DEFAULT Aztec Codabar Code 11 Code 39 Code 93 Code128 Data Matrix EAN8 / EAN13...

  • Page 35: Chapter 7 Programming Codes

    Chapter 7 Programming Codes...

  • Page 36: Return To Default

    7.1.2 Scan this programming code to set the cradle parameters to factory default: Note: The parameter barcode only used V-1020BT series model. Please don’t used setting for V-1020 series model. Set the Cradle to Factory Default - Reset all configuration parameters to their factory default setting of the cradle.

  • Page 37: Baud Rate

    Scantech-ID RS-232 MODE PARAMETERS Note: These parameter barcodes only used setting RS-232 interface for V- 1020.Please don’t used setting for V-1020BT series model. Baud rate 7.2.1 1200 2400 4800...
  • Page 38 9600 19200 38400 57600(*) 115200 128000 230400 256000 460800...

  • Page 39: Data Bits

    Scantech-ID Data bits 7.2.2 Data Bits 7 Data Bits 8(*) Stop bits 7.2.3 Stop Bits 1(*) Stop Bits 2 Parity 7.2.4 None(*) Even...
  • Page 40 Hardware/Software Protocols Timeout 7.2.5 compose (ms): 500 compose (ms):1000(*) compose (ms): 1500 compose (ms): 2000 compose (ms): 2550 RS-232 Parameters–ENQ 7.2.6 Not Active(*) Active Default: 05H(*)
  • Page 41 Scantech-ID RS-232 Parameters–ACK 7.2.7 Not Active(*) Active Default: 06H(*) RS-232 Parameters–NAK 7.2.8 Not Active(*) Active Default: 15H(*)
  • Page 42 Software Protocol–XON/XOFF 7.2.9 Active Not Active(*) Hardware Protocol–RTS/CTS 7.2.10 Not Active(*) Active, RTS idle after each character Active, RTS idle after whole message...
  • Page 43 Scantech-ID RS-232 Parameters-LRC 7.2.11 (Longitudinal Redundancy Check) Not Active(*) Active RS-232 Parameters-Inter-Character Delay 7.2.12 None(*) 10 ms 20 ms 30 ms 40 ms 50 ms...
  • Page 44 RS-232 Parameters-Inter-Message Delay 7.2.13 None(*) 10 ms 30 ms 50 ms 80 ms 100 ms...

  • Page 45: Bluetooth Scanner Setup

    Scantech-ID BLUETOOTH SCANNER SETUP Bluetooth Default Setting 7.3.1 Default Setting Scanner Server/Client Mode 7.3.2 Scanner Server Mode Barcode Scanner Client Mode Barcode Sleep Mode 7.3.3 Sleep Mode 1 min. ON(*) Sleep Mode 10min. ON Sleep Mode OFF...

  • Page 46: Memory Mode

    Memory Mode 7.3.4 Memory Mode ON Memory Mode OFF(*) Memory Read Memory Clear Set Scanner Pin Code Mode 7.3.5 Set Default Security Code Barcode (PINCODE = 000000) Set Security Code ON Barcode Set Security OFF Barcode...
  • Page 47 Scantech-ID Set Pin Code Charactor 7.3.6 (PINCODE max. 6 digits, 0-9and A-Z ASCII CODE) 1) Begin to Set PINCODE 2) Go to the ASCII Tables in 9.10, scan 6 labels that represents the PINCODE. 3) Complete to Set PINCODE...

  • Page 48: Bluetooth Cradle Setup

    BLUETOOTH CRADLE SETUP Set Cradle Pin Code Mode 7.4.1 Set Default Security Code Barcode (PINCODE = 000000) Set Security ON Barcode Set Security OFF Barcode Set Pin Code Barcode 7.4.2 (PINCODE max. 6 digits ,0-9,A-Z ASCII CODE ) 1) Begin to Set PINCODE 2) Go to the ASCII Tables in 9.10, scan 6 labels that represents the PINCODE.

  • Page 49: Set Cradle Interface Barcode

    Set Cradle Interface Barcode 7.4.3 Note: These parameter barcodes only used setting RS-232 interface for V- 1020BT series model. Please don’t used setting for V-1020 series model. Set Cradle Interface Default Barcode （default RS232, 19200, N-8-1） Set Cradle KB Interface Barcode...
  • Page 50 1200 2400 4800 9600 <19200> 38400 7.4.3.2 Cradle Data bits 7 data bits <8 data bits>...
  • Page 51 Scantech-ID 7.4.3.3 Cradle Stop bits <1 bit> 2 bits 7.4.3.4 Cradle Parity <None> Even Mark Space 7.4.3.5 Cradle Hand shaking RTS/CTS Enable...
  • Page 52 <RTS/CTS Disable> ACK/NAK Enable <ACK/NAK Disable> XON/XOFF Enable < XON/XOFF Disable > 7.4.3.6 Cradle Keyboard Wedge mode parameters 1. Terminal type <IBM PC/AT,PS/2> IBM PC/XT IBM PS/2 25, 30...
  • Page 53 Scantech-ID 2. Upper/Lower Case <No change> Upper Case Lower Case 3. Send Character by ALT Method Enable <Disable> 4. Select Numerical Pad <OFF>...
  • Page 54 5. Time out Between Characters <0 ms> 5 ms 10 ms 25 ms 50ms 100ms 6. Language Selection <US English> UK English Italian...
  • Page 55 Scantech-ID Spanish French German Swedish Switzerland Hungarian Japanese Belgium Portuguese Denmark...

  • Page 56: Decoding Selection

    Netherlands Turkey Reserved 1 DECODING SELECTION Symbologies Selection 7.5.1 Australian Post ON Australian Post OFF (*) AZTEC ON AZTEC OFF (*)
  • Page 57 Scantech-ID BPO ON BPO OFF (*) Canada Post ON Canada Post OFF (*) CODABAR ON CODABAR OFF (*) Codablock A ON Codablock A OFF (*) Codablock F ON Codablock F OFF (*)
  • Page 58 CODE 11 ON CODE 11 OFF (*) CODE 39 ON (*) CODE 39 OFF CODE 93 ON CODE 93 OFF (*) CODE 128 ON (*) CODE 128 OFF GS1-128 ON (*)
  • Page 59 Scantech-ID GS1-128 OFF DATAMATRIX ON (*) DATAMATRIX OFF Dutch Post ON Dutch Post OFF (*) EAN-8 ON (*) EAN-8 OFF EAN-13 ON (*) EAN-13 OFF...
  • Page 60 EAN 128 ON (*) EAN 128 OFF GS1 CC-A/B ON GS1 CC-A/B OFF (*) GS1 CC-C ON GS1 CC-C OFF (*) GS1 DataBar-Omni ON GS1 DataBar-Omni OFF (*) GS1 DataBar-Limited ON...
  • Page 61 Scantech-ID GS1 DataBar-Limited OFF (*) GS1 DataBar-Expanded ON GS1 DataBar-Expanded OFF (*) Infomail ON Infomail OFF (*) INTERLEAVED 2 of 5 ON INTERLEAVED 2 of 5 OFF (*) Japan Post ON Japan Post OFF (*)
  • Page 62 Matrix 2 of 5 ON Matrix 2 of 5 OFF (*) MaxiCode ON MaxiCode OFF (*) MicroPDF417 ON MicroPDF417 OFF (*) MSI ON MSI OFF (*) PDF417 ON (*)
  • Page 63 Scantech-ID PDF417 OFF Planet ON Planet OFF (*) PLESSEY ON PLESSEY OFF (*) Postnet ON Postnet OFF (*) QR Code ON QR Code OFF (*)
  • Page 64 Standard 2 of 5 ON Standard 2 of 5 OFF (*) Sweden Post ON Sweden Post OFF (*) Telepen ON Telepen OFF (*) TLC 39 ON TLC 39 OFF (*) UPC-A ON (*) UPC-A OFF...

  • Page 65: Disable All Symbologies

    Scantech-ID UPC-E ON (*) UPC-E OFF Note: This step does not include codes for all support Barcode symbologies. For a complete overview of support symbologies see appendix. If you need programming codes for symbologies which are not available in this chapter, please contact Scantech-ID Technical Support department or use VEGA utility tool.

  • Page 66: Australian Post Settings

    AUSTRALIAN POST SETTINGS Symbology Identifier 7.6.1 UDSI-Default"P3"(*) Code Mark-Default"*"(*)

  • Page 67: Aztec Settings

    Scantech-ID AZTEC SETTINGS Structure Append Mode 7.7.1 Active Not Active(*) Aztec Runes 7.7.2 Active Not Active(*) GS1-128 Emulation 7.7.3 Active Not Active(*)
  • Page 68 Symbology Identifier 7.7.4 UDSI-Default"D3"(*) Code Mark-Default"*"(*)

  • Page 69: Bpo Settings

    Scantech-ID BPO SETTINGS Symbology Identifier 7.8.1 UDSI-Default"P2"(*) Code Mark-Default"*"(*) Check Digit Transmission 7.8.2 Active (*) Not Active...

  • Page 70: Canada Post Settings

    CANADA POST SETTINGS Symbology Identifier 7.9.1 UDSI-Default"P6"(*) Code Mark-Default"*"(*)

  • Page 71: Codabar Settings

    Scantech-ID 7.10 CODABAR SETTINGS Symbology Identifier 7.10.1 UDSI-Default"B7"(*) Code Mark- Default"D"(*) Start/Stop 7.10.2 Not Transmitted(*) Transmitted-a,b,c,d Transmitted-A,B,C,D Transmitted-a,b,c,d/t,n,*,e Transmitted-DC1,DC2,DC3,DC4...
  • Page 72 CLSI Library System 7.10.3 Active(insert spaces) Not Active(*) Check Digit Verification 7.10.4 Used Not Used(*) Check Digit Transmission 7.10.5 Transmitted Not Transmitted(*)
  • Page 73 Scantech-ID Concatenation 7.10.6 Not Active (*) Transmit All Codes (Single,Concatenated) Transmit Concatenated Codes Only No Start/Stop Restrictions (*) Stop 1 = Start 2 (American Blood Commission)

  • Page 74: Codablock Settings

    7.11 CODABLOCK SETTINGS Symbology Identifier 7.11.1 Codablock A UDSI-Default"K0"(*) Codablock A Code Mark-Default"*"(*) Codablock F UDSI-Default"K1"(*) Codablock F Code Mark-Default"*"(*)

  • Page 75: Code 11 Settings

    Scantech-ID 7.12 CODE 11 SETTINGS Symbology Identifier 7.12.1 UDSI-Default"C1"(*) Code Mark-Default"*"(*) Check Digits 7.12.2 1 Digit(*) 2 Digits Checked and Transmitted(*) Checked but not Transmitted...

  • Page 76: Code 39 Settings

    7.13 CODE 39 SETTINGS Symbology Identifier 7.13.1 UDSI-Default"B1"(*) Code Mark-Default"*"(*) Format 7.13.2 Standard 43 Characters(*) Full ASCII (Extended) Start/Stop 7.13.3 Not Transmitted(*) Transmitted...

  • Page 77: Check Digit Verification

    Scantech-ID Accepted Characters 7.13.4 * Only(Standard Code 39)(*) $ Only(Trioptic Code 39) $ and * (Standard and Trioptic Code 39) Check Digit Verification 7.13.5 Not Used (*) Modulo 43 French CIP Italian CPI Check Digit not Transmitted (*)
  • Page 78 Check Digit Transmitted Reading Range 7.13.6 Extended (*) Normal Reading Tolerance 7.13.7 High (*) Medium...

  • Page 79: Code 93 / Code 93I Settings

    Scantech-ID 7.14 CODE 93 / CODE 93I SETTINGS Symbology Identifier 7.14.1 UDSI-Default"B6"(*) Code Mark-Default"D"(*)

  • Page 80: Code 128 / Gsi-128 Settings

    7.15 CODE 128 / GSI-128 SETTINGS Symbology Identifier 7.15.1 UDSI- Code 128-Default"B3"(*) UDSI- GS1-128-Default"C9"(*) Code Mark- Code 128-Default"D"(*) Code Mark- GS1-128-Default"D"(*) GS1-128 Identifier 7.15.2 Include ]C1 Identifier (*) Remove ]C1 Identifier...
  • Page 81 Scantech-ID CIP 128 French Pharmaceutical Codes 7.15.3 Active Not Active (*) FNC1 Separator Character (GS1-128 norms)-<GS>(1Dh)(*) Reading Tolerance 7.15.4 High (*) Medium...

  • Page 82: Isbt 128

    ISBT 128 7.15.5 Active Not active (*) Transmit Single Codes Only (*) Transmit Concatenated Codes Only Transmit Single Codes/ Concatenated Codes Concatenate Authorized ISBT 128 Code Pairs Only(*) Concatenate All ISBT 128 Code Pairs...
  • Page 83 Scantech-ID GTIN Processing For GS1-128 7.15.6 Active Not Active (*) Unconventional GS1-128 7.15.7 Active (*) Not Active...

  • Page 84: Datamatrix Settings

    7.16 DATAMATRIX SETTINGS Symbology Identifier 7.16.1 UDSI-Default"D0"(*) Code Mark-Default"*"(*)

  • Page 85: Dutch Post Settings

    Scantech-ID 7.17 DUTCH POST SETTINGS Symbology Identifier 7.17.1 UDSI-Default"P4"(*) Code Mark-Default"*"(*)

  • Page 86: Ean /Upc Parameters Settings

    7.18 EAN /UPC PARAMETERS SETTINGS Reading Type 7.18.1 UPC-A Transmitted As EAN-13 (*) UPC-A Transmitted As UPC-A UPC-E Transmitted As UPC-E (*) UPC-E Transmitted As UPC-A EAN-8 Transmitted As EAN 8 (*) EAN-8 Transmitted As EAN-13 ISBN – Active ISBN - Not Active (*)
  • Page 87 Scantech-ID ISMN – Active ISMN - Not Active (*) ISSN – Active ISSN - Not Active (*) GTIN Processing – Active GTIN Processing - Not Active (*)

  • Page 88: Supplemental Setup

    Supplemental Setup 7.18.2 ADD-ON Digits Not Required but Transmitted If Read (*) ADD-ON Digits Required and Transmitted ADD-ON 2 ON ADD-ON 2 OFF (*) ADD-ON 5 ON ADD-ON 5 OFF (*)

  • Page 89: Check Digit Transmission

    Scantech-ID Check Digit Transmission 7.18.3 UPC-A Check Digit Transmission ON (*) UPC-A Check Digit Transmission OFF UPC-E Check Digit Transmission ON (*) UPC-E Check Digit Transmission OFF EAN-8 Check Digit Transmitted ON (*) EAN-8 Check Digit Transmission OFF EAN-13 Check Digit Transmitted ON (*) EAN-8 Check Digit...

  • Page 90: Symbology Identifier

    Transmission OFF Symbology Identifier 7.18.4 UDSI–UPC-A-Default"A0"(*) UDSI–UPC-E-Default"E0"(*) UDSI–EAN-8-Default"FF"(*) UDSI–EAN-13-Default"F"(*) Code Mark–UPC-A-Default"A"(*) Code Mark–UPC-E-Default"E"(*) Code Mark–EAN-8-Default"FF"(*) Code Mark–EAN-13-Default"F"(*)

  • Page 91: Gs1 Composite Settings

    Scantech-ID 7.19 GS1 COMPOSITE SETTINGS EAN/UPC Composite Message Decoding 7.19.1 Auto-Discriminate (*) Always Linked Never Linked Symbology Identifier 7.19.2 UDSI–CC-A/B-Default"G0"(*) UDSI–CC-C-Default"G1"(*) Code Mark–CC-A/B-Default"*"(*)
  • Page 92 Code Mark–CC-C-Default"*"(*) Linear Transmission Only 7.19.3 Active Not Active (*)

  • Page 93: Gs1 Databar Settings

    Scantech-ID 7.20 GS1 DATABAR SETTINGS Symbology Identifier 7.20.1 Omni-UDSI-Default"C3"(*) Omni-Code Mark-Default"*"(*) Limited-UDSI-Default"C4"(*) Limited-Code Mark-Default"*"(*) Expanded-UDSI-Default"C5"(*) Expanded-Code Mark-Default"*"(*)

  • Page 94: Infomail Settings

    7.21 INFOMAIL SETTINGS Symbology Identifier 7.21.1 UDSI-Default"P8"(*) Code Mark-Default "*"(*)
  • Page 95 Scantech-ID 7.22 INTERLEAVED 2 OF 5 PARAMETERS Check Digit Verification 7.22.1 Not Used (*) Modulo 10 French CIP Not Transmitted (*) Transmitted Symbology Identifier 7.22.2 UDSI-Default"B2"(*) Code Mark-Default"I"(*)
  • Page 96 Reading Tolerance 7.22.3 High (*) Medium...

  • Page 97: Japan Post Settings

    Scantech-ID 7.23 JAPAN POST SETTINGS Symbology Identifier 7.23.1 UDSI-Default"P5"(*) Code Mark-Default"*"(*) Check Digit Transmission 7.23.2 Active (*) Not Active...

  • Page 98: Matrix 2 Of 5 Settings

    7.24 MATRIX 2 OF 5 SETTINGS Symbology Identifier 7.24.1 UDSI-Default"B4"(*) Code Mark-Default"D"(*) Code Mark-Regular(*) Code Mark-China Post...

  • Page 99: Maxicode Settings

    Scantech-ID 7.25 MAXICODE SETTINGS Symbology Identifier 7.25.1 UDSI-Default"D2"(*) Code Mark-Default"*"(*) Mode 0 7.25.2 Active Not Active(*) Header 7.25.3 Regular(AIM)(*) Extended...

  • Page 100: Micropdf417 Settings

    7.26 MICROPDF417 SETTINGS Symbology Identifier 7.26.1 UDSI–Default"C8"(*) Code Mark-Default"*"(*) Code 128 Emulation 7.26.2 Active Not Active (*)

  • Page 101: Msi Code Settings

    Scantech-ID 7.27 MSI CODE PARAMETERS SETTINGS Symbology Identifier 7.27.1 UDSI-Default"B8"(*) Code Mark-Default"D"(*) Check Digit Verification 7.27.2 Modulo 10 (*) Double Modulo 10 Check Digit Transmitted (*) Check Digit Not Transmitted...

  • Page 102: Pdf417 Settings

    7.28 PDF417 SETTINGS Symbology Identifier 7.28.1 UDSI-Default"C7"(*) Code Mark-Default"*"(*) Irregular PDF 7.28.2 Active Not Active(*) Control Header 7.28.3 Transmitted Not Transmitted(*)
  • Page 103 Scantech-ID Optional Fields 7.28.4 File Name Transmitted File Name Not Transmitted (*) Segment Count Transmitted Segment Count Not Transmitted (*) Time Stamp Transmitted Time Stamp Not Transmitted (*) Sender Transmitted Sender Not Transmitted (*)
  • Page 104 Addressee Transmitted Addressee Not Transmitted (*) File Size Transmitted File Size Not Transmitted (*) Checksum Transmitted Checksum Not Transmitted (*)

  • Page 105: Planet Settings

    Scantech-ID 7.29 PLANET SETTINGS Symbology Identifier 7.29.1 UDSI-Default"P1"(*) Code Mark-Default"*"(*) Check Digit Transmission 7.29.2 Active (*) Not Active...
  • Page 106 7.30 PLESSEY CODE PARAMETERS Symbology Identifier 7.30.1 UDSI–Default"C2"(*) Code Mark-Default"D"(*) Check Digit Transmission 7.30.2 Check Digit Transmitted Check Digit Not Transmitted (*)

  • Page 107: Postnet Settings

    Scantech-ID 7.31 POSTNET SETTINGS Symbology Identifier 7.31.1 UDSI-Default"P0"(*) Code Mark-Default"*"(*) Check Digit Transmission 7.31.2 Active(*) Not Active...

  • Page 108: Qr Code Settings

    7.32 QR CODE SETTINGS Model 1 Control 7.32.1 Active Not Active (*) Symbology Identifier 7.32.2 UDSI-Default"D1"(*) Code Mark-Default"*"(*)

  • Page 109: Standard 2 Of 5 Settings

    Scantech-ID 7.33 STANDARD 2 OF 5 SETTINGS Symbology Identifier 7.33.1 UDSI-Default"B5"(*) Code Mark-Default"D"(*) Format 7.33.2 Identicon (6 start/stop bars)(*) Computer Identics (4 start/stop bars)
  • Page 110 Check Digit Verification 7.33.3 Not Used (*) Modulo 10 Transmitted Not Transmitted (*)

  • Page 111: Sweden Post Settings

    Scantech-ID 7.34 SWEDEN POST SETTINGS Symbology Identifier 7.34.1 UDSI-Default"P7"(*) Code Mark-Default "*"(*)

  • Page 112: Telepen Settings

    7.35 TELEPEN SETTINGS Symbology Identifier 7.35.1 UDSI-Default"C6"(*) Code Mark-Default"*"(*) Format 7.35.2 ASCII(*) Numeric...

  • Page 113: Tlc 39 Settings

    Scantech-ID 7.36 TLC 39 SETTINGS Symbology Identifier 7.36.1 UDSI-Default"H0"(*) Code Mark-Default"*"(*) Linear Transmission Only 7.36.2 Active Not Active (*) ECI security 7.36.3 10(*)

  • Page 114: Miscellaneous Parameters

    7.37 MISCELLANEOUS PARAMETERS Symbology Identifier 7.37.1 Symbology Identifier Transmitted Symbology Identifier Not Transmitted(*) With this function ON, a leading character will be added to the output string while scanning code, user may refer to the following table to know what kind of barcode is being scanned. Please refer to the table below for matching code Symbology Identifier of codes read in.

  • Page 115: Preambles And Postambles

    Scantech-ID 7.38 PREAMBLES AND POSTAMBLES Preamble 7.38.1 The scanner can be programmed to output Barcode data according the following format: [PREAMBLE STRING] [BAR CODE DATA] Example: To send a <STX> in front of the barcode, scan only programming code <STX>. As a result, the scanner will give the following barcode output: [<STX>] [BAR CODE DATA] Preamble None (*)
  • Page 116 Postamble 7.38.2 The scanner can be programmed to output Barcode data According to the following format: [BAR CODE DATA] [POSTAMBLE STRING] Example: To send a <ETX> after of the Barcode, scan only programming code <ETX>. As a result, the scanner will give the following barcode data output: [BAR CODE DATA] [<ETX>] Postamble None CR+LF (*)

  • Page 117: Chapter 8 .................................................................. Operating Settings

    Scantech-ID Chapter 8 Operating Settings...

  • Page 118: Scanning Triggering

    SCANNING TRIGGERING <Level> A reading session begins (lighting and decode processing on) when beam is activated and stops when beam is deactivated. Continuous Scanning When the scanner is turned on a continuous reading session begins (lighting and decode processing on). Note: The continue scanning mode doesn’t support the V-1020BT.
  • Page 119 Scantech-ID After a period of inactivity lasting the time specified by the timeout, the scan engine starts flashing, checking for a barcode to be read. When a barcode is detected, the lighting automatically turns on and stays on until another period of inactivity (timeout). After the timeout the scan engine starts flashing again.
  • Page 120 Autostand This mode allows you to switch from Flashing trigger mode to Level trigger mode. Autostand begins in flashing mode: At power up the lighting and decoding are on (no need to activate the trigger line) and after a period of inactivity lasting the time specified by the trigger timeout, the scanner starts flashing.

  • Page 121: Time Out

    Scantech-ID TIME OUT 2 sec(*) 4 sec 6 sec...

  • Page 122: Good Read Mode

    GOOD READ MODE When active, the scan engine stops the reading session after a successful decoding. - NOTE: this parameter is NOT used with continuous and continuous + flashing modes. Active (*) Not Active...

  • Page 123: Buzzer Beep Tone

    Scantech-ID BUZZER BEEP TONE Beep Tone Setup 8.4.1 High (*) Medium Good Read Beeps 8.4.2 One Beep (*) Two Beeps None...

  • Page 124: Beep Duration

    Beep Duration 8.4.3 60 msec 80 msec (*) 200 msec Timing 8.4.4 During Transmission(*) Before Transmission After Transmission...

  • Page 125: Good Read Duration

    Scantech-ID GOOD READ DURATION Good Read Led Duration 8.5.1 80 msec (*) 0.5 sec 1 sec Error Beep 8.5.2 On (*)
  • Page 126 Setup Beep 8.5.3 On (*) BAD READ MESSAGE SETTINGS Default = "NOREAD" (*) Active Not Active (*)

  • Page 127: Chapter 9 ....................................................................... Imager Settings

    Scantech-ID Chapter 9 Imager settings...

  • Page 128: Imager Mode

    IMAGER MODE You can set the best reading performance of your VEGA by adjusting certain imager parameters. To choose the best reading performance, depends on the environment, your used application and type of barcodes.  Area mode for decode 1D and 2D barcodes. ...
  • Page 129 Scantech-ID Appendixes A. DECIMAL VALUE TABLE......123 B. ASCII TABLE..........124 C. READABLE SYMBOLOGIES....125 D. TECHNICAL SPECIFICATIONS....126 E. SCAN MAP..........127 F. OVERVIEW PARTNUMBERS....129...

  • Page 130: A Decimal Value Table

    A.DECIMAL VALUE TABLE...

  • Page 131: B Ascii Table

    Scantech-ID B.ASCII TABLE...

  • Page 132: C Readable Symbologies

    C.READABLE SYMBOLOGIES 1D Symbologies Symbology Default Enable Note Codabar Code 11 Code 39 Code 93 / 93i Code 128 EAN 8 / EAN 13 EAN 128 / UCC GS1 DataBar (RSS) Omni, Expanded, limited Interleaved 2 of 5 Industrial ISBN ISSN Matrix MSI Code...

  • Page 133: D Technical Specifications

    Scantech-ID D.TECHNICAL SPECIFICATIONS Physical Characteristics Scanner Weight V-1020 Approx. 133g V-1020BT Approx. 180g Cradle Weight Approx. 145g Charger Weight Approx. 135g Material ABS Plastic Connector RJ 45C 10Pins Scanner Dimension 186.8 mm x 81.6 mm x 63.9 mm Cradle Dimension 123.9mm x 120mm x 71.4mm...
  • Page 134 Radio Characteristics Bluetooth Module Bluetooth V2.0 Standard Frequency Band 2.402GHz ~ 2.480GHz Modulation Method GFSK for 1Mbps RF Output Power Class 2 (under 4 dBm) Class 1 (under 20dBm) Bluetooth distance range Class 2 up to 10M(33”) Bluetooth distance range Class 1 up to 100M(330”) Environmental Operating Temp.

  • Page 135: E Scan Map

    Scantech-ID E.SCAN MAP Typical Reading Distances 0" 4" 8" 12” 16" 20" 10" 8" Data Matrix 7.5 mils 6" PDF417 4" 6.6 mils 2" 0" 2" 4" 0.125 mm/ 5 mils 6" 0.25 mm / 10 mils 8" 100% contrast UPC / EAN 10"...

  • Page 136: Overview Partnumbers

    VEGA Typical Reading Distances (centimeters) Symbology Density Minimum Maximum Distance Distance Code 39 0.125 mm 7.2 cm 13.1 cm 0.20 mm 3.8 cm 22.5 cm 0.25 mm 3.4 cm 27 cm 0.5 mm 5 cm 44 cm 8 cm 83 cm UPC / EAN 0.33 mm 5 cm...
  • Page 137 Scantech-ID F.OVERVIEW MODEL NUMBERS VEGA with Area Imager Version with RS232 interface: 1. A273002 VEGA V-1020-02 2. A274002 VEGA V-1020BT C2 -02 3. A276002 VEGA V-1021BT C1 -02 Version with KBW interface: 4. A274004 VEGA V-1020BT C2 -04 5. A276004 VEGA V-1021BT C1 -04 Version with USB (HID KBW) interface: 6.
  • Page 138 Scantech-ID BV Nijverheidsweg Noord 60-34 3812 PM Amersfoort The Netherlands Phone: +31 (0)33 469 84 00 Fax: +31 (0)33 465 06 15 E-mail: info@scantech-id.com Internet: www.scantech-id.com...

This manual is also suitable for:

Vega v-1020bt

Table of Contents
