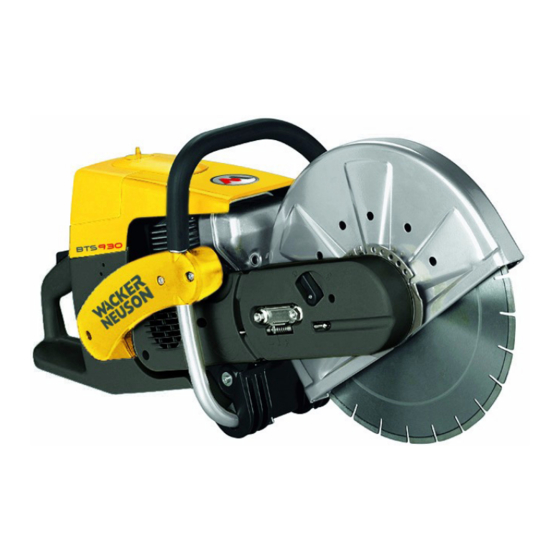

Wacker Neuson BTS 1030L3 Operator's Manual

Gasoline cut-off saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

0109969en
008
06.2010
Gasoline cut-off saw
BTS
930L3, 935L3, 1030L3, 1035L3, 1140L3
Operator's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTS 1030L3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wacker Neuson BTS 1030L3

Summary of Contents for Wacker Neuson BTS 1030L3

  • Page 1 0109969en 06.2010 Gasoline cut-off saw 930L3, 935L3, 1030L3, 1035L3, 1140L3 Operator's manual...
  • Page 2 Manufacturer Wacker Neuson SE Preußenstraße 41 80809 München www.wackerneuson.com Tel.: +49-(0)89-354 02-0 Fax: +49-(0)89-354 02-390 Translation of the original operator’s manual in German...
  • Page 3 Important note EPA engine This machine is equipped with an EPA-certified engine. Relevant details can be found in the instructions of the engine manu- facturer. Warning The engine's exhaust fumes contain chemicals which are known to the State of California to cause cancer, congenital defects or other repro- ductive anomalies.
  • Page 4 T00940en.fm...
  • Page 5 To use the services within the scope of the warranty, bring the engine to the nearest authorized Wacker Neuson customer service shop. Present your purchase receipt, which includes the date of purchase. The authorized Wacker Neuson customer service shop will carry out the necessary repairs or conversion within an appropriate period of time and will give you a copy of the repair order.
  • Page 6 However, we draw your attention to the fact that Wacker Neuson can dismiss warranty claims if a defect to your engine or to a part of it was caused by improper use, negligence, improper maintenance or im- permissible modifications.
  • Page 7 Wacker Neuson in terms of perfor- mance and service life.
  • Page 8 T00965en.fm...

  • Page 9: Foreword

    Wacker Neuson SE. Any type of reproduction, distribution or saving on data carriers of any type or method not authorized by Wacker Neuson represents an infringe- ment of valid copyrights and will be prosecuted. We expressly reserve the right to make technical modifications - even without special notice - which aim at further improving our machines or their safety standards.

  • Page 10: Table Of Contents

    Table of contents Foreword Many thanks for choosing this product! Packaging ....................13 Scope of delivery/Symbols Scope of delivery .................14 Symbols ....................14 Safety information Proper use ...................16 General notes ..................16 Personal protective gear ..............17 Operating fluids / Filling the tank ............20 Starting up ...................21 Cutting blades ..................22 Kickback and pulling motion ..............25...
  • Page 11 Table of contents Maintenance work Replacing the V-belt ................54 Cleaning the protective hood ...............55 Cleaning/Changing the air cleaner ............55 Prefilter, air cleaner cartridge and internal filter ........57 Replacing the spark plug ..............60 Checking the ignition spark ..............61 Replacing the suction head ..............62 Replacing the starter rope ..............62 Replacing the return spring ..............64 8.10...

  • Page 12: Many Thanks For Choosing This Product

    We'd like you to be happy with your purchase from Wacker Neuson. To guarantee that your Wacker Neuson cut-off saw is always ready to use and functions well and to ensure your personal safety, we'd like to...

  • Page 13: Packaging

    Many thanks for choosing this product! Packaging To avoid damage during transportation, your Wacker Neuson cut-off saw was shipped in a cardboard box. Cardboard is a renewable resource and can be used again and or re- cycled as waste paper.

  • Page 14: Scope Of Delivery/Symbols

    Scope of delivery/Symbols Scope of delivery/Symbols Scope of delivery 1. Cut-off saw 3. Combination wrench 13/19 mm 4. Offset screwdriver 5. Screwdriver for setting the carburetor 6. Operator's manual (without illustration) If any of the components listed here is not included with delivery, please contact your salesperson! Symbols You will find the following symbols on the machine and when reading the...
  • Page 15 Scope of delivery/Symbols Prohibited! Wear eye protection! Wear a helmet, eye protec- Start the engine tion, mouth protection and ear protection! Wear protective gloves! Turn off the engine! Wear breathing protection! Caution, kickback! No smoking! Fuel/oil mixture No open flames! First Aid Cutting blade's direction of Recycling...

  • Page 16: Safety Information

    Safety information Safety information Proper use Cut-off saw The cut-off saw must only be used outdoors for cutting/cutting to length suitable materials with the cutting blade approved for the unit. Non-approved work methods: The cutting blades of the cut-off saw must not be used as a grinding tool (removing material with the side surface of the cutting blade).

  • Page 17: Personal Protective Gear

    Safety information 4.2.7 Never operate the machine under the influence of alcohol, drugs, med- ication or other substances that can impair your vision, coordination and judgment. 4.2.8 When working with highly flammable vegetation and in dry conditions ensure that a fire extinguisher is readily available for use (danger of fire).
  • Page 18 Safety information 4.3.4 Always wear a hardhat (A). Regularly check the hardhat for damage and and replace it at least every 5 years. Only use tested hardhats. 4.3.5 The hardhat face protection (B) protects the face from grinding resi- due and grains of material. To prevent eye and face injuries, always wear eye protection (C) or face protection when working with the cut- off saw.
  • Page 19 Safety information 4.3.9 Wear non-skid, hard-toed shoes or boots (G) and leg protection when working with the cut-off saw. Safety shoes with protective inlays pro- tect feet from laceration and ensure that the operator is standing in se- cure position. 4.3.10 Always wear overalls (H) made of durable material that is sufficiently fire resistant! SV00080en.fm...

  • Page 20: Operating Fluids / Filling The Tank

    (direction of flying sparks) of the cutting blade. 4.4.11 Fuels cannot be stored indefinitely. Purchase only enough fuel as you can possibly use in the foreseeable future. 4.4.12 Only use fuel and oil which has been approved by Wacker Neuson, see chapter Technical Data. SV00080en.fm...

  • Page 21: Starting Up

    Safety information 4.4.13 When preparing the correct gasoline/oil mixing ratio, first always pour oil into the mixing container and then the gasoline. 4.4.14 Transport and store fuel only in approved and specially marked canis- ters. Do not allow children near the fuel. Starting up 4.5.1 Do not work alone;...

  • Page 22: Cutting Blades

    Safety information 4.5.5 Before you start to work with the cut-off saw, check to see that is in proper working order and in a safe operating condition! In particular, check the following: Inspect the condition of the cutting blade (replace immediately if the disc is cracked, bent or otherwise damaged).
  • Page 23 Safety information NOTICE: It is prohibited to change the direction (a radius of 5 m (16 feet) or less), apply lateral pressure or tilt the cut-off saw while you are cutting (11)! 4.6.3 Cutting blades must only be used to cut materials they were designed for.
  • Page 24 Safety information 4.6.8 Start the cut-off saw only as described in the operator's manual (13). Always set your left foot into the handle and firmly hold the bow handle grip handle by using your thumb. Starting the machine in any other way is not permitted.

  • Page 25: Kickback And Pulling Motion

    Safety information 4.6.17 If you hear or feel a change in the way the machine is cutting, turn off the engine immediately and check the cutting blade. 4.6.18 During breaks and after you finish work, turn off (14) the cut-off saw and set it down so that the cutting blade is freestanding and cannot en- danger anyone.

  • Page 26: Work Habits And Methods

    Safety information 4.7.8 Always support the workpiece such that the cut is under tensile stress (16) so that the cutting blade is not pinched as cutting progress- 4.7.9 When starting the cutting process, always move the cutting blade care- fully toward the workpiece. Avoid uncontrolled movements. 4.7.10 Never cut through several workpieces at once! When cutting, make sure that the tool does not contact other workpieces.

  • Page 27: Instructions For Using Synthetic Resin Cutting Blades

    Safety information 4.8.7 Never cut while standing on a ladder (17). 4.8.8 Never work with the cut-off saw on a scaffolding. 4.8.9 Do not bend too far forward when working. Always use your knees to lift or put down the cut-off saw. Do not bend down from the waist. 4.8.10 When moving the cut-off saw, ensure that none of your body parts is in the extended swing area of the cutting blade (18).

  • Page 28: Cutting Metals

    Safety information 4.9.3 Do not expose synthetic resin cutting blades to high humidity or rain! 4.9.4 Only use synthetic resin cutting blades up to their expiration date! This date (quarter/year) is engraved on the cutting blade supporting ring. EXAMPLE: 04 / 2007 With proper use and storage, this cutting blade can be used up to and including the 4th quarter in 2007.
  • Page 29 Safety information 4.10.4 Cut large rods in stages (20). 4.10.5 Thin pipes can be cut with a simple downward cut. 4.10.6 Treat large diameter pipes as large rods. To avoid canting and for bet- ter control of the cutting process, do not allow the cutting blade to cut too deep into the material.

  • Page 30: Cutting Stone, Concrete, Asbestos Or Asphalt

    Safety information 4.10.10 Always notch material that is under tension (material that is supported or embedded in a wall) on the pressure face and then cut from the op- posite side so that the cutting blade does not get pinched (22). Secure the material that is to be cut so that it does not fall! NOTICE! In case of suspected tension, be prepared for the material to kick back...
  • Page 31 Both sides of the cutting blade must be sprayed evenly with water. You can find the right equipment for every wet cutting application in the Wacker Neuson product range. 4.11.1 Before beginning the cutting process, remove objects such as stones, nails, etc.

  • Page 32: Transport And Storage

    Safety information 4.11.3 When truing stone slabs you only need to grind one groove (to prevent unnecessary dust formation), and then place the slab on a flat base and knock off the overhanging piece (25). NOTICE! For cutting to length, prevent the cut section from pinching the cutting blade and to avoid injuries due to falling parts, determine the direction of the cut and the order of the steps to be carried out.

  • Page 33: Maintenance

    Safety information 4.12.6 Store the cut-off saw securely in a dry area. Do not store it outdoors. Always detach the cutting blade. Do not allow children near the cut-off saw. 4.12.7 Before a long storage period and before shipping the cut-off saw make sure to follow the "Periodic maintenance and service in- structions".

  • Page 34: First Aid

    4.13.8 Use only Wacker Neuson spare parts and accessories. Use of spare parts, accessories and cutting blades not produced by Wacker Neuson increases your chances of having an accident. If accidents or damage that occurs with accessories not produced by Wacker Neuson exempts the manufacturer from all liability.

  • Page 35: Disposal And Environmental Protection

    Safety information NOTE! If persons with circulatory problems are exposed too often to vibra- tions, the blood vessels or nervous system can be damaged. The following symptoms can occur due to vibrations experienced in the fingers, hands or wrists: Body parts can "go to sleep," tingling, pain, prickling, changes in skin color or in the skin itself.

  • Page 36: Technical Data

    Technical data Technical data BTS 930L3 BTS 935L3 Item no. 0008987 0008988 Engine displacement (cu in) 64 (3.9) Bore mm (in) 47 (1.85) Stroke mm (in) 37 (1.46) Max. performance kW (hp) 3.2 (4.4) Max. torque Nm (ft.lbs.) 4.0 (3.0)
  • Page 37 Technical data BTS 1030L3 BTS 1035L3 Item no. 0008989 0008990 Engine displacement (cu in) 73 (4.5) Bore mm (in) 50 (1.97) Stroke mm (in) 37 (1.46) Max. performance kW (hp) 4.2 (5.6) Max. torque Nm (ft.lbs.) 5.0 (3.7) Idle speed 2,500 Clutch engaging speed 3,800...
  • Page 38 Technical data BTS 1140L3 Item no. 0610063 Engine displacement (cu in) 81 (4.9) Bore mm (in) 52 (2.05) Stroke mm (in) 38 (1.50) Max. performance kW (hp) 4.5 (6.2) Max. torque Nm (ft.lbs.) 5.2 (3.8) Idle speed 2,500 Clutch engaging speed 3,800 Limiting speed 9,350...

  • Page 39: Part Identification

    Part identification Part identification 1 Handle 2 Filter cover for air cleaner and spark plug cap 3 Cover lock 4 Bow handle grip 5 Muffler 6 Protective hood 7 Handle for protective hood 8 Adjusting screw for tightening the V-belt 9 Fastening nuts 10 Base 11 Opening for setting the carburetor...
  • Page 40 Part identification 17 Multifunction switch "Start/Stop" (I/O) choke 18 Lock button for half throttle 19 Safety switch 20 Throttle lever 21 Fuel tank seal 22 Valve housing with starting device 23 Cutting blade 24 Fastening screw for cutting blade 25 Clamping disc 26 Opening for counterholder T01126en.fm...

  • Page 41: Starting Up

    Starting up Starting up NOTICE: Before working on the cut-off saw, always turn off the en- gine, pull off the spark plug connector and wear protective gloves! NOTICE: The cut-off saw must not be started until it has been com- pletely assembled and tested! Always use the assembly tools included in delivery for the following procedures:...

  • Page 42: Attaching The Cutting Blade

    Starting up Attaching the cutting blade Set the cut-off saw onto a sturdy base and carry out the following as- sembly steps: Check the cutting blade for damage. See SAFETY IN- FORMATION. Unscrew the screw (9) and remove the clamping disc (8). Set the cutting blade (5) onto the shaft (7). NOTE: The arbor diameter of the cutting blade must precisely fit the shaft.

  • Page 43: Tightening The V-Belt/Checking The Tension

    Starting up Tightening the V-belt/Checking the tension NOTICE: To obtain the maximum cutting performance at the lowest fuel con- sumption, it is absolutely necessary to tighten the V-belt precisely. An incorrectly tightened V-belt leads to premature wearing of the V-belt and V-belt pulley or to damage on the clutch bearing.

  • Page 44: Operating Fluids

    Starting up Operating fluids NOTICE: The unit uses mineral oil products (gasoline and oil)! Take special precautions when handling gasoline. Smoking and open fires are not permitted (danger of explosion). Fuel 50:1 1,000 cm³ (1 liter) 20 cm³ 5,000 cm³ (5 liters) 100 cm³...

  • Page 45: Storing Fuel

    FOR USE IN Wacker Neuson 2-STROKE ENGINES! Use of alternative fuels, such as E-20 (20% ethanol), E-85 (85% etha- nol) or any fuels not meeting Wacker Neuson requirements are not ap- proved for use in this engine! USE OF ALTERNATIVE FUELS CAN CAUSE THE FOLLOWING...
  • Page 46 Starting up AVOID CONTACT WITH SKIN AND EYES! Mineral products and oils scour your skin. If used repeatedly and over time, they will dry out your skin. This could develop into one of various skin diseases. In addition, allergic reactions are also possible. Oil in your eyes can cause irritations.

  • Page 47: Filling The Tank

    Starting up Filling the tank Fuel mixture NOTICE: STRICTLY FOLLOW THE SAFETY INFORMATION! Fuels must be handled carefully and prudently. Only when the engine is turned off and has cooled down! Clean the filling area so that no dirt can get into the tank. Set the machine on its side on a flat base.

  • Page 48: Starting The Engine

    Starting up Starting the engine required This model is fitted with a semiautomatic decompression valve (1) to make starting easier. Press the rubber cover until you can feel it en- gage. This pushes in the decompression valve behind it. This in turn reduces the compression, so that it takes less force to pull the starter cord to accelerate the engine to its starting speed.
  • Page 49 Starting up Stand squarely and set the cut-off saw onto the ground so that the cut- ting attachment is freestanding. Move the protective hood (3) to the best position for the application at hand (see figure). Grab the handle (2). The protective hood (3) can be swivelled within the stopmounts in both arrow directions.
  • Page 50 Starting up Put your hand around the bow handle grip and hold it firmly while you press the cut-off saw against the ground. Place your left foot into the rear hand guard. Pull out the starter rope slowly until you feel resistance (the piston is located before the top dead center).

  • Page 51: Turning Off The Engine

    Adjustments to the adjusting screws (L) and (H) may only be made by an authorised Wacker Neuson service centre. Accordingly, the holes for the two screws are sealed shut. T01126en.fm...
  • Page 52 Starting up The following steps are required to correctly set the idle speed: Start the engine and let it warm up (approx. 3 - 5 minutes). Set the speed for the idle position with the screwdriver that was includ- ed in delivery. Readjust the idle speed If the cutting blade rotates when the engine is running, screw the stop screws (2) for the choke outward until the cutting blade no longer ro-...

  • Page 53: Maintenance Work

    NOTE: For your safety, regular checks and maintenance must be carried out at a Wacker Neuson service station because many parts not discussed in this operator's manual are important safety devices and, like all parts, are also subject to wear.

  • Page 54: Replacing The V-Belt

    Maintenance work Replacing the V-belt Loosen the nuts (3). Loosen the tension screw (1) (counterclockwise) until you see the screw end (2) in the gap. Release the screw (detail X, only on BTS 1140L3) and remove it. Unscrew the nuts (3) and remove the cap (4). Unscrew the screws (5) and (7) and take off the side brace (6).

  • Page 55: Cleaning The Protective Hood

    Maintenance work Cleaning the protective hood NOTE: See chapter "Attaching the cutting blade" for information on assembling the cut- ting blade. With time, material deposits will form on the inside of the protective hood (particularly when wet cutting). Under certain circumstances, these deposits can hinder the free rotation of the cutting blade.
  • Page 56 Maintenance work Turn the cover lock (11) to the "unlocked " position and carefully re- move the filter cover (12). Two sealing rings (54/15) are located between the filter cover (12) and the hood (54/14). Loosen the screws (13) and take off the hood (14). Clean the sealing rings (15) using a small brush and check for signs of damage.

  • Page 57: Prefilter, Air Cleaner Cartridge And Internal Filter

    Maintenance work Prefilter, air cleaner cartridge and internal filter Prefilter (dry foam) (all models except for BTS 1140L3) Wash out the dirty prefilter (1) in warm soap water using household dish washing detergent or filter cleaner. Do not clean the prefilter with fuel! Rinse away dirt under running water.
  • Page 58 Maintenance work Prefilter (foam with air cleaner oil) (only BTS 1140L3) Replacement (after cutting with excessive dust formation): • daily • or at least after 4 hours of operation • or at least after filling the tank 8 times • or at least after using 8 liters of fuel mixture Replacement (after wet cutting/after cutting steel): •...
  • Page 59 Maintenance work Internal filter (all models) Wash out the dirty internal filter (3) in warm soap water using house- hold dish washing detergent or filter cleaner. Air cleaner cartridge (all models) NOTICE: The air cleaner cartridge (2) filters the intake air through fine paper fil- ter lamella.

  • Page 60: Replacing The Spark Plug

    Maintenance work Replacing the spark plug NOTICE: Do not touch the spark plug or spark plug connector while the engine is running (high voltage). Carry out maintenance work only when the engine is off. Hot engine can cause burns. Wear protective gloves! The spark plug must be replaced if the ceramic insulator is damaged, or if the spark plug electrodes are severely burned, very dirty or oily.

  • Page 61: Checking The Ignition Spark

    Maintenance work Checking the ignition spark Insert the combination wrench (9) between the hood and cylinder, as shown in the figure. NOTICE! Do not insert the wrench into the spark plug hole; just make contact with the cylinder (otherwise you may damage the engine). Press the unscrewed spark plug (10), with the spark plug terminal cap firmly attached, against the wrench using insulated pliers (away from the spark plug hole!).

  • Page 62: Replacing The Suction Head

    Maintenance work Replacing the suction head The felt filter (13) of the suction head can become clogged during op- eration. To ensure an unrestricted flow of fuel to the carburetor, the suction head should be replaced about every 3 months. Unscrew the fuel tank cap (12), pull the retainer out of the tank open- ing.
  • Page 63 Maintenance work Feed in new rope with a diameter of 4.0 mm (0.16") and a length of 1,000 mm (40"), as in the illustration (do not forget the disc (19)) and knot both ends. Pull the knot (20) into the rope drum (21). Notice: Neither the knot nor the end of rope should extend beyond the surface of the rope drum.

  • Page 64: Replacing The Return Spring

    Maintenance work NOTICE! Danger of injury! Hold the extended recoil starter handle se- curely. It will recoil quickly if you accidentally let go of the rope drum. Mount the air horn in reverse order (see Fig. 63). Make sure that the guide (25) is positioned in the receptacle (26) on the valve housing.

  • Page 65: Cutting Attachment In The Center/Outer Position

    Maintenance work Replacement return springs are delivered already under tension in the housing. CAUTION. The spring can snap out. A released spring can be reinserted as in the illustration (Make sure to note the rotation di- rection!) Apply a light coat of multipurpose grease to the new return spring (4) before you install it in the valve housing.

  • Page 66: Remounting The Cutting Attachment

    Maintenance work 8.11 Remounting the cutting attachment Loosen the nuts (5). Loosen the tension screw (3) (counterclockwise) until you see the screw end (4) in the gap. Release the screw (detail X, only on BTS 1140L3) and remove it. Unscrew the nuts (5) and remove the cover (6). Pry out the stop pin (8) with the combination wrench (9) far enough, as shown in the figure, so that you are able to turn the protective hood (11).
  • Page 67 Maintenance work NOTE: When the stop pin (8) has been pulled out, the rotary stop (7) is deactivated. This makes it possible to turn the protective hood (11) beyond the rotary stop (7). Unscrew the handle (10) and turn the protective hood (11), as shown in the figure.

  • Page 68: Replacing/Cleaning The Spark Arrester Screen

    Maintenance work 8.12 Replacing/cleaning the spark arrester screen The spark arrester screen should be checked and cleaned regularly. Models without catalytic converter Loosen the 2 screws (19) and remove the spark arrester screen (20). Models with catalytic converter Unscrew and remove screws (21). Remove the front housing section of the muffler (22).

  • Page 69: Periodic Maintenance And Service Instructions

    Users of cut-off saws are only permitted to carry out the maintenance and care procedures described in this operator's manual. All other pro- cedures may only be carried out by a Wacker Neuson service station. General Entire cut-off saw Clean the outside and check for damage.
  • Page 70 Maintenance work Quarterly Suction head Replace. Fuel tank Clean. Bearing, clutch Clean and regrease. drum Storage Entire cut-off saw Clean the outside and check for damage. If damage is discovered, have it repair by quali- fied personnel immediately. Cutting blade Disassemble and clean.

  • Page 71: Troubleshooting

    Maintenance work 8.14 Troubleshooting Malfunction System Observation Cause Cutting blade Clutch Engine is run- Clutch is damaged. does not start ning Cutting blade Carburetor Cutting blade is Idle setting incorrect. rotates when running Clutch Clutch is blocked. engine is idling V-belt Belt has insufficient tension, V-belt is worn.

  • Page 72: Guide Cart

    Guide cart Application The Wacker Neuson guide cart makes it easier to move the cut-off saw in a straight line. It allows operators to work without fatigue and can be adjusted based on body height. The cut-off saw can be operated with the cutting attachment in either the center or outer position.

  • Page 73: Safety Information

    Guide cart Safety information 9.2.1 The supports for the cut-off saw must be clean before inserting the BTS. 9.2.2 The notched bolt must be correctly locked to prevent the cut-off saw from coming loose while you are working. 9.2.3 Make sure that the clamping lever for setting the cutting depth and the star knob for adjusting the handle are tight during the cutting process.

  • Page 74: Signs

    Signs 10. Signs Safety protective hood Gasoline/oil mixing ratio Safety hood SK00658en.fm...
