Description
Providing much-needed flexibility, the ePAD™ 5.0 Mobile Keypad allows users to control their DMP security system
using an Internet browser. The ePAD communicates to the DMP panel through the Internet, an intranet, or your home
or commercial business local area network.
When the user performs a command at the ePAD, such as arming the system, the alarm panel arms, just as it would
from a standard keypad. Basically, the ePAD is an Internet keypad.
It is necessary to program your ePAD to communicate on your local
network. You may program your ePAD using the browser on your

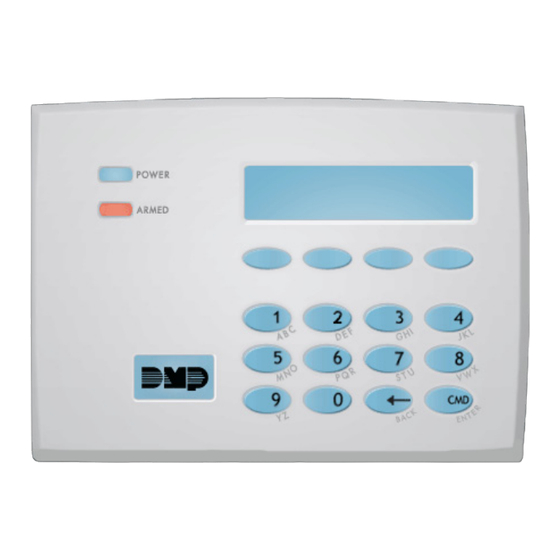

computer or by connecting a DMP LCD Keypad directly to the ePAD.
You can assign a hyperlink to the panel User's Guide on a network so
users can easily access the User's Guide for their panel. A hyperlink
is text or an image that automatically opens the assigned Web page
or document when the user selects it. You may also assign other
hyperlinks, such as dealer Web sites, for use in the ePAD.
Compatibility
The ePAD can be used as an auxiliary keypad for XT30/XT50 Series
panels and XR100/XR500 Series panels.
What is Included
The ePAD includes the following items:
• One ePAD 5.0 Mobile Keypad
• One 4-wire harness to connect to the panel
• One 330 Programming Cable
What is Needed
The ePAD installer, or the network administrator for a commercial business installation, must provide the items
listed below. For later reference when programming, please enter the ePAD IP Addressing information in the spaces
provided. These instructions explain where to obtain the necessary information.
Broadband Connection
A constant broadband connection, such as DSL, cable modem, or T1, is required to allow a browser to contact the
ePAD through the Internet.
Network Cable
The ePAD needs to be connected to the network using a standard RJ45 Cat 5 patch cable. This is the same type of
cable used to connect other devices to an Ethernet 10BaseT or 100BaseT network. These cables are available in
various lengths and can be obtained at a local retail electronics outlet. Do NOT use a crossover cable.
Network Router
A router is required to connect the ePAD to the user's local network/Internet. For a commercial installation where
a network administrator is available, the network administrator provides the connection to the router. Otherwise,
an Ethernet Cable/DSL Router, such as a LinkSys or D-Link router, is required. These can be obtained at a local retail
electronics outlet.
Note: The router must be completely connected and running on the network before the ePAD can be connected
to the network and programmed. Refer to the ePAD Technical Note: Configuring your Router (LT-0670) for complete
information.
Programming guide
ePAD™ 5.0 Mobile Keypad
Figure 1: ePAD by Default in Web Browser
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DMP Electronics ePAD 5.0
Summary of Contents for DMP Electronics ePAD 5.0
-
Page 1: Programming Guide
Figure 1: ePAD by Default in Web Browser What is Included The ePAD includes the following items: • One ePAD 5.0 Mobile Keypad • One 4-wire harness to connect to the panel • One 330 Programming Cable What is Needed The ePAD installer, or the network administrator for a commercial business installation, must provide the items listed below. - Page 2 Local IP Address: _________________________ The ePAD requires a static IP Address, such as 192.168.000.251, which is the ePAD default IP Address. This IP Address must be outside of the range of DHCP addresses supported by the router. The ePAD default IP Address is appropriate for most LinkSys and D-Link routers.
- Page 3 DNS IP Address: __________________________ A DNS (Domain Name Server) address is needed to allow the user to enter a domain name at their browser such as bill.virtualkeypad.com to access the ePAD instead of entering a numeric address. For a commercial installation, the network administrator may provide you the DNS IP Address.
-
Page 4: Mobilekeypad.com Dns
Upgrade Port: ____________________________ The ePAD is capable of receiving an operating software update (Flash) using DMP Remote Link™ Software and therefore requires an Upgrade port for this activity. The default port setting is 9999 and was chosen to be outside the range of typical port usage. -
Page 5: Accessing The Epad
Accessing the ePAD Enter the ePAD default IP Address followed by /admin: For example 192.168.0.251/admin. The Administrator Log On screen displays. On the first access to ePAD programming, enter the default Administrator Name and Password: ADMIN and ADMIN. Note: Be sure that only one administrator is logged on to the ePAD at a time. If two administrators are logged on to the ePAD at the same time, conflicts may occur. - Page 6 Figure 6: ePAD System Options Page Upgrade Port The Upgrade Port is the connection port for remote software upgrade. This must match the settings you use in Remote Link for software update. Enter the port number to be used when upgrading the ePAD. The recommended range is 2000 through 65535.
- Page 7 Figure 7: Example of an ePAD System Options Page: Web Setup Section Web Page Setup The bottom half of the System Options Page, shown above, contains fields used to setup the ePAD Web page. The example ePAD shown in Figure 8 on the next page was created by entering the links shown in Figure 8. By examining the two figures, you can see how each field affects the way the ePAD looks in the Web browser.
- Page 8 Link: Banner, Dealer, Custom In the Link field under each section, enter a path, to a Web page or document of your choice. If you wish the hyperlink to be a Web site, be sure to enter the proper address: For example, http://www.dmp.com. If you want the hyperlink to open a document, be sure the software application needed to open the document is on the computer hard drive that is accessing this ePAD.
-
Page 9: Epad Name Registry Options Page
Text: Banner, Dealer, Custom In the Text field for each section, enter up to 24 text characters to display instead of an image. The text you enter in this field displays on the ePAD exactly as you enter it here. For those who wish to use a remote Internet camera, Custom Links 1 and 2 allow up to 255 characters for the entry of any HTML code, allowing placement of a Java applet. -
Page 10: Epad User Options Page
ePAD User Options Page The ePAD allows one User Name and one User Password for connecting to the ePAD. Program User Names and User Passwords in the User Options Page. Select “strong” passwords: Use combinations of letters and numbers. Passwords are not case-sensitive. -
Page 11: Optional Programming With A Dmp Lcd Keypad
Optional Programming with a DMP LCD Keypad After properly installing the ePAD according to the directions in the ePAD 5.0 Mobile Keypad Installation Sheet (LT- 0545), you may program the ePAD using a DMP LCD keypad. Connect the keypad to the ePAD using the included Model 330 Programming cable. -
Page 12: Administrator Password
ePAD Supervision ePAD SUPERvISION * UNSUP Select whether the ePAD is to operate in supervised or unsupervised mode. By default, the ePAD is unsupervised. Press the left select key to select the supervised mode and the right select key for unsupervised. When the ePAD is in the supervised mode, it sends a response to the panel each time its assigned address is polled by the panel. -
Page 13: Troubleshooting
Using the ePAD After you complete programming the ePAD, to use the ePAD, enter the address, such as bill.virtualkeypad.com or XXX.XXX.XXX.XXX, in the browser Address field. Do not add “/admin” to the address to access the ePAD as a user. Log onto the ePAD using the User Name and Password. -
Page 14: Specifications
Configuring the ePAD Utility The first time you run the ePAD Utility, you need to enter information in the Configuration window. Click the Config button at the bottom of the window to open the ePAD Utility Configuration window, shown in Figure 12. Enter the proper information in each field as discussed below.
