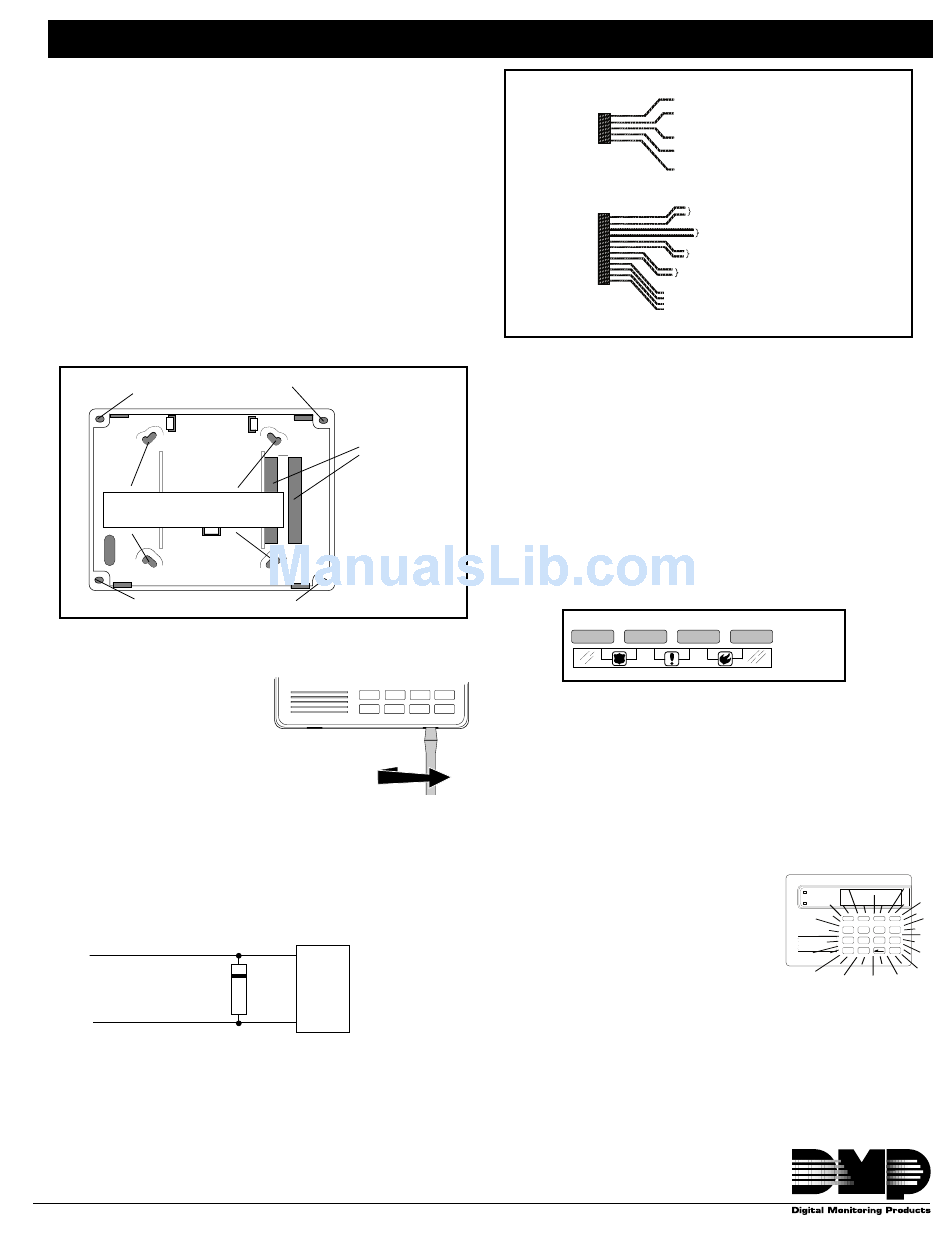

INSTALLATION
Description
The DMP 791 and 793 Easy Entry™ LCD Keypads are the
industry's first burglary/fire keypads with integrated access control
capability.
Each keypad provides three 2-button Panic keys, an AC power
LED, an Armed LED, 32-character display, backlit keyboard with
easy to read lettering, and an integral speaker. The 791 and 793
also provide four fully programmable Class B protection zones
you can program for a variety of burglary, fire, and access control
applications.

Installing the keypad

The Easy Entry keypads each use the same plastic housing and
are designed to easily install on any 4 square box, 3-gang switch
box, 695 and 696 backbox, or flat surface. The diagram below
shows the mounting hole locations on the keypad base.
Surface and backbox
mounting holes.
Combined 4 square and 3-gang
switch box mounting holes.
Surface mounting holes.
Figure 1: Base mounting locations
Removing the Base
The keypad housing is made up
of two parts: the front , which
contains the circuit board and
other components, and the base .
To remove the base, insert a flat screwdriver into
one of the openings on the bottom and gently
twist while pulling the halves apart. Repeat with
the other opening.
Voltage Protection Diode
A separate clamping diode is included with each keypad in the
shipping package. This diode may be installed across the power
inputs of an electromagnetic lock to shunt excessive voltages
away from the keypad. Install diode as shown in the diagram
below.
+
Note: Banded end
of diode must be
supply
connected to the
voltage
positive side of
supply voltage
-
1N4001
1 Amp rectifier
Harness Wiring
The 791 and 793 keypads are each supplied with one 12-wire
data bus/zone harness and one 5-wire output/reader harness.
The harness connections and color codes are shown in Figure 3.
You can install individual keypads on wire runs of up to 500' using
22 gauge wire or up to 1,000' using 18 gauge wire.
2841 E. Industrial Drive Springfield, MO 65802-6310 800-641-4282
Wire harness
entrances.
+
electromagnetic lock
or
electric solenoid
type lock
-
791 and 793 Easy Entry™ Keypads
Green/White - Connect Reader Data 0
White - Connect Reader Data 1
Orange - Door Strike Normally Open
Gray - Door Strike Common
Output/Reader Harness
Violet - Door Strike Normally Closed
Zone 1 White/Brown
Data Bus/Zone Harness
To keypad data bus
Figure 3: keypad harness wiring
2-Button Panic Keys
The Panic key function of the 791 and 793 keypads allows users
to send Panic, Emergency, or Fire reports to the central station.
The user must press and hold the two SELECT keys until a beep
from the keypad is heard. At the beep, the panel sends an alarm
report to the central station with the following zone numbers:
19 = Panic, 29 = non-medical Emergency, and 39 = Fire.
The Panic key function must be programmed if the Panic keys are
to be used. See the back of this page for programming instructions.
Install the supplied icon label below the top row of Select keys.
Top row SELECT keys
Police
Emergency
Figure 4: Panic key label placement
Internal Speaker Operation
The Easy Entry keypads emit standard tones for key presses,
entry delay, and system alerts. When used with the XR200
Command Processor Panel, the speaker also provides distinct
burglary, fire, zone monitor, and prewarn tones.
Keyboard Backlighting
The Easy Entry™ keyboards light anytime
a key is pressed or the speaker sounds.
During an alarm condition, the keyboard
turns Red to visually alert persons on-site.
The Red backlighting is turned off when all
areas in the system are disarmed or when
the Sensor Reset function is used. The
keypad backlighting dims to medium
brightness whenever the speaker is on.
Panel Compatibility
The access control capability of the 791 and 793 is compatible
with the 1812, XR10 (version 103, 8/27/96), XR20, XR200, and
1912XR (version 114) Command Processor Panels.
Zone 4 White/Yellow
Zone 3 White/Orange (Connect Request to Exit)
Zone 2 White/Red (Connect access door contact)
Label
shows
}
icons only
Fire
ABC SECUR ITY
P
O
W
E
R
ALARM: FIRE
A
R
M
E
D
1
2
A C
B
D E F
5
6
MNO
P Q R
9
0
Y Z
LT-0291 (12/98)
3
4
G H I
J K L
7
8
STU
VWX
COMMAND
