IMPORTANT
This Owner's Manual is divided into two sections.
The first section,
PROCEDURES, describes how to install the 9-Volt
alkaline battery (not supplied) in the remote
control transmitter, and how to set the operating
frequency of the transmitter and receiver. These
instructions must be performed prior to
installation of the ceiling fan as described in the
second section, CEILING FAN PROCEDURES.
REMOTE CONTROL
PROCEDURES
General
The remote control supplied with your Emerson
ceiling fan consists of a hand-held transmitter and a
receiver which is mounted under the fan ceiling cover.
The remote control is designed to separately control
your ceiling fan and light intensities. There are four
push buttons (HI, MED, LOW, OFF) to set the fan
speed and turn the fan off. The REV push button
changes the airflow direction of the fan blades. The
U/L (uplight) and D/L (downlight) pushbuttons turn the
lights on and off and control the light intensities. The
red indicator light will illuminate while any button is
pressed, indicating that the battery is good.
The remote control transmitter is powered by a 9-Volt
alkaline battery (not supplied). To prevent possible
damage if the battery should leak, be sure to remove
the battery when the control is not to be used for an
extended period of time.
Code switches in the transmitter and receiver may be
set in 16 different positions. If your fan and light go on
and off without using your control, you may be getting
interference from other remote units such as garage
door openers, car alarms or security systems. To
remedy this situation, simply change the combination
code in your transmitter and receiver.
Preset Memory Feature
Your Emerson remote control receiver is equipped
with a preset memory feature. If the electrical supply
to the receiver is controlled through a wall switch,
when the switch is turned off, the control will
remember the light intensities and fan speed. When
the switch is turned back on, the lights and fan will
resume operation as they were prior to the switch
being turned off.
Installation of Battery

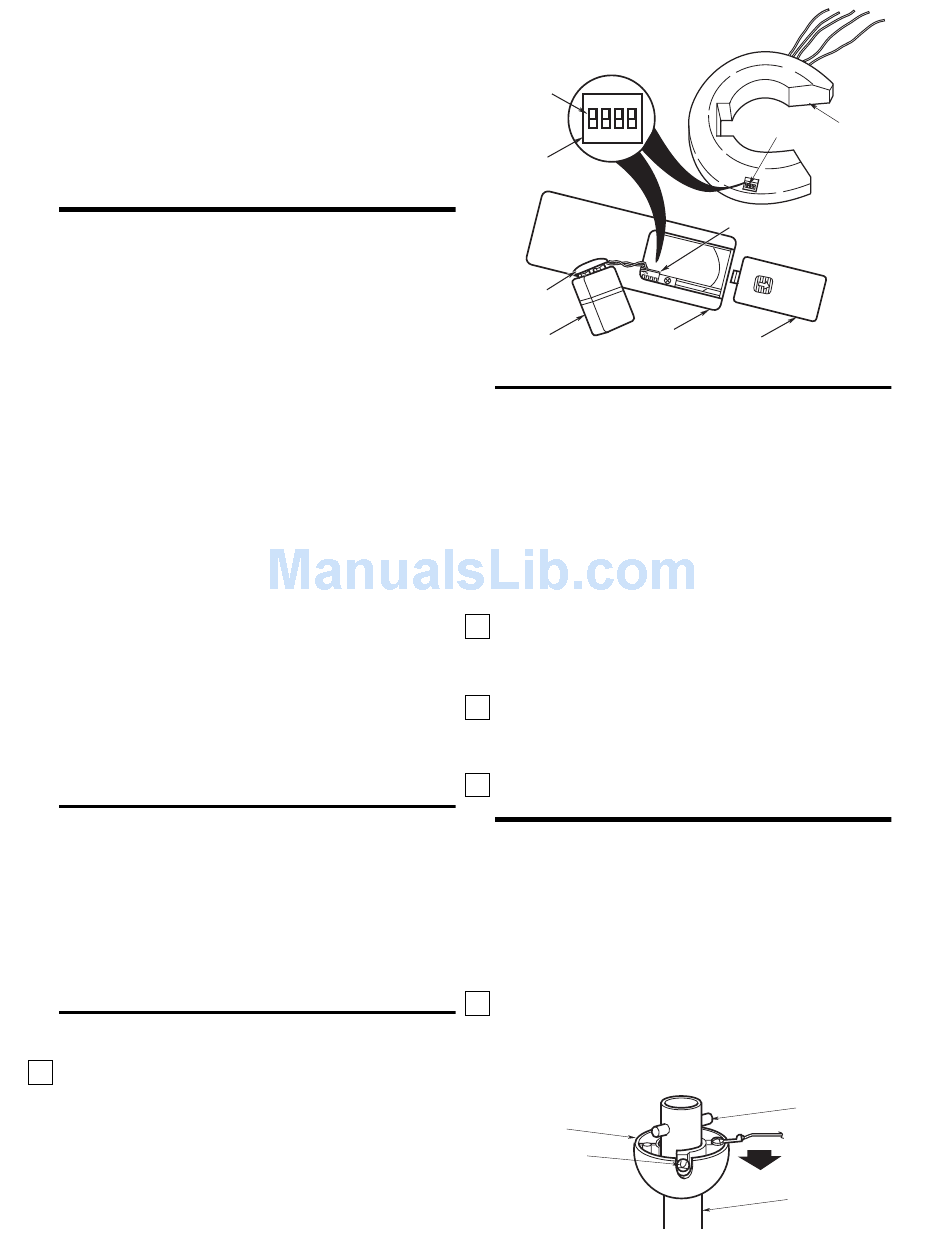

1. Remove the battery cover and install a 9-Volt
alkaline battery (not supplied), oriented as shown in
the battery compartment (Figure 1).
REMOTE CONTROL
SWITCH
ON
LEVERS
1 2 3 4
CODE
SWITCH
BATTERY
CONNECTOR
REMOTE
BATTERY
CONTROL
TRANSMITTER
Figure 1
Setting Operating
Frequency of Transmitter

and Receiver

Your remote control transmitter and receiver have
code switches which must be set on one of 16
possible code combinations. The four levers
(numbered 1, 2, 3, and 4) on the switches are factory-
set in the ON (up) position. Do not use this setting.
Change the switch settings as follows:
1. Slide the four switch levers (Figure 1) in the remote
control transmitter to your choice of ON (up) or
down positions. Use a ball-point pen or small
screwdriver and slide the levers firmly up or down.
2. In the receiver, slide the four switch levers in the
same positions as set in the transmitter. Make sure
the levers on both switches are in the same
positions; otherwise the fan will not operate.
3. Position the battery in the transmitter battery
compartment and replace the battery cover.
CEILING FAN
PROCEDURES
How to Put Your Ceiling
Fan Together
1. Remove the hanger ball by loosening the setscrew
in the hanger ball until the ball falls freely down the
downrod (Figure 2). Remove the pin from the
downrod, then remove the hanger ball. Retain the
pin and hanger ball for reinstallation in step 6.
HANGER
BALL
SETSCREW
Figure 2
4
RECEIVER
CODE
SWITCH
CODE SWITCH
BATTERY
COVER
PIN
DOWNROD
