MAIN FUNCTIONS
DMX Address
Select the DMX Address menu, then press the ENTER button and the display will flash.
Use the DOWN and UP buttons to change the DMX Address (1-512), and then press the
ENTER button to confirm selection. To return back to the previous menu functions without
any change press the MENU button.
Channel Mode
Select the Channel Mode menu, then press the ENTER button and the display will flash.
Use the DOWN and UP buttons to select desired DMX Channel Mode (5chan, 6chan or
8chan). Once the desired mode has been selected, press the ENTER button to confirm
selection. To return back to the previous menu functions without any change press the
MENU button.
Dimmer Curve
Select the Dimmer Curve menu, then press the ENTER button and the display will flash.
Use the DOWN and UP buttons to select the desired Dimmer Curve Mode (Mode1, Mode
2, Mode 3 or Mode 4). Once the desired mode has been selected, press the ENTER button
to confirm selection. To return back to the previous menu functions without any change
press the MENU button.

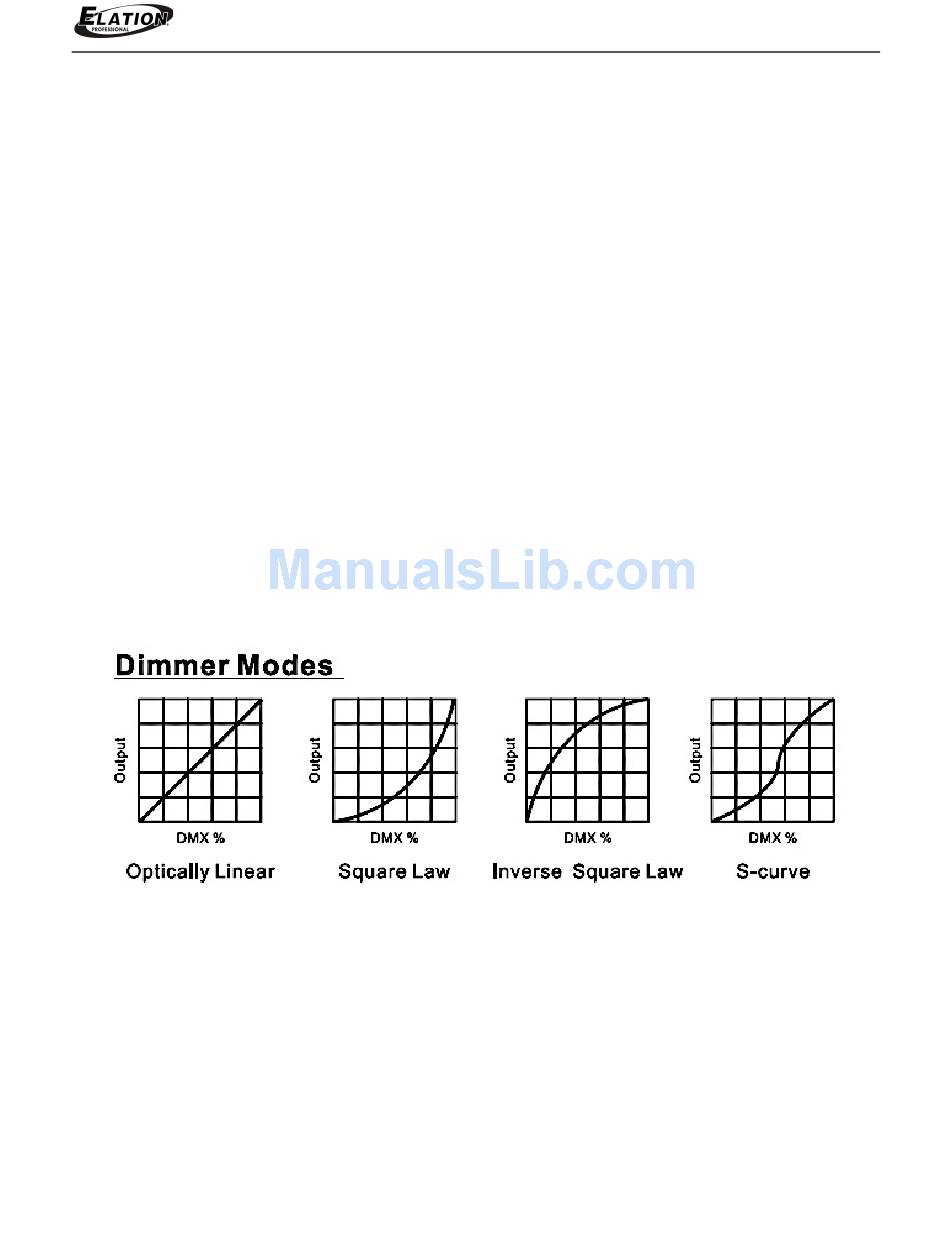

MODE 1 (OPTICALLY LINEAR)
The increase in light intensity appears to be linear as the DMX value is increased.
MODE 2 (SQUARE LAW)
Light intensity control is finer at lower levels and coarser at higher levels.
MODE 3 (INVERSE SQUARE LAW)
Light intensity control is coarser at lower levels and finer at higher levels.
MODE 4 (S-CURE)
Light intensity control is finer at lower and higher levels and coarser at medium levels.
