Menu Toolbar
Connect

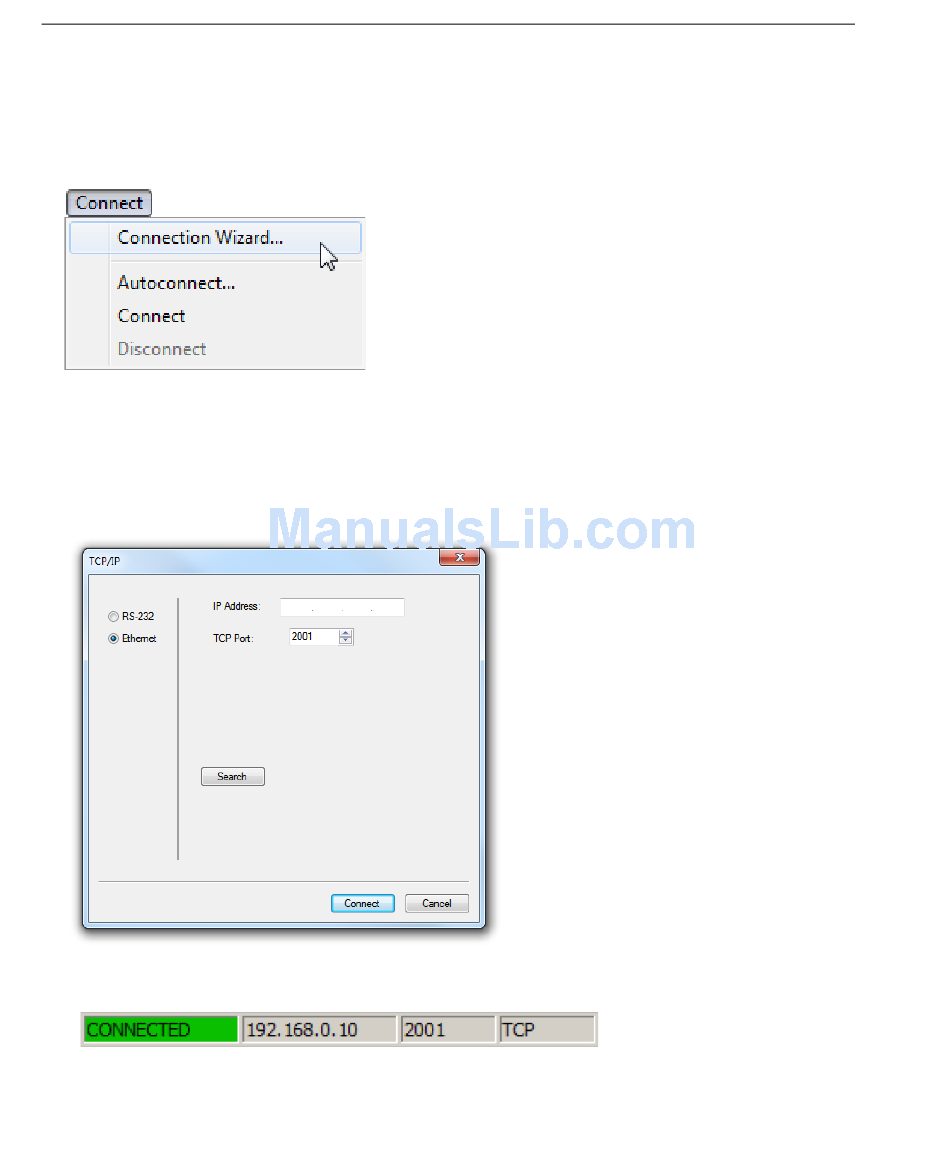

The Connect dropdown menu allows the user to access the Connection Wizard, as well
as the Autoconnect dialog. Connect and Disconnect can also be performed directly
from the dropdown menu without opening a dialog.
Connection Wizard
To connect using the Connection Wizard:
• Click Connect on ESP's menu toolbar, and then select Connection Wizard.
• Select the communication interface required by your application.
• Configure settings as required by the application, and click Connect.
• When a connection is established, the green indicator in the status bar at the bottom
right of the screen will be visible.
• If your RS-232 connection attempt fails, click the Auto Connect button to establish a
connection between the MINI Hawk Xi and the host.
