General Specifications
Appendix A — General Specifications
Mechanical
Height: 1" (25.4 mm)
Width: 1.8" (45.7 mm)
Depth: 2.1" (53.3 mm)
Weight: 3.2 oz. (91 g)
Environmental
Enclosure: IP54, category 2
Humidity: Up to 90% (non-condensing)
Operating Tempurature: 0° to 40°C (32° to 104°F)
Storage Tempurature: -50° to 75° C (-58 to 167°F)
CE Mark
EN 55024:1998 ITE Immunity Standard
EN 55022:98 ITE Disturbances
Light Source
Type: High output LEDs
Light Collection Options
Progressive scan, square pixel; Software-adjustable
shutter speed, electronic shutter
SXGA: 1280 by 1024 pixels
WVGA: 752 by 480 pixels
Symbologies
2D Symbologies: Data Matrix (ECC 0-200), QR
Code, Micro QR Code, Aztec Code
Stacked Symbologies: PDF417, MicroPDF417,
GS1 DataBar (Composite and Stacked)
Linear Symbologies: Code 39, Code 128,
BC412, Interleaved 2 of 5, UPC/EAN, Codabar,
Code 93, Pharmacode, PLANET, PostNet, Japanese
Post, Australian Post, Royal Mail, Intelligent Mail, KIX
Read Parameters
Pitch: ±30° Skew: ±30° Tilt: 360°
Decode Rate: Up to 60 decodes per second (HS model)
Focal Range: 1.3 to 9.3" (33 to 236 mm) (autofocus)
Connector
Dual Cable: 6 ft. industrial Ethernet cable with RJ45 plug and 3 ft. cable with M12 plug
Indicators
LEDS: Read Performance, Power, Read Status
Green Flash: Good Read
Blue Target Pattern: Symbol locator
Beeper: Good Read, match/mismatch, No Read, serial command confirmation, on/off
Communication Interface
Standard Interfaces: RS-232 and Ethernet TCP/IP
Discrete I/O
Trigger Input, New Master: Bi-directional, optoisolated, 4.5-28V rated (10 mA @ 28 VDC)
Outputs (1, 2, 3): Bi-directional, optoisolated, 1-28V rated, (I
A-2
Note: Nominal dimensions shown.
Typical tolerances apply.

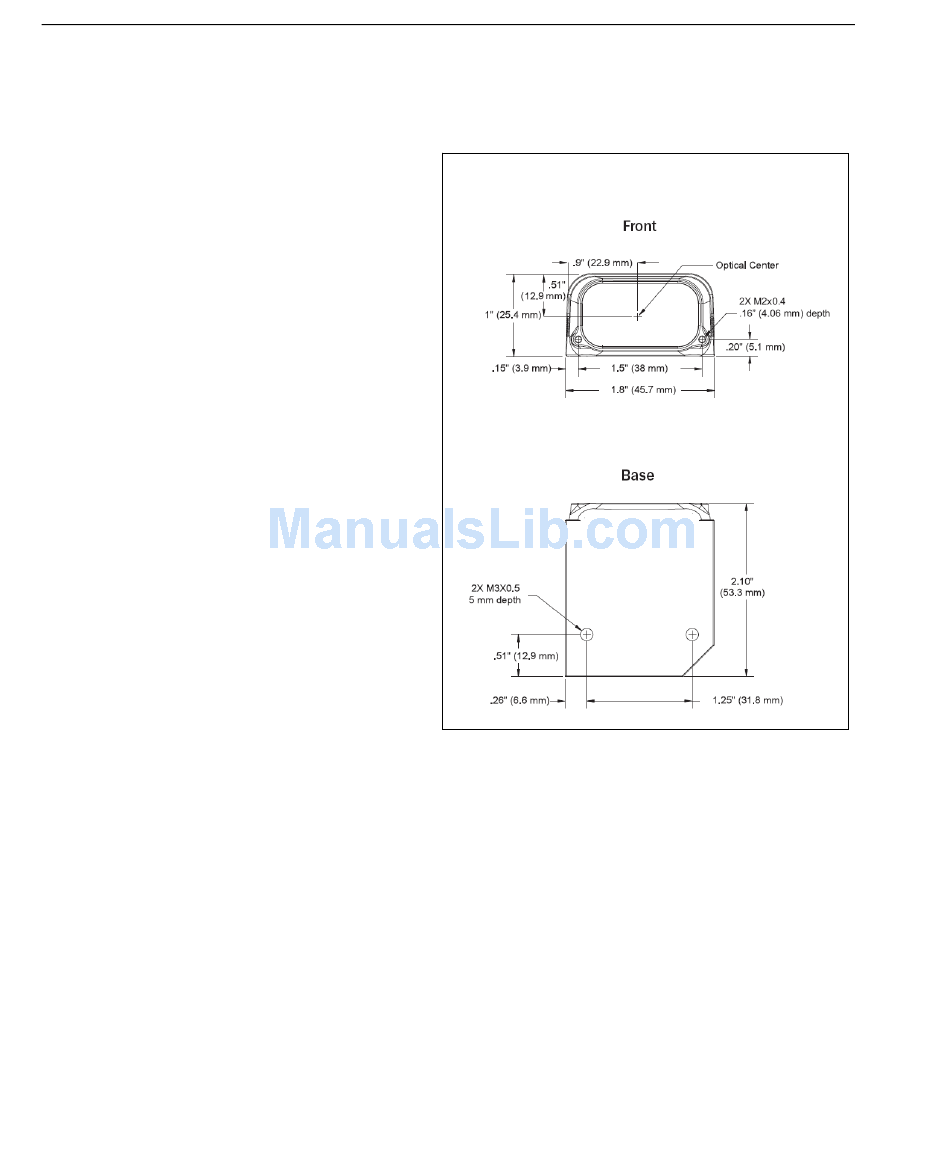

MINI Hawk Xi Dimensions
< 100 mA at 24 VDC, current limited by user)
CE
MINI Hawk Xi High Performance Imager User's Manual
