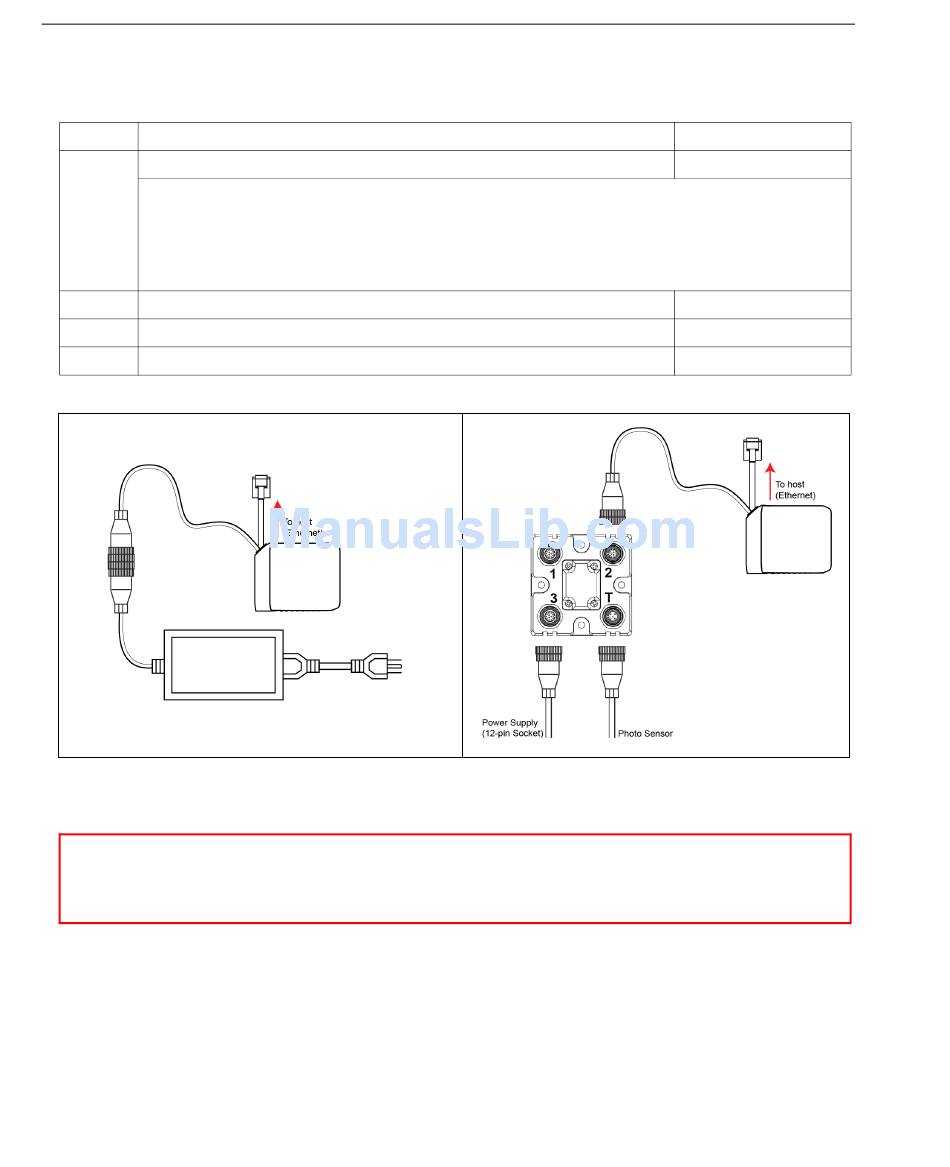

Step 1 — Check Hardware
Item
MINI Hawk Xi
(C)ommunication: 1 (Ethernet)
1 (L)ens: 1 = Standard Density; 2 = High Density; 3 = Ultra High Density
(S)ensor: 0 = WVGA; 1 = SXGA
(O)ption: 0 = Standard; 1 = Custom
2 QX-1 Interface Device
3 Power Supply, M12 12-pin Socket, 1.3 m (Screw-On)
4 Photo Sensor, M12 4-pin Plug, NPN, Dark On, 2 m
3
Ethernet Standalone without QX-1
Caution: Be sure that all cables are connected BEFORE applying power to the
system. Always power down BEFORE disconnecting any cables.
1-2
Description
1
MINI Hawk Xi High Performance Imager User's Manual
FIS-6310-CLSOG
98-000103-02
97-000003-03
99-000020-02
2
3
4
Ethernet Standalone with QX-1
Part Number
1
