Step 11 — Save Configuration in ESP

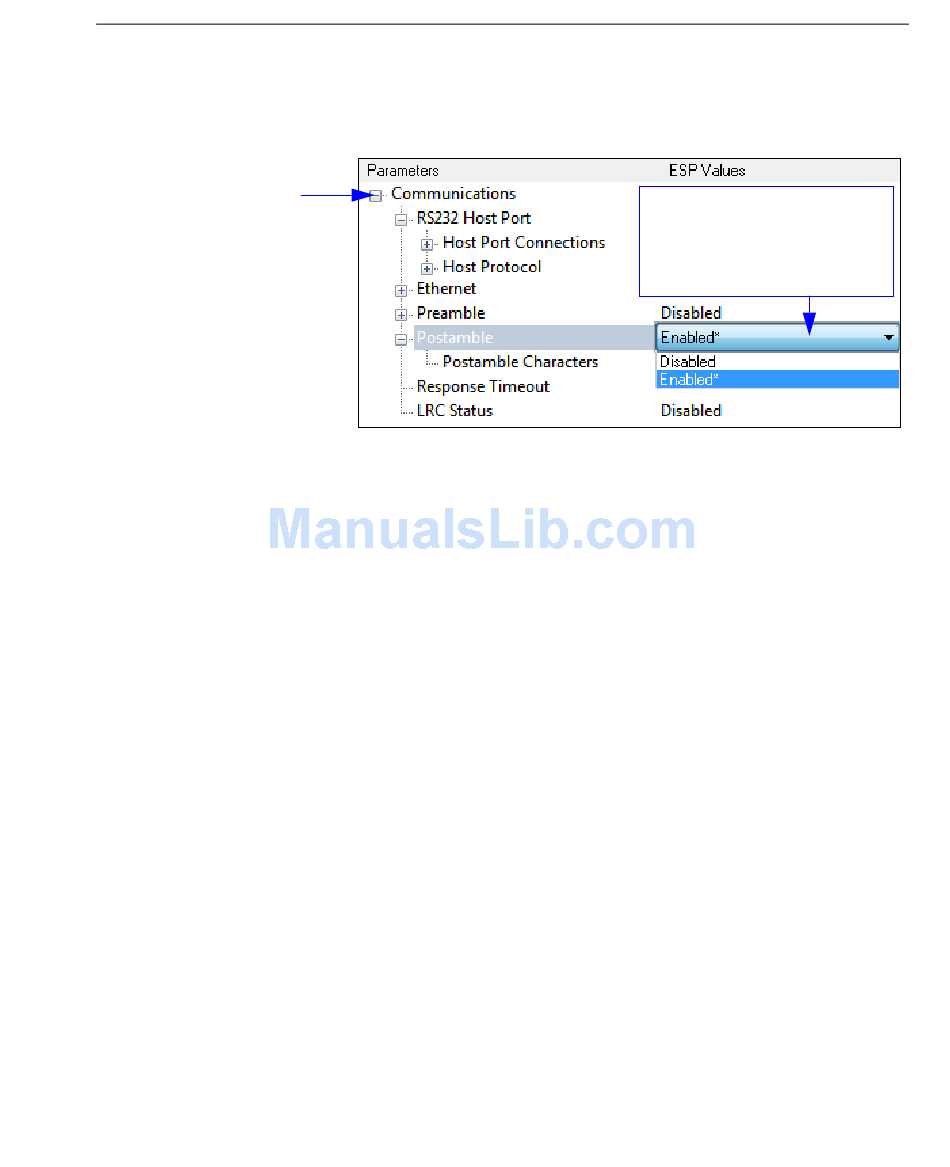

To make changes to a configuration setting:
1. Left-click on the
to expand the
desired tree.
2. Double-click on the
desired parameter
and click once in the
selection box to view
options.
Saving Options
• Send, No Save. Changes will be lost when power is re-applied to the imager.
• Send and Save. This activates all changes in current memory and saves to the imager
for power-on.
MINI Hawk Xi High Performance Imager User's Manual
+
4. Left-click again on the open
screen to complete your
selection.
Quick Start
3. Place your cursor in the
selection box, scroll down to
the setting you want to
change, and click once on
the setting.
5. Right-click on the open
screen and select Save to
Reader to implement the
command in the imager.
1-13
