U S E R M A N U A L
Series 1 - Maritime Multi Display Models

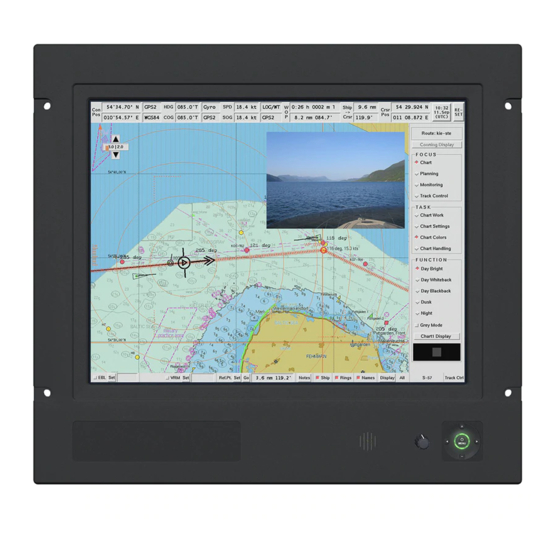

JH 15T17 MMD-xxx-Axxx - 15.0 inch Maritime Multi Display
JH 19T14 MMD-xxx-Sxxx - 19.0 inch Maritime Multi Display (Slim Frame)
JH 19T14 MMD-xxx-Axxx - 19.0 inch Maritime Multi Display
JH 20T17 MMD-xxx-Axxx - 20.1 inch Maritime Multi Display
JH 22T11 MMD-xxx-Axxx - 22.0 inch Maritime Multi Display Widescreen
JH 23T14 MMD-xxx-Axxx - 23.1 inch Maritime Multi Display
JH 26T11 MMD-xxx-Axxx - 25.54 inch Maritime Multi Display Widescreen
Please visit www.hatteland-display.com for the latest electronic version of this manual.
Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com
User Manual MMD Series 1
Updated: 06 Jan 2015
Doc Id: INB10036-1 (Rev 28)
Created: 363
Approved: 6674

Advertisement

Table of Contents
loading

Related Manuals for Hatteland JH 15T17 MMD series

Summary of Contents for Hatteland JH 15T17 MMD series

  • Page 1 Updated: 06 Jan 2015 Doc Id: INB10036-1 (Rev 28) Created: 363 Approved: 6674 Please visit www.hatteland-display.com for the latest electronic version of this manual. Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com...
  • Page 2 Copyright © 2015 Hatteland Display AS Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway. All rights are reserved by Hatteland Display AS. This information may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form without the prior written consent of Hatteland Display AS.

  • Page 3: Table Of Contents

    Contents Contents ..................3 Contents of package ....................6 General .................... 7 About this manual ......................8 About Hatteland Display ....................8 www.hatteland-display.com ..................8 Contact Information ......................8 Maritime Multi Display (MMD) - Introduction ..............9 Basic Construction .....................10 Product Labeling ......................11 Front Logo Label......................15 Touch screen products ....................16...
  • Page 4 Contents Specifications ................53 Specifications - JH 15T17 MMD-xxx-Axxx (CCFL version) ........54 Specifications - JH 15T17 MMD-xxx-Axxx (LED version) ..........55 Specifications - JH 19T14 MMD-xxx-Sxxx (CCFL, Slim version) .......56 Specifications - JH 19T14 MMD-xxx-Sxxx (LED, Slim version) .........57 Specifications - JH 19T14 MMD-xxx-Axxx (CCFL version) ........58 Specifications - JH 19T14 MMD-xxx-Axxx (LED version) ..........59 Specifications - JH 20T17 MMD-xxx-Axxx (CCFL version) ........60 Specifications - JH 22T11 MMD-xxx-Axxx (CCFL version) ........61...
  • Page 5 Contents Bracket - 23” ......................90 EN60945 Bracket - 23” ....................91 Bracket - 26” ......................92 EN60945 Bracket - 26” ....................93 CRT Adapter - 15” TFT to 17” ...................94 RACK Adapter - 15” TFT to 19” .................95 17” TFT to 19” Rack Adapter ..................96 CRT Adapter - 19”...

  • Page 6: Contents Of Package

    Contents of package Item Description Illustration 1 pcs of Standard DVI Signal Cable. DVI-D 18+1P Male to DVI-D 18+1P Male Single Link - Length 2.0m HA-SDM-2M 1 pcs of Standard VGA Signal Cable. DSUB 15P Male to DSUB 15P Male - Length 2.0m HA-VGA-2M-32 1 pcs of power cable European Type F “Schuko”...

  • Page 7: General

    General...

  • Page 8: About This Manual

    About Hatteland Display Hatteland Display is the leading technology provider of specialized display and computer products, delivering high quality, unique and customized solutions to the international maritime, naval and industrial markets.

  • Page 9: Maritime Multi Display (Mmd) - Introduction

    Although the new Series 1 offers a clear improvement on performance, functionality and value, we have ensured that it adheres to the Hatteland Display ethos of Form, Fit, Function, so you can harness the many innovative features, without making changes to your existing solutions.

  • Page 10: Basic Construction

    Basic Construction Basic Construction - Series 1 Touch Screen (option) Sun Visor (option) Centerbox Water Cover (option) Mounting Bracket (option) Mechanics Glass Casing Rotary Bracket (option) Front Frame Bonding Electronics / PCB’s User Controls Logo label (option) Example with mounting bracket Example with sun visor, mounting bracket and rotary bracket General IND100077-75...

  • Page 11: Product Labeling

    This section details the locations, content details and specifications for factory mounted labels for all currently available standard Hatteland Display Maritime Multi Display (MMD) - Series 1 models. This information will in most cases also apply for most Customized Models as well, but may differ based on customer requirements, in that case, please refer to the customized User Manual (paper or electronic version, dependent on customer requirements).
  • Page 12 Product Labeling Label Locations Number ID and coloring based on “Label Size and Types“ table from previous page. All illustrations below is seen from rear (and side where needed) with connectors facing down. Actual labels regarding its size and text orientation vs product size is drawn in.
  • Page 13 Product Labeling Warranty label covers screw. JH 22T11 MMD-xxx-Axxx Labels placed on rear. Warranty label covers screw. JH 23T14 MMD-xxx-Axxx Labels placed on rear. Warranty label covers screw. JH 26T11 MMD-xxx-Axxx Labels placed on rear. Warranty label covers screw. JH 27T11 MMD-xxx-Axxx Labels placed on rear.

  • Page 14: Warranty Label

    Date: 20110526 IND100780-1 - Rev 11 - 29 S Serial Number: This document explains the type number structure for the Hatteland Display Series 1 Maritime Multi Display product range. JH 19T14 MMD-AA1-AAAA-000256 Barcode (TYP+SNO) - Example standard typenumber Type+Serial Number...

  • Page 15: Front Logo Label

    Product Labeling Front Logo Label The front frame bezel design offers an area for customized logo label. These labels can be ordered and customized with your own logo delivered from us The measurements are as follows. WxH = 181.66 x 44.16mm / 7.15” x 1.74”. R4.10 - 4 places in each corner. Depth of area is 0.5mm. IND100077-137...

  • Page 16: Touch Screen Products

    Introduction to products with touch screen Both Resistive and Capacitive touch screen solutions are used for our products. Please review specifications found in this manual or our website (www.hatteland-display.com) to find your exact type number and then determine if it uses Resistive or Capacitive.

  • Page 17: Touch Screen Drivers And Documentation

    All units are shipped with a Documentation and Drivers DVD or CD which contains suitable drivers for touch screens. (Named MEDIA STD01). You can also visit our website www.hatteland-display.com to view the same list (or even recently new added products) for our models with touch screen.
  • Page 18 This page left intentionally blank...

  • Page 19: Installation

    Installation...

  • Page 20: General Installation Recommendations

    General Installation Recommendations General Installation Recommendations Installation and mounting 1. Most of our products are intended for various methods of installation or mounting (panel mounting, bracket mounting, ceiling/wall mounting etc.); for details, please see the relevant mechanical drawings. 2. Adequate ventilation is a necessary prerequisite for the life of the product. The air inlet and outlet openings must definitely be kept clear;...

  • Page 21: Ergonomics

    9. The classification is only valid for approved mounting brackets provided by Hatteland Display. The unit shall be mounted stand-alone without any devices or loose parts placed at or nearby the unit. Any other type of mounting might require test and re-classification.

  • Page 22: Cables

    General Installation Recommendations Cables Use only high quality shielded signal cables and the provided Multifunction Cable. Cable Entries & Connectors (Marked area) - Illustration only Bottom View Back View The cable should generally be kept as short as possible to provide a high quality input/output.The maximum signal cable length will depend on the signal resolution and frequency, but also on the quality of the signal output from the computer/radar.

  • Page 23: Rotary Bracket And Mounting Bracket (15 Inch) Combined Assembling

    General Installation Recommendations Rotary Bracket and Mounting Bracket (15 inch) combined assembling Illustration shows “Mounting Bracket JH 15TBR STD-A1” and “Rotary Bracket JH 15TRO STD-A1 (15 inch only)” combined. Both brackets are available separately and are delivered as such. Both brackets contains several parts (as indicated).

  • Page 24: Rotary Bracket And Mounting Bracket (17-26 Inch) Combined Assembling

    General Installation Recommendations Rotary Bracket and Mounting Bracket (17-26 inch) combined assembling Illustration below shows “Mounting Bracket” and “Rotary Bracket JH MMDRO STD-A1 (17 to 26 inch)” combined. Both brackets are available separately and are delivered as such. Both brackets contains several parts (as indicated). The table below illustrates a complete mounting of these two and you have to disassemble the “Mounting Bracket”...

  • Page 25: Physical Connections

    Physical Connections Connection area of unit (illustration) USB I/O AC Power Ouput DVI-I IN Multifunction Conn. RGB OUT DC Power Input AC Power Input RGB IN Cable Tension To reduce tension of the cables you connect, secure them with a cable tie to the base mounted clamp or to the chassis hinges.
  • Page 26 Physical Connections DVI-I IN: Connect your DVI cable to the DVI-I 29P Connector (female). The DVI-I connector can function as regular RGB IN by using a DVI-I > RGB/VGA adapter. Secure the DVI cable to the hex spacers provided on the unit and make sure you do not bend any of the pins inside the connector.
  • Page 27 OSD menu and with special commands control the unit externally. An in-depth manual is available at http://www.hatteland-display.com/pdflink/inb100018-3.php. This COM can also be used to upgrade the firmware for the graphic controller inside the unit which is available on request and through service channels (for qualified personnell only).
  • Page 28 This page left intentionally blank...

  • Page 29: Operation

    Operation...

  • Page 30: User Controls

    User Controls USER CONTROLS OVERVIEW The units are available in two different factory user control configurations as illustrated below. Speaker/Buzzer Potmeter Keypad #1: Potmeter & buzzer (introduced Q4 2008) including keypad controls with its Status LED Ring. Brightness for the unit is adjusted by using the potmeter. The tactile keypad control provide access to the configuration menu and Direct Access / Hotkeys functionality.
  • Page 31 User Controls KEYPAD FUNCTIONALITY Up (+) button Power / Menu button Left / Hotkey button Right / Hotkey button Push Buttons +Direct Access / Hotkeys Status LED Ring Down (-) button MENU function as: Power On/Off & On Screen Display (OSD) menu access. LEFT (◄) function as: Direct Access / Hotkey, exit the current function and navigate to the previous OSD menu.

  • Page 32: Status Led Overview

    2: Alarm / Buzzer function can be activated through SCOM (Serial Remote Control) or via Multifunction Cable (RS-232) with applied 12VDC. 3: Please review http://www.hatteland-display.com/pdflink/inb100018-3.php (internet / own manual) and “Pin Assignments - Multifunction Cable Outputs” chapter in this manual for more information.

  • Page 33: Osd Menu Overview

    OSD Menu Overview OSD Menu Quick Start To understand the workflow of the OSD menu, follow these steps for a quick start. The table shows the various OSD overlays you might encounter while navigating, adjusting parameters or when text messages are displayed. The OSD menu always remembers its last position which is indicated by the red bar.

  • Page 34: Osd Functions Map

    OSD Menu Overview OSD Functions Map The OSD menu consists of main function groups with sub menu groups. On the following pages a complete map of the available functions is shown. The following section should be viewed in color. Please note that the red selection bar is not indicated in any of the following illustrations.
  • Page 35 OSD Menu Overview Main Group #1 - Picture In this group (with its sub groups) the user can adjust parameters that directly impact the picture visually for all incoming signal sources. Some of these Sub Groups have more options, please review this map to quickly determine the location of your desired function/option.
  • Page 36 OSD Menu Overview Main Group #2 - Setup In this group (with its sub groups) the user can adjust parameters that directly impact settings for the video controller software, OSD settings and gain access to settings that are physically accessible for the user. None of these settings will impact on the picture visually for the incoming signal sources.
  • Page 37 OSD Menu Overview Main Group #3 - Source In this group (with its sub groups) the user can change the signal input source and setup the Picture-In-Picture views or Picture-By- Picture views which both take advantage of the Maritime Multi Display functionality. Some of these Sub Groups have more options, please review this map to quickly determine the location of your desired function/option.

  • Page 38: Osd Menu Functions

    OSD Menu Functions OSD Menu Functions The following section covers all possible settings that the user can (in a certain mode) encounter or needs to adjust. The structure of these commands are identified as paths. Please review the “OSD Menu Overview Map”...
  • Page 39 OSD Menu Functions Display / Picture / Color This function only apply for analog Composite/S-VHS video signals when set as Main Source. Increase/decrease the overall video color saturation/color amount. Can be used if the incoming signal from older equipment or bad cables appear to have a lack of strong colors. Note that this function can also make noisy color signals appear crisper/clearer if adjusted to grayscales.
  • Page 40 OSD Menu Functions Display / Picture / PIP-PBP Adjustment / PIP Size To enable this function, please see [ Display / Source / xxx / xxx ] later in this section of the manual. Increase/decrease the Picture-In-Picture and Picture-By-Picture window sizes. These functions will allow any of the signal inputs to be placed as an real time window overlay (or side by side if using PBP) on top of the current Main Source signal enabling the main feature of the Maritime Multi Display functionality.
  • Page 41 OSD Menu Functions Display / Picture / PIP-PBP Adjustment / PIP Picture / Sharpness To enable this function, please see [ Display / Source / xxx / xxx ] later in this section of the manual. Increase/decrease the overall image sharpness. This will not change the sharpness of the Main Source signal behind the window overlay.
  • Page 42 OSD Menu Functions Display / Picture / Advanced Settings / Graphic Scaling / One to One Function only available in “Full” menu mode & when analog DVI/VGA/RGB signal are set as Main Source. Set the image scaling to 1:1. This means that the incoming signal is shown as is (with correct aspect ratio) and without any scaling to fit the display area.
  • Page 43 OSD Menu Functions Display / Picture / Advanced Settings / Horz Position Move the horizontal (left/right) position of the entire display area. This applies to the Main Source signal. Please note that this function can move information in the image outside the visible display area, so use caution when modifying this parameter.
  • Page 44 OSD Menu Functions Display / Picture / Picture Info / Main Source Please note that a valid input signal must be present for this function to work. This function will show the picture information as detected by the display controller such as Physical Port Input Name, Current Signal Resolution, H-Freq.
  • Page 45 OSD Menu Functions Display / Setup / OSD Settings / OSD Horz Position Move the horizontal (left/right) position of the OSD Menu overlay. The OSD Menu can only be moved within the max display area available. ● Level adjusts from 0-100 steps. 100 is default. Display / Setup / OSD Settings / OSD Vert Position Move the vertical (left/right) position of the OSD Menu overlay.
  • Page 46 OSD Menu Functions Display / Setup / OSD Settings / OSD Lock Mode / Normal - May be set as factory default Function only available in “Full” menu mode. Enables the user to enter OSD without any password protection. For Non-ECDIS Compliant usage. ●...
  • Page 47 COM port. More in-depth information and usage about the SCOM, please visit: http://www.hatteland-display.com/pdflink/inb100018-3.php ● When selected, a box icon ( ▀ ) will indicate that the selected function has been activated. Display / Setup / User Settings / Communication / 2-wire RS-485 - May be factory default.
  • Page 48 OSD Menu Functions Display / Setup / User Settings / Splash Screen Function only available in “Full” menu mode. Enable/disable the Splash Screen logo upon power on for the unit and while the display controller is initalizing. It will be gone as soon as the signal input appear on screen. This is by factory default shown as manufacturer’s brand logo.
  • Page 49 OSD Menu Functions Display / Setup / Load Default / Save User Default Function only available in “Full” menu mode. This function will create and save a own custom User Default based on what settings and parameters the user has edited in the OSD Menu. It will never save over the Factory Default, and it completely independent.
  • Page 50 OSD Menu Functions Display / Setup / Service Menu / Elapsed Time (hr) Function only available in “Full” menu mode. This function will show the current elapsed running time for the unit in hours. It is based on that the display has actually shown a valid image on screen during that time and not just how long the product has been powered on.
  • Page 51 OSD Menu Functions Display / Source / PBP / xxx This function will indicate what physical signal inputs is considered to be detectable by the OSD Menu, the display controller and what is visible in the window overlay (Picture-By-Picture). The amount of signal inputs available will depend on the physical Multifunction Cable you have connected to the unit.
  • Page 52 This page left intentionally blank...

  • Page 53: Specifications

    Specifications...

  • Page 54: Specifications - Jh 15T17 Mmd-Xxx-Axxx (Ccfl Version)

    Specifications - JH 15T17 MMD-xxx-Axxx (CCFL version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! Physical Considerations: TFT Technology: •...

  • Page 55: Specifications - Jh 15T17 Mmd-Xxx-Axxx (Led Version)

    Specifications - JH 15T17 MMD-xxx-Axxx (LED version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 56: Specifications - Jh 19T14 Mmd-Xxx-Sxxx (Ccfl, Slim Version)

    Specifications - JH 19T14 MMD-xxx-Sxxx (CCFL, Slim version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! Physical Considerations: TFT Technology: •...

  • Page 57: Specifications - Jh 19T14 Mmd-Xxx-Sxxx (Led, Slim Version)

    Specifications - JH 19T14 MMD-xxx-Sxxx (LED, Slim version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 58: Specifications - Jh 19T14 Mmd-Xxx-Axxx (Ccfl Version)

    Specifications - JH 19T14 MMD-xxx-Axxx (CCFL version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 59: Specifications - Jh 19T14 Mmd-Xxx-Axxx (Led Version)

    Specifications - JH 19T14 MMD-xxx-Axxx (LED version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 60: Specifications - Jh 20T17 Mmd-Xxx-Axxx (Ccfl Version)

    Specifications - JH 20T17 MMD-xxx-Axxx (CCFL version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 61: Specifications - Jh 22T11 Mmd-Xxx-Axxx (Ccfl Version)

    Specifications - JH 22T11 MMD-xxx-Axxx (CCFL version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 62: Specifications - Jh 23T14 Mmd-Xxx-Axxx (Led Version)

    Specifications - JH 23T14 MMD-xxx-Axxx (LED version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...

  • Page 63: Specifications - Jh 26T11 Mmd-Xxx-Axxx (Ccfl Version)

    Specifications - JH 26T11 MMD-xxx-Axxx (CCFL version) SPECIFICATIONS Note: All specifi cations are subject to change without prior notice! Please visit www.hatteland-display.com for the latest electronic version. All specifications are subject to change without prior notice! TFT Technology: Physical Considerations: •...
  • Page 64 This page left intentionally blank...

  • Page 65: Technical Drawings

    Technical Drawings...

  • Page 66: Technical Drawings - Jh 15T17 Mmd-Xxx-Axxx

    Technical Drawings - JH 15T17 MMD-xxx-Axxx IND100132-145...

  • Page 67: Technical Drawings - Jh 19T14 Mmd-Xxx-Sxxx

    Technical Drawings - JH 19T14 MMD-xxx-Sxxx Slim Frame/JH 17T02 replacement IND100132-194...

  • Page 68: Technical Drawings - Jh 19T14 Mmd-Xxx-Axxx

    Technical Drawings - JH 19T14 MMD-xxx-Axxx IND100132-144...

  • Page 69: Technical Drawings - Jh 20T17 Mmd-Xxx-Axxx

    Technical Drawings - JH 20T17 MMD-xxx-Axxx IND100132-146...

  • Page 70: Technical Drawings - Jh 22T11 Mmd-Xxx-Axxx

    Technical Drawings - JH 22T11 MMD-xxx-Axxx IND100132-175...

  • Page 71: Technical Drawings - Jh 23T14 Mmd-Xxx-Axxx

    Technical Drawings - JH 23T14 MMD-xxx-Axxx IND100132-179...

  • Page 72: Technical Drawings - Jh 26T11 Mmd-Xxx-Axxx

    Technical Drawings - JH 26T11 MMD-xxx-Axxx IND100132-201...

  • Page 73: Technical Drawings - Accessories

    Technical Drawings - Accessories...

  • Page 74: Sun Visor - 15

    Technical Drawings - Accessories Sun Visor - 15” IND100132-109...

  • Page 75: Sun Visor - 19" Slim Frame

    Technical Drawings - Accessories Sun Visor - 19” Slim Frame IND100132-202...

  • Page 76: Sun Visor - 19

    Technical Drawings - Accessories Sun Visor - 19” IND100132-67...

  • Page 77: Sun Visor - 20

    Technical Drawings - Accessories Sun Visor - 20” IND100132-111...

  • Page 78: Sun Visor - 22

    Technical Drawings - Accessories Sun Visor - 22” IND100132-184...

  • Page 79: Sun Visor - 23

    Technical Drawings - Accessories Sun Visor - 23” IND100132-112...

  • Page 80: Sun Visor - 26

    Technical Drawings - Accessories Sun Visor - 26” IND100132-205...

  • Page 81: Rotary Bracket - 15

    Technical Drawings - Accessories Rotary Bracket - 15” IND100132-148...

  • Page 82: Rotary Bracket - 17" To 26

    Technical Drawings - Accessories Rotary Bracket - 17” to 26” IND100132-46...

  • Page 83: Bracket - 15

    Technical Drawings - Accessories Bracket - 15” IND100132-167...

  • Page 84: Bracket - 17", 19", 20

    Technical Drawings - Accessories Bracket - 17”, 19”, 20” IND100132-69...

  • Page 85: Bracket - 19" Slim Frame

    Technical Drawings - Accessories JH 19TBR STD-B1 Drawings pending... Bracket - 19” Slim Frame IND100132-255...

  • Page 86: En60945 Bracket - 19

    Technical Drawings - Accessories EN60945 Bracket - 19” IND100132-165...

  • Page 87: En60945 Bracket - 19" Slim Frame

    Technical Drawings - Accessories JH 19BRD STD-B1 drawings pending... EN60945 Bracket - 19” Slim Frame IND100132-256...

  • Page 88: Bracket - 22

    Technical Drawings - Accessories Bracket - 22” IND100132-191...

  • Page 89: En60945 Bracket - 22

    Technical Drawings - Accessories EN60945 Bracket - 22” IND100132-177...

  • Page 90: Bracket - 23

    Technical Drawings - Accessories Bracket - 23” IND100132-129...

  • Page 91: En60945 Bracket - 23

    Technical Drawings - Accessories EN60945 Bracket - 23” IND100132-166...

  • Page 92: Bracket - 26

    Technical Drawings - Accessories Bracket - 26” IND100132-203...

  • Page 93: En60945 Bracket - 26

    Technical Drawings - Accessories EN60945 Bracket - 26” IND100132-248...

  • Page 94: Crt Adapter - 15" Tft To 17

    Technical Drawings - Accessories CRT Adapter - 15” TFT to 17” IND100132-137...

  • Page 95: Rack Adapter - 15" Tft To 19

    Technical Drawings - Accessories RACK Adapter - 15” TFT to 19” IND100132-43...

  • Page 96: 17" Tft To 19" Rack Adapter

    Technical Drawings - Accessories 17” TFT to 19” Rack Adapter IND100132-138...

  • Page 97: Crt Adapter - 19" Tft To 21

    Technical Drawings - Accessories CRT Adapter - 19” TFT to 21” IND100132-44...

  • Page 98: Crt Adapter - 19" Tft To 20" Tft

    Technical Drawings - Accessories CRT Adapter - 19” TFT to 20” TFT IND100132-254...

  • Page 99: Crt Adapter Custom - 19" Tft To 21

    Technical Drawings - Accessories CRT Adapter Custom - 19” TFT to 21” IND100132-187...

  • Page 100: Vesa Bracket - 15

    Technical Drawings - Accessories VESA Bracket - 15” IND100132-113...

  • Page 101: Vesa Bracket - 19" Slim Frame

    Technical Drawings - Accessories VESA Bracket - 19” Slim Frame IND100132-193...

  • Page 102: Vesa Bracket - 19

    Technical Drawings - Accessories VESA Bracket - 19” IND100132-45...

  • Page 103: Vesa Bracket - 20

    Technical Drawings - Accessories VESA Bracket - 20” IND100132-115...

  • Page 104: Vesa Bracket - 22

    Technical Drawings - Accessories VESA Bracket - 22” IND100132-176...

  • Page 105: Vesa Bracket - 23

    Technical Drawings - Accessories VESA Bracket - 23” IND100132-116...

  • Page 106: Vesa Bracket - 26

    Technical Drawings - Accessories VESA Bracket - 26” IND100132-204...

  • Page 107: Water Cover - 15

    Technical Drawings - Accessories Water Cover - 15” IND100132-117...

  • Page 108: Water Cover - 19" Slim Frame

    Technical Drawings - Accessories Water Cover - 19” Slim Frame IND100132-195...

  • Page 109: Water Cover - 19" (Hw01)

    Technical Drawings - Accessories Water Cover - 19” (HW01) IND100132-136...

  • Page 110: Water Cover - 20

    Technical Drawings - Accessories Water Cover - 20” IND100132-119...

  • Page 111: Water Cover - 22

    Technical Drawings - Accessories JH 22TWC STD-A1 drawings pending... Water Cover - 22” IND100132-257...

  • Page 112: Water Cover - 23

    Technical Drawings - Accessories Water Cover - 23” IND100132-120...

  • Page 113: Water Cover - 26

    Technical Drawings - Accessories JH 26TWC STD-A1 drawings pending... Water Cover - 26” IND100132-258...
  • Page 114 This page left intentionally blank...

  • Page 115: Appendixes

    Appendixes...

  • Page 116: Pin Assignments - Common Connectors

    Pin Assignments - Common Connectors Note: Not all connectors may be available on your specific product. This depends on the amount of additional hardware installed from factory, or customized solutions. These pin assignments are for the common connectors used. Connectors are seen from users Point Of View (POV). Pin Assignments - 24P DVI-I 1 2 3 4 5 6 7 8 C1 C2...

  • Page 117: Pin Assignments - Multifunction Cable Outputs

    Pin Assignments - Multifunction Cable Outputs Connectors that are commonly available on the Multifunction Cable or customized cable. Connectors are seen from users Point Of View (POV). Pin Assignments - 9P Serial COM RS232 4 3 2 1 9 8 7 6 Pin 01 - CTRL(+) Buzzer Control (+) (+12V input for driving the buzzer) Pin 02 - TX Transmit Data...

  • Page 118: Basic Trouble-Shooting

    Basic Trouble-shooting GENERAL ISSUES FOR TFT PANEL BASED PRODUCTS Note: Applies for a range of various products. This is only meant as a general guide. O PICTURE / LED BEHAVIOUR: If there is no light at all in the LED at the FRONT, check power cables. If the LED in front is green then check if the brightness is set/adjusted to max brightness.

  • Page 119: Declaration Of Conformity

    Declaration of Conformity We, manufacturer, Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway declare under our sole responsibility that the JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD, HM MMD, HT MMC, HD MMC and HT/HM (computers) product ranges is in conformity with the following standards in accordance with the EMC Directive.

  • Page 120: Return Of Goods Information

    Return of goods: (Applies not to warranty/normal service/repair of products) Hatteland Display referenced as “manufacturer” in this document. Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories received from our warehouse is returned.

  • Page 121: Terms

    Goods are considered delivered to customer when handed over to charterer. 8) FREIGHT / PACKING / FORWARDING FEE Hatteland Display charge NOK 50,- in forwarding fee for orders below NOK 1000,-. Freight charge according to expenses for orders above NOK 1000,-. VAT not included.
  • Page 122 Terms 12) CANCELLATION / RETURN Binding sales contract is concluded when we have confirmed customer’s purchase order. Any disagreements in our order confirmation must be reported to seller within 6 days. The agreement can not be altered without our permission, after acceptance from our supplier. If goods are wanted to be returned, a Return No must be assigned from seller. Returned goods without a Return No will not be accepted.

  • Page 123: Pixel Defect Policy

    TFT display. Neither the production at LCD-supplier nor the use of a LCD-Monitor after shipment can be influenced by Hatteland Display. Hence Hatteland Display cannot be made responsible for such dot failures.

  • Page 124: Notes

    Notes General Notes: - The unit is tested according to EN60945 (1997), 4.4, equipment category b) protected from the weather. - Use of brightness and push buttons may inhibit visibility of information at night. Appendix IND100077-71...

  • Page 125: Revision History

    1280x1024, 1360x768, 1024x768, 800x600, 640,480) (page 30,31,37,42,44) due to firmware Update V1.50.00 - Reference Engineering Change Notification: http://www.hatteland-display.com/mails/15_2010_ecn.html Added LRS Approval (pending) text where needed for specifications pages. 17 Jun 2010 Added info about signal quality and content for ”Display / Source / PBP / xxx” (page 45) Revised specifications for 27 inch (IP-66 is pending) (page 54) continued on next page..
  • Page 126 12 Nov 2012 Revised text and graphical layout as per. current Company Profile throughout the manual, page 1,8 and more. Removed JH 23T12 MMD pages, ref EOL: http://www.hatteland-display.com/mails/48_2008_eol.html Added upgraded 15 inch spec., ref ECN: http://www.hatteland-display.com/mails/31_2011_ecn.html, page 49 Added upgraded 19 inch spec., ref ECN: http://www.hatteland-display.com/mails/02_2012_ecn.html, page 51,53...
  • Page 127 Revision History Appendix IND100077-70...
  • Page 128 w ww .hat tel and-di s p l ay . com...

This manual is also suitable for:

Jh 19t14 mmd seriesJh 20t17 mmd seriesJh 22t11 mmd seriesJh 23t14 mmd seriesJh 26t11 mmd series

Table of Contents
