Hatteland JH 15T17 MMD series User Manual

Maritime multi display series 1
Hide thumbs Also See for JH 15T17 MMD series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
U S E R M A N U A L
Series 1 - Maritime Multi Display Models

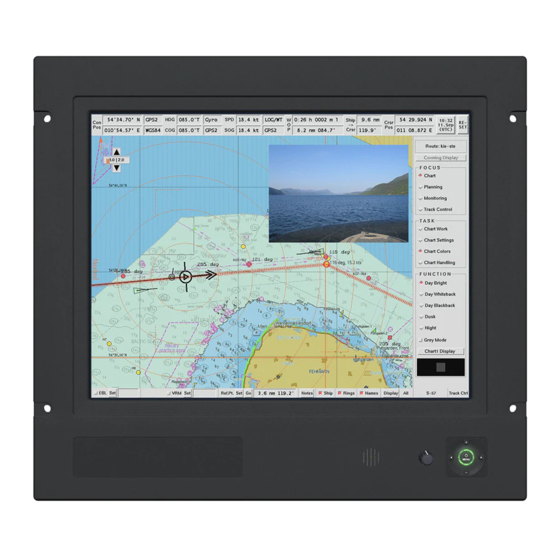

JH 15T17 MMD-xxx-Axxx - 15.0 inch Maritime Multi Display
JH 19T14 MMD-xxx-Axxx - 19.0 inch Maritime Multi Display
JH 20T17 MMD-xxx-Axxx - 20.1 inch Maritime Multi Display
JH 22T11 MMD-xxx-Axxx - 22.0 inch Maritime Multi Display
JH 23T12 MMD-xxx-Axxx - 23.1 inch Maritime Multi Display
JH 23T14 MMD-xxx-Axxx - 23.1 inch Maritime Multi Display LED
JH 27T11 MMD-xxx-Axxx - 27.0 inch Maritime Multi Display Widescreen
Please visit www.hatteland-display.com for the latest electronic version of this manual.
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 5276 3700 - info@hatteland-display.com - www.hatteland-display.com
User Manual MMD Series 1
Updated: 06 May 2010
Doc Id: INB10036-1 (Rev 15)
Created: 363
Approved: 362
