U S E R M A N U A L
Series 1 - Maritime Multi Display Models

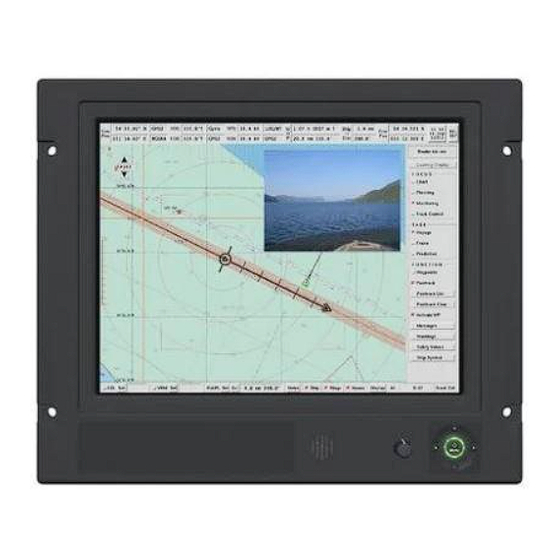

JH 15T17 MMD-xxx-Axxx - 15.0 inch Maritime Multi Display
JH 19T14 MMD-xxx-Sxxx - 19.0 inch Maritime Multi Display (Slim Frame)
JH 19T14 MMD-xxx-Axxx - 19.0 inch Maritime Multi Display
JH 20T17 MMD-xxx-Axxx - 20.1 inch Maritime Multi Display
JH 22T11 MMD-xxx-Axxx - 22.0 inch Maritime Multi Display Widescreen
JH 23T12 MMD-xxx-Axxx - 23.1 inch Maritime Multi Display (obsolete)
JH 23T14 MMD-xxx-Axxx - 23.1 inch Maritime Multi Display LED
JH 26T11 MMD-xxx-Axxx - 25.54 inch Maritime Multi Display Widescreen
JH 27T11 MMD-xxx-Axxx - 27.0 inch Maritime Multi Display Widescreen
Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com
Please visit www.hatteland-display.com for the latest electronic version of this manual.
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
User Manual MMD Series 1
Updated: 04 May 2012
Doc Id: INB10036-1 (Rev 21)
Created: 363
Approved: 6405
