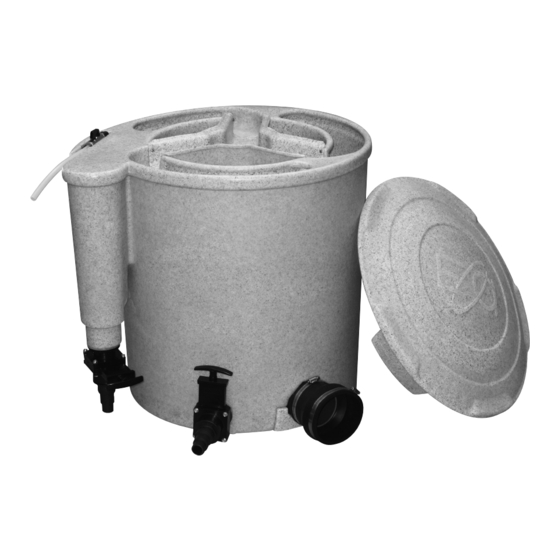

Evolution Aqua eazypod Installation & Operating Instructions Manual

Hide thumbs Also See for eazypod:

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
EPAIR11311131MAN
EazyPod Installation & Operating Instructions
Installation & Operating Instructions
Note: Please read this manual thoroughly before
installation and operation
Evolution Aqua Ltd
Evolution Aqua Ltd
The difference is clear at www.evolutionaqua.com
Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554
Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554

Advertisement

loading
Need help?

Need help?

Do you have a question about the eazypod and is the answer not in the manual?

Questions and answers

Related Manuals for Evolution Aqua eazypod

Summary of Contents for Evolution Aqua eazypod

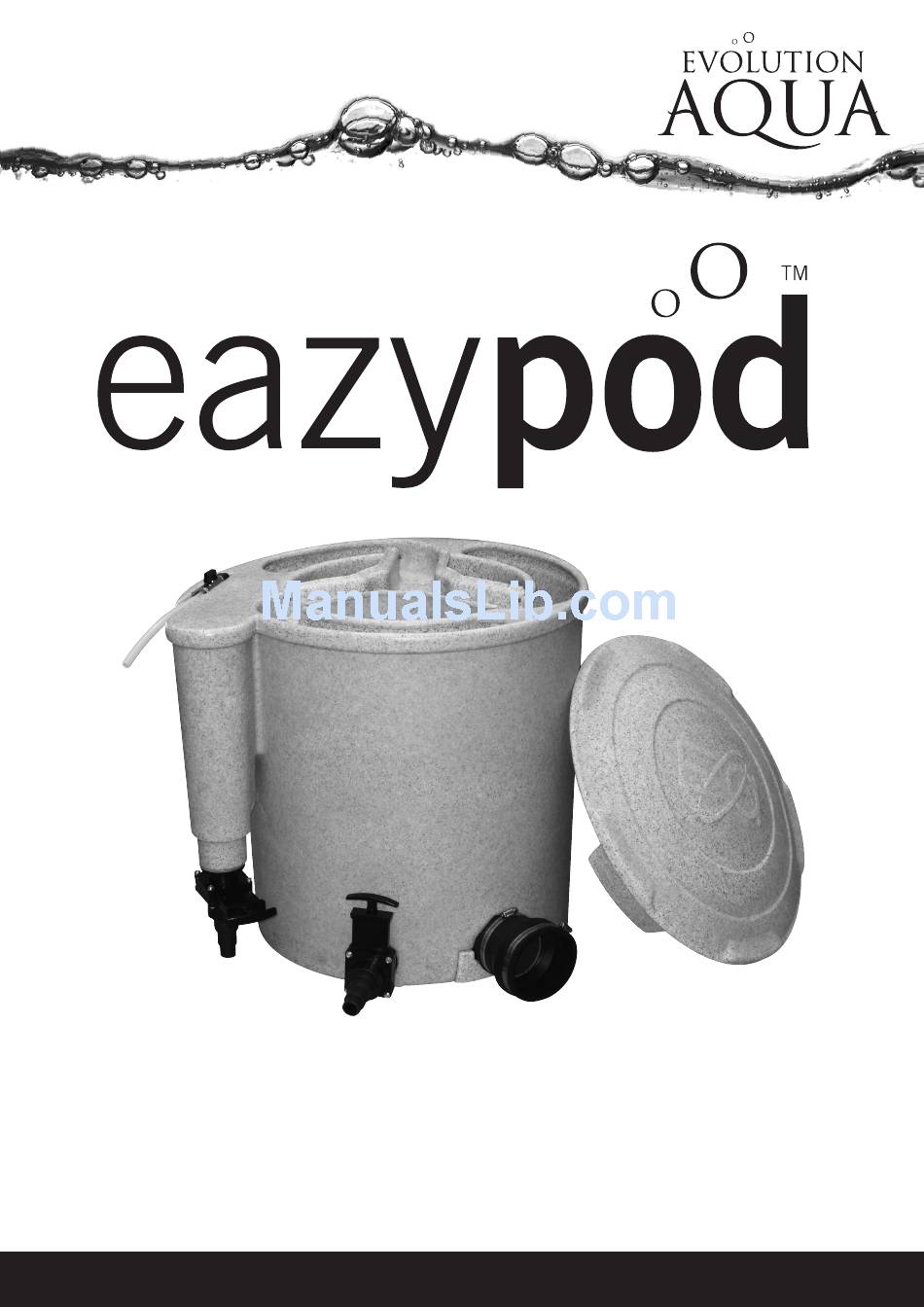

  • Page 1 EPAIR11311131MAN EazyPod Installation & Operating Instructions Installation & Operating Instructions Note: Please read this manual thoroughly before installation and operation Evolution Aqua Ltd Evolution Aqua Ltd The difference is clear at www.evolutionaqua.com Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554...
  • Page 2 K1. After passing through the K1 media, the clean water then rises and overflows into the inner return pipe D of the EazyPod. From here it returns to the pond via the return outlet E.
  • Page 3 This is the time that it takes for the total water volume of the pond to pass through the filter system once. On EazyPod ponds, where it is used as the only filtration system, a total pond volume turn over of every 1 to 2 hours is required.
  • Page 4 Installation - PLEASE NOTE: EazyPod comes set-up for a Pump Fed Installation. The EazyPod filtration system can be set up in two ways, pump or gravity fed. In fig. 2 you can see a typical set-up of a pump fed system, followed by a gravity fed system in fig. 3.

  • Page 5: Pump Fed Installation

    The return pipe should have an “appropriate fall” from the EazyPod to the pond. The pipe work from the pond pump to the inlet of the EazyPod will need to be connected to the 1.5 inch (50mm) slide valve G.
  • Page 6 NOTE: The pipe assembly is comprised of 1 long length and 1 short length joined by a 90 bend. 6. Refit the pipe assembly by pushing the shorter end back into the EazyPod, so that the long length is now the exit.

  • Page 7: Getting Started

    EazyPod. It is recommended that the air pump is positioned higher than the water level in the EazyPod to prevent water flowing back into the air pump when it is switched off. However, the air valve should be in the off position, and the air pump switched off or in use elsewhere when not in the cleaning mode.
  • Page 8 3 will be needed. When doing more than one cleaning cycle, there is no need to remove the cleaning pipe and switch the air pump off. Only after the final clean can you switch off the air pump, remove the cleaning pipe and run the EazyPod as normal. Overflow Assembly...
  • Page 9 When doing more than one cleaning cycle, there is no need to remove the cleaning pipe and switch the air pump off. Only after the final clean can you switch off the air pump, remove the cleaning pipe and run the EazyPod as normal.

  • Page 10: Troubleshooting

    K1 hasn’t returned to the pond. Please ensure that the EazyPod has gone through a minimum of 2 to 3 cleaning cycles. Too much maintenance, Make sure that you haven’t exceeded the maximum flow rate. Please ensure that the poor clarity, or Pod EazyPod has gone through a minimum of 2 to 3 cleaning cycles.
  • Page 11 EazyPod Installation & Operating Instructions EazyPod Dimensions 530mm 710mm The difference is clear at www.evolutionaqua.com...
  • Page 12 EazyPod Installation & Operating Instructions SET UP GUIDE FOR THE EAZYPOD WITH AIR PUMP Picture shows an EazyPod Complete set-up for pump-fed use. The difference is clear at www.evolutionaqua.com...
  • Page 13 Liability is limited to replacement of the defective parts. This guarantee is not transferable. It does not affect your statutory rights. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
  • Page 14 EAZYPOD AIR CHECKLIST CHECKED BY Is AirPump 70 in the box? Is there a sticker on the box to say it contains the Eazypod Air? Packed By: Date: IF ANY PARTS ARE MISSING, PLEASE CONTACT EVOLUTION AQUA ON 01942 216554 IMMEDIATELY.
