MANEP08082011
Installation & Operating Instructions
Note: Please read this manual thoroughly before
installation and operation
Evolution Aqua Ltd
Evolution Aqua Ltd
Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554
Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evolution Aqua eazypod
Summary of Contents for Evolution Aqua eazypod

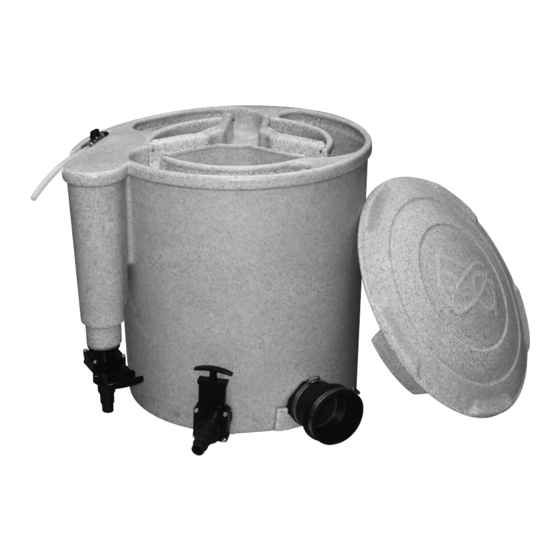

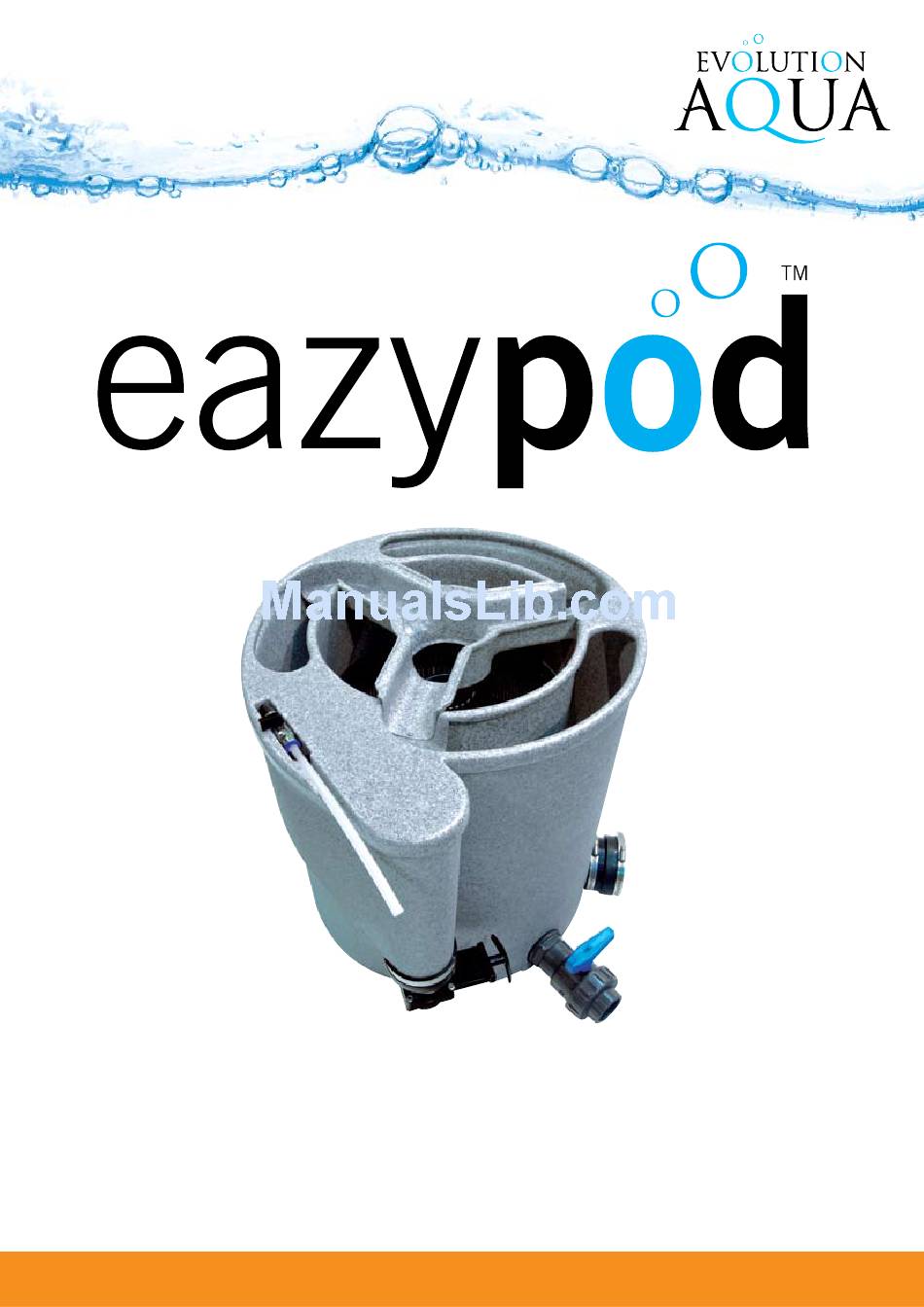

- Page 1 Installation & Operating Instructions Note: Please read this manual thoroughly before installation and operation Evolution Aqua Ltd Evolution Aqua Ltd Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554 Evolution House Kellet Close Wigan WN5 0LP England +44(0)1942 216554...
- Page 2 This design delivers optimum water quality by using Kaldnes K1 media. The concept of the EazyPod is based on the world renowned Nexus Eazy system - please visit our website for more information - www.evolutionaqua.com.
- Page 3 This is the time that it takes for the total water volume of the pond to pass through the filter system once. On EazyPod ponds, where it is used as the only filtration system, a total pond volume turn over of every 1 to 2 hours is required.
- Page 4 Installation - PLEASE NOTE: EazyPod comes set-up for a Pump Fed Installation. The EazyPod filtration system can be set up in two ways, pump or gravity fed. In fig. 5 you can see a typical set-up of a pump fed system, followed by a gravity fed system in fig. 6.
- Page 5 (subject to the maximum performance of your chosen pump). The gravity return pipe work from the exit point of the EazyPod to the pond needs to be a minimum of 3 inches (90mm), 4” (110m) for flowrates over 7500 litres per hour and should have no restrictions. Great care should be taken to ensure that no air locks are created within the gravity return pipe work.
- Page 6 NOTE: The pipe assembly is comprised of 1 long length and 1 short length joined by a 90 bend. 6. Refit the pipe assembly by pushing the shorter end back into the EazyPod, so that the long length is now the exit.
- Page 7 Air Pump Installation (Pump + Gravity Fed) Now that you have your EazyPod installed, you will need to connect your air pump to the EazyPod for the cleaning cycle. This will agitate the K1 so that the waste that has collected in the media can be removed from the system.
- Page 8 5. After the K1 has been aerated for a minimum of two Figure 17 minutes, open valve F and completely drain the EazyPod. 6. Once it is drained, close valve F. 7. Open your inlet slide valve G and turn on your circulation pump to refill the Pod.
- Page 9 EazyPod Installation & Operating Instructions Cleaning – Gravity Fed Procedure 1. Stop the circulation pump. 2. Wait a short period of time to allow the water levels within the Pod to stabilise. 3. Insert the cleaning pipe into the plastic return pipe D.
-
Page 10: Troubleshooting
EazyPod Installation & Operating Instructions Troubleshooting Problem Solution My K1 stays on the The K1 when brand new traps air and floats. When it has comes into surface of the water and contact with pond water containing ammonia, the surface of the media will not sink: changes. - Page 11 Any unauthorised repairs, modifications or alterations to this unit will invali- date the warranty. Evolution Aqua accepts no responsibility or liability due to accident, improper installation or mis- use. Liability is limited to replacement of the defective parts. This guarantee is not transferable. It does not affect your statuary rights.
