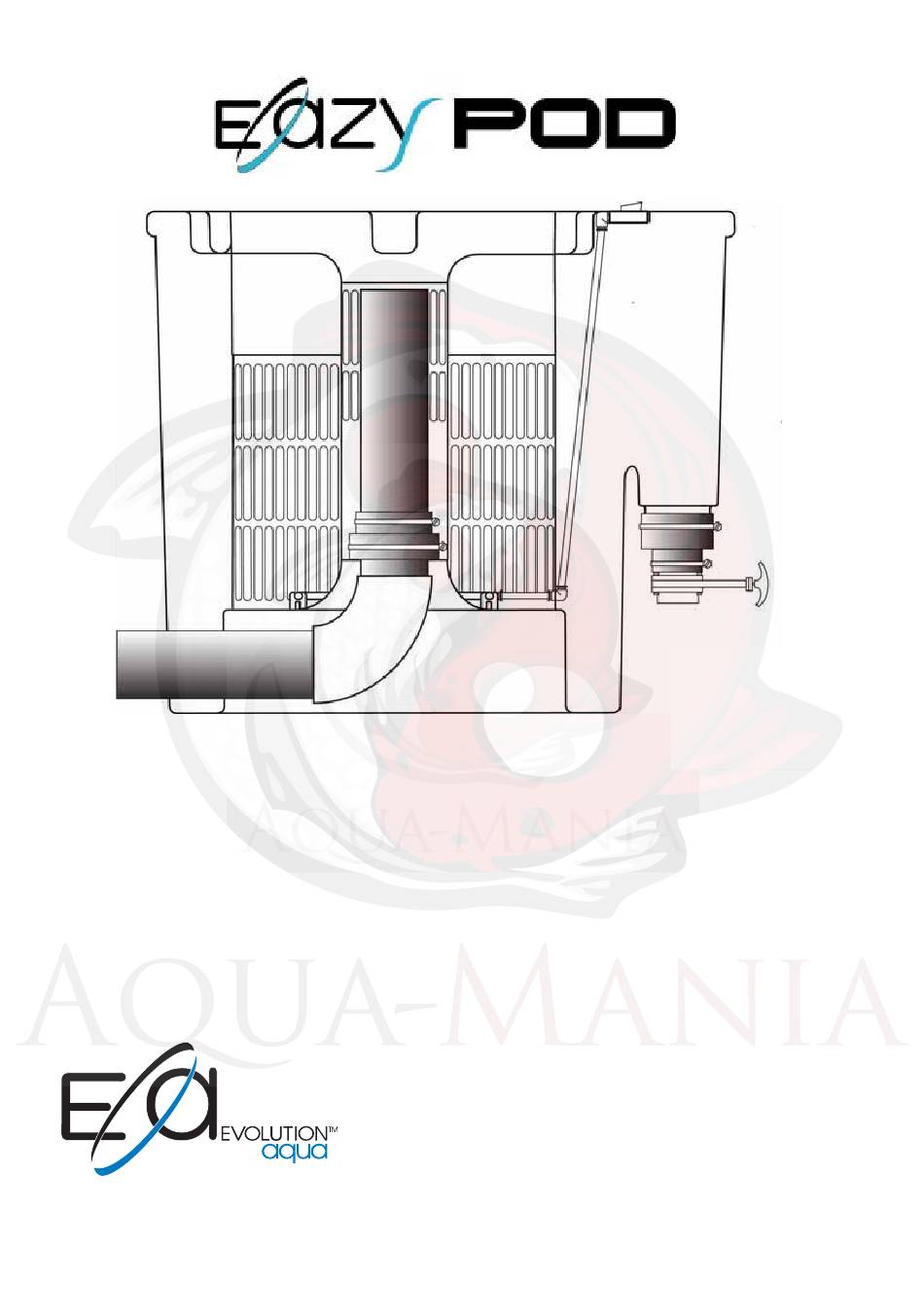

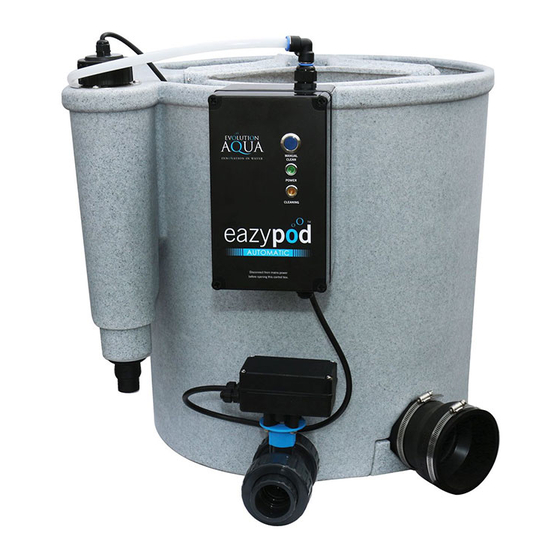

Installation & Operating
Instructions
Note: Please read this manual thoroughly before installation and
operation
Manufactured by Evolution Aqua Ltd.
Evolution House
Kellet Close
Wigan WN5 0LP
Tel: +44 (0) 1942 216554
Fax: +44 (0) 1942 216562
Web: www.evolutionaqua.com
E-mail: info@evolutionaqua.com
1
Aqua-Mania - www.aqua-mania.org - info@aqua-mania.org - +34 609934211
Advertisement
Table of Contents
Related Manuals for Evolution Aqua EAZY POD
Summary of Contents for Evolution Aqua EAZY POD
- Page 1 Patent Pending Made in England Installation & Operating Instructions Note: Please read this manual thoroughly before installation and operation Manufactured by Evolution Aqua Ltd. Evolution House Kellet Close Wigan WN5 0LP Tel: +44 (0) 1942 216554 Fax: +44 (0) 1942 216562 Web: www.evolutionaqua.com...
- Page 2 Page 2 Thank you for purchasing your new Eazy Pod™ filter. We are sure you will be delighted with its performance. If you are unsure about anything, please consult your Evolution Aqua dealer or contact us. The Eazy Pod filtration unit has been designed on the principles of high performance, minimum maintenance and a compact foot print.
- Page 3 This is the time that it takes for the total water volume of the pond to pass through the filter system once. On Eazy Pod ponds, where is used as the only filtration system, a total pond volume turn over of every 2 hours is found to be best. Therefore if you have a 10,000 litre koi pond, a flow rate of 5,000 litres per hour is ideal.
-
Page 4: Installation Section
Important: The Eazy Pod filter needs to be supported evenly on a level base (a paving flag is ideal). Failure to do so could cause damage when it is full of water. - Page 5 Page 5 Gravity Fed Installation Section IMPORTANT…For gravity fed installations, you will need to swap pipes D and E for eachother, (no cutting required) and change the configuration of the inlet, outlet fittings and valves. The return pipe D although crucial for a pump fed system would impede a gravity unit when slight fouling of debris occurs in the Pod.
-
Page 6: Getting Started
Page 6 The slide valve G is no longer necessary; however you could reposition it directly after your pump for maintenance use. Recommendations: It is important be able to isolate the Pod for maintenance purposes. Therefore we recommend that you install an isolating valve (4 inch / 90-115 mm slide or ball valve) on your inlet gravity line before the Pod. - Page 7 Page 7 Cleaning - Pump fed Procedure Fig. 19 Pump 1 Insert the cleaning pipe into the plastic return pipe D. This will prevent waste going back to the pond and maintain the water level in the Pod whilst cleaning it. Fig. 19 Pump 2 When the water level in chamber B is just level with the overflow assembly, close slide...
- Page 8 Page 8 Cleaning – Gravity Fed Procedure Fig. 19 Gravity 1 Stop the circulation pump. 2 Wait a short period of time to allow the water levels within the Pod to stabilise. 3 Insert the cleaning pipe into the plastic return pipe D.
-
Page 9: Troubleshooting
Page 9 Trouble shooting Problem Solution My K1 stays on the surface of the water The K1 when brand new traps air and and will not sink: floats. When it has come into contact with pond water, it gets a slimy coating which prevents air bubbles getting caught inside. - Page 10 Evolution Aqua accepts no responsibility or liability due to accident, improper installation or misuse. Liability is limited to replacement of the defective parts. This guarantee is not transferable. It does not affect your statuary rights.
