K1MICROBEAD011703171MAN
UK
English

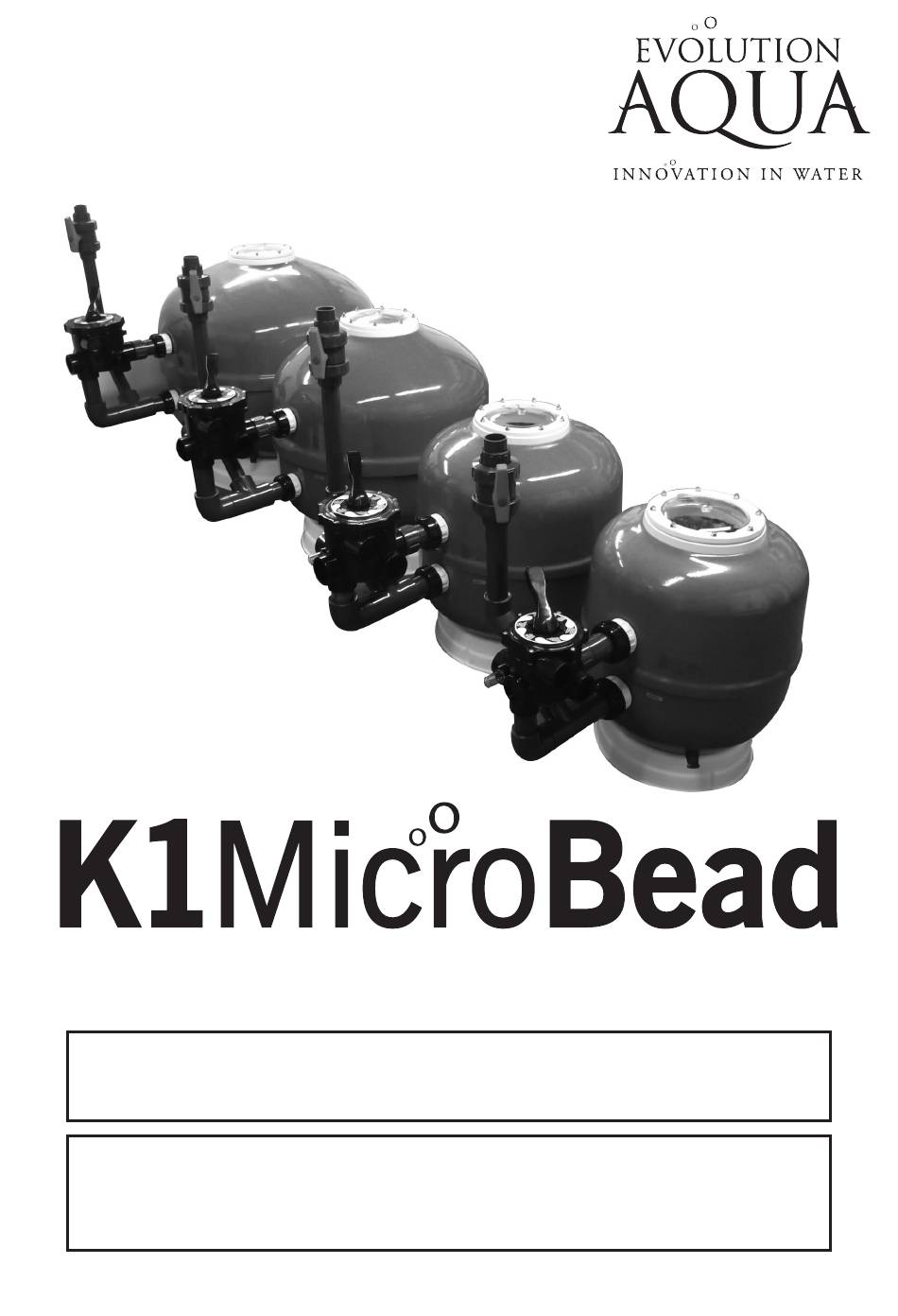

INSTALLATION AND INSTRUCTION MANUAL
PLEASE READ INSTALLATION INSTRUCTIONS
THOROUGHLY BEFORE INSTALLATION.
PLEASE NOTE: Do not operate the multi-port valve with
the circulating pump switched on. The ball valve on the air blower
line must be closed when the circulating pump is switched on.
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t +44 (0) 1942 216554 - f +44 (0) 1942 216562 - e info@evolutionaqua.com - w www.evolutionaqua.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1 MICRO BEAD 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evolution Aqua K1 MICRO BEAD 20

Summary of Contents for Evolution Aqua K1 MICRO BEAD 20

  • Page 1 Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - f +44 (0) 1942 216562 - e info@evolutionaqua.com - w www.evolutionaqua.com...

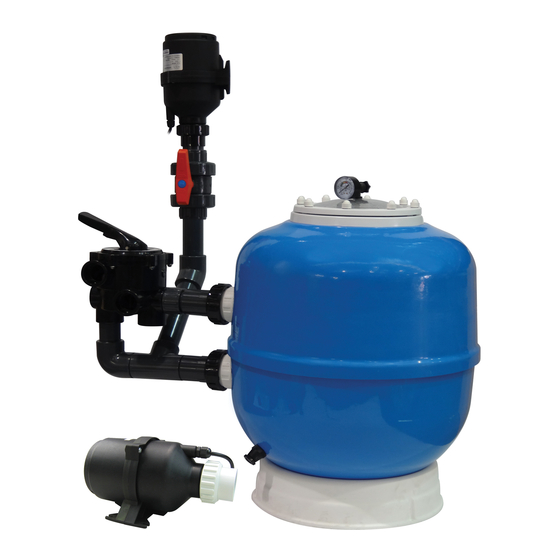

  • Page 2 INTRODUCING THE K1 MICRO BEAD FILTERS The K1 Micro Bead Filters are a range of pressurised systems that deliver incredible levels of filtration for ponds. By using the new K1 Micro filter media instead of conventional beads, these filters offer class-leading mechanical filtration along with unparalleled biological filtration.

  • Page 3: Table Of Contents

    CONTENTS K1 Micro Bead Filter parts list PAGE 4 Specifications PAGE 5 K1 Micro Bead Filter dimensions PAGE 6 MPV and Blower Pipework Fittings PAGE 7 How the K1 Micro Bead Filter works PAGE 8 The Multi-Port Valve PAGE 9 K1 Micro Bead Filter installations PAGE 10 K1 Micro Bead Filter set-up...

  • Page 4: K1 Micro Bead Filter Parts List

    K1 MICRO BEAD FILTER PARTS LIST Your K1 Micro Bead Filter comes complete with the following items: 1) K1 MICRO 2) MULTI-PORT VALVE + 3) AIR BLOWER BEAD FILTER BALL VALVE + 20” and 24” models (Including lid) FITTINGS supplied with 20”...

  • Page 5: Specifications

    The maximum working pressure of all K1 Micro Bead Filters is 2.5 Bar. AIR BLOWER SIZE K1 MICRO BEAD 20 FILTER (20”) = 200W Air Blower K1 MICRO BEAD 24 FILTER (24”) = 200W Air Blower K1 MICRO BEAD 30 FILTER (30”) = 300W Air Blower K1 MICRO BEAD 36 FILTER (36”) = 300W Air Blower...
  • Page 6 DIMENSIONS K1 MICRO BEAD 24 FILTER K1 MICRO BEAD 20 FILTER Ø610mm Ø610mm Ø500mm Ø610m Ø500mm Ø500mm Ø610mm Ø500mm 20” 20” 24” Figure 2a. 20” Figure 2b. 24” 20” 24” K1 MICRO BEAD 30 FILTER K1 MICRO BEAD 36 FILTER Ø964mm...

  • Page 7: Mpv And Blower Pipework Fittings

    MPV AND BLOWER PIPEWORK FITTINGS SUPPLIED WITH FIT BETWEEN 20” MODELS AIR BLOWER AND BALL VALVE Figure 4. TO SCREW INTO FIT TO MPV ON 20” MODELS ONLY TO REPLACE COLLAR INSERTS ON FILTER INLET AND OUTLETS SUPPLIED WITH FIT BETWEEN 24”, 30”...

  • Page 8: How The K1 Micro Bead Filter Works

    HOW THE K1 MICRO BEAD FILTER WORKS Water enters the filter from the pond into the multi-port valve (MPV) and is directed to the bottom of the unit. As the water is pumped through the K1 Micro Bead Filter, dirt, debris and waste are trapped by the K1 Micro and then the massive protected surface area housing the filter bacteria biologically breaks down the Ammonia and Nitrite into Nitrate.

  • Page 9: The Multi-Port Valve

    THE MULTI-PORT VALVE The K1 Micro Bead Filter is operated by a multi-port filter valve. This multi-port valve functions by pushing down on the handle, turning it and relocating it into one of the operating positions shown on the multi-port valve (see figure 7).

  • Page 10: K1 Micro Bead Filter Installations

    The K1 Micro Bead Filter can be installed as shown above if you are planning to use a pre-filter such as the Evolution Aqua Cetus Sieve. If you are not planning to use a pre-filter we highly recommend that you fit a strainer basket to the pump. This will prevent leaves, string algae etc.

  • Page 11: K1 Micro Bead Filter Set-Up

    K1 MICRO BEAD FILTER SET-UP We recommend following these instructions to install the K1 Micro Bead Filter. Remove the K1 Micro Bead Filter, the multi-port valve, air blower, pipe work, and fittings from the box, and familiarise yourself with the parts. (See page 4 and 7). FITTING THE INLET AND OUTLET THREADED COLLARS Discard the inserts supplied Instead use the inserts (A)
  • Page 12 K1 MICRO BEAD FILTER SET-UP FITTING THE MULTI-PORT VALVE PLEASE NOTE: We strongly recommend that you fit all pipework dry to check that you have fitted them correctly before permanently fixing them with solvent weld adhesive. ONLY ON 20” MODELS ON ALL MODELS The MPV assembly should Glue 6cm pipe (B) into the...
  • Page 13 K1 MICRO BEAD FILTER SET-UP FITTING THE BLOWER (DO NOT expose blower to rain fall or water ingress) Screw the insert and collar Glue the reducing pipe (B) The assembly should look onto the blower. HAND in place in the ball valve like this.
  • Page 14 K1 MICRO BEAD FILTER SET-UP REMOVING AND FITTING THE LID Carefully undo the M8 size Carefully lift the collar off Remove the clear plastic lid. nuts and washers holding the the threads. lid collar in place. With the lid off, familiarise For your size of filter, you Refit the clear plastic lid yourself with the internals of...
  • Page 15 K1 MICRO BEAD FILTER INSTALLATION INSTRUCTIONS We recommend following these instructions to install the K1 Micro Bead Filter. Remove the K1 Micro Bead Filter, the multi-port valve, air blower, pipe work, and fittings from the box, and familiarise youserlf with the parts. (See page 4 parts list). Set up the filter as shown on pages 11 to 14, ready for installation.

  • Page 16: K1 Micro Bead Filter Cleaning Instructions

    K1 MICRO BEAD FILTER CLEANING INSTRUCTIONS Do not operate the multi-port valve with the circulating pump switched on. The ball valve must be closed when the circulating pump is running. The function of rinsing and backwashing is to separate the deposited particles of waste from the filter media and to flush these particles to waste.

  • Page 17: Quick Cleaning / Backwash Instructions

    • Add PURE POND to the filter media inside the K1 Micro Bead Filter. • Feed your fish Evolution Aqua’s own food range which has been designed to create less fish waste. Ask your local EA dealer for advice.

  • Page 18: Winter Maintenance

    WINTER MAINTENANCE Shutting down for Winter If you live in an area, or have installed the K1 Micro Bead Filter in a position that will experience sub zero temperatures, you may decide to shut your filter down for the Winter. Here is a guide on how to do this: 1.

  • Page 19: Troubleshooting

    TROUBLE SHOOTING Dirty Water 1. Insufficient filtration time 2. Low flow 3. Dirty filter requires rinsing and backwashing 4. Pump has blocked. 5. Inlet line is blocked. 6. Pump is not primed. 7. Incorrect water chemistry. Check pH and other water readings. Check UV is working correctly (replace UV bulbs older than 6 - 12 months).

  • Page 20: Warranty

    Evolution Aqua Ltd. accepts no responsibility or liability for any consequential loss caused by or arising from the use of any Evolution Aqua products. Therefore, any dispute arising from the provisions of the warranty will be dealt with under the laws...
  • Page 21 ACTIVATE YOUR 1 YEAR EXTRA FREE WARRANTY COVER, COMPLETE THE FORM & POST IT TODAY, OR GO TO www.evolutionaqua.com AND COMPLETE ONLINE. WARRANTIES - EVOLUTION AQUA - KELLET CLOSE - WIGAN - LANCASHIRE - WN5 0LP - TEL: 01942 216554...

  • Page 22: Warranty Card

    Evolution Aqua for the purposes of performing our obligations under the warranty. Evolution Aqua Ltd. may contact you in the future with product updates or offers, which may be of interest to you. If you do not wish to receive this information please tick this box.
  • Page 23 NOTES...
  • Page 24 Evolution Aqua are the award winning pond filtration manufacturer who put innovation, research and development at the top of their agenda. With a proven track record for delivering the latest technology to the aquatics and fish farming markets - we are the first choice for everyone from the general hobbyist to the serious fishkeeper.

This manual is also suitable for:

K1 micro bead 30K1 micro bead 24K1 micro bead 36
