INSTALLATION AND INSTRUCTION MANUAL
IMPORTANT PLEASE READ:
Please read this instruction manual carefully before
installing your EazyPod
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t +44 (0) 1942 216554 - f +44 (0) 1942 418 489 - e info@evolutionaqua.com - w www.evolutionaqua.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eazypod and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evolution Aqua Eazypod

Summary of Contents for Evolution Aqua Eazypod

  • Page 1 EazyPod Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - f +44 (0) 1942 418 489 - e info@evolutionaqua.com - w www.evolutionaqua.com...

  • Page 3: Table Of Contents

    How the EazyPod works PAGE 06 Specifications and flow rates PAGE 07 Installation considerations PAGE 08 Setting up the EazyPod for PUMP-FED installs PAGE 09 Setting up the EazyPod for GRAVITY-FED installs PAGE 13 Air Pump installation PAGE 18 Operating the EazyPod...

  • Page 4: Parts List

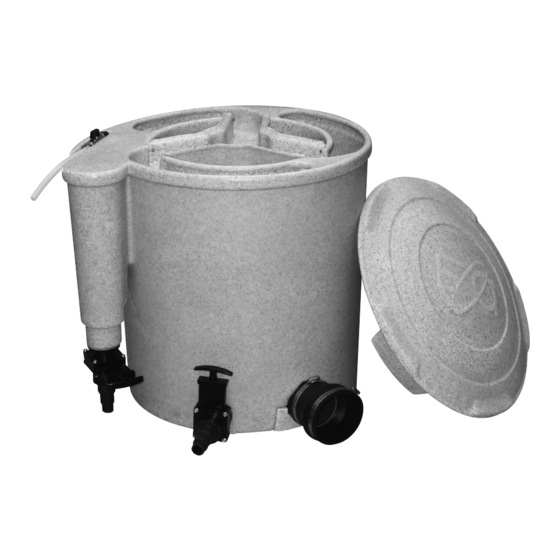

    EAZYPOD PARTS Your EazyPod / EazyPod Air comes complete with the following items: EAZYPOD AND LID 2 x 1½” HOSETAIL AND O-RING (For inlet and for waste slide valve) 4 TO 3 INCH EAZYCONNECTOR K1 MICRO FILTER MEDIA (For outlet)

  • Page 5: Dimensions

    DIMENSIONS 530mm 710mm...

  • Page 6: How The Eazypod Works

    The K1 Micro is cleaned and moved by connecting an air pump to the air line in the EazyPod, which in turn goes to an air ring in the base of chamber C.

  • Page 7: Specifications And Flow Rates

    This is the time that it takes for the total water volume of the pond to pass through the filter system once. On EazyPod ponds, where it is used as the only filtration system, a total pond volume turn over of every 1 to 2 hours is required.

  • Page 8: Installation Considerations

    GRAVITY FED SET-UP If you require a set-up where the pond has a bottom drain supplying water to the EazyPod and a pump returns water back to the pond, you will be installing the filter on a GRAVITY-FED SET-UP. Follow the instructions on pages 13 to 17 for the gravity-fed installation and cleaning instructions.
  • Page 9 PUMP-FED SET-UP AND INSTALLATION INSTRUCTIONS...

  • Page 10: Setting Up The Eazypod For Pump-Fed Installs

    SETTING UP THE EAZYPOD FOR PUMP-FED INSTALLS To set up your EazyPod ready for use, follow these simple steps: FIT THE INLET HOSETAIL STEP 1: Fit O-Ring on the STEP 2: Screw the hosetail STEP 3: Ensure the hosetail is hosetail thread of the inlet into the inlet thread.
  • Page 11 600mm, to allow easy access to your valves and for maintenance purposes. The EazyPod filter needs to be supported evenly on a level base (a paving flag is ideal). Failure to do so could cause damage when it is full of water.
  • Page 12 The return pipe should have an “appropriate fall” from the EazyPod to the pond. The pipework from the pond pump to the inlet of the EazyPod will need to be connected to the 1.5 inch (50mm) inlet hosetail (K). The 4 inch / 90-115 mm (minimum) gravity return pipework will need to be connected to the rubber adaptor (I) on the outlet point of the EazyPod.
  • Page 13 GRAVITY-FED INSTALLATION INSTRUCTIONS...

  • Page 14: Setting Up The Eazypod For Gravity-Fed Installs

    600mm x 600mm, to allow easy access to your valves and for maintenance purposes. The EazyPod filter needs to be supported evenly on a level base (a paving flag is ideal). Failure to do so could cause damage when it is full of water.
  • Page 15 EazyPod. 4. Tip: When connecting to your air pump, cut an inch from the airline supplied on the EazyPod. Insert this into the hosepipe that connects to the air pump. This will help maintain the hosepipe’s rigidity when inserting it into the rubber connector and clip supplied with your air pump.
  • Page 16 SETTING UP THE EAZYPOD ON GRAVITY-FED INSTALLS IMPORTANT…For gravity fed installations, you will need to reverse the exit pipe so that the return pipe is lower. This is because the exit pipe although crucial for a pump-fed system would impede a gravity unit when the media starts to filter out the debris altering the water level.
  • Page 17 This can only be removed by carefully sawing the inlet section at the measurements shown below. You may need to tap on the top of the EazyPod inlet to dislodge the black pipe. This black pipe must be kept safe as it will become your cleaning pip.

  • Page 18: Air Pump Installation

    Air Pump Installation (Pump + Gravity Fed) Now that you have your EazyPod installed, you will need to connect your air pump to the EazyPod for the cleaning cycle. This will agitate the K1 Micro so that the waste which has collected in the media can be removed from the system.

  • Page 19: Operating The Eazypod

    B has lowered by 4 inches / 100mm. System running and maintenance To achieve optimum water quality and clarity we recommend that the EazyPod be air backwashed and purged on a regular basis. The frequency of cleaning will depend on the loading of the pond.

  • Page 20: Cleaning A Pump-Fed Eazypod

    6. Turn on your circulation pump to refill the EazyPod. 7. If you want to clean the EazyPod for a second time, repeat steps 1 to 6. PLEASE NOTE 2 cleaning cycles will normally be needed to completely clean the K1 Micro.

  • Page 21: Cleaning A Gravity-Fed Eazypod

    Close the slide valve G which you have fitted after your circulating pump. Turn on your air pump and open the air valve on the EazyPod. In a few seconds the K1 Micro media will start to ‘agitate’ and circulate, thereby self cleaning.

  • Page 22: Troubleshooting

    The air pump is either not powerful enough or there isn’t enough water move well during the in the EazyPod. Check all air fittings and line for leaks. Make sure you cleaning cycle haven’t inadvertently added more K1 Micro than the 18 Litres.

  • Page 23: Warranty

    Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
  • Page 24 Evolution Aqua for the purposes of performing our obligations under the warranty. Evolution Aqua Ltd. may contact you in the future with product updates or offers, which may be of interest to you. If you do not wish to receive this information please tick this box.
  • Page 25 Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
  • Page 26 EAZYPOD AIR CHECKLIST CHECKED BY Is AirPump 70 in the box? Is there a sticker on the box to say it contains the Eazypod Air? Packed By: Date: IF ANY PARTS ARE MISSING, PLEASE CONTACT EVOLUTION AQUA ON 01942 216554 IMMEDIATELY.
