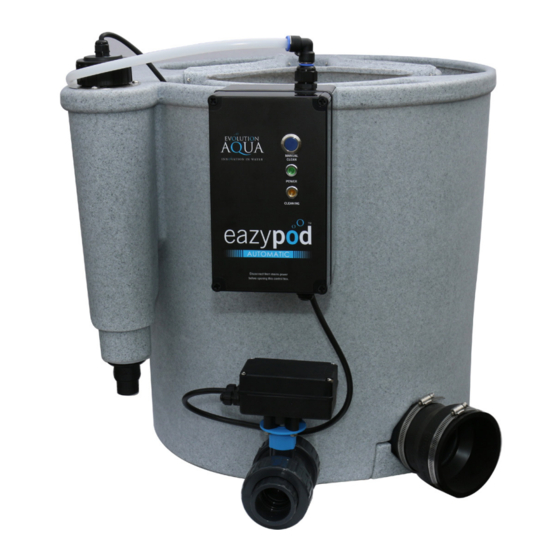

Evolution Aqua EAZYPOD AUTOMATIC Installation And Instruction Manual

Hide thumbs Also See for EAZYPOD AUTOMATIC:

Instruction manual (8 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the EAZYPOD AUTOMATIC and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolution Aqua EAZYPOD AUTOMATIC

Page 1 Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - f +44 (0) 1942 418 489 - e info@evolutionaqua.com - w www.evolutionaqua.com...
Page 2: Important Safety Information
- Never look directly at an illuminated UV bulb. - Do not run this unit dry. - Please ensure that the EazyPod Automatic is full of water before switching it on. - Always isolate the unit from mains electricity and turn off any water supply before carrying out any maintenance.
Page 3: Table Of Contents
EazyPod Automatic. CONTENTS Parts list PAGE 04 Dimensions PAGE 05 How the EazyPod Automatic Works PAGE 06 Components PAGE 07 Setting up the EazyPod Automatic PAGE 08 Specification and flow rates...
Page 4: Parts List
EAZYPOD AUTOMATIC PARTS Your EazyPod Automatic / EazyPod UV Automatic comes complete with the following items: 1½” AUTOMATED WASTE VALVE 1½” HOSETAIL AND ADAPTOR (Factory fitted to EazyPod) FOR AUTOMATED WASTE VALVE EAZYPOD LID K1 MICRO FILTER MEDIA 4 TO 3 INCH EAZYCONNECTOR...
Page 5: Dimensions
DIMENSIONS...
Page 6: How The Eazypod Automatic Works
1½ inch motorised ball valve (J). Your EazyPod Automatic will help to keep your pond clear of green water. As with any filter that works in combination with a UV, the effectiveness of the UV light will depend on stocking levels, sunlight / shade, daily sunshine amounts etc.
Page 7: Components
COMPONENTS Description Identity Letter Inlet Chamber B - Outer Chamber Chamber C - Inner Chamber Overflow Assembly Return Pipe Stainless Steel Perforated Pipe Air Ring Stainless Steel Perforated Screen Outlet: 4”-3” EazyConnector Automated Waste Valve Inlet: 1½” Non-Return Hosetail UV Clarifier Bulb Unit (18 W PL-L Bulb) * Automatic Control Box Pump Power Cable (NOT SUPPLIED) Mains Power Cable (NOT SUPPLIED)
Page 8: Setting Up The Eazypod Automatic
To set up your EazyPod Automatic ready for use, follow these simple steps: ADD K1 MICRO Your EazyPod Automatic is supplied with 18 litres of K1 Micro. Simply empty the entire bag into the inner chamber (C) of the EazyPod Automatic.
Page 9 SETTING UP THE EAZYPOD AUTOMATIC FIT THE EAZY CONNECTOR ON THE OUTLET PIPE Fit the 4”-3” EazyConnector onto the outlet pipe and tighten the jubilee clip with a flat head screwdriver. GLUE HOSETAIL / PIPE INTO AUTOMATIC WASTE VALVE You can connect your waste valve to flexible hose (minimum 1”) with the help of a glued hosetail and adaptor provided.
Page 10: Specification And Flow Rates
On ponds, where an EazyPod Automatic is used as the only filtration system, a total pond volume turn over of every 1 to 2 hours is required.
Page 11: Installation
600mm x 600mm, to allow easy access to your valves and for maintenance purposes. The EazyPod Automatic filter needs to be supported evenly on a level base (a paving flag is ideal). Failure to do so could cause damage when it is full of water.
Page 12 (subject to the maximum performance of your chosen pump). The gravity return pipe work from the exit point of the EazyPod Automatic to the pond needs to be a minimum of 3 inches (90mm), 4” (110m) for flow rates over 7,500 litres per hour and should have no restrictions.
Page 13: Connection To The Electricity Supply
The cores in the supply cable are coloured in accordance with the following code: Brown = Live. Blue = Neutral. Earth = Green/Yellow. Do not use the cable to lift the EazyPod Automatic as this may cause damage. WARNING - A Residual Current Device (RCD), also known as the Residual Current Circuit Breaker (RCCB), with a tripping current not exceeding 30mA must be installed in the supply circuit.
Page 14 GUIDANCE FOR ELECTRICAL CONNECTIONS We recommend that all electric work on your EazyPod Automatic be done by a suitably qualified electrician. ALWAYS DISCONNECT FROM MAINS BEFORE OPENING THE FRONT OF THE BOX. For the avoidance of doubt: GREEN/YELLOW = EARTH, BROWN = LIVE, BLUE - NEUTRAL 1.
Page 15 GUIDANCE FOR MAINS POWER CONNECTION We recommend that all electric work on your EazyPod Automatic be done by a suitably qualified electrician. ALWAYS DISCONNECT FROM MAINS BEFORE OPENING THE FRONT OF THE BOX. For the avoidance of doubt: GREEN/YELLOW = EARTH, BROWN = LIVE, BLUE - NEUTRAL 5.
Page 16 GUIDANCE FOR CIRCULATING PUMP POWER CONNECTIONS We recommend that all electric work on your EazyPod Automatic be done by a suitably qualified electrician. ALWAYS DISCONNECT FROM MAINS BEFORE OPENING THE FRONT OF THE BOX. For the avoidance of doubt: GREEN/YELLOW = EARTH, BROWN = LIVE, BLUE - NEUTRAL 1.
Page 17 GUIDANCE FOR ELECTRICAL CONNECTIONS We recommend that all electric work on your EazyPod Automatic be done by a suitably qualified electrician. ALWAYS DISCONNECT FROM MAINS BEFORE OPENING THE FRONT OF THE BOX. For the avoidance of doubt: GREEN/YELLOW = EARTH, BROWN = LIVE, BLUE - NEUTRAL 7.
Page 18: Cleaning With The Eazypod Automatic
CLEANING WITH THE EAZYPOD AUTOMATIC PLEASE NOTE: When you first power up the EazyPod Automatic, a cleaning cycle will commence. MANUAL CLEAN When you push the “MANUAL CLEAN” button a cleaning cycle will begin. Once initiated, we advise that you allow the cleaning cycle to run from start to finish. However, in unexpected circumstances by interrupting and restarting the power supply, the system will reset itself to a zero start condition for all functions (a power cut will have the same effect).
Page 19: The Cycle Timer Explained
SCREW B - This screw sets a fine division within the coarse scale. EXAMPLE - To enable the EazyPod Automatic to clean your EazyPod once every 3 days SCREW A points to 10 d (a coarse period of 10 days) and SCREW B points to 30 (30%).
Page 20: Setting The Cycle Timer
SETTING THE CYCLE TIMER If you do not want to have your EazyPod cleaned once every 3 days, as is factory set, you can alter the cleaning frequency to suit your needs. Simply turn SCREW A and SCREW B to point to the different digits using the sequences shown in the tables below: Use a pozi-drive screwdriver to turn the screw head, so the arrow on the dial points to the appropriate digit.
Page 21 SETTING THE CYCLE TIMER TO HAVE YOUR EAZYPOD CLEANED MORE THAN ONCE PER DAY USER’S CLEANING FREQUENCY SCREW A POINTS TO SCREW B POINTS TO 1 clean every day / 24 hours 100% 2 cleans every day / 24 hours 3 cleans every day / 24 hours 4 cleans every day / 24 hours TO HAVE YOUR EAZYPOD CLEANED BY DAY...
Page 22: Automatic Cleaning Operation
Cleaning is done on a timer, which is factory set at every 3 days, however, this is easily adjustable to fit in with your pond requirements. (See “SETTING THE TIMER on page 21”) The EazyPod Automatic will run a cleaning cycle which lasts approximately 6 and a half minutes.
Page 23: Cleaning Principles
10% of the volume of the water in the pond/aquarium should be changed on a weekly basis. With this in mind, we recommend that you set your EazyPod Automatic to run a cleaning cycle so as to exchange water in line with this.
Page 24: Cleaning The Uv Quartz Sleeve
CLEANING THE UV QUARTZ GLASS (EAZYPOD UV AUTOMATIC MODELS) ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLIES BEFORE CARRYING OUT MAINTENANCE ON THE UNIT. If you notice an increase in algae formation and/or see that limescale is forming, you will need to check that the UV bulb is working properly.
Page 25: Replacing The Uv Bulb
REPLACING THE UV BULB (EAZYPOD UV AUTOMATIC MODELS) ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLIES BEFORE CARRYING OUT MAINTENANCE ON THE UNIT. If you notice an increase in algae formation and/or see that limescale is forming, you will need to check that the UV bulb is working properly. To ensure peak efficiency, the UV bulb must be replaced every 8000 hours of operation.
Page 26: Troubleshooting
- Please be aware that every control box system is fully factory tested. EazyPod Automatic does not drain to waste LOCATION OF FUSES - Check that the 1½” ball valve on the EazyPod Automatic is in an open position. (You can check this by removing the union end from the waste valve) - Is cleaning cycle fully operational.
Page 27: Warranty
Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
Page 28 Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
Page 29 Evolution Aqua for the purposes of performing our obligations under the warranty. Evolution Aqua Ltd. may contact you in the future with product updates or offers, which may be of interest to you. If you do not wish to receive this information please tick this box.
Page 30 Evolution Aqua Ltd Evolution House Kellet Close Wigan Lancashire United Kingdom WN5 0LP t: +44 (0) 1942 216554 f: +44 (0) 1942 418489 e: info@evolutionaqua.com w: www.evolutionaqua.com...
