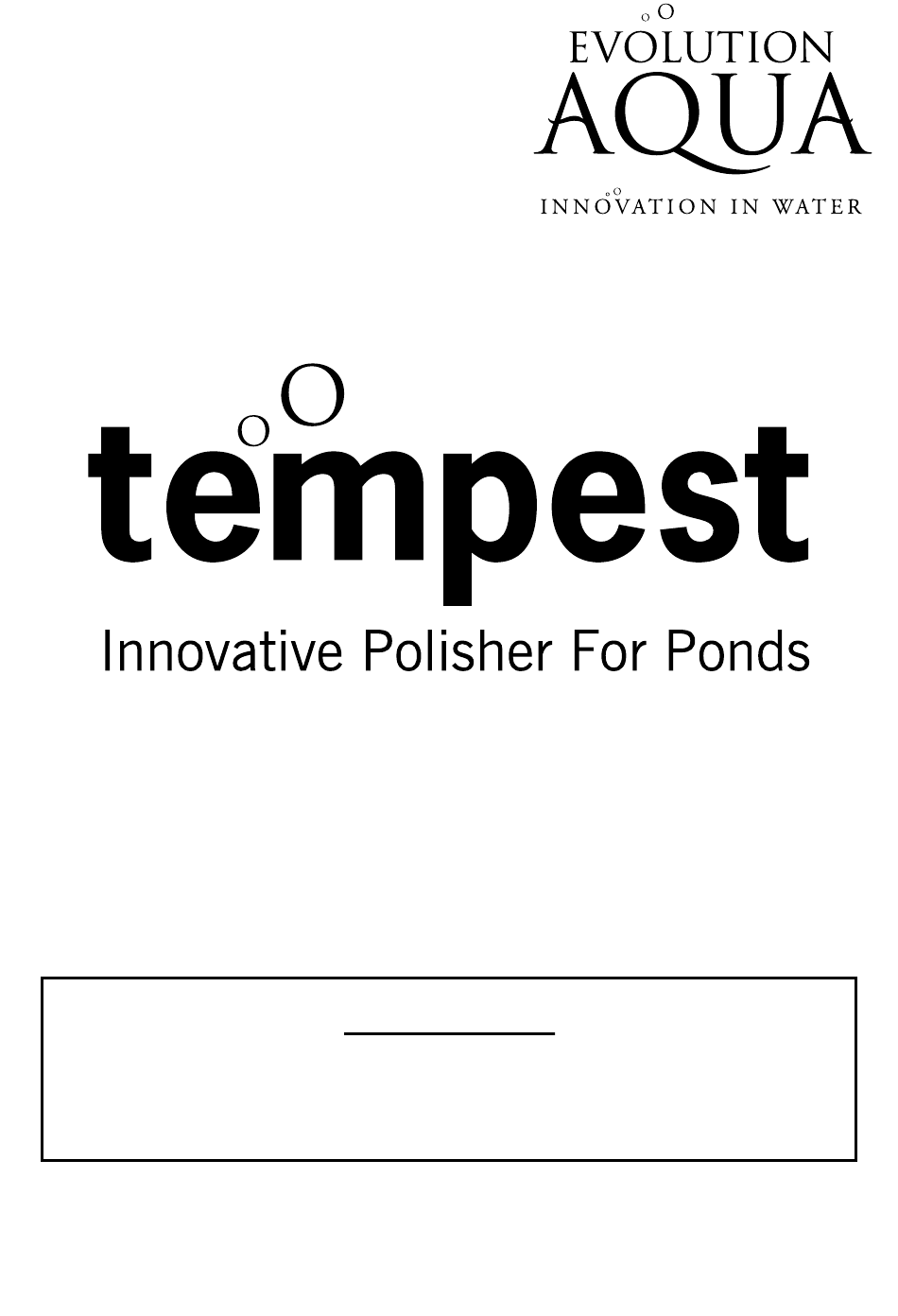

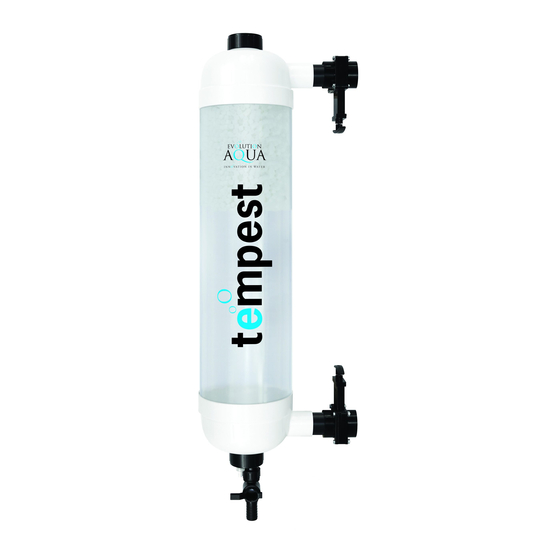

TEMP110032021MAN
UK/EU
English
INSTRUCTION MANUAL
IMPORTANT:
Ensure slide valves are fitted to inlet and outlet of all Tempest filters.
Read the instructions carefully before carrying out the installation.
Evolution Aqua Ltd. Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t +44 (0) 1942 216554 - e info@evolutionaqua.com - w www.evolutionaqua.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tempest and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Evolution Aqua Tempest

  • Page 1 Ensure slide valves are fitted to inlet and outlet of all Tempest filters. Read the instructions carefully before carrying out the installation. Evolution Aqua Ltd. Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - e info@evolutionaqua.com - w www.evolutionaqua.com...
  • Page 2 5,000 Litres / 1,100 Gallons / 1,320 US Gallons. The Tempest filter is easy to install and is simple and quick to clean, by way of a unique, patent pending air syphon design. During the cleaning process, air is drawn into the filter as it empties which causes the water to agitate, effectively cleaning the K+Media.
  • Page 3 As Evolution Aqua extrude the K+Media, minerals and enzymes are added to the raw material. The result of this process, unique to Evolution Aqua, is a filtration media that not only outperforms most of its competitors due to its large protected surface area, but also answers the problem of how to speed up the time taken to mature your filter.
  • Page 4 TEMPEST FILTER PARTS Tempest Filter filled with Waste Valve Assembly 7 litres of K+Media 1½" Slide Valve 100mm 1½" Connector Pipe Qty x 2 Qty x 2 YOU WILL ALSO REQUIRE: - Solvent Weld Adhesive (EA Code: S79-0-500) 1½" Pipe Clip Bracket...
  • Page 5 TEMPEST FILTER OVERVIEW 1½" Pipe Clip Bracket Cover Cap 1½" OUTLET 1½" K+Media 1½" Connector (Floats to Slide Valve Pipe top during (Outlet) operation) 1½" 1½" Slide Valve Connector (Inlet) Pipe 1½" INLET Air Inlet 1½" Pipe Clip Bracket Waste...
  • Page 6 WATER VOLUME IN FILTER 27 Litres / 5.9 Gallons / 7.1 US Gallons The Tempest filter can also be used on quarantine systems or as a standalone filter on smaller ponds up to 5,000 litres / 1,100 gallons / 1,320 US gallons.
  • Page 7 STEP 5: Take the second 100mm length of 1½" connector pipe and solvent weld it into the outlet of the Tempest filter. Push pipe into the outlet until it stops. STEP 6: Solvent weld the slide valve onto the opposite end of the 1½" connector pipe.
  • Page 8 TEMPEST FILTER SET-UP Follow these instructions to set-up your Tempest filter ready for installation. IMPORTANT: Ensure the supplied o-ring is fitted inside the waste valve assembly before screwing on to waste outlet (See step 2). PARTS NEEDED: You will need solvent weld adhesive and a brush for gluing.
  • Page 9 WAIT STEP 7: Allow the glue to set for atleast 5 hours. The Tempest is now set-up ready for installation. The slide valves fitted allow connection to 1½" pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½"...
  • Page 10 Tempest Filter. Installing ball valves on the pipe work will help you regulate the flow. The return from the Tempest can go back to the centre of your Nexus+ or back into the pond.
  • Page 11 Tempest Filter. Installing ball valves on the pipe work will help you regulate the flow. The return from the Tempest and the K1 Micro Bead go back to the pond. SLIDE...
  • Page 12 Install a Tempest Filter on a quarantine system, or a standalone pond up to 5,000 litres, at the side of a pond or above the pond. The slide valves on the Tempest Filter enable connection to 1½" pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½"...
  • Page 13 SKIMMER LINE INSTALLATION Install a Tempest Filter on a skimmer line. The slide valves on the Tempest Filter enable connection to 1½" pressure pipe. If installing the Tempest Filter using OPTIMUM flexible hose you will need to fit a reducing sleeve FLOW RATE: (EA Code: M35-050) and a 1½"...
  • Page 14 MODULAR TEMPEST FILTER INSTALLATIONS On larger systems that require a higher flow rate, multiple Tempest filters can be installed in a modular system. The slide valves on the Tempest Filter enable connection to 1½" pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½"...
  • Page 15 TEMPEST FILTER INSTALLATION The Tempest filter can ONLY be installed vertically with the waste air valve assembly at the bottom of the filter. You can choose to have the slide valves facing the left or right, depending on your set-up.
  • Page 16 TEMPEST FILTER INSTALLATION The Tempest filter can be mounted to a wall, wooden frame or timber post using the 1½" pipe clip brackets provided. IMPORTANT: The filter will weigh approximately 30kg when filled with water so ensure your fixing points can take the weight.
  • Page 17 Once happy the pipe clip brackets are secure, locate the Tempest filter into the clips and fit the pipe clip bracket cover. Your Tempest filter is ready to be connected up to your pipe work from your filter and back to your pond using 1½ pressure pipe work (not supplied).
  • Page 18 TEMPEST FILTER INSTALLATION Follow these instructions to set-up your Tempest filter ready for installation. IMPORTANT: The filter will weigh approximately 30kg when filled with water so ensure your fixing points can take the weight. IMPORTANT: Always plan out your installation prior to gluing any pipework or fittings.
  • Page 19 CLEANING THE TEMPEST FILTER The Tempest filter should be cleaned regularly as required. A cleaning process drops 25 litres of water to waste. IMPORTANT: The pump must be turned off and slide valves closed before opening the tap on the waste valve assembly.
  • Page 20 CLEANING THE TEMPEST FILTER 1. Switch pump off 2. Close all slide valves 3. Open waste valve tap Air enters the filter causing the filter media to move and clean as the water drains to waste. 4. Close waste valve tap 5.
  • Page 21 TROUBLESHOOTING Filter media not cleaning 1. Check the air valve is not blocked. 2. Check the slide valves are fully closed. 3. If the media is very dirty this may cause the pack to clump together. Multiple cleans should clear this. 4.
  • Page 22 Tempest filter. If the Tempest fails due to a manufacturing fault within this period it will be either repaired or replaced free of charge. Liability is limited to replacement of the faulty product only; no other costs will be reimbursed.
  • Page 23 The easiest way to register your warranty is to visit our website online at www.evolutionaqua.com/product-warranty If you prefer to post your warranty form, complete the details below and send it to: Evolution Aqua, Kellet Close, Wigan, Lancashire, WN5 0LP or scan and email it to marketing@evolutionaqua.com...
  • Page 24 AND FOLLOW US ON SOCIAL MEDIA For all the latest Evolution Aqua news sign up to our email newsletter to have the newest info delivered direct to your inbox. Keep up to date by following us on social media, join our Pond Owners Club on Facebook or check out our website for technical information and product advice at www.evolutionaqua.com.
