INSTALLATION AND INSTRUCTION MANUAL
IMPORTANT PLEASE READ:
We recommend that all electrical work on your Nexus Automatic
System be done by a suitably qualified electrician.
PRIOR TO INSTALLATION - MANUALLY CLEAN YOUR FILTER
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t +44 (0) 1942 216554 - f +44 (0) 1942 418 489 - e info@evolutionaqua.com - w www.evolutionaqua.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evolution Aqua Nexus Series
Summary of Contents for Evolution Aqua Nexus Series
- Page 1 PRIOR TO INSTALLATION - MANUALLY CLEAN YOUR FILTER Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - f +44 (0) 1942 418 489 - e info@evolutionaqua.com - w www.evolutionaqua.com...
- Page 2 WARNING: PLEASE READ THE FOLLOWING SAFETY INFORMATION FIRST. IMPORTANT SAFETY INFORMATION - All electrical work should be carried out by a suitably qualified electrician. - Always isolate the unit from mains electricity before carrying out any maintenance. - Always disconnect all pond appliances from the mains supply before putting your hands into the water.
-
Page 3: Table Of Contents

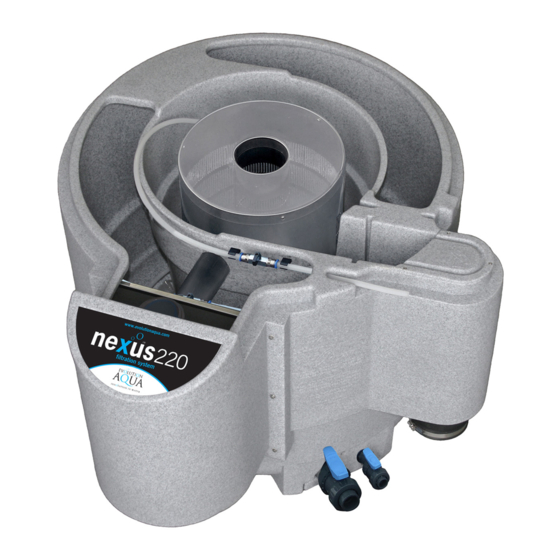

INTRODUCING THE NEXUS AUTOMATIC SYSTEM Thank you for purchasing an Evolution Aqua Nexus Automatic System. Continuing our long standing reputation for innovation, the Nexus Automatic System now enables Nexus owners to benefit from a fully automated cleaning cycle on their multi award winning Nexus filtration systems. -
Page 4: Parts List
NEXUS AUTOMATIC SYSTEM PARTS LIST Your Nexus Automatic System comes complete with the following items: (GRAVITY FED MODELS ONLY) (PUMP FED MODELS ONLY) EA CODE: K25-50-100 1) Inlet valve assembly + seal (not fitted) 2) Non-return valve (Only supplied for GRAVITY FED installs, (Only supplied for PUMP FED installs, not supplied with Pump Fed models) not supplied with Gravity Fed models) - Page 5 NEXUS AUTOMATIC SYSTEM PARTS LIST Your Nexus Automatic System comes complete with the following items: 500mm of 12mm air line 6) Fixing kit (Located inside the cardboard box divider) - Qty x 1 - Control box mount bracket - A - Qty x 5 - Fixing screw inserts - B - (Qty x 2 if PUMP FED Model) - Qty x 5 - Pan head hex socket screws - C - (Qty x 2 if PUMP FED Model) - Qty x 2 - Pan head self tap box / mount screws (10mm) - D...
-
Page 6: Installation Diagrams
NEXUS GRAVITY FED AUTOMATIC SYSTEM INSTALLATION Illustration below shows the recommended installation of a Nexus Automatic System on a GRAVITY FED Nexus 300, 310 or 320 and Nexus 200, 210 or 220 manufactured after 2006: Air valve control box Inlet valve assembly 500mm of 12mm air line Control box mount bracket... - Page 7 NEXUS PUMP FED AUTOMATIC SYSTEM INSTALLATION Illustration below shows the recommended installation of a Nexus Automatic System on a PUMP FED Nexus 300, 310 or 320 and Nexus 200, 210 or 220 manufactured after 2006: NOTE: Inlet valve assembly Air valve control box is not needed 500mm of...
-
Page 8: Advice Prior To Installation
PREPARING YOUR NEXUS PRIOR TO INSTALLING THE NEXUS AUTOMATIC SYSTEM FOR NEXUS FILTERS ALREADY IN USE: 1. Carry out a normal cleaning cycle on your Nexus If you have an existing Nexus filter system, currently in use, clean it as you would do normally as part of your maintenance routine prior to installing the Nexus Automatic System. - Page 9 INSTALLING THE NEXUS AUTOMATIC SYSTEM Some component parts are pre-wired together. Do not hold any of the component parts by the wires alone. It is advisable for two people to carry out the installation.
-
Page 10: Installing The Inlet Valve Assembly
FITTING THE NEXUS INLET VALVE ASSEMBLY (GRAVITY FED) GRAVITY FED The inlet valve assembly is only needed on Nexus 200, 210, 220 and Nexus 300, 310 and 320 models manufactured after 2006. Wires should face the control box. View from Nexus name inside plate on this... - Page 11 View from Nexus name inside plate on this Seal the Eazy. side of Nexus. 5. Using the 5mm allen key, screw the 3 fixing 6. Ensure all edges of the inlet valve assembly are inserts into the holes you have drilled in the completely dry.
-
Page 12: Fitting The Control Box
FITTING THE CONTROL BOX ONTO THE NEXUS We suggest that you familiarise yourself with the inside of the control box prior to installation. See pages 23 to 27 for more information. Inlet valve only installed on Gravity Fed set-ups. 1. The Nexus Automatic Control Box should be 2. - Page 13 5. Screw 2 fixing inserts into the holes you have 6. Fix the control box onto the Nexus using the pan just drilled using the 5mm allen key. Tighten head hex socket screws and the 3mm allen key. inserts until flush with the surface.
-
Page 14: Fitting The Air Valve Control Box
INSTALLING THE AIR VALVE CONTROL BOX Inlet valve only installed on Gravity Fed set-ups. 500mm Air line 1. You are now going to install the air valve control 2. Remove the lid off the Air Valve Control Box by box onto the inlet cover on your Nexus. Position this unscrewing the 4 screws in each corner of the box box so the “Power”... - Page 15 500mm Air line 5. When all 4 pilot holes have been drilled, use the 6. Use the 4 screws and O-Rings you removed in 25mm screws and O-Rings, provided, to screw the Step 2 to tighten up the lid on the Air Valve Control box onto the Nexus.
-
Page 16: Connecting Air Lines
CONNECTING THE AIR LINE TO THE EAZY AND BIO-CHAMBER ON THE NEXUS 1. CONNECTING PRE-FITTED AIR LINE TO THE EAZY The piece of airline pre-connected to the Air Control Valve port labelled “Air to Eazy” needs to be inserted into the Air Valve on the centre chamber wall of the Nexus. This then connects to the air line that wraps around the Eazy and connect up to the 90°... - Page 17 CONNECTING THE AIR LINE TO THE EAZY AND BIO-CHAMBER ON THE NEXUS AIRLINE TO THE AIR PUMP (Not supplied) AIRLINE TO EAZY (Factory fitted) AIRLINE TO BIO-CHAMBER (Supplied in box) ** IMPORTANT: The air pump MUST be positioned above the water level on both GRAVITY-FED and PUMP-FED installations.
-
Page 18: Installing The Automated Waste Valve
INSTALLING THE AUTOMATED WASTE VALVE ONTO THE WASTE PIPEWORK Inlet valve only installed on Gravity Fed set-ups. 1. You are now going to install the automated waste 2. Before installation, ensure the waste valve on the valve on the waste return pipework from your Nexus. Nexus is in a closed position. - Page 19 100mm 5. From the lines you have marked, cut through the 6. Clean and dry the pipe thoroughly. Ensure the pipework using a saw. Clean and dry the remaining union nut is over pipe prior to gluing the insert pipe thoroughly. flange.
-
Page 20: Operation
OPERATION The Nexus Automatic System will control the cleaning cycle fully automatically. During the cleaning cycle, water is flushed to waste, this will mean that unless the water in your pond is topped up, the water level will go down. We recommend that an automatic top up system be added to your installation to allow for this. -
Page 21: Cleaning Principles
CLEANING PRINCIPLES The generally accepted practice is that when you keep ornamental fish, whether in a pond or in an aquarium, to keep the water fresh, 10% of the volume of the water in the pond/aquarium should be changed on a weekly basis. With this in mind, we recommend that you set your Nexus Automatic system to run a cleaning cycle so as to exchange water in line with this. -
Page 22: Installing Non-Return Valves
In certain circumstances, depending on your proposed set-up, a non-return valve should be fitted after the pump. This is to prevent water siphoning back from the pond when the waste valve is in an open position. Order a 1½” non-return valve from Evolution Aqua quoting part number: K25-50-100 NON-RETURN VALVE ON PUMP FED INSTALLATIONS In order to maintain the water level in the filter, the PUMP-FED installation requires the non-return valve provided to be fitted after the pump and before the filter. -
Page 23: Guidance For Electrical Connections
GUIDANCE FOR ELECTRICAL CONNECTIONS We recommend that all electric work on your Nexus Automatic System be done by a suitably qualified electrician. ALWAYS DISCONNECT FROM MAINS BEFORE OPENING THE FRONT OF THE BOX. For the avoidance of doubt: GREEN/YELLOW = EARTH, BROWN = LIVE, BLUE - NEUTRAL 1. -
Page 24: Cleaning With The Nexus Automatic System
CLEANING WITH THE NEXUS AUTOMATIC SYSTEM MANUAL CLEAN When you push the “MANUAL CLEAN” button a cleaning cycle will begin. Once initiated, we advise that you allow the cleaning cycle to run from start to finish. However, in unexpected circumstances by interrupting and restarting the power supply, the system will reset itself to a zero start condition for all functions i.e.;... -
Page 25: The Cycle Timer Explained
THE CYCLE TIMER EXPLAINED THE CYCLE TIMER EXPLAINED ONLY ADJUST SCREW A AND B ON THE FIRST CYCLE TIMER. NEVER ADJUST ANY OTHER TIMER SCREW. THE CYCLE TIMER IS FACTORY SET TO INITIATE A CLEANING CYCLE ONCE EVERY 3 DAYS This cleaning cycle is programmed by turning the top 2 red screws on the first timer block. -
Page 26: Setting The Cycle Timer
SETTING THE CYCLE TIMER If you do not want to have your Nexus cleaned once every 3 days, as is factory set, you can alter the cleaning frequency to suit your needs. Simply turn SCREW A and SCREW B to point to the different digits using the sequences shown in the tables below: Use a pozi-drive screwdriver to turn the screw head, so the arrow on the dial points to the appropriate digit. -
Page 27: Commissioning
COMMISSIONING THE NEXUS AUTOMATIC SYSTEM Once you have satisfied yourself that the component parts are installed correctly on your system, you can commission the unit ready for operation. FINAL CHECKS - Ensure your existing manual waste valve fitted on the Nexus filter is moved to an OPEN position - Ensure all gland nuts on the control boxes are tight - Check that the non-return valve is fitted in the correct location (where applicable) - Check that the circulating pump is connected the control box. -
Page 28: Troubleshooting
TROUBLESHOOTING There is no power to the control box - Check the wiring is correctly installed. Seek advice from a suitably qualified electrician if in doubt. - Check the mains connection to the control box. Seek advice from a suitably qualified electrician if in doubt. -
Page 29: Warranty
Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product. - Page 30 Any warranty claim must be accompanied by a valid, dated proof of purchase. Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this product.
- Page 31 Evolution Aqua for the purposes of performing our obligations under the warranty. Evolution Aqua Ltd. may contact you in the future with product updates or offers, which may be of interest to you. If you do not wish to receive this information please tick this box.
- Page 32 Evolution Aqua Ltd Evolution House Kellet Close Wigan Lancashire United Kingdom WN5 0LP t: +44 (0) 1942 216554 f: +44 (0) 1942 418489 e: info@evolutionaqua.com w: www.evolutionaqua.com...
