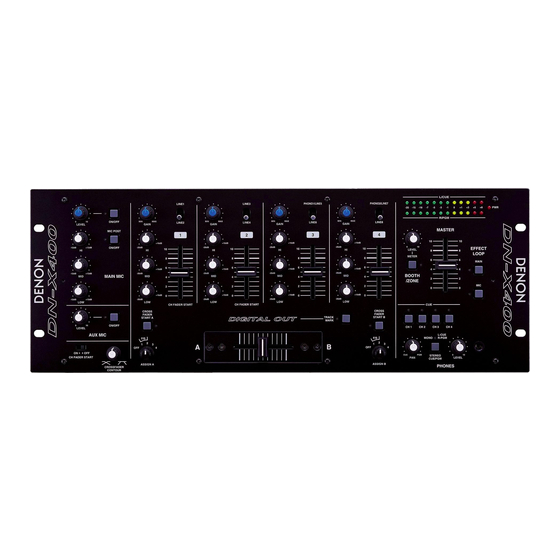

Denon DN-X400 Service Manual

Dj mixer

Hide thumbs Also See for DN-X400:

Operating instructions manual (10 pages)

Operating instructions manual (35 pages)

Service manual (38 pages)

Table of Contents

Quick Links

3 7 63 1515 0

MODEL

L 13942296513

SAFETY PRECAUTIONS ........................................ 2

SPECIFICATIONS ................................................... 2

DISASSEMBLY .................................................... 3~5

SERVICE MODE SPECIFICATIONS .................. 6~8

SEMICONDUCTORS ........................................ 9~13

PRINTED WIRING BOARD PATTERNS ......... 14~17

NOTE FOR PARTS LIST ....................................... 18

PARTS LIST OF P.W.B. UNIT ......................... 19~28

EXPLODED VIEW ................................................. 29

PARTS LIST OF EXPLODED VIEW ...................... 30

PACKING VIEW ..................................................... 31

PARTS LIST OF PACKING & ACCESSORIES ..... 31

BLOCK DIAGRAM ................................................. 32

LEVEL DIAGRAM .................................................. 33

www

Some illustrations using in this service manual are slightly different from the actual set.

http://www.xiaoyu163.com

SERVICE MANUAL

DN-X400

- TABLE OF CONTENTS -

u163

14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011 JAPAN

Telephone: 03 (3584) 8111

http://www.xiaoyu163.com

2 9

DJ MIXER

Q Q

6 7

1 3

1 5

WIRING DIAGRAM ................................................ 34

SCHEMATIC DIAGRAMS ................................ 35~38

(1/4) GU-3402-1 MAIN UNIT (1/2) ............................ 35

(2/4) GU-3402-1 MAIN UNIT (2/2) ............................ 36

GU-3402-2 POWER UNIT ................................ 36

GU-3402-3 PANEL 2 UNIT ............................... 36

GU-3402-4 LINE SELECTOR UNIT ................. 36

GU-3402-5 CROSS FADOR UNIT ................... 36

GU-3402-6 ZONE/EFFECT UNIT .................... 36

(3/4) GU-3403-1 PANEL 1 UNIT ............................... 37

GU-3403-3 DISPLAY UNIT .............................. 37

GU-3403-5 REGULATOR UNIT ....................... 37

(4/4) GU-3403-2 ANALOG I/O UNIT ......................... 38

GU-3403-4 H/P JACK UNIT ............................. 38

9 4

2 8

For U.S.A., Canada, Europe,

Oceania & Asia model

Hi-Fi Component

0 5

2 9

9 4

2 8

X0126 1134 NC 0109

9 9

Table of Contents

Need help?

Do you have a question about the DN-X400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Denon DN-X400

Page 1: Table Of Contents
3 7 63 1515 0 For U.S.A., Canada, Europe, Oceania & Asia model Hi-Fi Component SERVICE MANUAL DN-X400 MODEL DJ MIXER L 13942296513 — TABLE OF CONTENTS — SAFETY PRECAUTIONS ........2 WIRING DIAGRAM ..........34 SPECIFICATIONS ........... 2 SCHEMATIC DIAGRAMS ........
Page 2: Safety Precautions
DN-X400 3 7 63 1515 0 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
Page 3: Disassembly
DN-X400 3 7 63 1515 0 DISASSEMBLY (Follow the procedure below in reverse order when reassembling) Front Panel Unit 1. Remove 6 screws and pull up Front Panel Unit. 2. Disconnect FFC cable and Connector. 3. Detach Front Panel Unit.
Page 4 DN-X400 3 7 63 1515 0 Front Panel 1. Remove 8 screws 2. Pull out the knobs and pull up Front Panel. 35 37 38 Front Panel L 13942296513 Front Cover Unit 1. Remove 5 screws and pull up Front Cover Unit.
Page 5 DN-X400 3 7 63 1515 0 Rear Panel Unit 1. Remove 8 screws and pull up Rear Panel Unit. 52 54 Rear Panel Unit L 13942296513 u163 http://www.xiaoyu163.com...
Page 6: Service Mode Specifications
DN-X400 3 7 63 1515 0 SERVICE MODE SPECIFICATION *How the product performs when the operation buttons for µcom control are pressed (including control input) is described in the table below. 1-1 POWER ON / RESET Function Description Display...
Page 7 DN-X400 3 7 63 1515 0 1-4 CROSS FADER Function Description Display Remarks CLOSS (1) When OFF selected at ASSIGN A, it 1. 0 FADER voltage 0.5, indicates level meter FADER reads the voltage divided by FADER VR Rch -20, -15, -10, and -7...
Page 8 DN-X400 3 7 63 1515 0 1-6 LINE SELECT Switch (CH1/CH2/CH3/CH4) Function Description Display Remarks LINE (1) Performs LINE SELECT SW operation check. (2) Turns the level meter Lch LED1 on/off 1. Lights LED1 when LINE1 depending on the status of CH1 LINE selected.
Page 9: Semiconductors
DN-X400 3 7 63 1515 0 SEMICONDUCTORS IC’s TMP86CM41F-3GH8 (Main unit : IC314) TMP86CM41F-3GH8 Terminal Function Name Symbol DET Ext Function — — — — — — — — — — Osc. input pin, 16.00MHz XOUT — — —...
Page 10 DN-X400 3 7 63 1515 0 Name Symbol DET Ext Function 39 (AIN15) — — — — Fixed to GND 40 (AIN16) — — — — Fixed to GND 41 (AIN17) PLGIN — — — Plug connect signal +5V: IN...
Page 11 DN-X400 3 7 63 1515 0 SM5902AF (Main unit: IC302) SHOCK PROOF MEMORY CONTROLLER SM5902AF Terminal Function Setting Pin No. Symbol Function  power supply terminal. IP/O Microcomputer interface extended I/O 1. Not Used (OPEN) IP/O Microcomputer interface extended I/O 2. Not Used (OPEN) IP/O Microcomputer interface extended I/O 3.
Page 12 DN-X400 3 7 63 1515 0 NJM7815FA(S) TC9163AN (Main unit:IC309,326) (Panel I/O unit:IC801) (Panel I/O unit:IC405,408) BA05T (Panel I/O unit:IC803) R-COM1 L-COM FRONT VIEW L-COM R-COM1 L-COM R-COM L-COM R-COM2 NJM7915FA L-COM R-COM (Panel I/O unit:IC802) R-COM3 L-COM DATA...
Page 13 DN-X400 3 7 63 1515 0 OPTICAL OUTPUT GP1FA501TZ (IC327) V c c D r i v e r L E D V i n G N D TRANSISTORS DTA114EK DTA114EK DTC114EK 2SB766S DTC114EK (PNP Type) (NPN Type) KTC2875B...
Page 14 DN-X400 PRINTED WIRING BOARDS 3 7 6 3 1 5 1 5 0 GU-3402 MAIN P .W.B. UNIT Ass'y 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE...
Page 15 DN-X400 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE...
Page 16 DN-X400 3 7 6 3 1 5 1 5 0 GU-3403 PANEL I/O P .W.B. UNIT Ass'y 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 17 DN-X400 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 18: Note For Parts List
DN-X400 3 7 63 1515 0 NOTE FOR PARTS LIST Part indicated with the mark " " are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Page 19: Parts List Of P.w.b. Unit
DN-X400 3 7 63 1515 0 PARTS LIST OF P.W.B. UNIT GU-3402 MAIN P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP LD603 393 9543 910 LED SLR-325MC Green...
Page 20 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R313,314 247 2009 909 Carbon chip 4.7kohm 1/16W RM73B--472J R463,464 247 2003 947 Carbon chip 22ohm 1/16W RM73B--220J R315-318...
Page 21 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R631 247 2006 915 Carbon chip 270ohm 1/16W RM73B--271J C270 254 4522 958 Electrolytic 100uF/35V CE04W1V101M (SMG/RE3) R632 247 2006 944 Carbon chip 390ohm 1/16W RM73B--391J...
Page 22 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks C368 254 4536 915 Electrolytic 47uF/10V CE04W1A470M (SMG/RE3) C455 254 4538 939 Electrolytic 47uF/16V CE04W1C470M (SMG/RE3) C369 257 0512 903 Ceramic chip 0.1uF/25V...
Page 23 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks Q'ty C801,802 254 4541 955 Electrolytic 220uF/25V CE04W1E221M (SMG/RE3) JK101 204 8640 006 Phone jack (HTJ06404A) C803-806 257 0512 903 Ceramic chip 0.1uF/25V...
Page 24 DN-X400 3 7 63 1515 0 GU-3403 PANEL I/O P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP R119,120 247 2009 912 Carbon chip 5.1kohm 1/16W RM73B--512J R121-123 247 2010 969 Carbon chip 22kohm 1/16W RM73B--223J...
Page 25 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R401,402 247 2011 955 Carbon chip 51kohm 1/16W RM73B--513J R265,266 247 2005 961 Carbon chip 180ohm 1/16W RM73B--181J R403,404 247 2008 926 Carbon chip 2.2kohm 1/16W RM73B--222J...
Page 26 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R534 247 2010 998 Carbon chip 30kohm 1/16W RM73B--303J C107,108 256 1059 954 Metallized 0.47uF/50V CF93A1H474J (JL) R535 247 2010 956 Carbon chip 20kohm 1/16W RM73B--203J...
Page 27 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks C205,206 257 0507 950 Ceramic chip 270pF/50V CC73CH1H271J C304 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103Z C207,208 256 1059 954 Metallized 0.47uF/50V...
Page 28 DN-X400 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks Q'ty C484,485 254 4522 916 Electrolytic 10uF/35V CE04W1V100M (SMG/RE3) OTHER PARTS GROUP C486 257 0506 951 Ceramic chip 100pF/50V...
Page 29: Exploded View
DN-X400 EXPLODED VIEW 3 7 6 3 1 5 1 5 0 WARNING: Parts marked with this symbol have critical characteristics. Use ONLY r eplacement parts recommended by the manufacturer. 1 3 9 4 2 2 9 6 5 1 3...
Page 30: Parts List Of Exploded View
DN-X400 3 7 63 1515 0 Note: The symbols in the column “Remarks” indicate the following destinations. PARTS LIST OF EXPLODED VIEW E3: U.S.A./Canada model E2: Europe model Ref. No. Part No. Part Name Remarks Q'ty Ref. No. Part No.
Page 31: Packing View
DN-X400 3 7 63 1515 0 PACKING VIEW Main unit 104, 107 L 13942296513 Note: The symbols in the column “Remarks” indicate the following destinations. PARTS LIST OF PACKING & ACCESSORIES E3: U.S.A./Canada model E2: Europe model Ref. No.
Page 32: Block Diagram
DN-X400 BLOCK DIAGRAM 3 7 6 3 1 5 1 5 0 CH1 L/Rch METER micon CUE1 on/off +CH1 L/R mono/L RESET CH2 L/Rch micon +CH2 L/R on/off MN1382 CUE2 on/off +CH3 L/R CH3 L/Rch micon A/D1 +CH4 L/R...
Page 33: Level Diagram
DN-X400 LEVEL DIAGRAM 3 7 63 1515 0 DN-X400 LEVEL DIAGRAM Input Output INPUT VCA IN POST OUTPUT GAIN AMP MIX AMP BOOTH/ ZONE OUT MAIN OUT (XLR) MAIN OUT (RCA) SUB WOOFER POST OUT REC OUT SEND OUT...
Page 34: Wiring Diagram
DN-X400 WIRING DIAGRAM 3 7 6 3 1 5 1 5 0 CY191 CY311 CX311 CY251 CX251 CX191 19P FFC 31P FFC 31P FFC CABLE 31P FFC 25P FFC 25P FFC CABLE 25P FFC SIDE 19P FFC SIDE AGND...
Page 35 DN-X400 SCHEMATIC DIAGRAMS (1/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (1/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 36 DN-X400 SCHEMATIC DIAGRAMS (1/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (1/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 37: Schematic Diagrams
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 SCHEMATIC DIAGRAMS (1/4) L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 38 DN-X400 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 39 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 NOTICE WARNING Parts marked with this symbol have critica ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD.
Page 40: (1/4) Gu-3402-1 Main Unit (1/2)
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 + B LINE SCHEMATIC DIAGRAMS (1/4) have critical characteristics. - B LINE GU-3402-1 MAIN UNIT (1/2) commended by the manufacture. SIGNAL LINE ustomer, make sure you make either (1) a u 1 6 3...
Page 41 DN-X400 SCHEMATIC DIAGRAMS (2/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w SCHEMATIC DIAGRAMS (2/4) + B LINE NOTICE WARNING GU-3402-1 MAIN UNIT (2/2) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 42 DN-X400 SCHEMATIC DIAGRAMS (2/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w SCHEMATIC DIAGRAMS (2/4) + B LINE NOTICE WARNING GU-3402-1 MAIN UNIT (2/2) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 43 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 SCHEMATIC DIAGRAMS (2/4) L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 44 DN-X400 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 45 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 NOTICE WARNING Parts marked with this symbol have critica ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD.
Page 46: (2/4) Gu-3402-1 Main Unit (2/2)
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 SCHEMATIC DIAGRAMS (2/4) + B LINE GU-3402-1 MAIN UNIT (2/2) have critical characteristics. - B LINE GU-3402-2 POWER UNIT commended by the manufacture.
Page 47: Gu-3403-1 Panel 1 Unit
DN-X400 SCHEMATIC DIAGRAMS (3/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (3/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 48 DN-X400 SCHEMATIC DIAGRAMS (3/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (3/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 49 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 SCHEMATIC DIAGRAMS (3/4) L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 50 DN-X400 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 51 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 NOTICE WARNING Parts marked with this symbol have critica ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD.
Page 52: Gu-3403-3 Display Unit
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 + B LINE SCHEMATIC DIAGRAMS (3/4) have critical characteristics. - B LINE GU-3403-1 PANEL1 UNIT commended by the manufacture. SIGNAL LINE GU-3403-3 DISPLAY UNIT ustomer, make sure you make either (1) a...
Page 53 DN-X400 SCHEMATIC DIAGRAMS (4/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (4/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 54 DN-X400 SCHEMATIC DIAGRAMS (4/4) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w + B LINE NOTICE WARNING SCHEMATIC DIAGRAMS (4/4) u 1 6 3 ALL RESISTANCE VALUES IN OHM.
Page 55 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 SCHEMATIC DIAGRAMS (4/4) L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 56 DN-X400 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3...
Page 57 http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 NOTICE WARNING Parts marked with this symbol have critica ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD.
Page 58: Gu-3403-4 H/P Jack Unit
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 L 1 3 9 4 2 2 9 6 5 1 3 + B LINE SCHEMATIC DIAGRAMS (4/4) have critical characteristics. - B LINE GU-3403-2 ANALOG I/O UNIT commended by the manufacture. SIGNAL LINE GU-3403-4 H/P JACK UNIT ustomer, make sure you make either (1) a...
