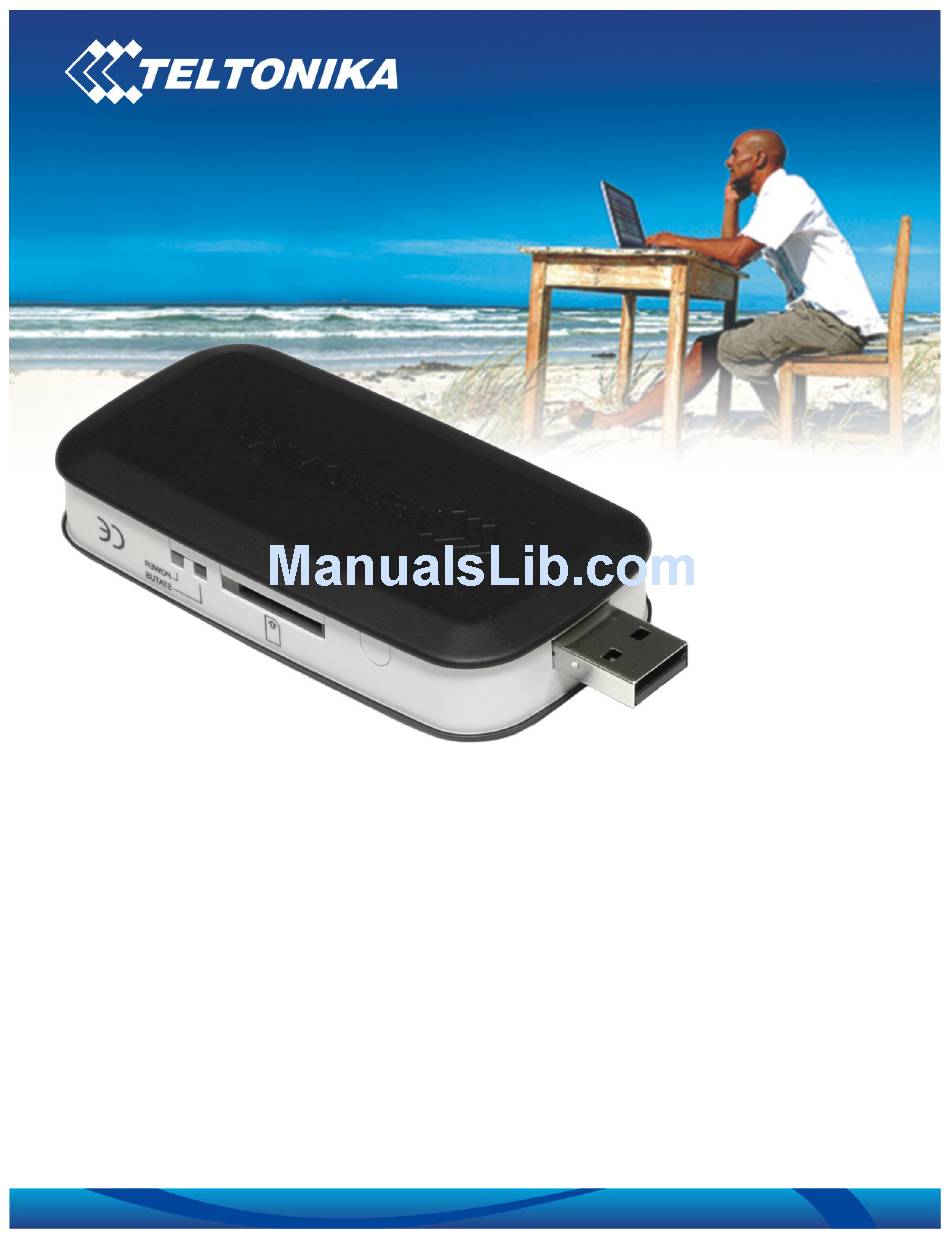

- Page 1 TELTONIKA ModemUSB/E10 User Manual v3.2.0.15 Adress: Žirmūnų g. 27, Vilnius LT-09105, Tel.: +370 5 2127472, Fax: +3705 276 1380, E-mail: info@teltonika.lt...
-
Page 2: Table Of Contents
Driver and Software Installation......................10 Software description..........................11 7.2.1 Modem Control Tool Preparation to Work ................11 7.2.2 Connecting to Internet....................... 12 7.2.3 Sending SMS..........................14 7.2.4 Settings of ModemUSB/E10....................16 Uninstalling ModemUSB/E10 ......................19 TECHNICAL SUPPORT........................... 20 ENDING............................... 20... -
Page 3: Attention
You have to be familiar with the safety requirements before starting to use the device! Modem USB/E10 is used for data transfer by GSM network. The modem is designed to be connected to a PC through USB connector. By connecting the modem to a PC it is possible to connect to the Internet using GSM data transfer channel. - Page 4 ModemUSB/E10 Users Manual While using the device, place it such that the LEDs are visible to the user. It’s because these LEDs provide information about the working modes and condition of the device. Signal level of the modem depends on the environment in which it is working.
-
Page 5: User's Service
ModemUSB/E10 Users Manual The device should not be connected to PC before the installation of the drivers. SIM card is mandatory for setting up connection to the GSM network. However, the manufacturer of this equipment does not supply the SIM card. The SIM card can be purchased from your GSM (mobile) service provider! For APN, user name and password please contact your GSM (mobile) service provider. -
Page 6: Basic Information
4. BASIC INFORMATION Introduction ModemUSB/E10 is a device designed for data transmission via GSM Network. The user- friendly design allows you to directly connect the device to one of the USB ports of your PC/laptops. Once a SIM card is inserted in the modem and the device is connected to the PC, you would be able to send SMS or access internet via UMTS/GSM networks (mobile networks). -
Page 7: Package Contents
ModemUSB/E10 Users Manual 5. PACKAGE CONTENTS ModemUSB/E10 modem is packed in a box and contains all the accessories required for normal operation: Cardboard box. ModemUSB/E10 modem. CD with User Manual and drivers. “USB A jack ↔ USB A socket“ connection cable. -
Page 8: Indication
ModemUSB/E10 Users Manual Indication Two LED indicators (“Power“ and “Status“) are located on the side of ModemUSB/E10. These LEDs indicate the operating mode and failure conditions of the modem. Modem operating modes are described in Table 6.2.1. Table 6.2.1. Modem operating modes... -
Page 9: Mechanical Characteristics
ModemUSB/E10 Users Manual Mechanical characteristics ModemUSB/E10 modem housing is made of plastic. External view and measurements (in mm) of the device are shown in Figure 6.4.1. 42.0 15.1 85.5 Figure 6.4.1. External view of ModemUSB/E10... -
Page 10: How To Start
Driver and Software Installation In order to install ModemUSB/E10 drivers and software, do the following: Unplug the device ModemUSB/E10 from USB port of the PC (if it is plugged)! ModemUSB/E10 modem can only be connected after the driver installation has finished. -
Page 11: Software Description
To run the Modem Control Tool, double click the MCT pictogram located on the desktop, or go to Start → Programs → Teltonika ModemUSB/E10 → MCT. If the program is being run for the first time or there are more than one modems installed, a window asking to select modem from the list will appear. -
Page 12: Connecting To Internet
7.2.2 Connecting to Internet One of the following connecting types can be used in order to connect to the Internet using the ModemUSB/E10 modem: GPRS/EDGE. In this case, you have to know the APN, and sometimes user name and password;... - Page 13 ModemUSB/E10 Users Manual In order to connect to the Internet, enter the required data in Connection window. In the main MCT window click Settings → Connection. Enter connection data as shown below. To save the entered data, click Update. Before connecting to the Internet, check the GSM signal quality (see the indicator located on the right side of the Modem Control Tool program).
-
Page 14: Sending Sms
ModemUSB/E10 Users Manual If the ModemUSB/E10 modem connects to the Internet, red indicator denoted as Disconnected on the left corner of MCT window turns green and will be denoted as Connected. When connected to the Internet, on the left side of MCT you will be able to monitor downloaded/uploaded traffic, upload/download speed time while connected. - Page 15 ModemUSB/E10 Users Manual If you want to look for received, read or sent SMS messages, click Unread, Read or Sent in the Short message service window. If you want to forward or reply, double click on the message. A Message window will appear.
-
Page 16: Settings Of Modemusb/E10
Modem Control Tool window. If you click Main in the Settings window, you will be able to choose a modem from the list of modems installed in your PC. If you click Connection in the Settings window, you will be able to change the ModemUSB/E10 modem Internet connection parameters. - Page 17 ModemUSB/E10 Users Manual SMS center number is shown in Settings → SMS. To change Modem Control Tool program language, go to Settings → Application. In Application window choose the language from Set Language field and click Update Language.
- Page 18 ModemUSB/E10 Users Manual Click About to see the Modem Control Tool program version and other Information.
-
Page 19: Uninstalling Modemusb/E10
Users Manual Uninstalling ModemUSB/E10 To uninstall ModemUSB/E10 modem, plug it off from the USB port of the PC, and go to Start → Programs → Teltonika ModemUSB/E10 → Uninstall. A uninstall window will appear. To continue uninstall procedure you should unplug your ModemUSB/E10. -
Page 20: Technical Support
PC. If you face any problems related to the device, which you are not able to solve by yourself, you are always welcome to address our technical support department by e-mail support@teltonika.lt. We will be very glad to help you.
