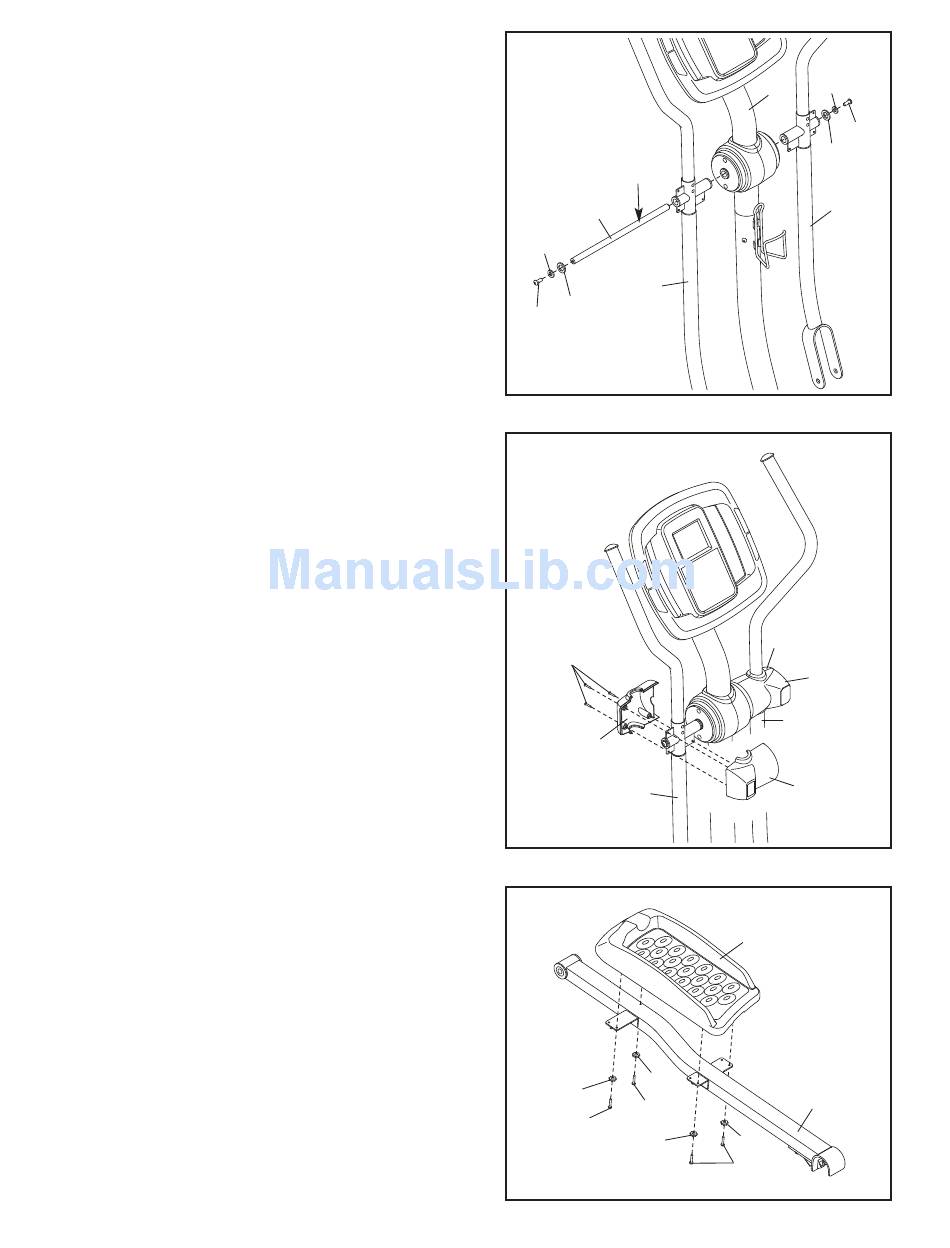

11. Insert the Pivot Axle (74) into the Upright (3) and then
center it. Apply a generous amount of the included
grease to the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide
the Right Upper Body Arm (12) onto the right end of
the Pivot Axle.
Tighten an M8 x 23mm Patch Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end
of the Pivot Axle (74). Make sure that the Wave
Washers are on the ends of the Pivot Axle.
12. Hold the Left Front Handlebar Cover (18) and the
Left Rear Handlebar Cover (19) around the Left
Upper Body Arm (11). Attach the Handlebar Covers
with three M4 x 32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and
the Right Rear Handlebar Cover (21) around the
Right Upper Body Arm (12) in the same way.
13. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with "Left" stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right
Pedal Leg (not shown) in the same way.
11
Grease
74
88
111
84
12
105
18
11
13
112
108
104
112
10
88
3
111
11
20
21
12
19
13
112
14
112
104
84
12
