2. Mark screw locations on wall (see Figure
8). Note: Mark only last hole on each end
of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from
wall.
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and
spacers are in hardware package. The hard-
ware package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to wall studs:
1. Drill holes at marked locations using 9/64"
drill bit.
2. Place mounting bracket onto wall. Line
up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket
and into wall studs.
4. Tighten screws until mounting bracket is
firmly fastened to wall studs.
9"
Min
Only Insert Mounting
Screws Through Last
Hole On Each End
Models:
ML150HPA, ML150TPA
10 / "
1
4
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Models:
ML250HPA, ML250TPA

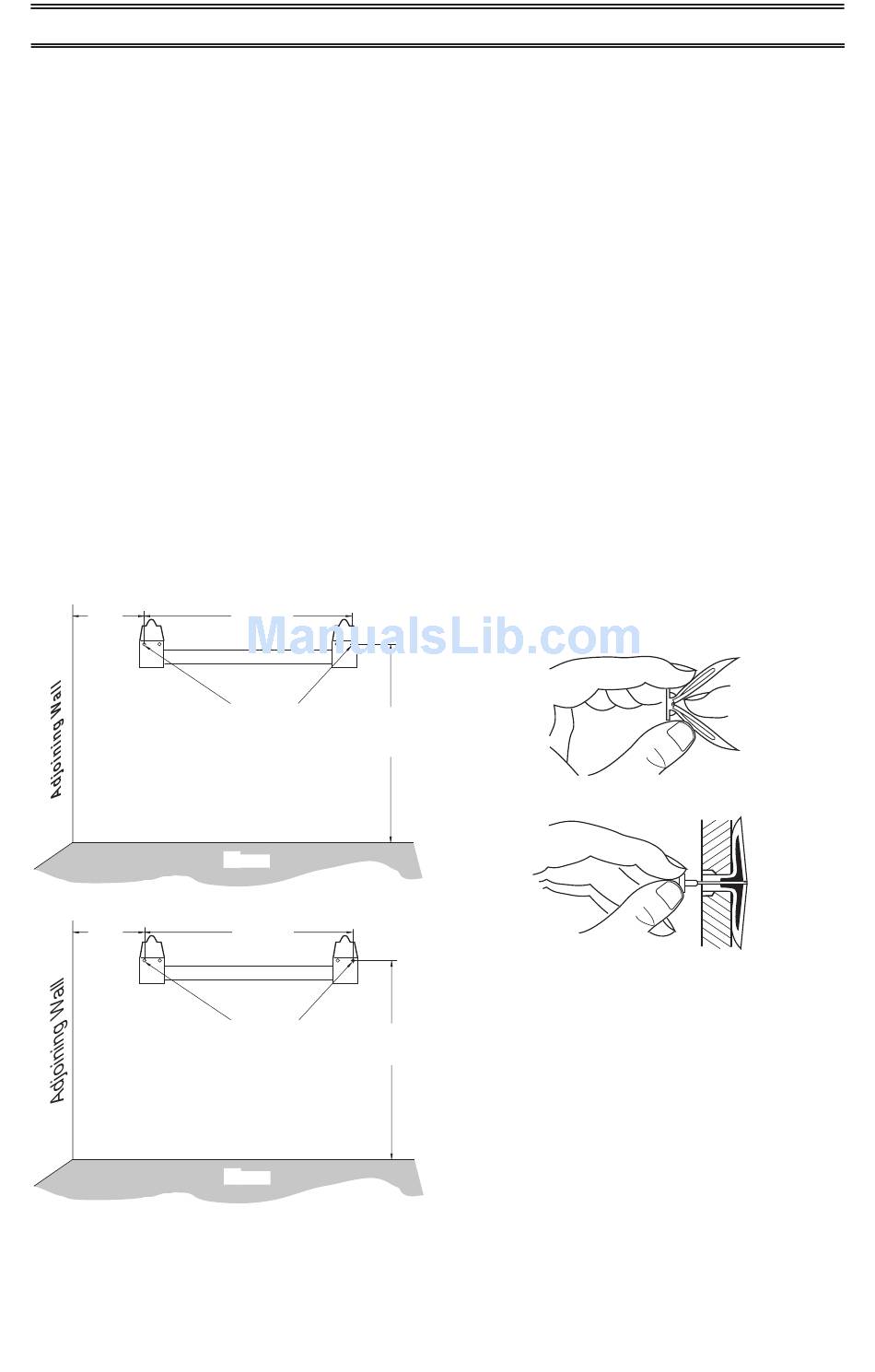

Figure 8 - Mounting Bracket Clearances
12
INSTALLATION
17 / "
3
8
18
Min
Floor
17 / "
3
8
17
Min.
Floor
www.usaprocom.com
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow
walls (wall areas between studs) or solid walls
(concrete or masonry):
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 9.
3. Insert wall anchor (wings first) into hole.
Tap anchor flush to wall.
4. For thin walls (1/2" or less), insert red key
into wall anchor. Push red key to "pop"
open anchor wings (see Figure 10).
IMPORTANT: Do not hammer anchor key! For
thick walls (over 1/2" thick) or solid walls, do
not pop open wings.
5. Place mounting bracket onto wall. Line up
last hole on each end of bracket with wall
anchors.
6. Insert mounting screws through bracket
and into wall anchors.
7. Tighten screws until mounting bracket is
firmly fastened to wall.
/ "
1
2
Figure 9 - Folding Anchor
Figure 10 - Popping Open Anchor Wings
Placing Heater On Mounting
/ "
1
2
1. Locate two horizontal slots on back panel
of heater (see Figure 11, page 13).
2. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on
mounting bracket.
For Thin Walls
Bracket
200045-01A
