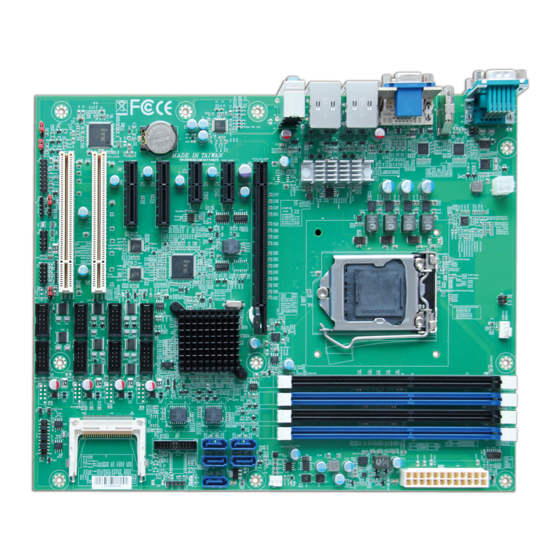

RUBY-D716VG2AR
Industrial Motherboard
ATX Board
User's Manual
Version 1.0
Copyright © Portwell, Inc., 2013 All rights reserved.
All other brand names are registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUBY-D716VG2AR and is the answer not in the manual?

Questions and answers

Related Manuals for Portwell RUBY-D716VG2AR

Summary of Contents for Portwell RUBY-D716VG2AR

  • Page 1 RUBY-D716VG2AR Industrial Motherboard ATX Board User's Manual Version 1.0 Copyright © Portwell, Inc., 2013 All rights reserved. All other brand names are registered trademarks of their respective owners.

  • Page 2: Table Of Contents

    Preface Table of Contents How to Use This Manual Chapter 1 System Overview.......................1-1 1.1 Introduction ....................... 1-1 1.2 Check List......................1-1 1.3 Product Specification..................1-1 1.3.1 Mechanical Drawing ................1-4 1.4 System Architecture..................1-6 Chapter 2 Hardware Configuration ...................2-1 2.1 Jumper Setting ....................2-1 2.2 Connector Allocation..................

  • Page 3: How To Use This Manual

    Preface How to Use This Manual The manual describes how to configure your RUBY-D716VG2AR system board to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of Single Host Board.

  • Page 4: Chapter 1 System Overview

    (ESB) that combines a smaller footprint, lower power consumption, robust computing power and with longevity support. Against the pre-generation chipset RUBY-D716VG2AR based on Q87 chipset, Q87 offers Core i5/i7 processors, VGA, DVI-D, HDMI port, USB 3.0 and SATA III support which USB 3.0 is first integrated.
  • Page 5 WGI217LM & WGI210AT GbE Ethernet Controller High Drive GPIO -One pin-header for 8 bit GPIO(4bit in & 4bit out) System Monitoring Feature -Monitor system temperature and major power sources. Outline Dimension (L x W) -304.8mm (12”) X 243.8mm (9.6”) RUBY-D716VG2AR User’s Manual...
  • Page 6 2.89A System+ Device +5V USB Loading Test 4.75~4.85V/ 580 mA Configuration: SBC BIOS Portwell, Inc. RUBY-D716VG2AR TEST BIOS VGA Card Intel Haswell HD Graphics –GT2 VGA Driver Intel Haswell HD Graphics –GT2 Version:9.17.10.2895 LAN Card Onboard Intel® I217-LM / I210 Gigabit Network Connection LAN Driver Intel®...

  • Page 7: Mechanical Drawing

    System Overview 1.3.1 Mechanical Drawing RUBY-D716VG2AR User’s Manual...
  • Page 8 System Overview RUBY-D716VG2AR User’s Manual...

  • Page 9: System Architecture

    System Overview System Architecture All of details operating relations are shown in RUBY-D716VG2AR System Block Diagram. RUBY-D716VG2AR System Block Diagram RUBY-D716VG2AR User’s Manual...

  • Page 10: Chapter 2 Hardware Configuration

    Jumper Setting For users to customize RUBY-D716VG2AR’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
  • Page 11 JP2: COM Port1 RI POWER Select PIN No. Signal Description 1-2, Short 3-4, Short RI 　 5-6, Short J3: CONFIG / RECOVERY JUMPER PIN No. Signal Description 1-2, Short NORMAL 　 2-3, Short CONFIGURE JUMPER REMOVED RECOVERY RUBY-D716VG2AR User’s Manual...
  • Page 12 PIN No. Signal Description 1-2, Short 2-3, Short 3.3V JP8: PCI Express* Bifurcation PIN No. Signal Description 1-2, Short 1x8 , 2x4 3-4, Short 1-2, Open reserved 3-4, Short 1-2, Short 3-4, Open 1-2, Open 1x16　 3-4, Open RUBY-D716VG2AR User’s Manual...

  • Page 13: Connector Allocation

    SMBus Connector PH5Px1-Pin2/2.54mm PS/2 Keyboard/Mouse Connector HEADER5X2/nc3,4 GPIO Header5Px2/2.54mm J12/J13/J14/J15 COM3~COM10 Serial Port BH5Px2/2.54mm /J17/J18/J19/J20 Connector CPU FAN Power Connector FAN_Header4Px1 J21/J26/J27/J28 DDR3 Long DIMM Connector DDR3-Slot/240Pin J25/J24/J23/J22 External USB Connector HEADER 5PX2(-9) J29/J30/J33/J34/J3 SATA Connector(6Gb/s) SATA/Blue RUBY-D716VG2AR User’s Manual...
  • Page 14 J6: Front Panel System Connector PIN No. Signal Description PIN No. Signal Description PWR_LED(+) PWR_LED(-) LAN1_ACT(+) LAN1_LINK(-) BUZZER LAN2_LINK(-) LAN2_ACT(+) Power Button HDD_LED(+) Rest HDD_LED(-) J7: ATX 4Pin 12V Power Connector PIN No. Signal Description Ground Ground +12V +12V RUBY-D716VG2AR User’s Manual...
  • Page 15 Signal Description PIN No. Signal Description Mouse Data Keyboard Data Ground Ground PS2 Power PS2 Power Mouse Clock Keyboard Clock J11: GPIO PIN No. Signal Description PIN No. Signal Description LPC_GPIO0 LPC_GPO4 LPC_GPIO1 LPC_GPO2 LPC_GPIO2 LPC_GPO3 LPC_GPIO3 LPC_GPO4 RUBY-D716VG2AR User’s Manual...
  • Page 16 J16: CPU FAN Power Connector PIN No. Signal Description Ground +12V Fan on/off output Fan Speed control J25/J24/J23/J22: External USB Connector PIN No. Signal Description PIN No. Signal Description 5V Dual 5V Dual USB- USB- USB+ USB+ Ground Ground RUBY-D716VG2AR User’s Manual...
  • Page 17 PIN No. Signal Description GND1 GND2 GND3 J31 TPM(Trusted Platform Module) Connector PIN No. Signal Description PIN No. Signal Description PCLK_TPM Ground LFRAME# PLT_RST_N LAD2 LAD3 LAD1 VCC3 Ground LAD0 SMB_DATA_MAIN SMB_CLK_MAIN SERIRQ 3VSB LPCPD# LDRQ#1 Ground Ground RUBY-D716VG2AR User’s Manual...
  • Page 18 PIN No. Signal Description +3.3V +3.3V +3.3V -12V Ground Ground PS_ON# Ground Ground Ground Ground Ground ATX_PWROK +5VSB +12V1 +12V1 +3.3V Ground J36: SYSTEM FAN Power Connector PIN No. Signal Description Ground Fan speed control Fan on/off output RUBY-D716VG2AR User’s Manual...

  • Page 19: Chapter 3 System Installation

    This chapter provides the instructions to set up the system. The additional information is enclosed to help you set up onboard devices Intel® Dual Core/Quad Core processor LGA-1150 CPU Socket Pin1 corner of the CPU Socket LGA-1150 CPU Yellow Triangle Pin1 of the CPU Alignment key Notch RUBY-D716VG2AR User’s Manual...
  • Page 20 CPU. LGA-1150 CPU Installation Steps Before install the CPU, please make sure to turn off the power first!! 1. Open the load lever. 2. Lift the load lever up to fully open RUBY-D716VG2AR User’s Manual...
  • Page 21 3. Remove the plastic cap on the CPU socket. Before you install the CPU, always cover it to protect the socket pin. 4. After confirming the CPU direction for correct mating, put down the CPU in the socket housing frame. Note that alignment keys are matched. RUBY-D716VG2AR User’s Manual...
  • Page 22 System Installation 5. Make sure the CPU has been seated well into the socket. If not, take out the CPU and reinstall. 6. Engage the load lever while pressing down lightly onto the load plate. RUBY-D716VG2AR User’s Manual...

  • Page 23: Main Memory

    8. Please make sure four hooks are in proper position before you install the core. Main Memory RUBY-D716VG2AR provide 4 x240 pin DIMM sockets (Dual Channel) which supports Dual channel 1333/1600 DDR3-SDRAM as main memory, non-register function. RUBY-D716VG2AR just supports Non-ECC memory. The maximum memory can be up to 32GB.
  • Page 24 System Installation To insure the system stability, please do not change any of DRAM parameters in BIOS setup to modify system the performance without acquired technical information. RUBY-D716VG2AR User’s Manual...

  • Page 25: Installing The Single Board Computer

    Step 1 : Check all jumpers setting on proper position Step 2 : Install and configure CPU and memory module at right position Step 3 : Place RUBY-D716VG2AR into the dedicated position in the system Step 4 : Attach cables to existing peripheral devices and secure it WARNING Please ensure that SBC is properly inserted and fixed by mechanism.

  • Page 26: Audio Controller

    Please find Intel® High Definition Audio driver form RUBY-D716VG2AR CD-title. The driver supports Windows Win7 64-bits. 3.3.5 Intel® Active Management Technology (Intel® AMT) Please find the latest Intel®AMT 9.0 driver from RUBY-D716VG2AR CD-title. The driver supports Windows Win7 64-bits. Clear CMOS Operation JP1: CLEAR CMOS PIN No.
  • Page 27 System Installation RUBY-D716VG2AR allows users to control WDT through dynamic software programming. The WDT starts counting when it is activated. It sends out a signal to system reset or to non-maskable interrupt (NMI), when time-out interval ends. To prevent the time-out interval from running out, a re-trigger signal will need to be sent before the counting reaches its end.
  • Page 28 = address & 0xFF; EC_WriteByte(EC_IO_BASE, 0x11); EC_WriteByte(EC_IO_BASE+1, addr_HighByte); EC_WriteByte(EC_IO_BASE, 0x10); EC_WriteByte(EC_IO_BASE+1, addr_LowByte); EC_WriteByte(EC_IO_BASE, 0x12); EC_WriteByte(EC_IO_BASE+1, data); unsigned char EC_GetRamByte (int address) int addr_HighByte, addr_LowByte; addr_HighByte = (address >> 8) & 0xFF; addr_LowByte = address & 0xFF; EC_WriteByte(EC_IO_BASE, 0x11); RUBY-D716VG2AR User’s Manual 3-10...
  • Page 29 EC_SetRamByte (0x308, 0x05); /* WDT Counter */ EC_SetRamByte (0x306, 0x01); /* WDTCFG[1:0]=01 */ int main(void) int i; ec_wdt_trigger (); for (i = 0; i < 5; i++) printf ("Reset counter ....%d\n", 5 - i); delay (1000); return 0; RUBY-D716VG2AR User’s Manual 3-11...

  • Page 30: Gpio

    I/O function. GPIO Pin Assignment The RUBY-D716VG2AR provides 4 input/output ports that can be individually configured to perform a simple basic I/O function. Users can configure each individual port to become an input or output port by programming register bit of I/O Selection.
  • Page 31 = inportb (EC_BASE+1); delay(2); return tmp; void EC_SetRamByte (int address, unsigned char data) int addr_HighByte, addr_LowByte; addr_HighByte = (address >> 8) & 0xFF; addr_LowByte = address & 0xFF; EC_WriteByte(EC_IO_BASE, 0x11); EC_WriteByte(EC_IO_BASE+1, addr_HighByte); EC_WriteByte(EC_IO_BASE, 0x10); EC_WriteByte(EC_IO_BASE+1, addr_LowByte); RUBY-D716VG2AR User’s Manual 3-13...
  • Page 32 (int pin_num, unsigned char io_direction) unsigned char data; unsigned char tmp; switch (pin_num) case 1: if(io_direction) EC_GetRamByte(EC_PIN1_CTL_ADDR); 0x84; /*set input*/ tmp &= ~0x40; EC_SetRamByte(EC_PIN1_CTL_ADDR, tmp); else EC_GetRamByte(EC_PIN1_CTL_ADDR); tmp = 0x40; /*set output*/ tmp &= ~0x80; RUBY-D716VG2AR User’s Manual 3-14...
  • Page 33 = 0x40; tmp &= ~0x80; EC_SetRamByte(EC_PIN2_CTL_ADDR, tmp); break; case 3: if (io_direction) EC_GetRamByte(EC_PIN3_CTL_ADDR); tmp = 0x84; tmp &= ~0x40; EC_SetRamByte(EC_PIN3_CTL_ADDR, tmp); else EC_GetRamByte(EC_PIN3_CTL_ADDR); tmp = 0x40; tmp &= ~0x80; EC_SetRamByte(EC_PIN3_CTL_ADDR, tmp); break; case 4: if (io_direction) RUBY-D716VG2AR User’s Manual 3-15...
  • Page 34 5: if (io_direction) EC_GetRamByte(EC_PIN5_CTL_ADDR); tmp = 0x84; tmp &= ~0x40; EC_SetRamByte(EC_PIN5_CTL_ADDR, tmp); else EC_GetRamByte(EC_PIN5_CTL_ADDR); tmp = 0x40; tmp &= ~0x80; EC_SetRamByte(EC_PIN5_CTL_ADDR, tmp); break; case 6: if (io_direction) EC_GetRamByte(EC_PIN6_CTL_ADDR); tmp = 0x84; tmp &= ~0x40; RUBY-D716VG2AR User’s Manual 3-16...
  • Page 35 (io_direction) EC_GetRamByte(EC_PIN7_CTL_ADDR); tmp = 0x84; tmp &= ~0x40; EC_SetRamByte(EC_PIN7_CTL_ADDR, tmp); else EC_GetRamByte(EC_PIN7_CTL_ADDR); tmp = 0x40; tmp &= ~0x80; EC_SetRamByte(EC_PIN7_CTL_ADDR, tmp); break; case 8: if (io_direction) EC_GetRamByte(EC_PIN8_CTL_ADDR); tmp = 0x84; tmp &= ~0x40; EC_SetRamByte(EC_PIN8_CTL_ADDR, tmp); else RUBY-D716VG2AR User’s Manual 3-17...
  • Page 36 & 0x80 ) /* means in */ *io_direction = 1; else if ( tmp & 0x40 ) /* means out */ *io_direction = 0; else printf("unknown GPIO pin direction in EC\n"); break; case 2: tmp = EC_GetRamByte(EC_PIN2_CTL_ADDR); RUBY-D716VG2AR User’s Manual 3-18...
  • Page 37 ( tmp & 0x40 ) *io_direction = 0; else printf("unknown GPIO pin direction in EC\n"); break; case 6: tmp = EC_GetRamByte(EC_PIN6_CTL_ADDR); if( tmp & 0x80 ) *io_direction = 1; else if ( tmp & 0x40 ) *io_direction = 0; else RUBY-D716VG2AR User’s Manual 3-19...
  • Page 38 (int gpio_set, unsigned char *io_direction) int i; unsigned char data, temp, temp2; switch (gpio_set) case 1: return 0; case 2: *io_direction = 0; for (i = 0; i < 8; i++) gpio_readpindirection (2, i+1, &data); *io_direction |= (data << i); RUBY-D716VG2AR User’s Manual 3-20...
  • Page 39 4: tmp = EC_GetRamByte(EC_PIN4_VALUE_ADDR); if( tmp & 0x08 ) /* means high */ *value = 1; else *value = 0; break; case 5: tmp = EC_GetRamByte(EC_PIN5_VALUE_ADDR); if( tmp & 0x80 ) /* means high */ RUBY-D716VG2AR User’s Manual 3-21...
  • Page 40 1; int gpio_read (unsigned char *value) unsigned char temp, temp2; unsigned char pch_data, i; *value = 0; for (i = 0; i < 8; i++) gpio_readpin (2, i+1, &pch_data); *value |= (pch_data << i); return 0; RUBY-D716VG2AR User’s Manual 3-22...
  • Page 41 |= EC_Bit0; EC_SetRamByte(EC_PIN1_VALUE_ADDR, tmp); else EC_GetRamByte(EC_PIN1_VALUE_ADDR); tmp &= ~EC_Bit0; EC_SetRamByte(EC_PIN1_VALUE_ADDR, tmp); break; case 2: if( value ) EC_GetRamByte(EC_PIN2_VALUE_ADDR); tmp |= EC_Bit1; EC_SetRamByte(EC_PIN2_VALUE_ADDR, tmp); else EC_GetRamByte(EC_PIN2_VALUE_ADDR); tmp &= ~EC_Bit1; EC_SetRamByte(EC_PIN2_VALUE_ADDR, tmp); break; case 3: if( value ) RUBY-D716VG2AR User’s Manual 3-23...
  • Page 42 EC_SetRamByte(EC_PIN3_VALUE_ADDR, tmp); break; case 4: if( value ) EC_GetRamByte(EC_PIN4_VALUE_ADDR); tmp |= EC_Bit3; EC_SetRamByte(EC_PIN4_VALUE_ADDR, tmp); else EC_GetRamByte(EC_PIN4_VALUE_ADDR); tmp &= ~EC_Bit3; EC_SetRamByte(EC_PIN4_VALUE_ADDR, tmp); break; case 5: if( value ) EC_GetRamByte(EC_PIN5_VALUE_ADDR); //tmp |= EC_Bit4; tmp &= ~EC_Bit4; EC_SetRamByte(EC_PIN5_VALUE_ADDR, tmp); else RUBY-D716VG2AR User’s Manual 3-24...
  • Page 43 &= ~EC_Bit5; EC_SetRamByte(EC_PIN6_VALUE_ADDR, tmp); else EC_GetRamByte(EC_PIN6_VALUE_ADDR); tmp |= EC_Bit5; EC_SetRamByte(EC_PIN6_VALUE_ADDR, tmp); break; case 7: if( value ) EC_GetRamByte(EC_PIN7_VALUE_ADDR); tmp &= ~EC_Bit6; EC_SetRamByte(EC_PIN7_VALUE_ADDR, tmp); else EC_GetRamByte(EC_PIN7_VALUE_ADDR); tmp |= EC_Bit6; EC_SetRamByte(EC_PIN7_VALUE_ADDR, tmp); break; case 8: if( value ) RUBY-D716VG2AR User’s Manual 3-25...
  • Page 44 (2, i+1, value & (0x01 << i)); return 0; int main(void) unsigned char gpio_dir; unsigned char gpio_value; int i; unsigned char gpio_pin, gpio_direction; unsigned char d2; printf("RUBY-D716VG2AR GPIO (EC line) TEST Program v1.0\n"); printf("Please short the following pins with jumper on GPIO\n"); RUBY-D716VG2AR User’s Manual 3-26...
  • Page 45 ("GPIO 3->GPIO 7 test FAIL !!! (pull high)\n"); gpio_readpin (8, &d2); delay (2); if (d2 == 0) printf ("GPIO 4->GPIO 8 test PASS !!! (pull low)\n"); else printf ("GPIO 4->GPIO 8 test FAIL !!! (pull high)\n"); return 0; RUBY-D716VG2AR User’s Manual 3-27...

  • Page 46: Chapter 4 Bios Setup Information

    The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. RUBY-D716VG2AR User’s Manual...

  • Page 47: Main

    Use this menu for basic system configurations, such as time, date etc. System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. RUBY-D716VG2AR User’s Manual...

  • Page 48: Configuration

    BIOS Setup Information Configuration Use this menu to set up the items of special enhanced features RUBY-D716VG2AR User’s Manual...
  • Page 49 If you select ‘Enabled’ the diagnostic splash screen always displays during boot. If you select ‘Disabled’ the diagnostic splash screen does not displays unless you press HOTKEY during boot. Choices: Disabled, Enabled. Diagnostic Summary Screen Display the Diagnostic summary screen during boot. Choices: Disabled, Enabled. RUBY-D716VG2AR User’s Manual...
  • Page 50 BIOS Setup Information Allow Hotkey in S4 resume Enable hotkey detection when system resuming from Hibernate state. Choices: Disabled, Enabled. UEFI Boot Enable the UEFI boot. Choices: Disabled, Enabled. PCI/PCIE Configuration Configure PCI/PCI Express slot. RUBY-D716VG2AR User’s Manual...
  • Page 51 FEG0 PEG0 – Gen X Configure PFG0 B0:D0:F0 Speed. Choices: Gen1, Gen2, Gen3 FEG1 PEG1 – Gen X Configure PFG1 B0:D0:F1 Speed. Choices: Gen1, Gen2, Gen3 FEG2 PEG2 – Gen X Configure PFG2 B0:D0:F2 Speed. Choices: Gen1, Gen2, Gen3 RUBY-D716VG2AR User’s Manual...
  • Page 52 BIOS Setup Information ICH PCI Express Configuration DMI Link ASPM Control The control of active state Power Management on both NB side of the DMI Link. Choices: Disabled, L0s, L1, L0sL1. RUBY-D716VG2AR User’s Manual...
  • Page 53 Choices: Auto, Gen1, Gen2. ASPM Control PCIe Active State Power Management settings. Choices: Disabled, L0S, L1, L0S And L1, Auto. HOT PLUG PCI Express Hot Plug Enabled/Disabled. Choices: Disabled, Enabled. PCI Express Unsupported Request Reporting Enable/Disable. Choices: Disabled, Enabled. RUBY-D716VG2AR User’s Manual...
  • Page 54 Root PCI Express System Error on Non-Fatal Error Enable/Disable. Choices: Disabled, Enabled. SECE Root PCI Express System Error on Correctable Error Enable/Disable. Choices: Disabled, Enabled. PME Interrupt Root PCI Express PME Interrupt Enable/Disable. Choices: Disabled, Enabled. PME SCI PCI Express PME SCI Choices: Disabled, Enabled. RUBY-D716VG2AR User’s Manual...
  • Page 55 Enable or disable system wake on alarm event. When Enabled, system will wake on the hr::min::sec specified. Choices: Disabled, Enabled Wake up By PS/2 Keyboard Choices: Enabled, Disabled. Wake up By PS/2 Mouse Choices: Enabled, Disabled. RUBY-D716VG2AR User’s Manual 4-10...
  • Page 56 Select the number of physical cores to enable in each processor package. Choices: All, 1. Limit CPUID Maximum Disabled for Windows XP. Choices: Disabled, Enabled. Execute Disabled Bit Enabled Execute Disabled functionality. Also known as Data Execution Prevention (DEP). Choices: Disabled, Enabled. RUBY-D716VG2AR User’s Manual 4-11...
  • Page 57 Choices: Disabled, Enabled. C-States Choices: Disabled, Enabled. VT-x When enabled, a VWM can utilize the additional hardware capabilities provided by Vanderpool Technology. Choices: Disabled, Enabled. Local x2APIC Choices: Disabled, Enabled. LAN Configuration Configure onboard LAN device. RUBY-D716VG2AR User’s Manual 4-12...
  • Page 58 Choices: Disabled, Enabled. LAN Boot ROM Control LAN Boot ROM (PXE) function. Choices: Disabled, Enabled. LAN4 Enabled/Disabled LAN4. Choices: Disabled, Enabled. Wake on LAN Enabled/Disabled Wake on LAN Function. Choices: Disabled, Enabled. Chipset Configuration Configure Chipset provide feature. RUBY-D716VG2AR User’s Manual 4-13...
  • Page 59 To Enable the PEG Slot. Choices: Disabled, Enabled. PEG ASPM Control ASPM Support for the PEG Device. This has mp effect if PEF is not the current active sevice. Choices: Disabled, Auto, ASPM L0s, ASPM L1, ASPM L0sL1. RUBY-D716VG2AR User’s Manual 4-14...
  • Page 60 MMIO length of installed graphic controller. Choices: 1GB, 1.25GB, 1.5GB, 1.75GB, 2GB, 2.25GB, 2.5GB, 2.75GB, 3GB, 3.25GB. Memory Frequency Maximum Memory Frequency Selections in Mhz. Choices: Auto, 1067, 1333, 1600, 1867, 2133. RUBY-D716VG2AR User’s Manual 4-15...
  • Page 61 BIOS Setup Information SB Azalia Config SB Azalia Config Parameters. Azalia Control Detection of the Azalia device. Choices: Disabled, Enabled. RUBY-D716VG2AR User’s Manual 4-16...
  • Page 62 Choices: 128MB, 256MB, 512MB. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated Graphics Memory size used by the Internal Graphics Device. Choices: 0M, 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M , 352M, 384M, 416M, 448M, 480M, 512M. RUBY-D716VG2AR User’s Manual 4-17...
  • Page 63 Determines how SATA controllers (s) operate. Choices: Disabled, Enabled. Launch Storage OpROM Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM. Choices: Enabled, Disabled. SATA Mode Determines how SATA controllers (s) operate. Choices: Disabled, IDE, AHCI, RAID. RUBY-D716VG2AR User’s Manual 4-18...
  • Page 64 Choices: Disabled, Enabled. SATA Device Type Select ”Solid State Drive” only if a Solid State Drive is connected to this SATA port. Choices: Hard Disk Driver, Solid State Driver. USB Configuration Configure USB controller and other advanced setting. RUBY-D716VG2AR User’s Manual 4-19...
  • Page 65 Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Choices: Enabled, Disabled. PCH USB Configuration Control each of the USB ports disabling. USB Ports Per-Port Disable Choices: Enabled, Disabled. RUBY-D716VG2AR User’s Manual 4-20...
  • Page 66 BIOS Setup Information ME Configuration Configure Management Engine Technology Parameters. Intel (R) ME Enable/Disable Intel (R) Management Engine. Choices: Enabled, Disabled. fTPM Switch Selection Selects the desired fTPM solution to be used. Choices: GPDMA Work-Around, MSFT QFE Solution. RUBY-D716VG2AR User’s Manual 4-21...
  • Page 67 Choices: Disabled, 2E8/IRQ4, 2F8/IRQ3, 4E0/IRQ10, 4E8/IRQ10, 4F0/IRQ10, 4F8/IRQ10, 3E0/IRQ11, 3E8/IRQ11, 3F0/IRQ11, 3F8/IRQ11 COM2 Configuration Select Com2 Configuration. Choices: RS-232, RS422, RS485. Watch Dog Timer Select Choices: Disabled, 15 secs, 30 secs, 1 min, 2 mins, 3 mins. RUBY-D716VG2AR User’s Manual 4-22...

  • Page 68: Hardware Monitor

    BIOS Setup Information Hardware Monitor Provide on board sensor reading information. (Show only) RUBY-D716VG2AR User’s Manual 4-23...
  • Page 69 BIOS Setup Information CPU Fan Feature CPU/System Fan Control Smart Fan Control Choices: Enabled, Disabled. RUBY-D716VG2AR User’s Manual 4-24...
  • Page 70 BIOS Setup Information Serial Port Console Configuration Configure console redirection on serial port. Console Redirection Control Console Redirection enable/disable. Choices: Enabled, Disabled RUBY-D716VG2AR User’s Manual 4-25...
  • Page 71 BIOS Setup Information SMBIOS Event Log Clears SMBIOS events. Choices: Enter RUBY-D716VG2AR User’s Manual 4-26...

  • Page 72: Security

    Press Enter to type Supervisor Hint String. Set User Password Set or clear the User account’ password. Supervisor Hint String Press Enter to type User Hint String. Min. password length Set the minimum number of characters for password (1-20). RUBY-D716VG2AR User’s Manual 4-27...

  • Page 73: Boot

    Keys used to view or configure devices: ↑ and ↓ arrows Select a device. ‘+’ and ‘- ‘move the device up or down. ‘Shift + 1’ enabled or disables a device. ‘Del’ deletes an unprotected device. RUBY-D716VG2AR User’s Manual 4-28...

  • Page 74: Exit

    Load settings for optimized boot time and system performance. Discard Changes Load the original value of this boot time. Not the default Setup value. Save Changes Save all changes of all menus, but do not reset sys RUBY-D716VG2AR User’s Manual 4-29...

  • Page 75: Chapter 5 Troubleshooting

    Hardware Quick Installation ATX Power Setting RUBY-D716VG2AR supports ATX. Therefore, there is no other setting that really needs to be set up. However, there are only two connectors that must be connected— J7 (4 pins CPU +12V main power connector) & J35 (24 pins ATX Power Connector)

  • Page 76: Bios Setting

    BIOS setting back to the initial factory configuration. It is recommended do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any...
  • Page 77 Usable IRQ 【Unassigned】 IRQ 10 Usable IRQ 【Unassigned】 Usable IRQ IRQ 11 【Unassigned】 IRQ 12 System ROM IBM Mouse Event IRQ 13 System ROM Coprocessor Error System ROM Hard Disk Event IRQ 14 IRQ 15 Usable IRQ 【Unassigned】 RUBY-D716VG2AR User’s Manual...
  • Page 78 Troubleshooting RUBY-D716VG2AR User’s Manual...

  • Page 79: Faq

    IRQ numbers. Installation Problem Question: How to update the BIOS file of the RUBY-D716VG2AR? Answer: Please visit web site of the Portwell download center as below hyperlink and registeran account. http://www.portwell.com.tw/support/ Input your User name and password to log in the download center. Select the "Search download" to input the keyword "RUBY-D716VG2AR".

  • Page 80: System Memory Address Map

    0070-0548 0549-0FC2 Program Area 0FC3-9AFF 556K 【Available】 9B00-9CFF Unused First Meg -- Conventional memory end at 628K -- Extended BIOS Area 9D00-9DFF Unused 9G00-9FFF A000-AFFF VGA Graphics B000-B7FF Unused VGA Text B800-BFFF C000-CE9F Video ROM CEA0-D09F Unused RUBY-D716VG2AR User’s Manual...
