RUBY-D718VG2AR

Portwell

Version 1.3

RUBY-D718VG2AR

User's Guide

Table of Contents

Need help?

Do you have a question about the RUBY-D718VG2AR and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell RUBY-D718VG2AR

Page 2 RUBY-D718VG2AR Revision History R1.0 Preliminary R1.1 Modify jumper(JP1) R1.2 Update support KBL information R1.3 Add support KBL information Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 3: Table Of Contents
System Resources ........................................ 27 Intel® Kabylake / Skylake-S PCH ................................27 Main Memory ......................................27 Installing the Single Board Computer ..............................27 6.3.1 Chipset Component Driver ................................28 6.3.2 Intel® HD Graphics 530 ................................28 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 4 Boot ......................................77 7.2.5 Save & Exit ....................................79 Trobleshooting ........................................81 Hardware Quick Installation ................................... 81 BIOS Setting ......................................83 FAQ ........................................84 Portwell Software Service ...................................... 88 Industry Specicications ......................................89 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 5: Preface
Portwell provides no warranty with regard to this user‘s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user‘s guide.
Page 6 Warranty‖). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non-conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell‘s option and expense.
Page 7: Introduction

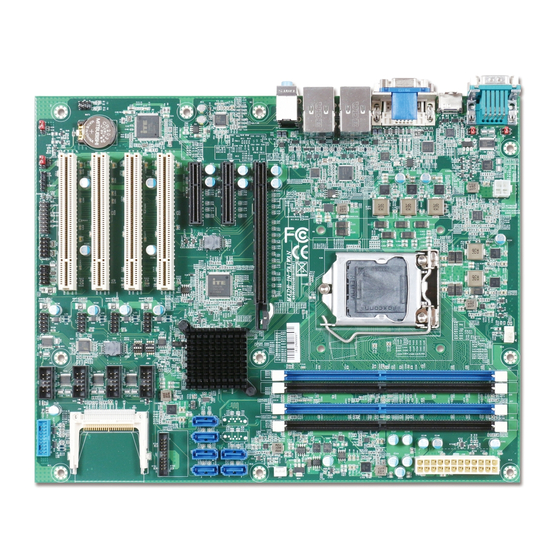

RUBY-D718VG2AR 1 Introduction RUBY-D718VG2AR based on the Intel® Core™ Processor which offers 14nm Hi-K process technology with energy efficient architecture. RUBY- D718VG2AR adopts four DDR4 long DIMM sockets and supports up to 64GB memory. Desktop solution is still popular in the market of DVR and Factory Automation which can fulfill most of these applications; therefore, with high performance and...
Page 8: Specifications
◆Support PS/2 Keyboard and mouse connector (Pin Header) Input/ Output ◆USB Port: 6 x USB 3.0, 8 x USB 2.0 ◆GPIO connector: 8-bit general purpose Input/ Output ◆Audio Interface: Connector for Mic-In, Line-In and Line-Out Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 9: Supported Operating Systems
◆Board size: 304.8mm x 234.8 mm (12" x 9.6") Supported Operating Systems Windows 7/e support Windows 8.1 / WEI 8.1 support Windows 10 full support Kernel.org Distribution Yocto based Embedded Linux Distribution Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 11: Power Consumption
RUBY-D718VG2AR Power Consumption System Configuration CPU Type Intel® Core™ i7-6700TE CPU @2.4GHz SBC BIOS Portwell, Inc. RUBY-D718VG2AR TEST BIOS (51127T00) Memory WARIS DDR4 UB-DIMM 2133 8GB*4 VGA Card Onboard Intel® HD Graphics 530 VGA Driver Intel® HD Graphics 530 Ver:20.19.15.4326 LAN Card Onboard Intel®...
Page 12: Environmental Specifications
System+ Device +5V 1.82A 2.15A 2.16A USB2.0 Loading Test 4.86V/ 450 mA USB3.0 Loading Test 4.84V/ 900 mA Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 14: Hardware Configuration
RUBY-D718VG2AR 4 Hardware Configuration Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Figure 1, RUBY-D718VG2AR Top View Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 15: Jumpers Settings
Jumpers Settings For users to customize RUBY-D718VG2AR‘s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 16 3-5, Short JP5: Clear CMOS PIN No. Signal Description 1-2 Short Normal Operation 2-3 Short Clear CMOS Contents JP6: SATA Port Selection PIN No. Signal Description 1-2, Short CFEX (J34) 1-2, Open SATA Connector(J28) Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 17: Connector Settings
Audio Jack ( Mic + Line in + Line out ) RJ45 + USB3.0 Connector RJ45 + USB3.0 Connector SMBUS Pin HDR 5x1 pin header +12V Power Connector CPU Power PCIe x 4 Slot Gen3 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 18 SATA GEN3 Connector J35 & J29 For C236 PCH J35/J36/J39/J40 Internal USB3.0 Pin HDR CFEX ATX 24 Pin Power Connector System FAN Power Connector PCI Slot1-4 PCI Slot BIOS EEPROM Socket EC EEPROM Socket Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 19 PIN No. Signal Description PWR_LED (+) Buzzer (+) PWR_LED (-) LAN1_ACT_LED (+) LAN1_ACT_LED (-) Buzzer (-) LAN2_ACT_LED (-) Power On (-) LAN2_ACT_LED (+) Power On (+) HDD_LED (+) Reset (+) HDD_LED (-) Reset (-) Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 20 Signal Description Mouse Data Keyboard Data Ground Ground +5V_Dual +5V_Dual Mouse Clock Keyboard Clock J16/J17/J18/J19: Internal USB2.0 Pin HDR PIN No. Signal Description PIN No. Signal Description +5V_Dual +5V_Dual USB- USB- USB+ USB+ Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 21 PIN No. Signal Description PIN No. Signal Description Ground J33 : Internal USB3.0 Connector PIN No. Signal Description PIN No. Signal Description USB3_RXN USB3_RXN USB3_RXP USB3_RXP USB3_TXN USB3_TXN USB3_TXP USB3_TXP USB2_N USB2_N USB2_P USB2_P Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 22 RUBY-D718VG2AR J37 : TPM Pin HDR PIN No. Signal Description PIN No. Signal Description Clock LFRAME# PLTRST# LAD3 LAD2 +3.3V LAD1 LAD0 SMB_CLK SMB_DATA +3V_Dual SERIRQ Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 23: Signal Description
#Define WDTCFG 0x06//WDT Timer Coutrol Register #Define WDTMIN 0x07//WDT Timer Counter Register (Minute) #Define WDTSEC 0x08//WDT Timer Counter Register (Second) VOID Write_EC_SRAM(UINT8 Offset,UINT8 Value){ IoWrite8(0xE300+Offset,Value); Byte Read_EC_SRAM(UINT8 Offset){ IoRead8(0xE300+offset,Value); return Value; void WDT() // Enable WDT 30sec Write_EC_SRAM(WDTSEC,30); Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 24 RUBY-D718VG2AR Write_EC_SRAM(WDTCFG,0x01);//Bit0: WDT Enable, BIT1: 0:Second Mode // Enable WDT 5min Write_EC_SRAM(WDTSEC,5); Write_EC_SRAM(WDTCFG,0x03);//Bit0: WDT Enable, BIT1: 1:Minute Mode // Enable WDT 10min, 20sec Write_EC_SRAM(WDTSEC,20); Write_EC_SRAM(WDTSEC,10); Write_EC_SRAM(WDTCFG,0x03);//Bit0: WDT Enable, BIT1: 1:Minute Mode Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 25: Gpio Signal
#Define GPDR 0x2C//GPIO Data Register, Bit7 = GPIO7, Bit6 = GPIO6, ..., 0: Low; 1: High VOID Write_EC_SRAM(UINT8 Offset,UINT8 Value){ IoWrite8(0xE300+Offset,Value); Byte Read_EC_SRAM(UINT8 Offset){ IoRead8(0xE300+offset,Value); return Value; void GPIO() int Temp; // Get GPIO data Temp = Read_EC_SRAM(GPDR); Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 27: System Resources
Step 2 : Install and configure CPU,CPU cooling and memory module on right position Step 3 : Place RUBY-D718 into the dedicated position in the system Step 4 : Attach cables to existing peripheral devices and secure it Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 28: Chipset Component Driver
RUBY-D718 supports DVI-D, VGA, HDMI display port. This combination makes RUBY-D718 an excellent performance hardware. Drivers Support Please find the Graphic driver in the RUBY-D718 CD-title. The driver supports Windows 8. Note: If you select H110 chipset, the board only can support dual display. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 29: Intel Lan I211At/I219Lm Gigabit Ethernet Controller
- Intel I210AT Gigabit Ethernet controller and 1x RJ45 connectors on rear I/O - Intel I219LM Gigabit Ethernet controller and 1x RJ45 connectors on rear I/O Drivers Support Please find Intel I210AT/I219LM LAN driver in /Ethernet directory of RUBY-D718 CD-title. The driver supports Windows 8. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 30: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 31: Main
The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 34 Enabled CTDP control via runtime ACPI BIOS methods. This ―BIOS only‖ feature does not ★Disabled, Enabled. CTDP BIOS control require EC or driver support CPU C states ★Disabled, Enabled. Enable or disable CPU C states Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 36 Control Detection of the HD-Audio device. Disabled, ★Enabled HD Audio Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled ★LPC Bus,PCIE Bus Port 80h Redirection Control where the port 80h cycles are sent Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 37 Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device. ★Disabled, Enabled Un-Configure ME OEMFlag Bit 15: Un-Configure ME without password Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 39 Enabled or disable integrated LAN to wake the system. ★Disabled, Enabled. Launch Legacy PXE Rom.[Disable] Not launch Rom, [Enable] Force launch Rom,[Auto] Launch Legacy PXE Rom ★Disabled, Enabled,Auto Auto detect LAN Cable status to Enable/Disable Rom initial Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 41 Select the Video Device which will be activated during POST. This has no effect if external ★VBIOS Default, DVI,VGA, Primay IGFX Boot Display graphics present. Secondary boot display selection will appear based on your selection. HDMI. VGA modes will be supported only on primary display Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 42 PCI Express clock Gating Enable or disable PCI Express clock Gating for each root port. Enable/Disable the control of Active State Power Management on SA side of the DMI Disabled ★Enabled DMI Link ASPM Control Link. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 44 Set the ASPM Level: ★ Disabled, L0s, Force L0s – Force all links to L0s State ASPM Support AUTO-BIOS auto configure L0sL1, Auto DISABLE – Disables ASPM PCIe Speed Select PCI Express port speed ★Auto,Gen1,Gen2,Gen3 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 46 Designates this port as Hot Pluggable ★Disabled, Enabled External SATA External SATA Support. ★ Hard Disk Drive, Solid SATA Device Type Indentify the SATA port is connected to Solid State Drive or Hard Disk Drive. State Drive Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 48 This is workaround for OSes without XHCI hand-off support. The XHCI ownership change Enabled, ★Disabled XHCI Hand-off should be claimed by XHCI driver. USB Mass Storage Driver Disabled, ★Enabled Enable/Disable USB Mass Storage Driver Support. Support Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 50 USB Port Disable Override Selectively Enable/Disable the corresponding USB port from reporting a Device ★Disabled, Select Per-Pin (Select Per-Pin) Connection to the controller. USB HS Physical Connector #0-9,#12-13 Enable /Disable USB port. ★Enabled, Disabled Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 52 Select 0 for daily system wake up 1-31 for which day of the month that you would Wake up day like the system to wake up Wake up Time(HH: mm: ss) Use [Enter], [TAB] to select field, HH: 0-23, mm: 0-59, ss: 0-59 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 54 TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 1.2, TPM 2.0, ★Auto Device Select TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 56 RUBY-D718VG2AR Feature Description Options Watch Dog Timer ★Disabled, Enabled Enable/Disable Watch Dog Timer (Enabled) Timer Unit ★Second, Minute Select Timer count unit of WDT Timer value Set WDT Timer value ★20 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 58 Description Options Serial Port Enable or Disable Serial Port (COM) Disabled, ★Enabled ★Auto, IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 60 Disabled, ★Enabled RS-232/422/485 Control Option Serial Port 2 RS-232/422/485 Control Option ★RS-232, RS-485 , RS-422 ★Auto, IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 Change Settings Select an optimal settings for Super IO Device. IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 IO=3E8h;IRQ=3,4,5,6,7,9,10,11,12 IO=2E8h;IRQ=3,4,5,6,7,9,10,11,12 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 62 Description Options Serial Port Enable or Disable Serial Port (COM) Disabled, ★Enabled Auto, ★IO=240h; IRQ=11, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal setting for Super IO Device. IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 64 Description Options Serial Port Enable or Disable Serial Port (COM) Disabled, ★Enabled Auto, ★IO=248h; IRQ=11, IO=240h; IRQ=3,4,5,6,7,10,11,12; Change Settings Select an optimal settings for super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12; IO=250h; IRQ=3,4,5,6,7,10,11,12; IO=258h; IRQ=3,4,5,6,7,10,11,12; Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 66 Description Options Disabled, ★Enabled Serial Port Enable or Disable Serial Port (COM) Auto, ★IO=250h; IRQ=10, IO=240h; IRQ=3,4,5,6,7,10,11,12; Change Settings Select an optimal settings for super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12; IO=250h; IRQ=3,4,5,6,7,10,11,12; IO=258h; IRQ=3,4,5,6,7,10,11,12; Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 68 Description Options Serial Port Enable or Disable Serial Port (COM) Disabled, ★Enabled Auto, ★IO=258h; IRQ=10, IO=240h; IRQ=3,4,5,6,7,10,11,12; Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12; IO=250h; IRQ=3,4,5,6,7,10,11,12; IO=258h; IRQ=3,4,5,6,7,10,11,12; Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 70 Smart System Fan Function Enable or Disable Smart System Fan ★Disabled, Enabled (Enabled) System Start Target Temp System Start Fan Target Temperature. ★50 System Full Target Temp System Full fan target temperature. ★50 Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 71 RUBY-D718VG2AR Serial Port Console Redirection Serial Port Console Redirection Feature Description Options Console Redirection (COM 0) ★Disabled, Enabled Console Redirection Enable or Disable. (Enabled) Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 73 VT-UTFB Combo Key Support Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals Disabled, ★Enabled ★Disabled, Enabled Recorder Mode With this mode enabled only text will be sent. This is to capture Terminal data. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 74 The settings specify if BootLoader is selected then Legacy console redirection is ★Always Enable, BootLoader Redirection After BIOS POST disabled before booting to legacy OS. Default value is Always Enable which means Legacy console Redirection is enabled for Legacy OS. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 75: Security
RUBY-D718VG2AR 7.2.3 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 76 [Setup] check password when enter setup screen. Password Check Mode ★Setup, Power on [Power on] check password on every time system power on. Administrator Password Set Administrator Password HDD Security HDD Security Configuration for selected drive. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 78 Enables or disables boot with initialization of a minimal set of devices required to ★Disabled, Enabled Fast Boot launch active boot option. Has no effect for BBS boot options. ★Legacy only, UEFI only Boot option filter This option controls Legacy/UEFI ROMs priority Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 80 Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options. Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 81: Trobleshooting
ATX Power Setting Unlike other Single board computer, RUBY-D718VG2AR supports ATX only. Therefore, there is no other setting that needs to be set up. However, there are only two connectors that must be connected—J9 (4 pins ATX power connector) & J38 (24 pins ATX Power Connector) on the RUBY-D718VG2AR board.
Page 82 The installation of Serial ATA is simpler and easier than IDE, because SATA hard disk doesn‘t require setting up Master and Slave, which can reduce mistake of hardware installation. RUBY-D718VG2AR can support Six SATA interface (SATAIII, 6.0Gb/s) with AHCI or IDE mode. Copyright © Portwell 2016...
Page 83: Bios Setting
To make sure that you have a successful start with RUBY-D718VG2AR, it is recommended, when going with the boot-up sequence, to hit ―Del ‖ or ‖ Esc‖ key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.
Page 84: Faq
Question: I forgot my password of system BIOS, what am I supposed to do? Answer:You can switch off your power supply then find the JP5 of the RUBY-D718VG2AR to set it from 1-2 short to 2-3 short and wait 5 seconds to clean your password then set it back to 1-2 short to switch on your power supply.
Page 85 RUBY-D718VG2AR Question: How to update the BIOS file of RUBY-D718VG2AR? Answer:1. Please visit web site of Portwell download center as below hyperlink http://www.portwell.com.tw/support/download_center.php Registering an account in advance is a must. (The E-Mail box should be an existing Company email address that you check regularly.) http://www.portwell.com.tw/member/newmember.php...
Page 86 BIOS setup menu and switch to “Save & Exit” page then select “Restore Defaults” option and press “Yes” then select “Save Changes and Reset” to finish all BIOS update processes. Copyright © Portwell 2016 RUBY-D718VG2AR User's Guide...
Page 87 RUBY-D718VG2AR Question: What are the display options while using RUBY-D718VG2AR ? Answer: The RUBY-D718VG2AR supports DVI、VGA and HDMI display output. Note: Please visit our Download Center to get the Catalog, User manual, BIOS, and driver files. http://www.portwell.com.tw/support/download_center.php If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink.
Page 88: Portwell Software Service
Portwell BIOS web Tool (PBT) The Portwell BIOS web Tool (PBT) is a brand new on-line utility which innovated by Portwell. PBT now is available for Portwell's premiere customers who are able to add customized BIOS logo and change BIOS default settings on American Megatrends (AMI) BIOS. Please contact Portwell for more information.
Page 89: Industry Specicications
RUBY-D718VG2AR 10 Industry Specicications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0 http://www.serialata.org/...
