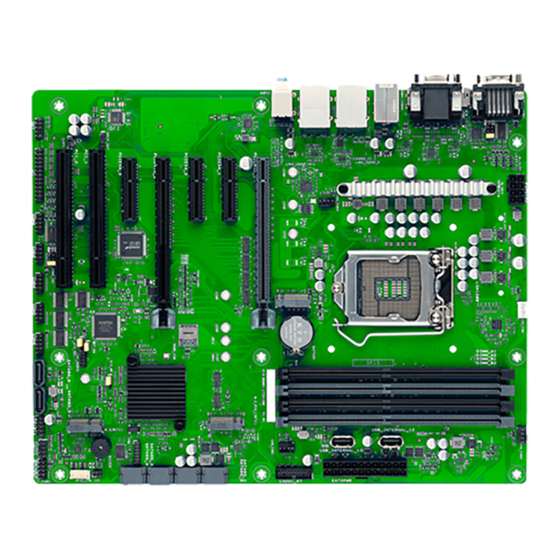

RUBY-D812-Q470E

Industrial ATX Board

Version 1.0

RUBY-D812-Q470E User's Guide

Table of Contents

Need help?

Do you have a question about the RUBY-D812-Q470E and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell RUBY-D812-Q470E

Page 3: Table Of Contents
Main Memory ........................................37 Installing the Single Board Computer ................................... 37 6.3.1 Chipset Component Driver ....................................38 6.3.2 Intel® UHD Graphics 630 ..................................... 39 6.3.3 Intel LAN I2225V / I219LM Gigabit Ethernet Controller ............................39 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 4 7.2.6 Exit ............................................93 Troubleshooting ............................................. 94 Hardware Quick Installation ....................................94 BIOS Setting ......................................... 95 FAQ ............................................96 Portwell Software Service ........................................102 Industry Specifications ......................................... 103 10.1 Industry Specifications ......................................103 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7: Introduction
RUBY-D812-Q470E 1 Introduction RUBY-D812-Q470E based on the Intel® Core™ Processor which offers 14nm Hi-K process technology with energy efficient architecture. RUBY-D812 support dual channels DDR4 Long - DIMM up to 128GB. Desktop solution is still popular in the market of DVR and Factory Automation which can fulfill most of these applications; therefore, with high performance and...
Page 8: Specifications
USB Port: 4x USB 3.2 Gen2(3 x type A, 1 x Type C), 1 x Header support additional 2 x USB3.2 Gen1 Input/Output ◆ connectors & 1 x Header support additional 2 x USB2.0 connectors & 2 x Vertical connector Audio Interface: Line-in / Line-Out / Mic-In ◆ Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 9: Supported Operating Systems
The RUBY-D812 supports the following operating systems.  Windows* 10 IOT Enterprise RS51(64-bit)  Ubuntu, SuSe, Redhat Enterprise 1,2 (Kernel 4.14)  Yocto Project* BSP tool-based embedded Linux distribution1 (64-bit)  Wind River VxWorks 7.0 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 11: Power Consumption
RUBY-D812-Q470E 2.3 Power Consumption Test Configuration CPU Type Intel® Core™ i9-10900TE CPU @ 1.8GHz SBC BIOS Portwell, Inc. RUBY-D812 TEST BIOS (0.04.00) Memory WARIS UB-DIMM DDR4 2133 16GB VGA Card Onboard Intel® UHD Graphics 630 VGA Driver Intel® UHD Graphics 630 ver:26.20.100.7926_Q0 LAN Card Onboard Intel®...
Page 12: Environmental Specifications
System+ Device +12V 0.97A 1.81A 1.56A System+ Device +5V 1.87A USB2.0 Loading Test 4.98 V/ 570 mA 2.4 Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 15~95% Operation Humidity: 10~90% Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 14: Hardware Configuration
RUBY-D812-Q470E 4 Hardware Configuration 4.1 Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 15: Jumpers Settings
DDR4 DIMM slots USB 2.0 connectors / header (USB_INTERNAL_12, USB_INTERNAL_13, USB1011) USB 3.2 Gen 1 header (20-1 pin U32G1_67) M.2 socket 2 (M.2_PCH_(SKT2)) TPM header (14-1 pin TPM) SATA 6.0Gb/s ports (7-pin SATA6G_1-6) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 16 LPT header (26-1 pin LPT) Front Panel Audio header (10-1 pin AAFP) Clear CMOS header (2-pin CLRTC) PCI slots Digital Audio header (4-1 pin SPDIF_OUT) PCI Express 3.0/2.0 x4 slots PCI Express 3.0/2.0 x16 slots Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 17 RUBY-D812-Q470E 1: COM RING/+5V/+12V selection jumper (6-pin COM1_SEL) PIN No. Description +12V 1-2(Short) 2-3(Short) ★RI (Default) 5-6(Short) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 19 3: CPU and Chassis Fan headers (4-pin CPU_FAN, 4-pin CHA_FAN1/2/3) 5: M.2 socket 3 (M.2_PCH_(SKT3)) • The M.2 SSD module is purchased separately. • This socket supports M Key and 2242/2260/2280 storage devices Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 20 RUBY-D812-Q470E 7: USB 2.0 connectors / header (USB_INTERNAL_12, USB_INTERNAL_13, USB1011) NOTE: These Universal Serial Bus (USB) ports / header are for USB 2.0 devices 8: USB 3.2 Gen 1 header (20-1 pin U32G1_67) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 21 RUBY-D812-Q470E 9: M.2 socket 2 (M.2_PCH_(SKT2)) • The M.2 4G/5G module is purchased separately. • This socket supports B Key and 3042/3052 (PCIe x1/USB3.2 GEN1/USB 2.0) devices. 10: TPM header (14-1 pin TPM) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 24 This 2-pin header is for the HDD Activity LED. Connect the HDD Activity LED cable to this header. The IDE LED lights up or flashes when data is read from or written to the HDD. • ATX power button/soft-off button (2-pin PWR_BTN) This 2-pin header is for the system power button. • Reset button (2-pin RESET) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 25 This 2-pin header is for the chassis-mounted reset button for system reboot without turning off the system power. 16: Chassis Intrusion header (4-1 pin CHASSIS) 17: Speaker header (4-pin SPEAKER) 18: Disable ME jumper (3-pin DIS_ME) PIN No. Description ★Normal(Default) 1-2(Short) Disable intel ME function 2-3(Short) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 27 ★High Active 1-2(Short) Low Active 2-3(Short) 22: WDT Enable jumper (2-pin WDT_EN) NOTE: By default, this jumper is set to HW WDT enabled with a jumper cap attached. 23: LPT header (26-1 pin LPT) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 28 NOTE: If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. 27: Digital Audio header (4-1 pin SPDIF_OUT) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 29: Signal Descriptions
Outportb(SIO_INDEX_PORT, 0xF0); //select WDT setting val = Inportb(SIO_DATA_PORT) // Read current WDT setting val = val | 0x08; // minute mode, val = val & 0xF7 if second mode Outportb(SIO_INDEX_PORT, 0xF0); //select WDT setting Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 30 Outportb(SIO_DATA_PORT, Time); // Write WDT time, value 1 to 255 Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO 3. Enable WDT Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO Outportb(SIO_INDEX_PORT, 0x07); // select device Outportb(SIO_DATA_PORT, 0x08); // device 8 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 31 Outportb(SIO_DATA_PORT, 0x00); // Clear WDT time, it means WDT Time-Out disable Outportb(SIO_INDEX_PORT, 0x30); //select WDT status port val = Inportb(SIO_DATA_PORT) // Read current WDT status val = val & 0xFE; // Disable WDT Timer Outportb(SIO_INDEX_PORT, 0x30); //select WDT status port Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 32: Gpio Signal
Outportb(SMBUS_BASE + 0x04, 0x41); // Set SMBus Slave Address to 0x40 and excute Read flow Outportb(SMBUS_BASE + 0x03, 0x00); // Set SMBus Reg val = Inportb(SMBUS_BASE + 0x02); val = val | 0x40; Outportb(SMBUS_BASE + 0x02, val); // Excute SMBus Command Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 33 = val | 0x40; Outportb(SMBUS_BASE + 0x02, val); // Excute SMBus Command Status = Inportb(SMBUS_BASE + 0x00); // Get SMBus Status while (!(Status & 0x8E)) { // Wait for SMBus finished command Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 34 Status = Inportb(SMBUS_BASE + 0x00); // Get SMBus Status while (!(Status & 0x8E)) { // Wait for SMBus finished command MicroSecondDelay(10); Status = Inportb(SMBUS_BASE + 0x00); val = Inportb(SMBUS_BASE + 0x05); // Get SMBus Data Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 35 Outportb(SMBUS_BASE + 0x02, val); // Excute SMBus Command Status = Inportb(SMBUS_BASE + 0x00); // Get SMBus Status while (!(Status & 0x8E)) { // Wait for SMBus finished command MicroSecondDelay(10); Status = Inportb(SMBUS_BASE + 0x00); Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 36 Outportb(SMBUS_BASE + 0x02, val); // Excute SMBus Command Status = Inportb(SMBUS_BASE + 0x00); // Get SMBus Status while (!(Status & 0x8E)) { // Wait for SMBus finished command MicroSecondDelay(10); Status = Inportb(SMBUS_BASE + 0x00); Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 37: System Resources
Step 1 : Check all jumpers setting on proper position Step 2 : Install and configure CPU,CPU cooling and memory module on right position Step 3 : Place RUBY-D812 into the dedicated position in the system Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 38: Chipset Component Driver
RUBY-D812 is based on Intel® Q470E chipset and desktop processors including Core™ i7 / i5 / i3 sku . It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 10, please install its INF before any of other Drivers are installed. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 39: Intel® Uhd Graphics 630
- Intel I219LM Gigabit Ethernet controller and 1x RJ45 connectors on rear I/O Drivers Support Please find Intel I225V / I219LM LAN driver in the RUBY-D812 of Portwell download center. The driver supports Windows 10. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 40: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 42: Main
System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 44 Selects TPM device: PTT or dTPM. PTT-Enable PTT in SkuMgr dTPM1.2 –Disables ★PTT, dTPM TPM Device Selection PTT in SkuMgr Warning! PTT/Dtpm will be disabled and all data saved on it will be lost. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 45 Trusted Computing Settings Feature Description Options Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG ★Enable, Disable Security Device Support EFI protocol and INT1A interface will not be available. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 47 If value is 0, BIOS will program this value as 1.25*TDP. For 12.50w, enter Power Limit 2 ★0 12500. Processor applies control policies such that the package power does not exceed this limit. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 49 Enhanced C-states enter C-State. ★Auto, C0/C1,C2,C3,C6, Maximum Package C State Limit Setting. CPU Default: Leaves to Factory default value. Package C State Limit C7,C7S,C8,C9,C10,Cpu Auto: Initializes to deepest available Package C State Limit. Default Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 50 Select which of IGFX/PEG Graphics device should be Primary Display Or select ★Auto, IGFX,PCI,PEG Primary Display SG for Switchable Gfx. ★Auto ,Disabled ,Enabled Internal Graphics Keep IGFX enabled based on the setup options. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 51 PCI Express Configuration Feature Description Options ★Auto mode , PCIe x8/x4/x4 mode HYPER_PCIeX16 HYPER_PCIeX16 PCIE x16/x8 Slot PCIE x16/x8 Slot Options PCIEX4_1(X2) PCI Express Root Port Settings PCIEX4_2/ PCIEX4_3 PCI Express Root Port Settings Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 53 Force PEG link to retrain to x1/2/4/8 ★Disabled, Auto, ASPM L0s, ASPM L1, Control ASPM support for the PEG 2. This has no effect if PEG is not currently active ASPM device. ASPM L0sL1 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 54 ★0 the port. Detect Non-Compliance PCI Express Device. If enable, it will take more time at ★Disabled, Enabled Detect Non-Compliance Device POST time. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 55 ★0 the port. Detect Non-Compliance PCI Express Device. If enable, it will take more time at ★Disabled, Enabled Detect Non-Compliance Device POST time. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 56 Note: This option does not disable Manageability Features in FW. USB Provisioning of AMT Enable/Disable of AMT USB Provisioning. ★Disabled, Enable ★Enabled ,Disabled End Of Post Message Enable/Disable End of Post message sent to ME Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 57 Description Options Change Secure Erase module behavior: ★Simulation, Real Secure Erase mode Simulated: Performs SE flow without erasing SSD Real: Erase SSD. ★Disabled, Enable Force Secure Erase Force Secure Erase on next boot Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 58 Press 1 to enter ME Configuration Screens Press 2 to initiate a remote connection Note: Network Access must be activated from MEBx Setup for this screen to be displayed. ★Disabled, Enable Unconfigure ME OEMFlag Bit 15: Unconfigure ME with resetting MEBx password to default. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 60 Controls the execution of UEFI and Legacy Video OpROM ★UEFI, Do not launch, Legacy ★UEFI, Do not launch, Legacy Other PCI device Determines OpROM execution policy for devices other than Network, Storage, or Video Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 61 Serial Port 4 Configuration Set Parameters of Serial Port4(COMD) Serial Port 5 Configuration Set Parameters of Serial Port5(COME) Serial Port 6 Configuration Set Parameters of Serial Port6(COMF) Parallel Port Configuration Set Parameters of Parallel Port(LPT/LPTE) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 62 RUBY-D812-Q470E Serial Port 1 Configuration Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled ,Disabled COM1 Control Select COM1 mode. RS232, RS422 or RS485 ★RS232,RS422,RS485 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 63 RUBY-D812-Q470E Serial Port 2 Configuration Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled ,Disabled COM2 Control Select COM2 mode. RS232, RS422 or RS485 ★RS232,RS422,RS485 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 64 RUBY-D812-Q470E Serial Port 3 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 65 RUBY-D812-Q470E Serial Port 4 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 66 RUBY-D812-Q470E Serial Port 5 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 67 Serial Port 6 Configuration Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled ,Disabled ★Auto, IO=2F0h;IRQ=7 IO=3E8h;IRQ=3,4,5,6,7,9,10,11,12; Change Settings Select an optimal settings for Super IO Device. IO=2E8h;IRQ=3,4,5,6,7,9,10,11,12; IO=2F0h;IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h;IRQ=3,4,5,6,7,9,10,11,12; Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 69 IO=3BCh;IRQ=5,6,7,9,10,11,12; ★STD Printer Mode, SPP Mode, EPP-1.9 and SPP Mode, EPP-1.7 and SPP Mode, Device Mode Change the Printer Port mode. ECP Mode, ECP and EPP 1.9 Mode, ECP and EPP 1.7 Mode Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 70 The settings specify how the host computer and the remote computer (which the user is Console Redirection Settings using) will exchange data. Both computers should have the same or compatible settings. Legacy Console Redirection Settings Legacy Console Redirection Settings Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 72 With this mode enabled only text will be sent. This is to capture Terminal data. ★Disabled, Enabled Recorder Mode ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX,XTERMR6, SCO, ESCN, Putty KeyPad Select FunctionKey and KeyPad on Putty VT400 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 73 OS. When Always Enable is selected, then Legacy Console Redirect After POST ★Always Enable, BootLoader Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 74 ★AHCI, Intel RST With Intel Optane System Acceleration ★Disabled, Enabled Aggressive LPM Support Enable PCH to aggressively enter link power state. ★Enabled, Disabled Port1~Port6 Enable or Disable SATA Port Hot Plug Designates this port as Hot Pluggable. ★Disabled, Enabled Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 75 Wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the PXE boot wait time ★0 value. Media detect count Number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. ★1 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 77 Enable/Disable this USB Physical Connector (Physical port). Once disabled, any ★Enabled, Disabled USB8~13 USB devices plug into the connector will not be detected by BIOS or OS. ★USB 3.1 Gen1, USB 3.1 Gen2 M.2_PCH_(SKT2) To configure USB3 Port5 Speed Select. (USB3.1)/(USB3.0) Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 79 PSF default will remain and device PCI CFG Space will still be visible. This is needed to allow PCI enumerator access functions above 0 in a multifunction device. ★Enabled, Disabled WIFI (Wi-Fi Controller) Enable/Disable WIFI (Wi-Fi Controller). ★Enabled, Disabled BT (Bluetooth Controller ) Enable/Disable BT (Bluetooth Controller ). Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 81 Wake up hour Select 0-23 For example enter 3 for 3am and 15 for 3 pm. ★0 Wake up minute Select 0-59 for Minute. ★0 Wake up second Select 0-59 for Second. ★0 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 82 RUBY-D812-Q470E IO Expander Configuration IO Expander Configuration Feature Description Options IO Expander GPIO 0~7 ★Output, Input Direction Direction of this GPIO. ★High, Low Output Value Output Value of this GPIO. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 83 Watchdog Timer Feature Description Options ★Enable, Disabled Watchdog Support Enable/Disable Watchdog Support. Watchdog Count mode Select Watchdog Timer I count mode. ★Second Mode, Minute Mode Watchdog Timer Watchdog Timer I Time-out value. ★60 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 84 DMI Link ASPM Control SA side of the DMI Link. PCI Express Configuration ★Disabled, L0s, L1, L0sL1, Auto DMI Link ASPM Control The control of Active State Power Management of the DMI Link. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 85: H/W Monitor
RUBY-D812-Q470E 7.2.3 H/W Monitor Feature Description Options ★Normal, Disabled, Manual Mode Smart Fan Mode Smart Fan Mode Select Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 87 The value of Fan Duty/RPM 2 when temperature is T2. ★178 FD/RPM 3 The value of Fan Duty/RPM 3 when temperature is T3. ★255 FD/RPM 4 The value of Fan Duty/RPM 4 when temperature is T4. ★255 Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 88: Security
RUBY-D812-Q470E 7.2.4 Security Feature Description Options Administrator Password Set Administrator password. User Password Set User Password Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 89: Secure Boot
User mode. The mode change requires platform reset. Secure Boot Mode options: Standard or Custom. In Custom mode, Secure Boot Policy variables can be ★Custom ,Standard Secure Boot Mode configured by a physically present user without full authentication Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 90: Key Management
Enroll Factory Defaults or load certificates from a file: Platform Key(PK) 1.Publuc Key Certificate: Key Exchange Keys a)EFI_SIGNATURE_LIST Authorized Signatures b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX Forbidden Signatures 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 92 ★UEFI, LEGACY Boot mode select Select boot mode LEGACY/UEFI ★Hard Disk, NVME, CD/DVD,SD, USB Hard Disk, USB CD/DVD, Boot Option #1~#10 Sets the system boot order USB Key, USB Floppy, USB Lan, Network, Disabled Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 93: Exit
Restore/Load Default values for all the setup options. Save as Use Defaults Save the changes done so far as User Defaults Restore User Defaults Restore the User Defaults to all the setup options. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 94: Troubleshooting
Unlike other Single board computer, RUBY-D812 supports ATX only. Therefore, there is no other setting that needs to be set up. However, there are only two connectors that must be connected—8-pin EATX12V & 24-pin EATXPW on the RUBY-D812 board. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 95: Bios Setting
To make sure that you have a successful start with RUBY-D812, it is recommended, when going with the boot-up sequence, to hit “delete ” or ” Esc” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 96: Faq
BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 97 3. Find the “BIOS “page and download the ROM file and unzip file to USB flash drive (FAT 32 / 16 format ). 4. Boot into BIOS and switch to “Advanced” page then select” EZ-Flash”. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 100 RUBY-D812-Q470E 6. When you see the “BIOS updated successfully” message, which means the BIOS update processes finished. Please cut the AC power of and wait for 10 seconds before powering on. Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 101 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. https://www.portwell.com.tw/support-center/technical-request/ We will do our best to provide a suggestion or solution for you. Thanks Copyright © Portwell 2021 RUBY-D812-Q470E User's Guide...
Page 102: Portwell Software Service
RUBY-D812-Q470E 9 Portwell Software Service 1. If you have customized requirements of BIOS, you can contact person of our company or branch. 2. If you have requirements of WDT、GPIO APP, you can contact our headquarter or branch, and we can render you assistance on developing.
Page 103: Industry Specifications
RUBY-D812-Q470E 10 Industry Specifications 10.1 Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
