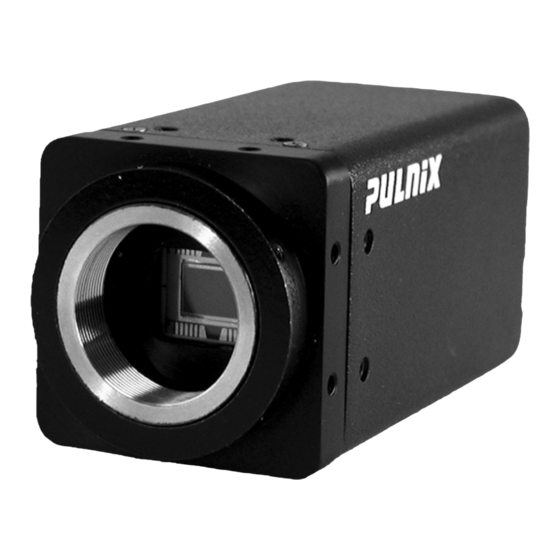

- Page 1 TS-9720EN Series Progressive Scan Shutter Cameras O p e r a t i o n M a n u a l 10157 I m a g i n g P r o d u c t s Rev. A...
- Page 3 The material contained in this manual consists of information that is proprietary to JAI PULNiX, Inc., and may only be used by the purchasers of the product. JAI PULNiX, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
-
Page 5: Table Of Contents
5.3.2 JAI PULNiX Power Cables ....... . . 34 5.3.3 Building Your Own Power Cable . - Page 6 Spectral Response ........52 TS-9720EN Series Progressive Scan Shutter Cameras...
- Page 7 Serial Communication Cable RS-232B-12 (JAI PULNiX part number: 310 132 19) ......33 FIGURE 14.
- Page 8 Factory Default Storage Setup of Image Buffering..44 TABLE 10. TS-9720EN Series Product Specifications Table ... 51 TABLE 11. IR Cut Filter Optical Characteristics ..... 53...
-
Page 9: Introduction
Built-in PowerPC processor running Linux O/S • 64MB SDRAM for image buffering *. Unless specifically mentioned, all information in this manual is relevant to both the TS-9720EN camera (monochrome) and the TSC-9720EN camera (color). TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 10: Product Description
TS-9720EN supports external event triggering, dynamic light sensor and tampering alarm input, and provides the best quality and sensitivity images for ITS applications. Applications include machine vision, medical imaging, intelligent transportation systems, high-definition graphics, on-line inspection, gauging, character reading, archiving, and high-security surveillance. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 11: Getting Started
• Cat5e/6 Ethernet cable • 10/100/1 G Ethernet switch • Debug-232 serial/power cable (JAI PULNiX part number 31013219) 2.2 Network Settings 2.2.1 Default Network Settings for the TS-9720EN Camera The factory default network setting for the TS-9720EN is the following: IP address : 10.0.0.65... -
Page 12: Changing The Ip Address Of The Ts-9720En Camera
Once the software is loaded on your system, find the “EN Setup” software from the Start menu (Start -> EN Setup -> EN Setup). If you are logging in for the first time, you must enter the following case-sensitive user name and password: User Name: Administrator TS-9720EN Series Progressive Scan Shutter Cameras... - Page 13 Click the “Video” button. You can select the cameras in the left window in order to display either a live image, or a triggered image. You can display up to four cameras in a single screen. Adjust the lens as needed. TS-9720EN Series Progressive Scan Shutter Cameras...
-
Page 14: Tutorial
You can create a new user and password from User Administration option. From the “Tools” menu, select “User Administration,” as shown in Figure 2 below. User Administration FIGURE 2. Click the “Properties” button to see all the EN cameras that the software has found on your network. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 15: Camera Properties
Page 7 Tutorial 3.1.2 Camera Properties Properties FIGURE 3. BW EN cameras Color EN cameras Click the camera icon on the left side of the window to see all the config/status registers accessible. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 16: Live Image Capturing/Focusing
The “Snap” button captures only a single video image. The “Freeze” button disables the “Live” image option. Use the “Live” or “Snap” buttons only while the camera is being set up, for when you want to see the maximum frame rate of the video image to focus the lens. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 17: Figure 5. Live Image Capturing
Page 9 Tutorial Live Image Capturing FIGURE 5. Use the “Focus Bar” button to make precise adjustments to the lens focus. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 18: Figure 6. Focus Bar
Page 10 Tutorial Focus Bar FIGURE 6. Use the “Measuring Box” button to make sure the license plate or particular target is in the correct side of the video field of view. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 19: Figure 7. Measuring Box Position
To activate “Half Size,” click on the camera icon and drag it to either the left or right video frame. Click the “Live” button to see the live image. Use the focus tool to make precise adjustments to the lens focus. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 20: Figure 8. Half Size Image Position
Click the “Quad Size” image button to capture four images. Each image will then be reduced from the full 768 x 484 resolution to 384 x 242 resolution. Click and drag the camera icon to the desired quad image frame. Click the “Live” button to see a live image. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 21: Figure 9. "Quad Size" Image Button
EN camera will capture a new image. “Last” trigger mode is the same as “All” trigger mode, except that the EN camera will send the last captured image when you select the “All” button. Flash is activated when the trigger is received. Hardware Trigger Sniffing Mode FIGURE 10. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 22: Image Properties
You can monitor the image properties of captured images, whether it’s “Live,” “Snap,” or “Trigger - Sniffing” mode. On the Video Window menu, select “Image Properties” under “View.” You can also use the EN setup software to monitor the image properties of saved images and FTP images. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 23: Image Transfer
When the number of files in the subdirectory reach 1000, then the EN automatically creates another subdirectory. Naming conventions of the subdirectory can be found in the LC-to-EN interface document. “Destination DIR” is a name of the directory where all “Subdirectories” are located. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 24: Adr (Automatic Dynamic Range) Control
ADR operation can be enabled/disabled by the user at any time. Make sure to set up Moxa (RS-485 to Ethernet converter) properly. See (VIS300 manual Appendix A). In the camera’s “Properties” window, set up the light sensor’s IP address and Port number. These numbers must be consistent with Moxa’s setting. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 25: Flash Nighttime Light Control
“Camera ADR Control” register to “Manual.” 3.3.2 Flash Nighttime Light Control The strobe and continuous nighttime light can be manually turned on and off. Set “Flash Auto/Manual” and “Night light Control” registers to Manual OFF or ON. TS-9720EN Series Progressive Scan Shutter Cameras... - Page 26 In this setting, in the evening when light sensor reading drops below 12, Flash and Night Light are turned on. And in the morning when the light sensor reading rises above 17, Flash and Night Light are turned off. TS-9720EN Series Progressive Scan Shutter Cameras...
-
Page 27: Time Synchronization
“NTP Status” must show USYNC, and “NTP estimated error” is max. After 3-4 hours, the time drift will become within 10ms. Check “NTP estimated error” and “NTP Status” registers again. “NTP Status” must be showing “PLL.” This means that NTP is finally synchronized properly. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 28: Static Ip Address Assignment
If you know the current IP address of the camera, you can telnet directly to the EN camera. Login as User name = root, Password = JAI PULNiX. If you want to assign a new IP address temporarily, you can use the “ifconfig” utility. If you want to assign a new IP address permanently, you can use the “test_libcamera”... - Page 29 Page 21 Tutorial Reboot the camera. In the next power-up, the camera will get the IP address dynamically from the DHCP server. TS-9720EN Series Progressive Scan Shutter Cameras...
-
Page 30: Maintenance
= number of hardware TTL triggers that passed noise filter, PRE filter, and POST filter. • VINIT count = number of reset signals sent to CCD • IRQ count = number of interrupt generated by FPGA to PowerPC TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 31: Firmware Upgrade
You can update the five pieces of firmware inside the EN camera. Each piece of firmware has a distinctive extension. Firmware Names and Descriptions TABLE 1. Firmware Name Description Filename conversion EN Application Top-level application en_YYMMDDVR.app FPGA Bit file FPGA firmware xc2s200e_YYMMDDVR.bit TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 32: Rs-232 Powerpc Debug Port
Ethernet is not available. In this tutorial, we suppose we have accidentally assigned an invalid IP address to the EN camera, and now we cannot communicate with the EN camera over Ethernet. When this happens, there are two recovery methods. TS-9720EN Series Progressive Scan Shutter Cameras... - Page 33 The first method requires setting the Hyperterminal to the following setting (9600-8-N-1. No hardware handshake). Power up the EN camera. You should see the monitor message in the serial terminal. Type the “/” key within three seconds. TS-9720EN Series Progressive Scan Shutter Cameras...
- Page 34 Enter “1” again to select “Change local address.” Enter the new IP address. After setting the new IP address, type “0” to exit the monitor menu. After the boot-up sequence, login to the serial terminal. (Username = root, Password = JAIPULNiX) TS-9720EN Series Progressive Scan Shutter Cameras...
- Page 35 IP address = 10.0.0.65. Subnet mask = 255.255.255.0. If eth0 is not running or if you want to change to a different IP address, you can set the temporary network setting just to enable a FTP, TELNET, or Ethernet connection. TS-9720EN Series Progressive Scan Shutter Cameras...
- Page 36 : read Subnet mask ws : write Subnet mask rg : read Gateway wg : write Gateway Change the IP assignment/IP address/SubnetMask/Gateway. Reboot the camera. The new IP address/ subnet mask are used at the next power-up. TS-9720EN Series Progressive Scan Shutter Cameras...
-
Page 37: Uploading The Firmware
Left-mouse click on the camera you want. Find the version numbers. 4.2 Updating the EN Application Software The EN setup software is used to update the EN application software. The method is described below. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 38: Updating The Fpga Bitfile
You can update the camera’s firmware using the EN setup software. To do so, follow the steps below. Start the EN setup software. Click the “Properties” button. Right-click on the camera, and select “Update Firmware.” TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 39: Updating The Firmware Manually When The Network Is Down
Update EN App file test_bcs -b xc2s200e_YYMMDDVR.bin Update FPGA bitfile test_bcs -l libdrv_YYMMDDVR.drv Update Lib/Drv file test_bcs -o vmlinuz_YYMMDDVR.osi Update OS image Reboot the EN camera (command “reboot”). The new firmware is loaded at the next power-up. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 40: Connectors And Cables
Pin # Description GND (Power) Tamper Input +12V Input Reserved RxD for Laser Detector LVD / IO Selector (TTL) TxD for Laser Detector Ethernet D+ (spare) (TTL) DIR Control for Laser Ethernet A- Detector (TTL) TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 41: 10/100 Baset Ethernet
10/100 BaseT Ethernet Pinout Configuration 10/100 BaseT Ethernet Pinout Configuration Ethernet TxD A+ Ethernet TxD A- Ethernet RxD B- Ethernet RxD B+ 5.2 RS-232 Communication Cable Serial Communication Cable RS-232B-12 (JAI PULNiX part number: 310 132 19) FIGURE 13. 2000±20mm 40±3mm 1925±10mm Receptacle Jack The RS-232B-12 interface cable is used to debug the PowerPC processor. -
Page 42: Power Supplies And Power Cable Setup
5.3.2 JAI PULNiX Power Cables If you are using JAI PULNiX power cables such as the 12P-02S, please refer to the 12-pin connector pin-out diagram in “12-Pin Connector” on page 32. The cable pin-out diagram is shown in Figure 14 below. -
Page 43: Building Your Own Power Cable
Do not force the lens if it does not seat properly. Please note that some lenses with extremely long flangebacks may exceed the mounting depth of the camera. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 44: Camera Features
HD and the internal VD is delayed to set up the shutter speed period. The shutter speed is controlled by the dial switch from “0” to “F.” Video output timing starts right after the internal VD and single shots, FDV is output at the internal VD timing. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 45: Figure 15. Timing Chart 1
Page 37 Camera Features Timing Chart 1 FIGURE 15. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 46: Adr (Automatic Dynamic Range) Control
(See Section 7.2, “Problem 2: EN Setup Software Found the Camera, But the Video Image is Too Dark or Just Black,” on page 47). The following exposure times are supported: TABLE 5. Exposure Times Shutter Dial Exposure Time (H) TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 47: Video Amplifier Gain Control
The following table shows the gain setting vs actual gain (dB): TABLE 7. Gain Table (BW EN Camera) Gain Value 27.5 Note: Gain Value is Gain entry in camera LUT after calibration. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 48: A/D Converter Parameter (Vtop And Vbottom)
While manual controls exist for changing Vtop and Vbottom, JAI PULNiX does not recommend that users change the Vtop and Vbottom settings established by the ADR algorithm. A great deal of knowledge is required to set these values correctly, and it is possible to set these parameters so that the A-to-D circuit will not function correctly. -
Page 49: External Control
User’s Guide (Doc Number 4087-72-005). 6.6 Color Filter Array (Color Version) JAI PULNiX TS-9720EN cameras use the staggered “3G” color mosaic filter pattern (see Figure 16 below). The CFA contains 75% green photo sites and 25% red and blue photo sites. -
Page 50: Image Formats
JPEG is the industry-standard format for lossy image compression. Output file size, quality and speed of the encoding depends on the quality setting. The user can set the proper quality setting by accessing the “JPEG Quality Factor” config register (Address = 46). The factory default is 85. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 51: Image Transfer
EN camera, then the EN camera sends TCP image (TIF, or JPEG, or both) over the Control channel. For detailed register and interface information, please refer to the “EN to LC Interface” document. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 52: Image Buffering
An API (application program interface) for Windows is available. Using an API, the time required to develop software for device discovery, command communication, and image transfer can be shortened. Please contact JAI PULNiX for further information. 6.9 Image Buffering Full size TIF images, JPEG images, and ODD/EVEN field images are independently managed in image buffers. -
Page 53: Ftp
Therefore, you need to send Ethernet command to synchronize the clock from host PC on a regular basis (twice a day, every day, or every few days). Write “Real Time Clock UTC” register TS-9720EN Series Progressive Scan Shutter Cameras... - Page 54 Page 46 Camera Features (Address = 102). Please note that the internal millisecond counter is reset to zero when you write a new value to the “Real Time Clock UTC” register. TS-9720EN Series Progressive Scan Shutter Cameras...
-
Page 55: Troubleshooting
If TTL trigger pulse is noisy, then the trigger noise filter may reject the trigger input. TTL trigger pulse width smaller than pre-defined trigger filter time is ignored automatically by the FPGA as noise. The trigger noise filter factory default setting is 100us. TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 56: Problem 4: Jpeg Image Is Either Corrupt Or Not A Full-Size Image
(1) Basic settings (2) Network settings (3) Serial settings (4) Operating settings (5) Accessible IP settings (6) Auto warning settings (7) Monitor (8) Ping (9) Change password (a) Load factory default (v) View settings (s) Save/Restart TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 57: Problem 7: Io Board Communication Error
EN camera may not match that of the IO board communication UART. In this situation, you need to set the EN IO board rate register to 9600 bps, so that it matches the IO board UART factory default (9600bps). TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 58: Problem 8: Night Time Image Is Too Bright And License Plate Is Whited Out Or Saturated
For further information and support: Phone: (408) 383-0300 (800) 445-5444 Fax: (408) 383-0301 E-mail: imaging@jaipulnix.com Mail: JAI PULNiX, Inc. Sales Department 625 River Oaks Parkway San Jose, CA 95134 ATTN: Video Applications Web Site: www.jaipulnix.com TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 59: Appendix
50dB min. (AGC off) Color Mixture 0.5% max (color model only) Min. Illumination 1.0 lux, f=1.4 (no shutter) @ 30fps Video Output Digital output: JAI PULNiX proprietary protocol over TCP/IP Gamma Gamma 0.55 for BW Linear for Color Lens Mount C-mount Power Req. -
Page 60: Physical Dimensions
DIGITAL I/O 90.57 [3.566] 22.23 [0.875] 99.67 [3.924] 44.45 [1.750] 8x 10.09 [0.397] 8x M3 x 4.6 [0.181] 18.00 [0.709] 8.3 Spectral Response Spectral Response (B/W CCD for TS-9720EN) FIGURE 19. 1000 Wavelength (nm) TS-9720EN Series Progressive Scan Shutter Cameras... -
Page 61: Figure 20. Spectral Response (Color Ccd For Tsc-9720En Only)
1100 wavelength (nm) TABLE 11. IR Cut Filter Optical Characteristics Wavelength Transmission from 450 to 650 nm Average 80% above 730 ± 20 nm Average 50% from 800 to 1,150 nm Average 10% below TS-9720EN Series Progressive Scan Shutter Cameras... - Page 62 Page 54 Appendix TS-9720EN Series Progressive Scan Shutter Cameras...
- Page 63 I m a g i n g P r o d u c t s JAI PULNiX, Inc. Tel: 408-383-0300 625 River Oaks Pkwy Tel: 800-445-5444 San Jose, CA 95134 Fax: 408-383-0301 Email: imaging@jaipulnix.com w w w . j a i p u l n i x . c o m 10157 Rev.
